Section 208 (Wheel Alignment Specifications & Adjustment Procedures): CAMRY: Specifications

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

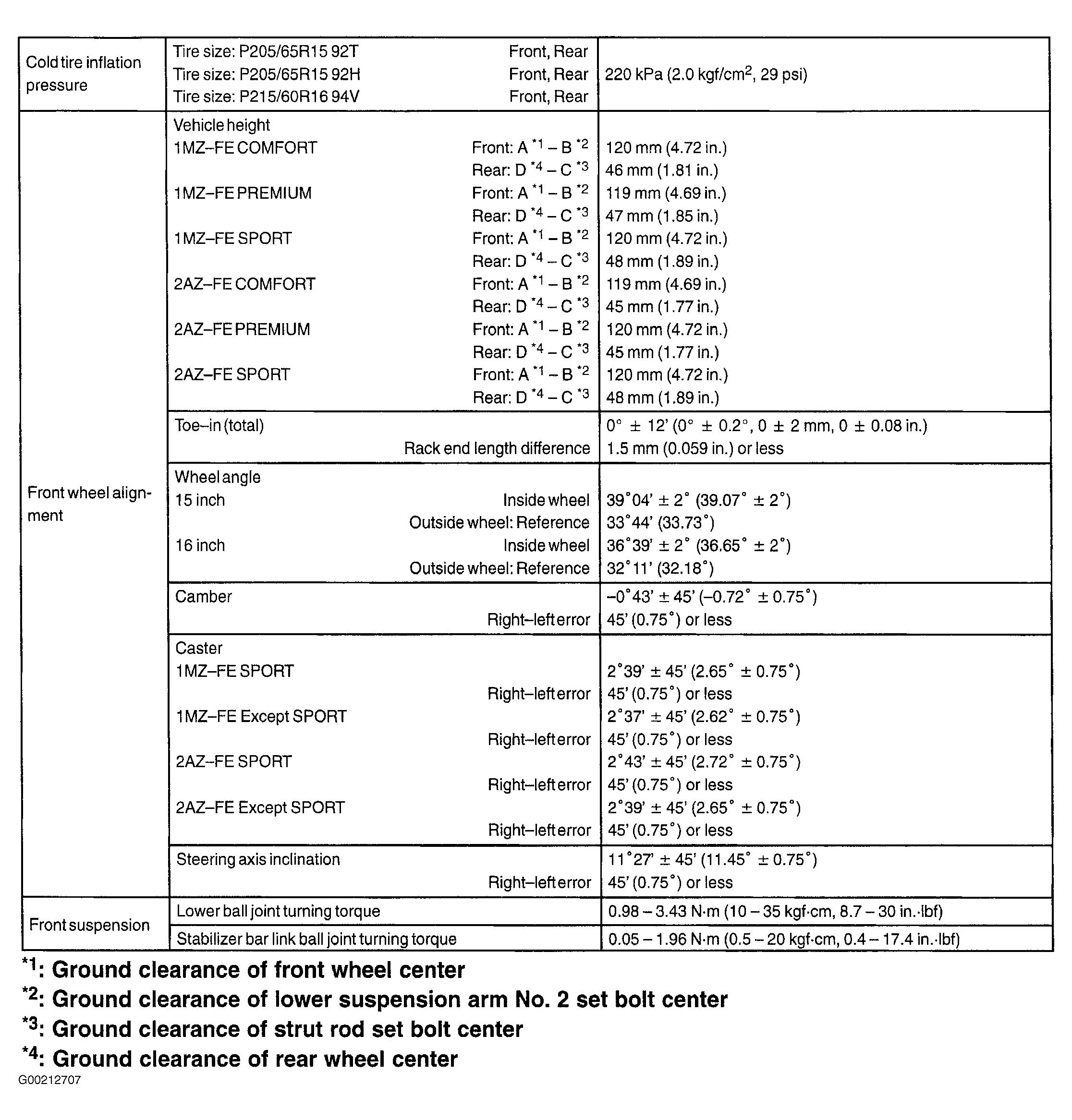

Fig 1: Wheel Alignment Specifications - Front (Camry)
G00212707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

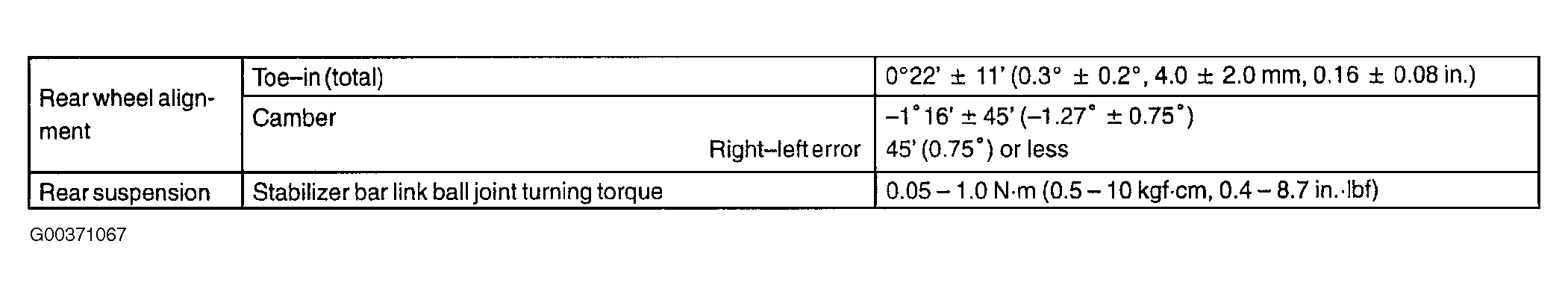

Fig 2: Wheel Alignment Specifications - Rear (Camry)
G00371067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
