Rear Wheel Alignment

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

Measure vehicle height (see MEASURE VEHICLE HEIGHT ) .
NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.
Inspect camber .
1. Camber:

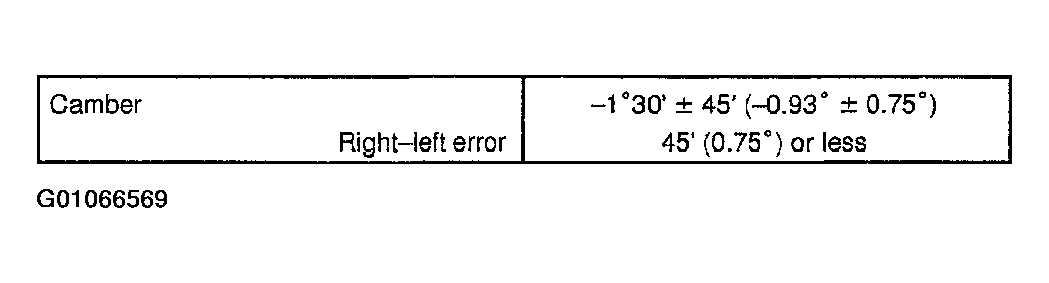

  Fig 1: Identifying Camber Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the measured value is not within the specified value, inspect the suspension parts for damage and/or wear and replace them if necessary because camber is not adjustable.
Inspect toe-in .
1. Toe-in:

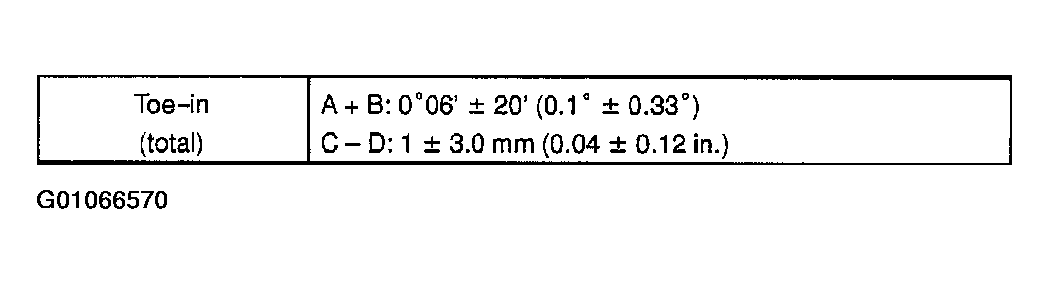

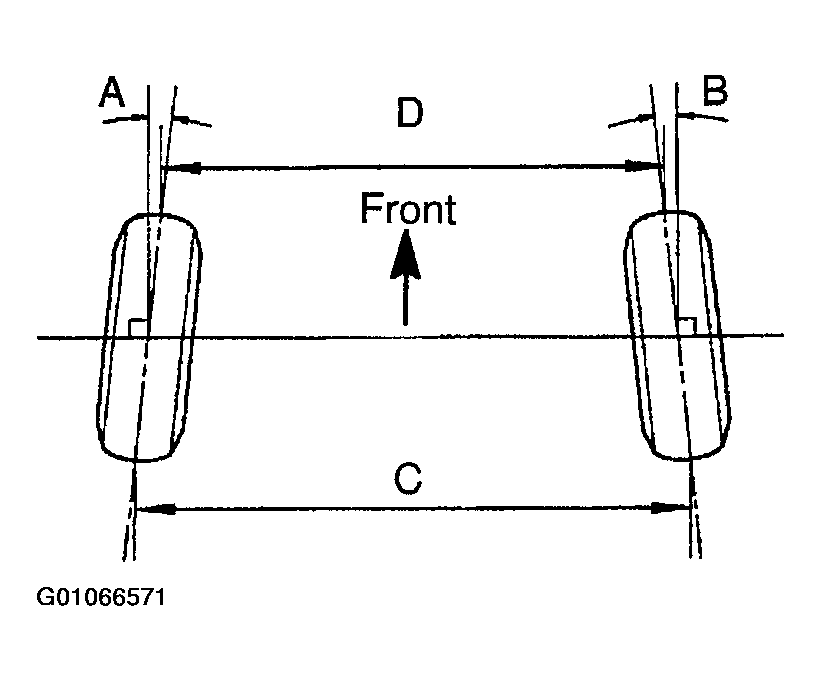

  Fig 3: Identifying Toe-In Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the toe-in is not within the specified value, inspect and replace the suspension parts as necessary.
