Front Wheel Alignment

WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 2002 Toyota Tundra, 2002 Toyota Tacoma, 2002 Toyota Sienna, 2002 Toyota Sequoia, and 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Be sure to perform the zero point calibration of steering angle, master cylinder pressure, yaw rate and deceleration sensors. See PRE-CHECK .

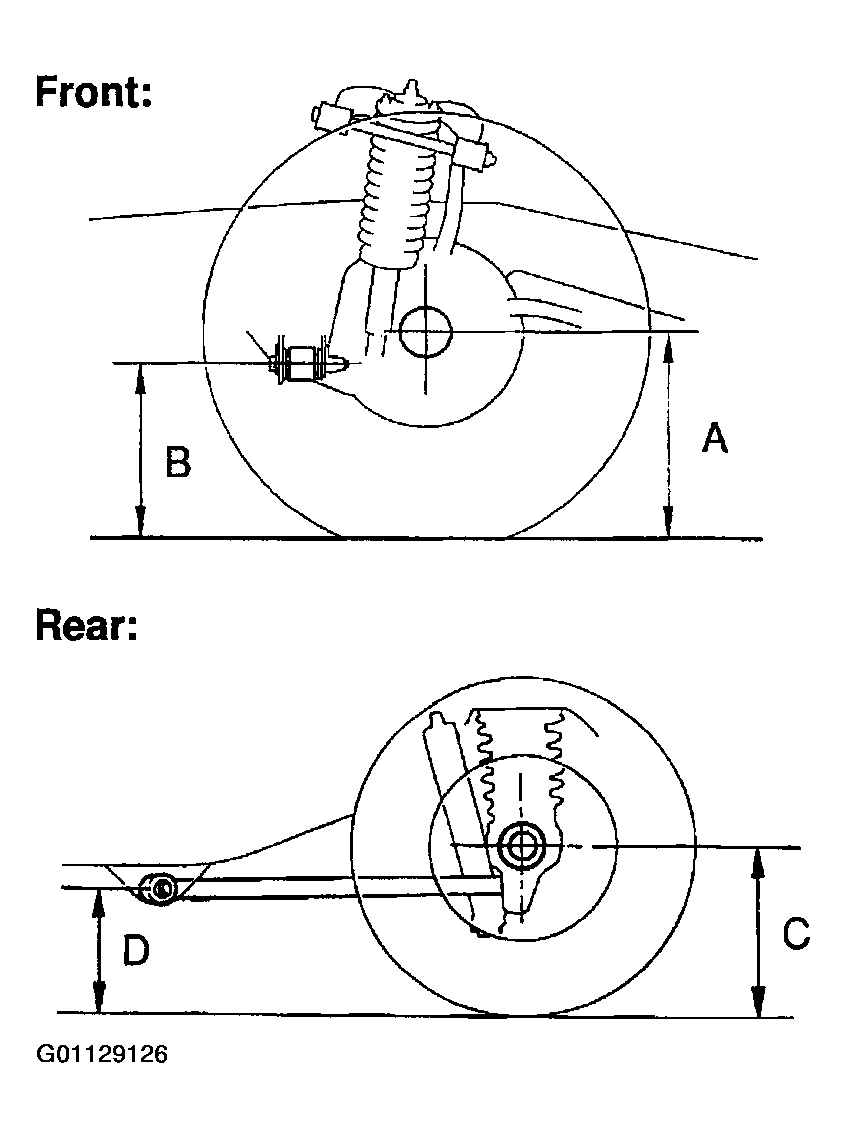

Measure vehicle height (see Figure ) .
1. Measuring points:
  1. A: Ground clearance of the front drive shaft center
  2. B: Ground clearance of the front adjusting cam bolt center
  3. C: Ground clearance of the rear axle shaft center
  4. D: Ground clearance of the rear lower control arm front bolt center

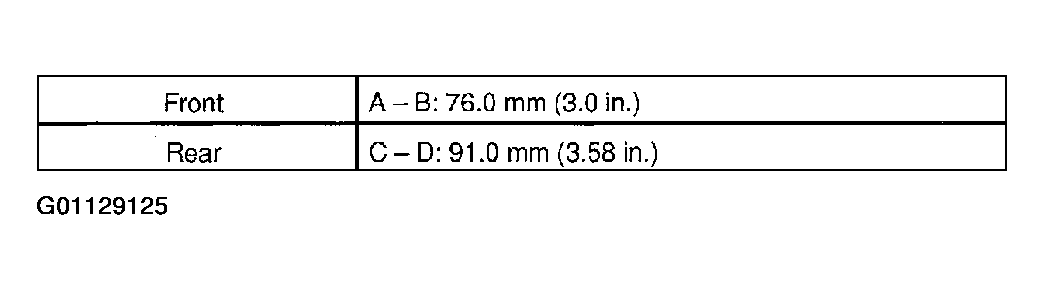

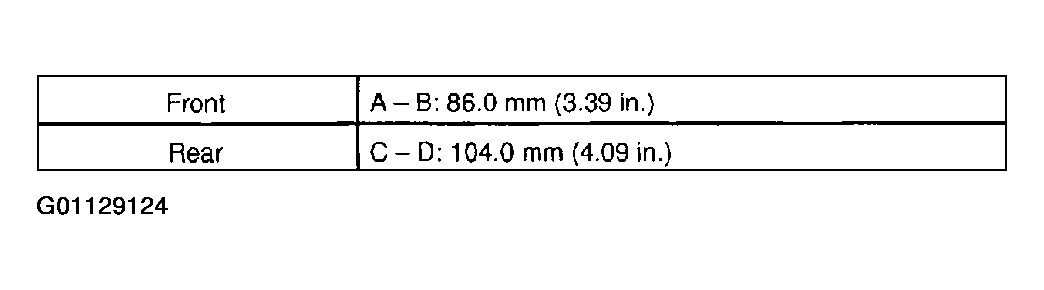

  Vehicle height:
  1. 2WD:

    Fig 2: Identifying Vehicle Height
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. 4WD:

    Fig 3: Identifying Vehicle Height
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE: Before inspecting the wheel alignment, adjust the vehicle height to the specified value.

  If the vehicle height is not the specified value, try to adjust it by pushing down on or lifting the body.
Install camber/caster/kingpin gauge or position vehicle on wheel alignment tester .
1. Follow the specific instructions of the equipment manufacturer.

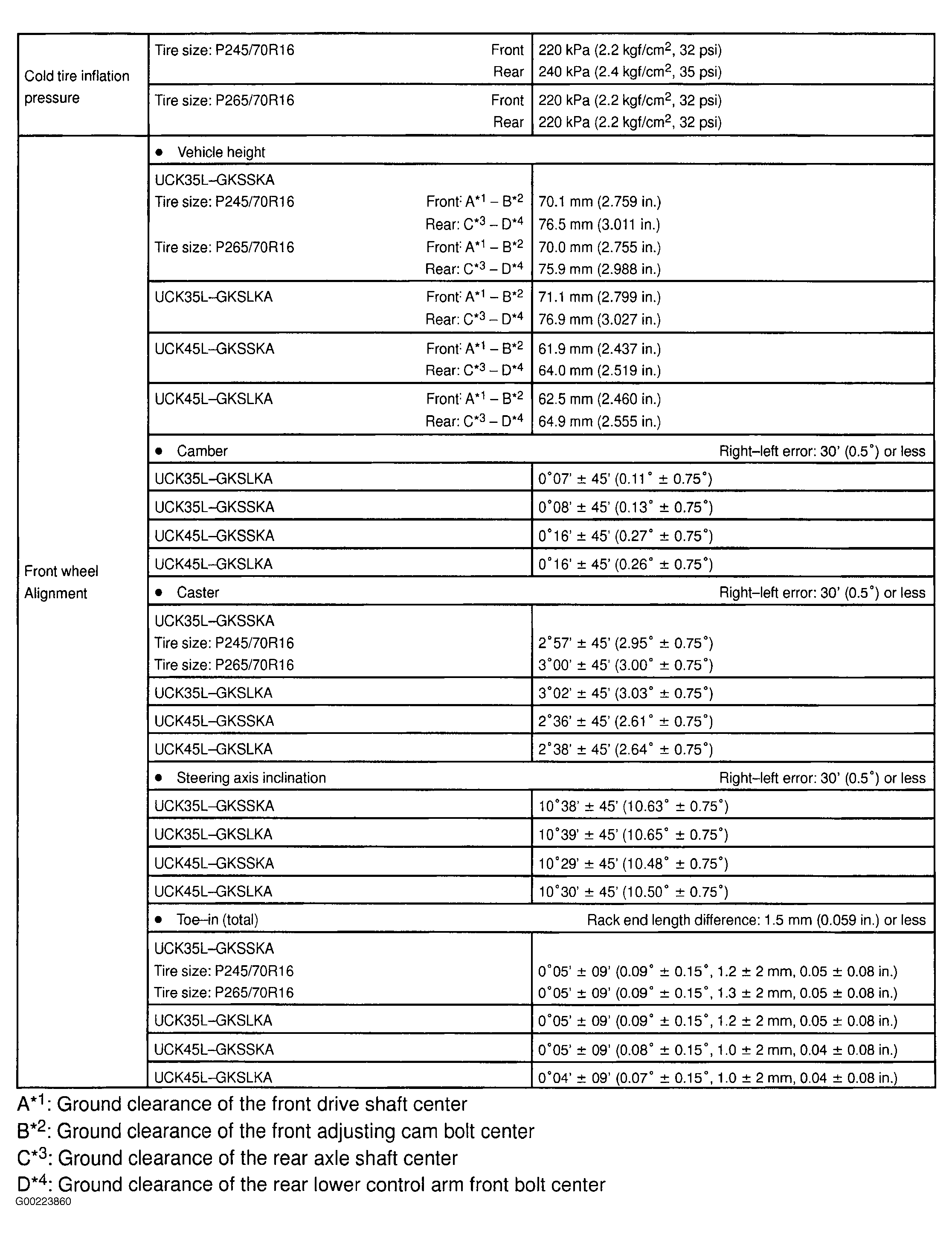

Inspect camber, caster and steering axis inclination (see Figure .
If the steering axis inclination is not within the specified value, after the camber and caster have been correctly adjusted, recheck the steering knuckle and front wheel for bearing or looseness.
Adjust camber and caster .
1. Loosen the front and/or rear adjusting cam set bolts.

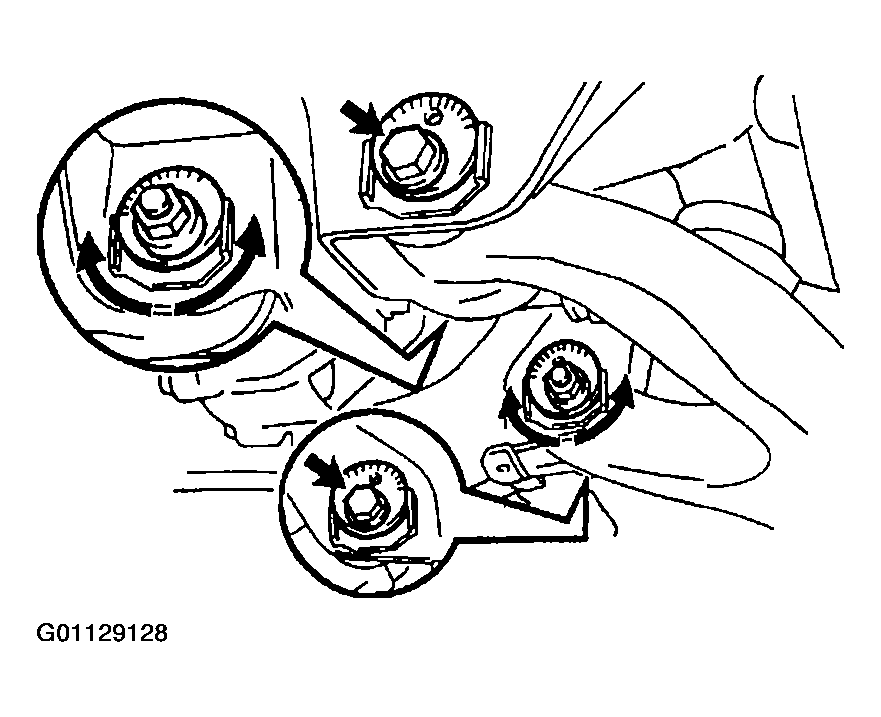

  Fig 5: Loosening Front And/Or Rear Adjusting Cam Set Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Adjust the camber and caster by front and/or rear adjusting cams (See adjustment chart).
  NOTE: Try to adjust the camber and caster to the center of the specified values.
3. How to read adjustment chart (Example).
  1. Find the applicable wheel alignment standard value for the particular model.

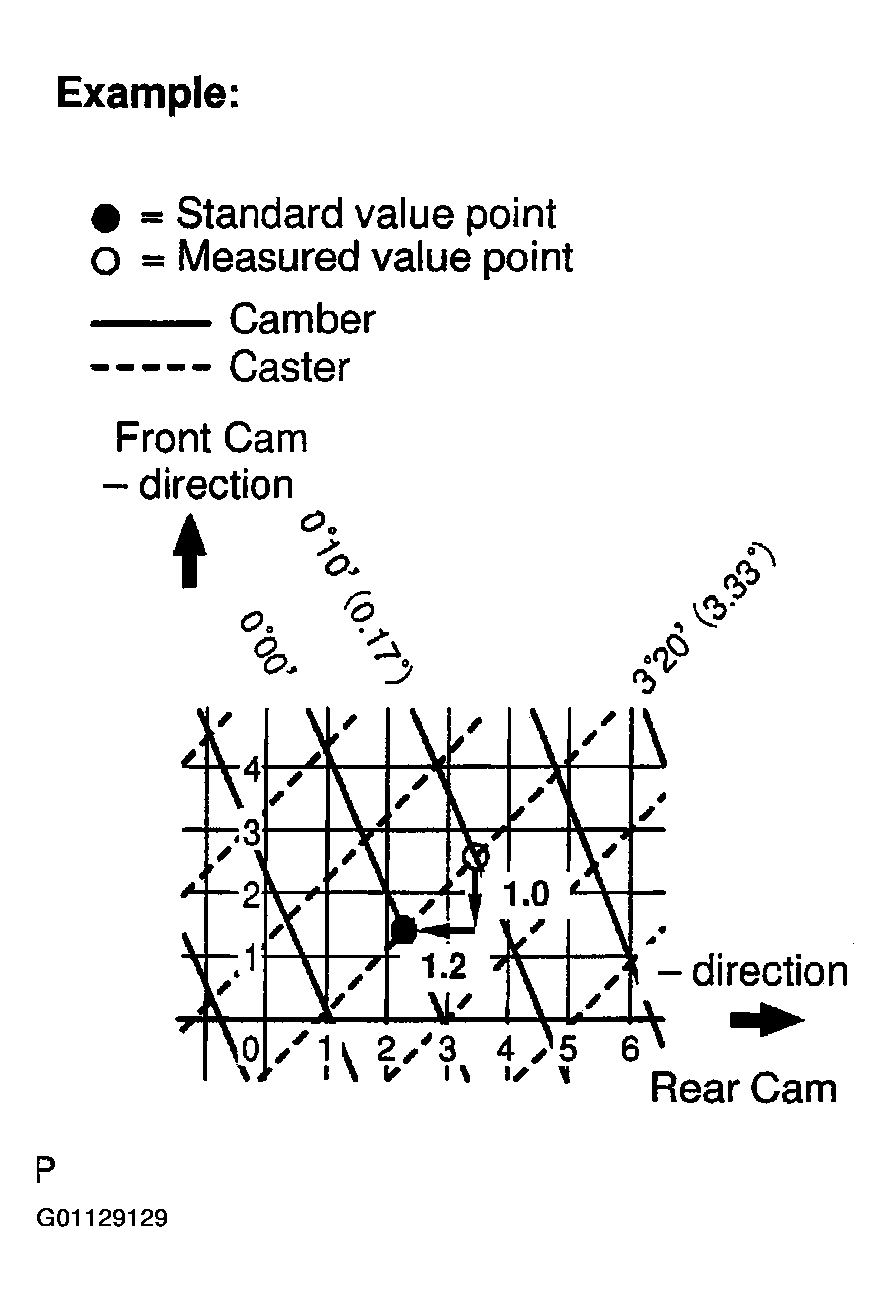

    Fig 6: Displaying Adjustment Chart (Example)
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Mark the selected standard value on the adjustment chart in Fig 6.
    1. Example:
      1. Camber: 0° 00'
      2. Caster: 3° 20' (3.33°)
  3. Measure the present wheel alignment value with the vehicle in non-loaded condition.
  4. Mark the measured present value on the adjustment chart in Fig 6.
    1. Example:
      1. Camber: 0° 10' (0.17°)
      2. Caster: 3° 20' (3.33°)
  5. As shown in the example chart in Fig 6, read the distance from the measured value to the standard value, and adjust the front and/or rear adjusting cams accordingly.
    1. Amount to turn adjusting cams (by graduation):
      1. Example:

        Front cam: 1.0 (+direction)

        Rear cam: 1.2 (+direction)

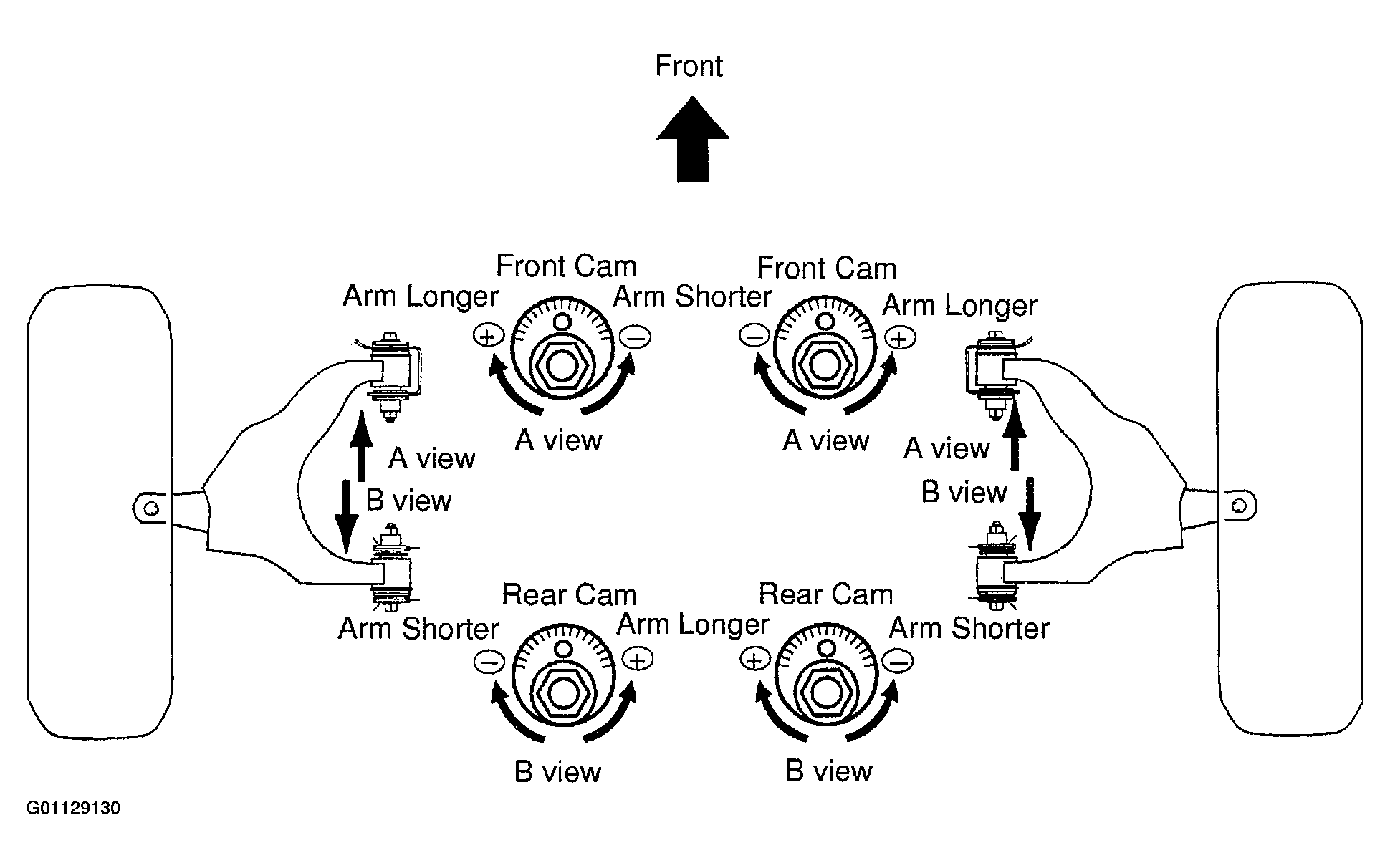

        Fig 7: Identifying Cams For Adjustment
        Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

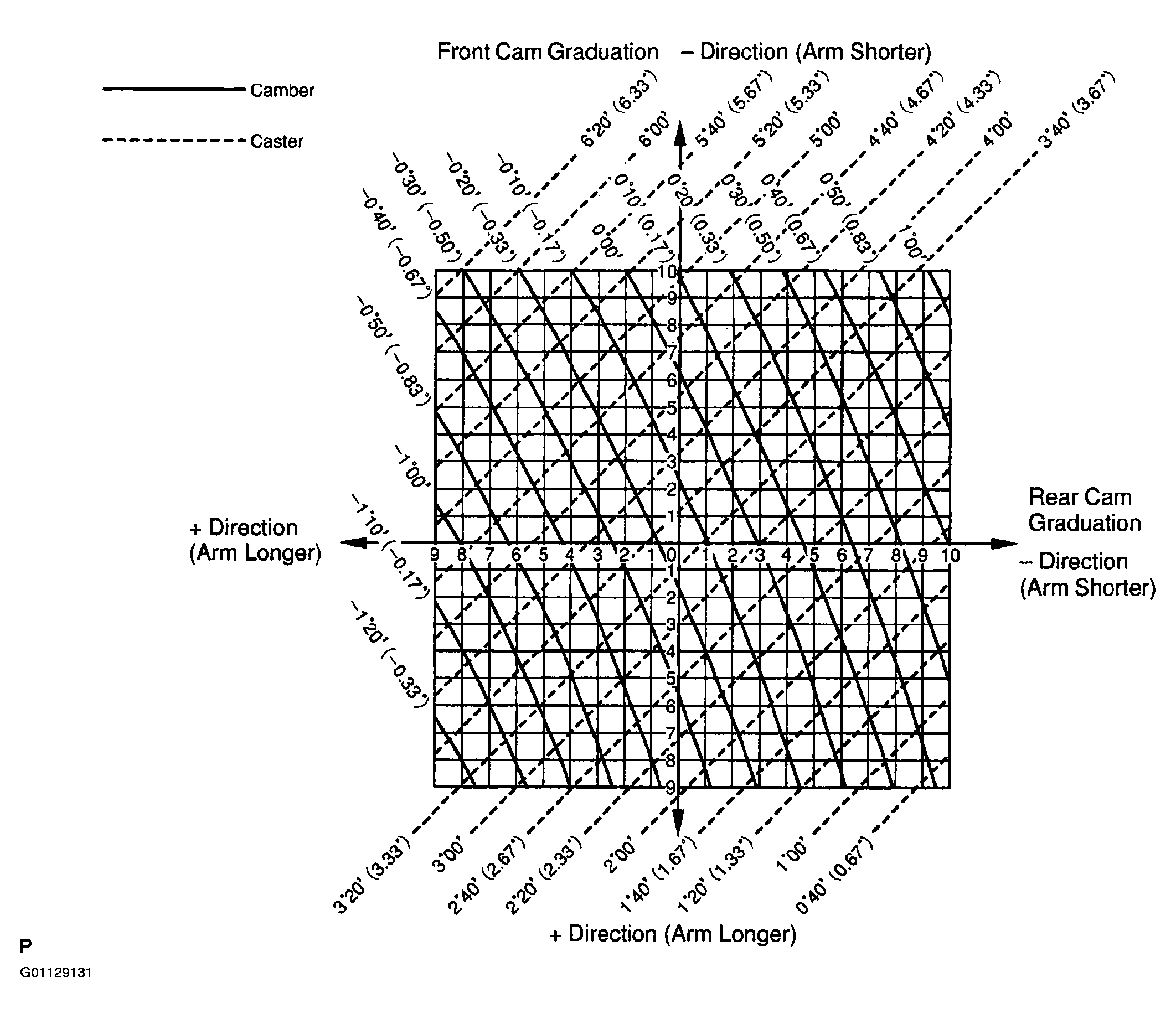

  Fig 8: Displaying Adjustment Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Torque the front and/or rear adjusting cam set bolts.
  1. Torque: 130 N.m (1,325 kgf.cm, 96 ft.lbf)

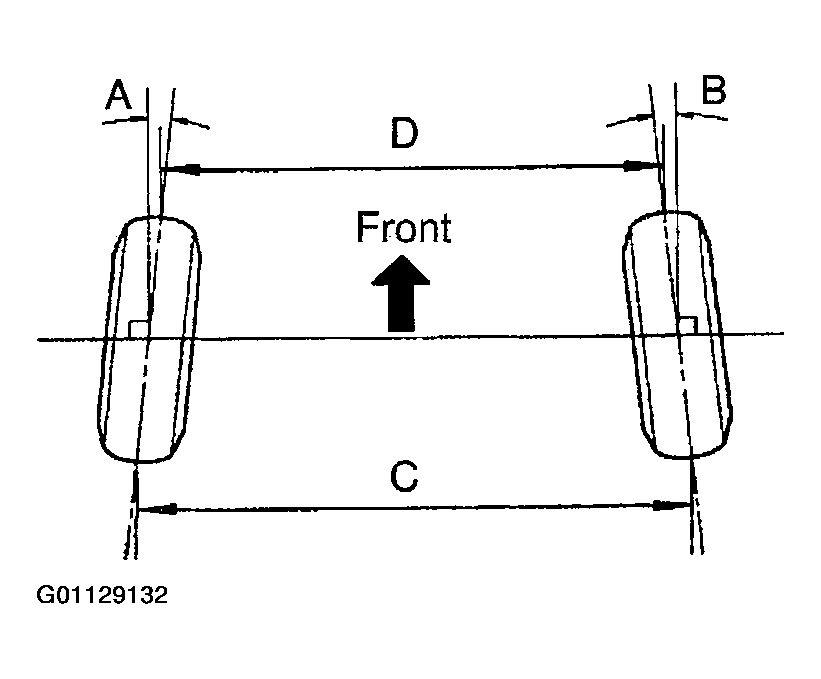

Inspect toe-in (see Figure ) .
1. If the toe-in is not within the specified value, adjust the rack ends.
Adjust toe-in and wheel angle .
1. Remove the 2 clips.
2. Loosen the tie rod end lock nuts.

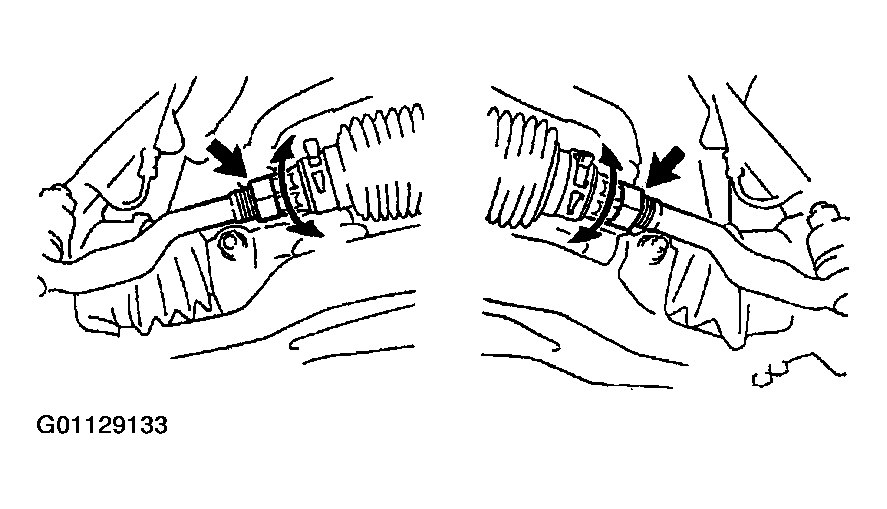

  Fig 10: Adjusting Tie Rod Ends
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Turn the right and left rack ends by an equal amount to adjust the toe-in.
  NOTE: Try to adjust the toe-in to the center of the specified value.
4. Make sure that the lengths of the right and left rack ends are the same.

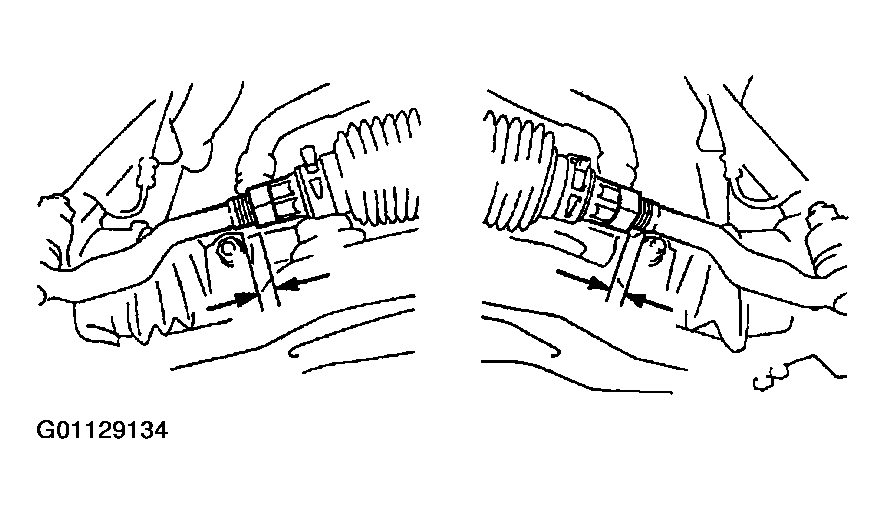

  Fig 11: Checking For Equal Length Rack Ends
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Rack end length difference: 1.5 mm (0.059 in.) or less
5. Tighten the tie rod end lock nuts.
  1. Torque: 55 N.m (560 kgf.cm, 41 ft.lbf)
6. Place the boots on the seats and install the clips.
  NOTE: Make sure that the boots are not twisted.
7. Inspect the wheel angle.
1. Turn the steering wheel fully and measure the turning angle.

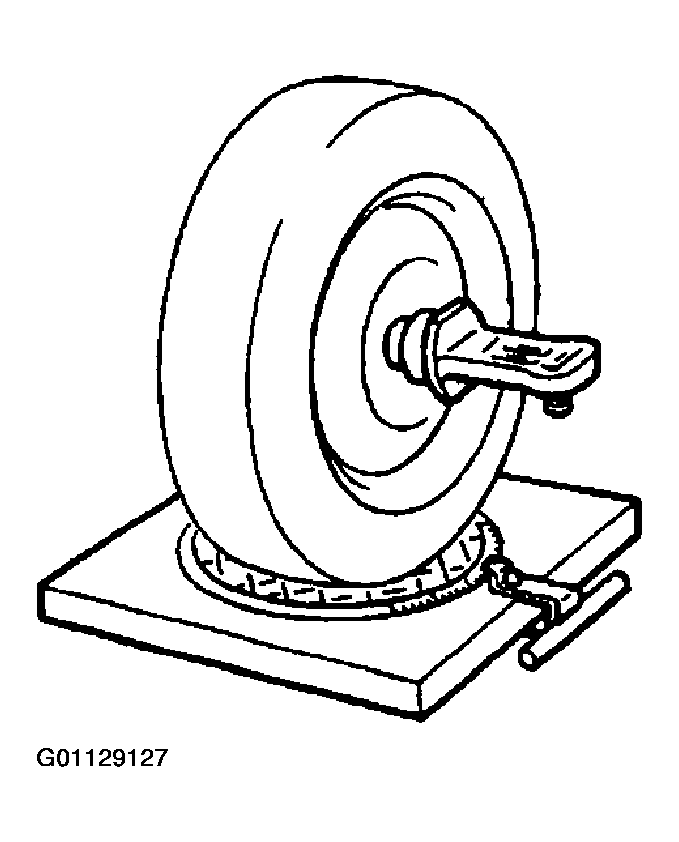

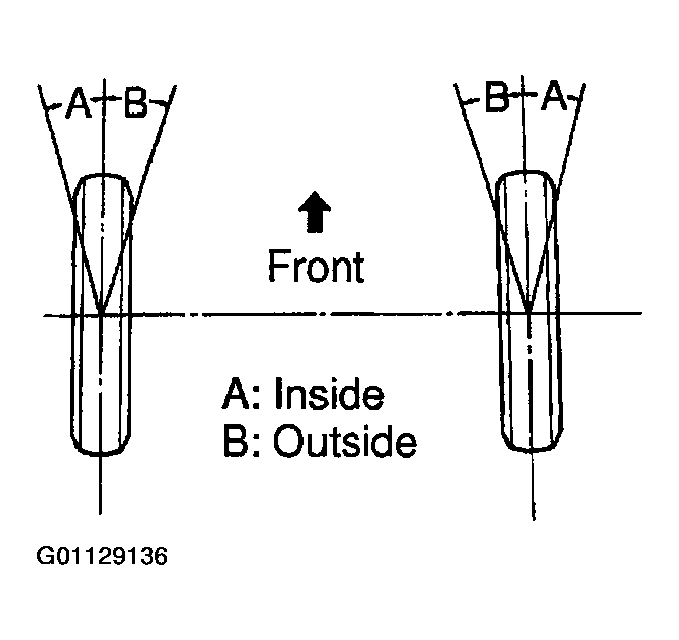

  Fig 12: Identifying Wheel Turning Angles
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

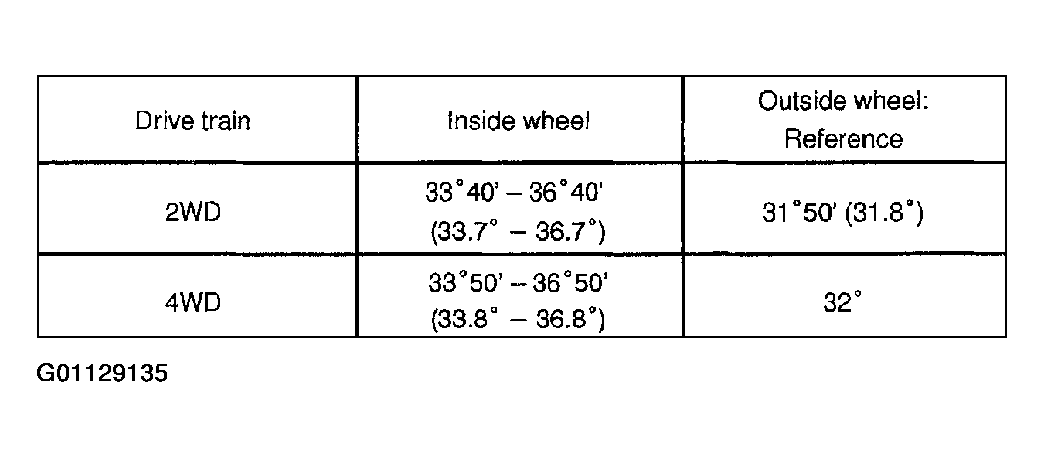

  Wheel turning angle:

  Fig 13: Identifying Wheel Turning Angle Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  If the right and left wheel turning angles differ from the specified value, readjust the toe-in and wheel angle within the specified value. At this time, make sure that the lengths of the right and left rack ends are the same.
  1. Rack end length difference: 1.5 mm (0.059 in.) or less
