Engine Control Module Location

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

Engine Control Module (ECM) is located behind glove box. See Fig 1.

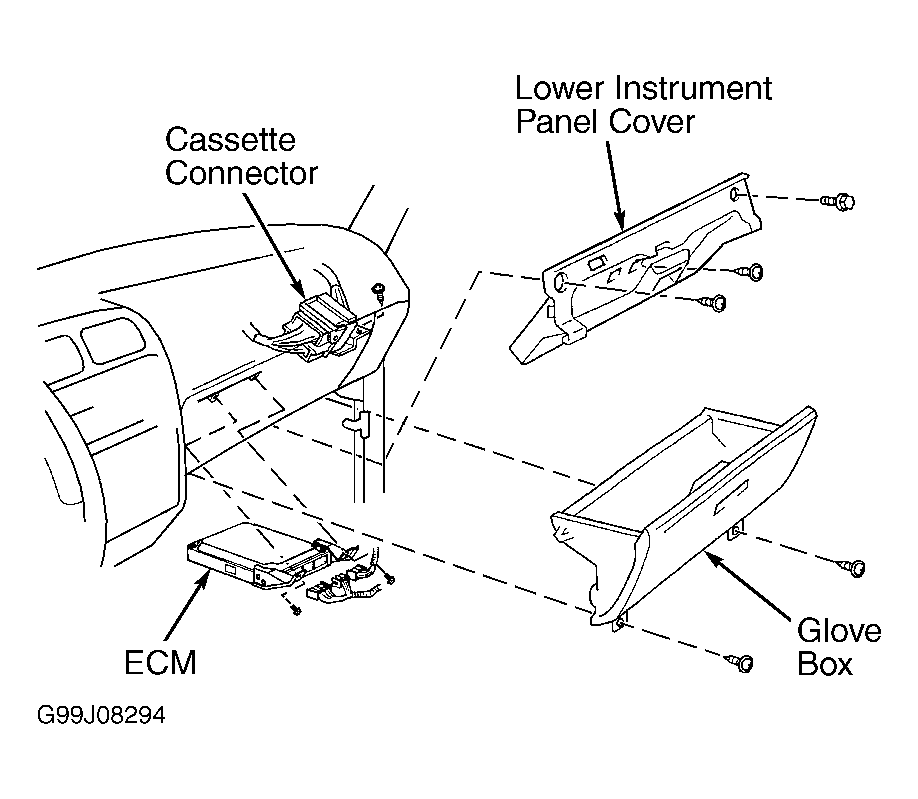

Fig 1: Locating Engine Control Module
G99J08294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
