Emission Systems & Sub-Systems: Notes

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2002 Toyota Tacoma, 2002 Toyota RAV4, 2002 Toyota Prius, 2002 Toyota MR2, and 2002 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For emission system component location, refer to illustrations. See Fig 1-Fig 8 . On Camry and Highlander, illustration was not available from manufacturer.

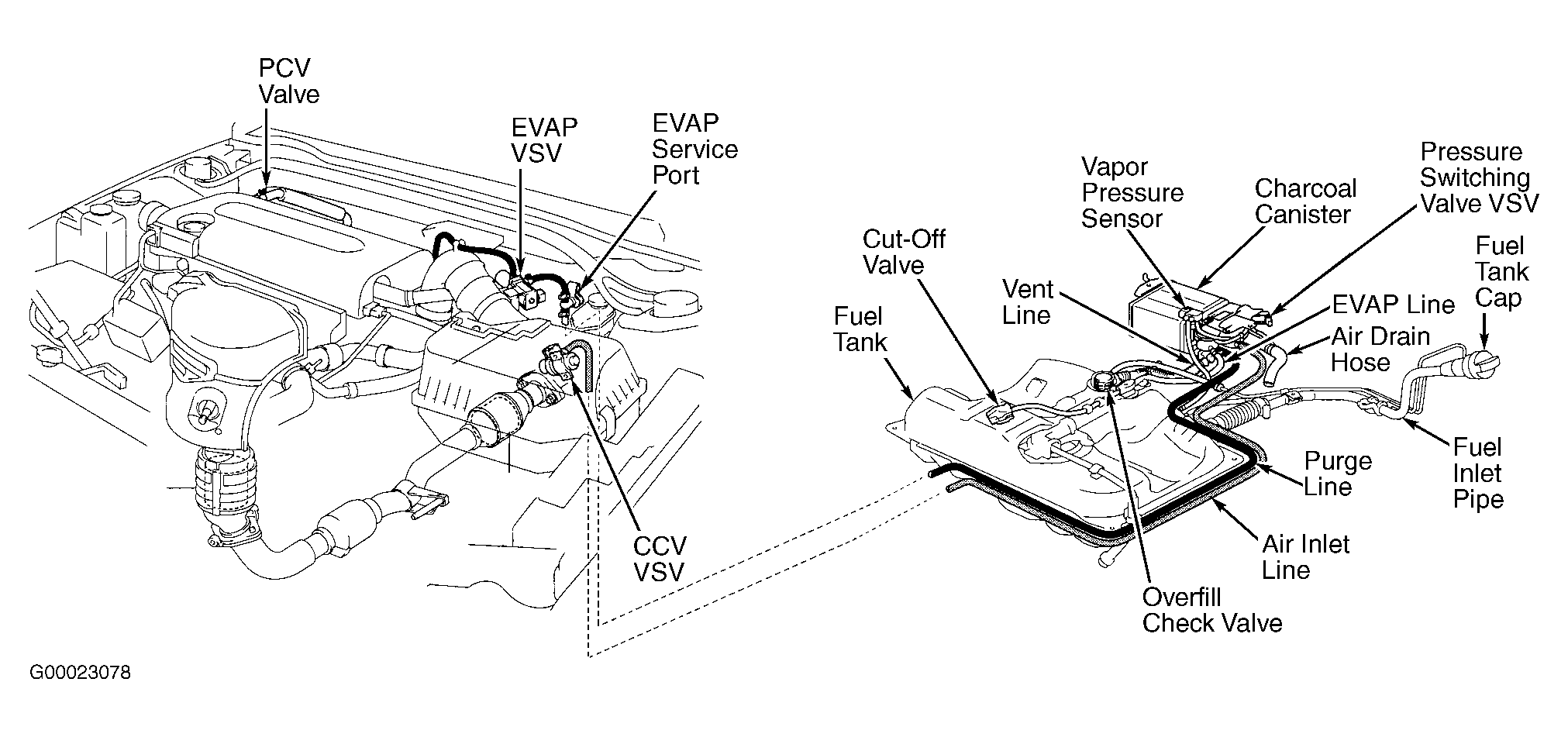

Fig 1: Locating Emission System Components (Camry Solara)

G00023078

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

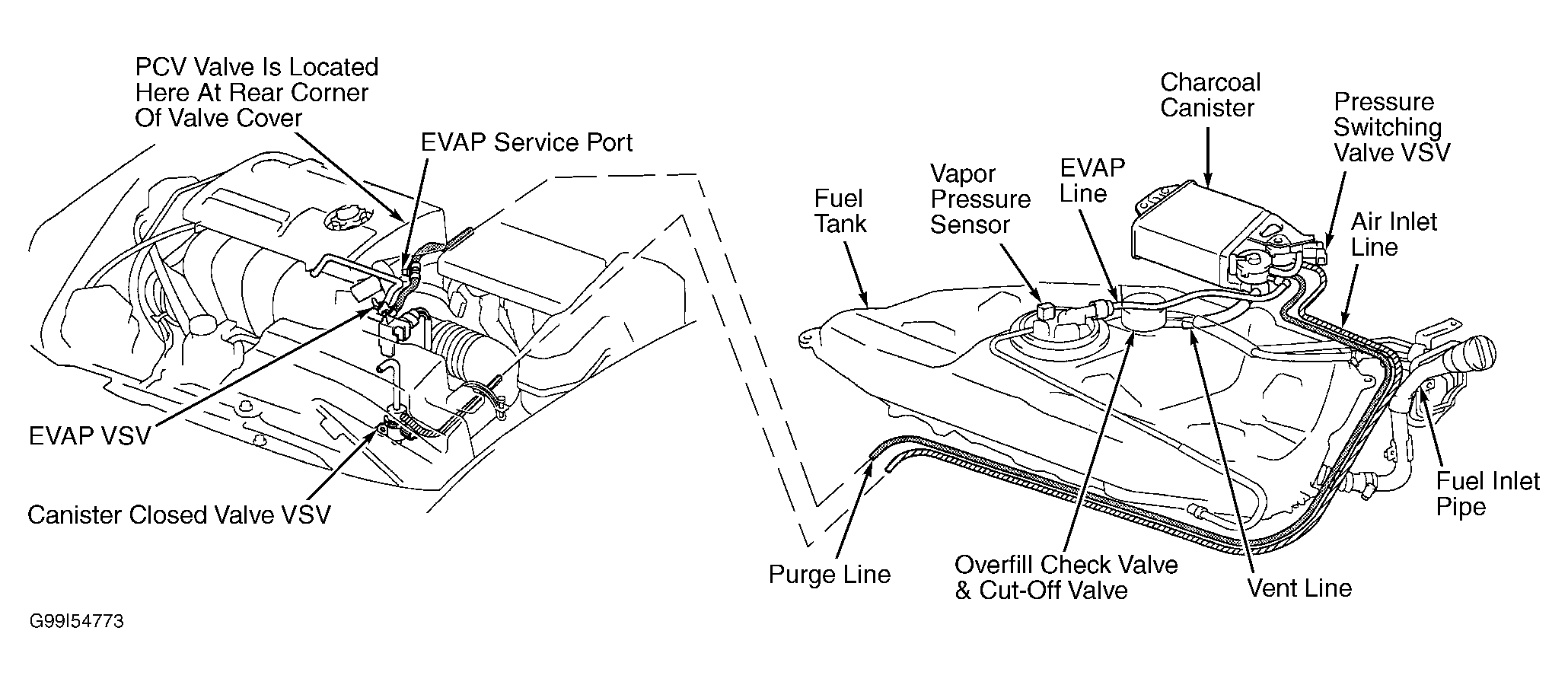

Fig 2: Locating Emission System Components (Celica)

G99I54773

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

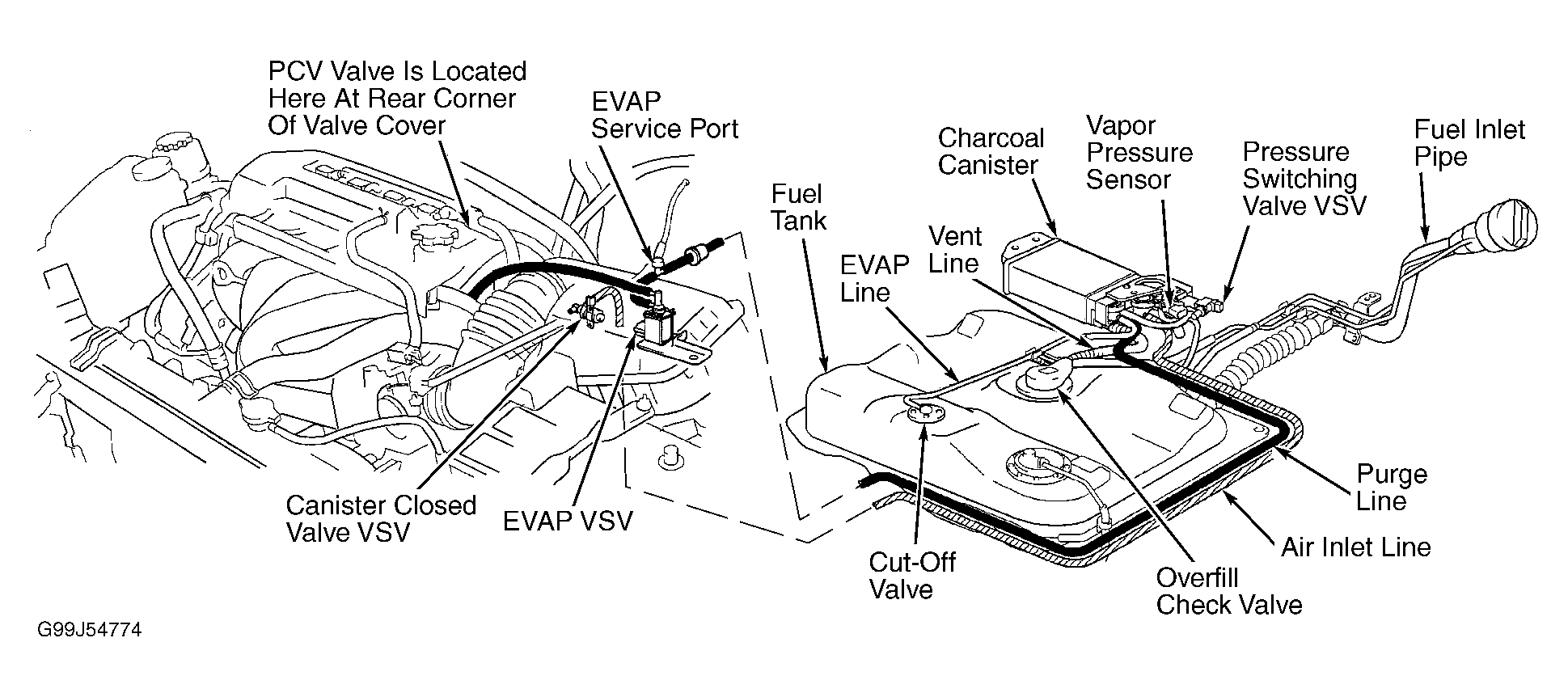

Fig 3: Locating Emission System Components (Corolla)

G99J54774

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

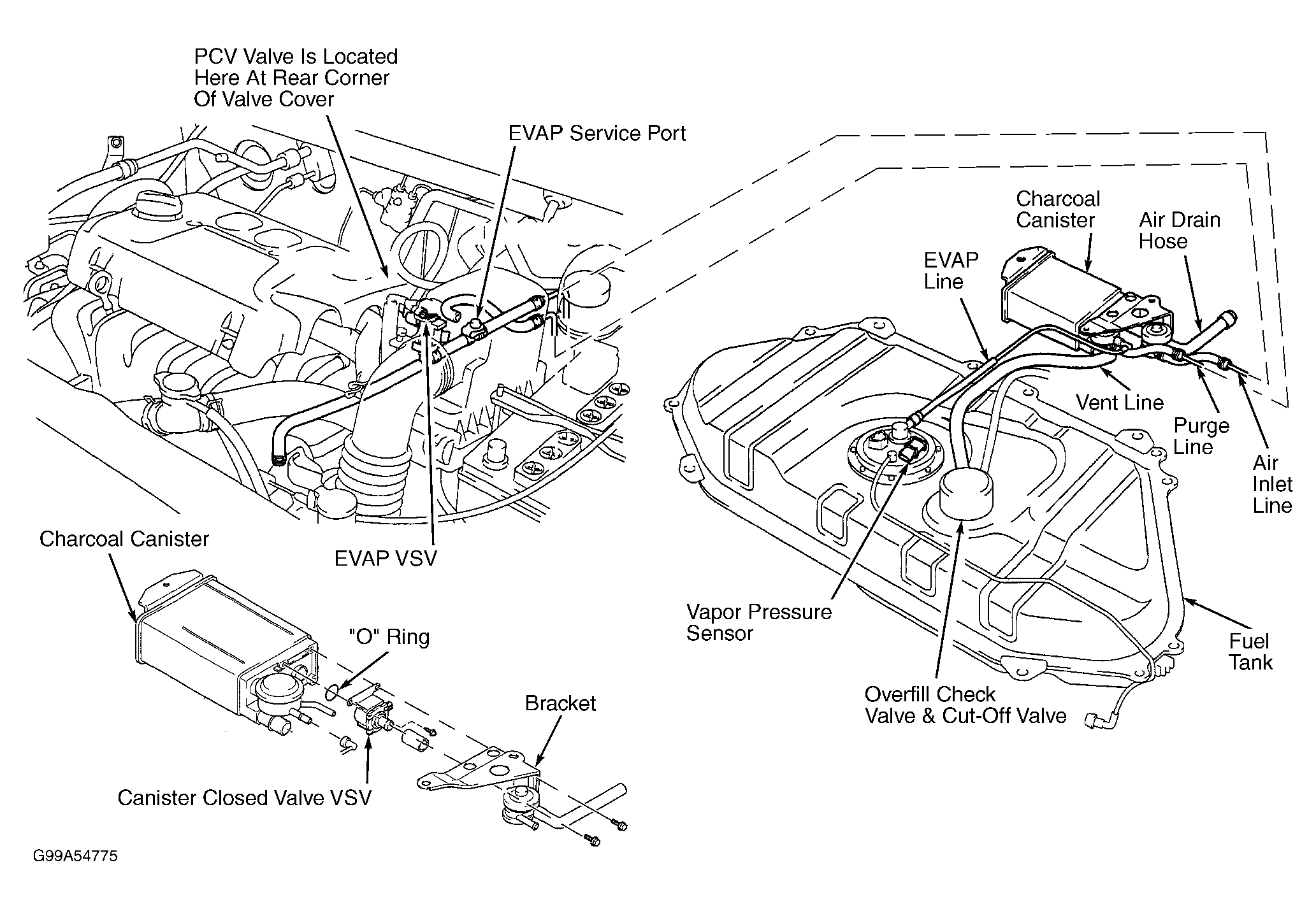

Fig 4: Locating Emission System Components (ECHO)

G99A54775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

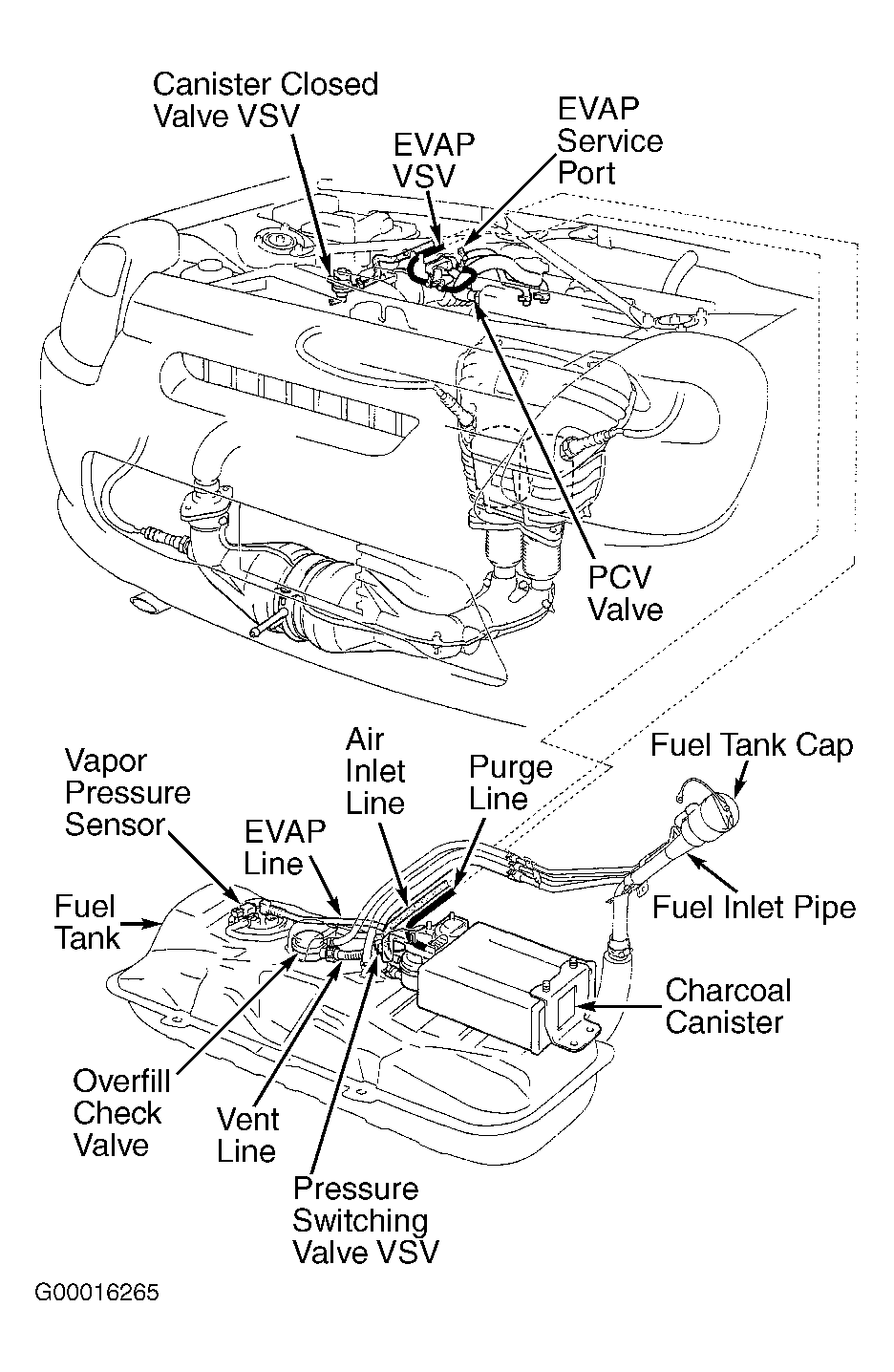

Fig 5: Locating Emission System Components (MR2)

G00016265

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

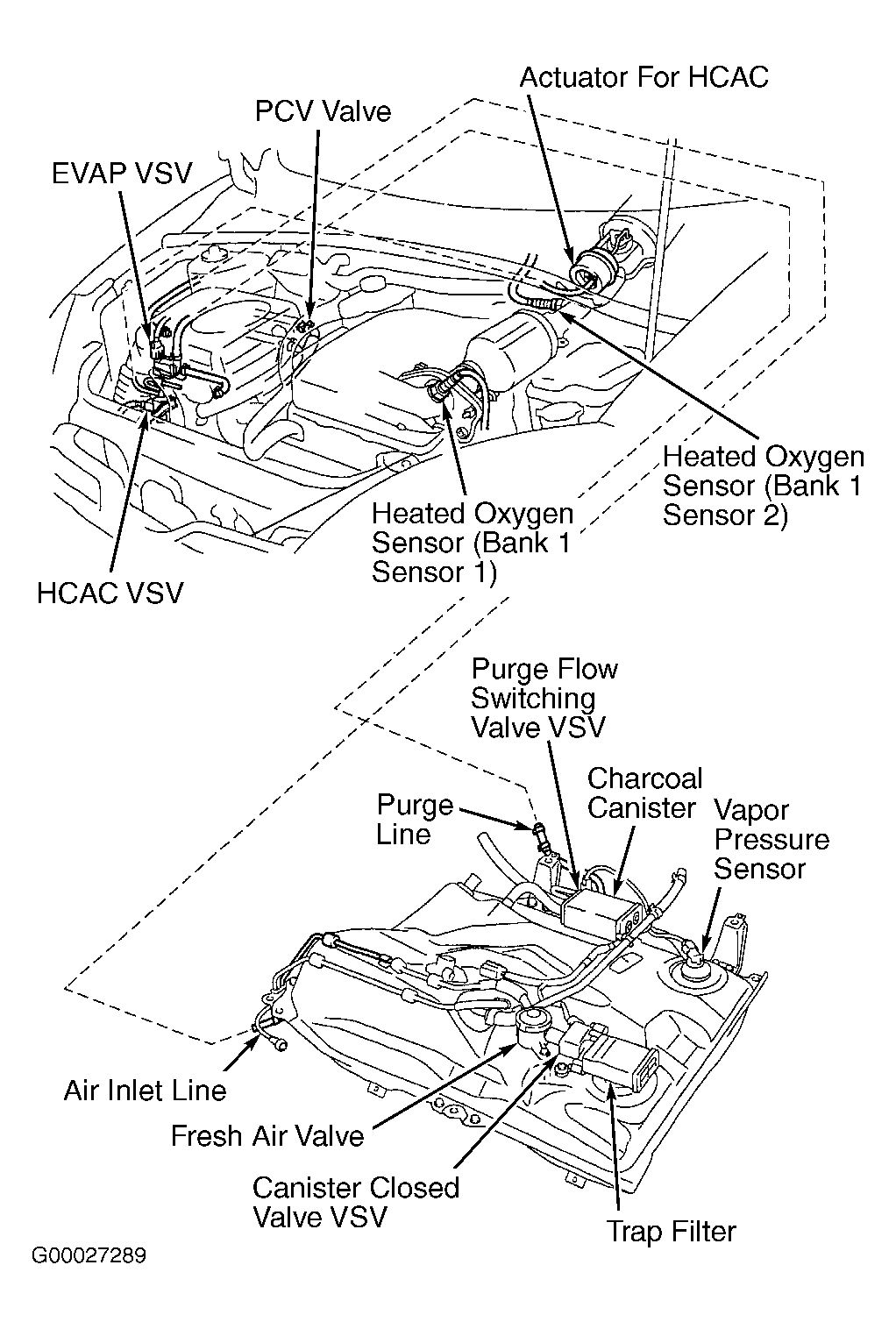

Fig 6: Locating Emission System Components (Prius)

G00027289

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

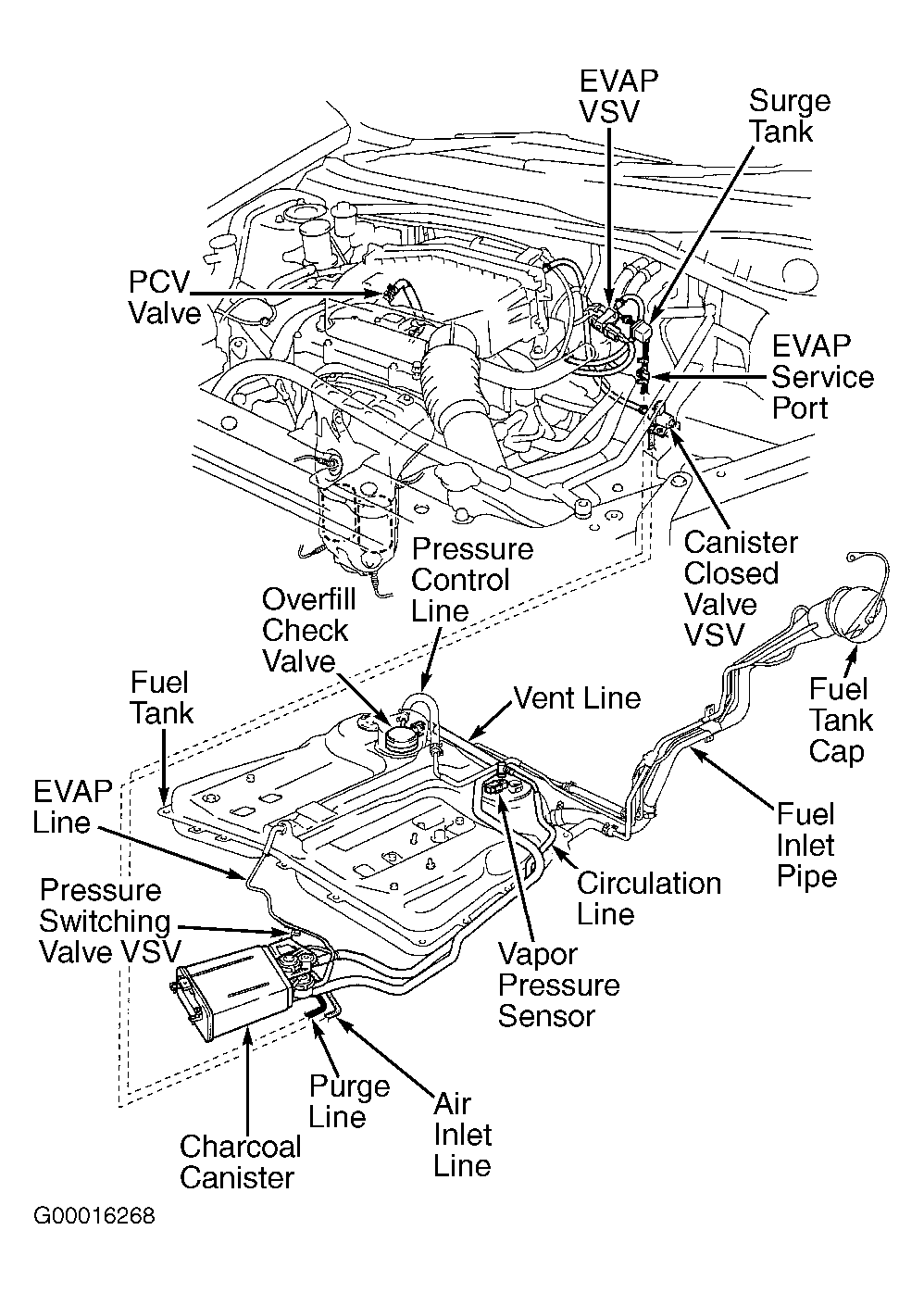

Fig 7: Locating Emission System Components (RAV4)

G00016268

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

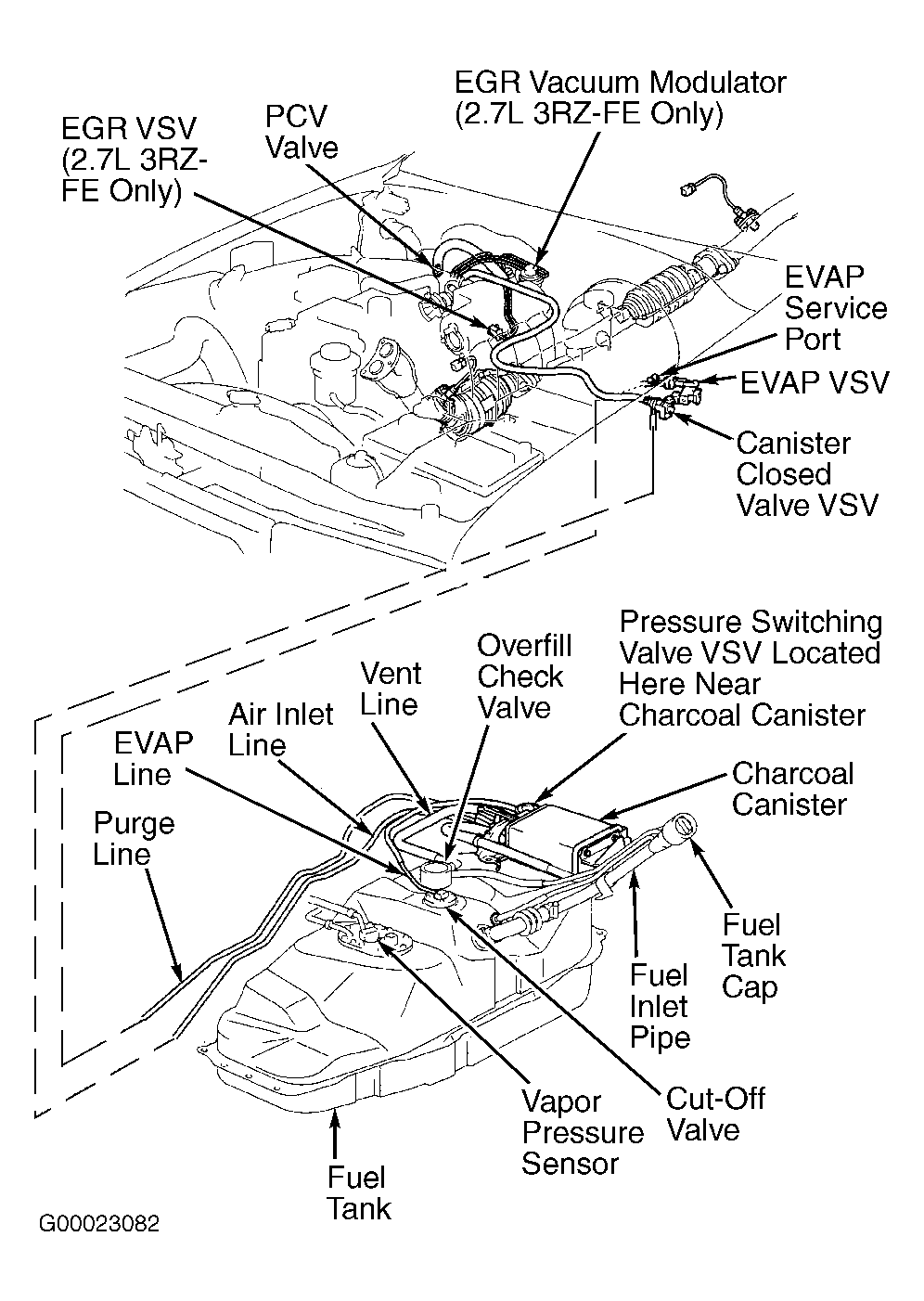

Fig 8: Locating Emission System Components (Tacoma)

G00023082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
