Adjust Automatic Light Control Sensor

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjustment of the light control is performed by turning the sensitivity knob on the sensor.

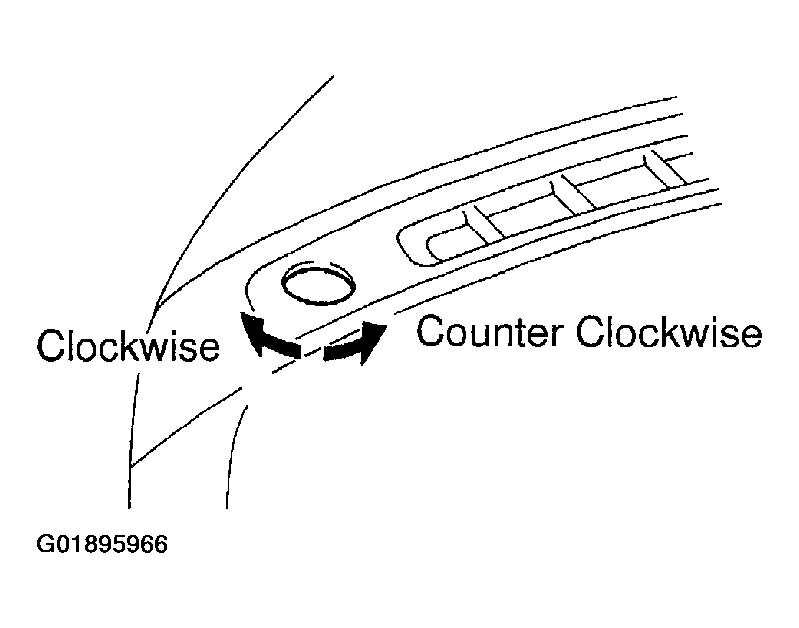

    Fig 1: Adjusting Light Control Sensor
    G01895966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. This will be determined at what light condition the automatic control will take place.
    • If response is too quick, turn the knob counterclockwise.
    • If response is too slow, turn the knob clockwise.
