Reset Inclination Sensor

WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

Setting

Connect the connector and correctly install combination meter on a level surface.
With the TRIP switch ON, turn on the ignition switch.

NOTE: T1-T6 are called out in Fig 1.

Turn OFF and ON the TRIP switch 2 times within 5 sec. (T1)
Turn OFF the TRIP switch within 5 sec. (T2)
Turn ON the TRIP switch within 5 sec. (T3) and keep it ON for another 5 sec. or more. (T4)
Keeping the condition of (5) activates the setting mode. (Inclination sensor data is shown on the ODO display. See the figure below.)

NOTE: If the switch is turned OFF within the 5 sec., the system returns to the normal mode.

After turning OFF the TRIP switch in the setting mode, if the switch is turned on again for 5 sec. or more (T5), the reference value obtained by analog-to-digital conversion is recorded in EEPROM.

NOTE: If the ignition switch is turned off during data display, the set value is not recorded.

Data recorded in the EEPROM is displayed in 3 digits on the right side for 5 sec. (T6) (See Fig 1.)

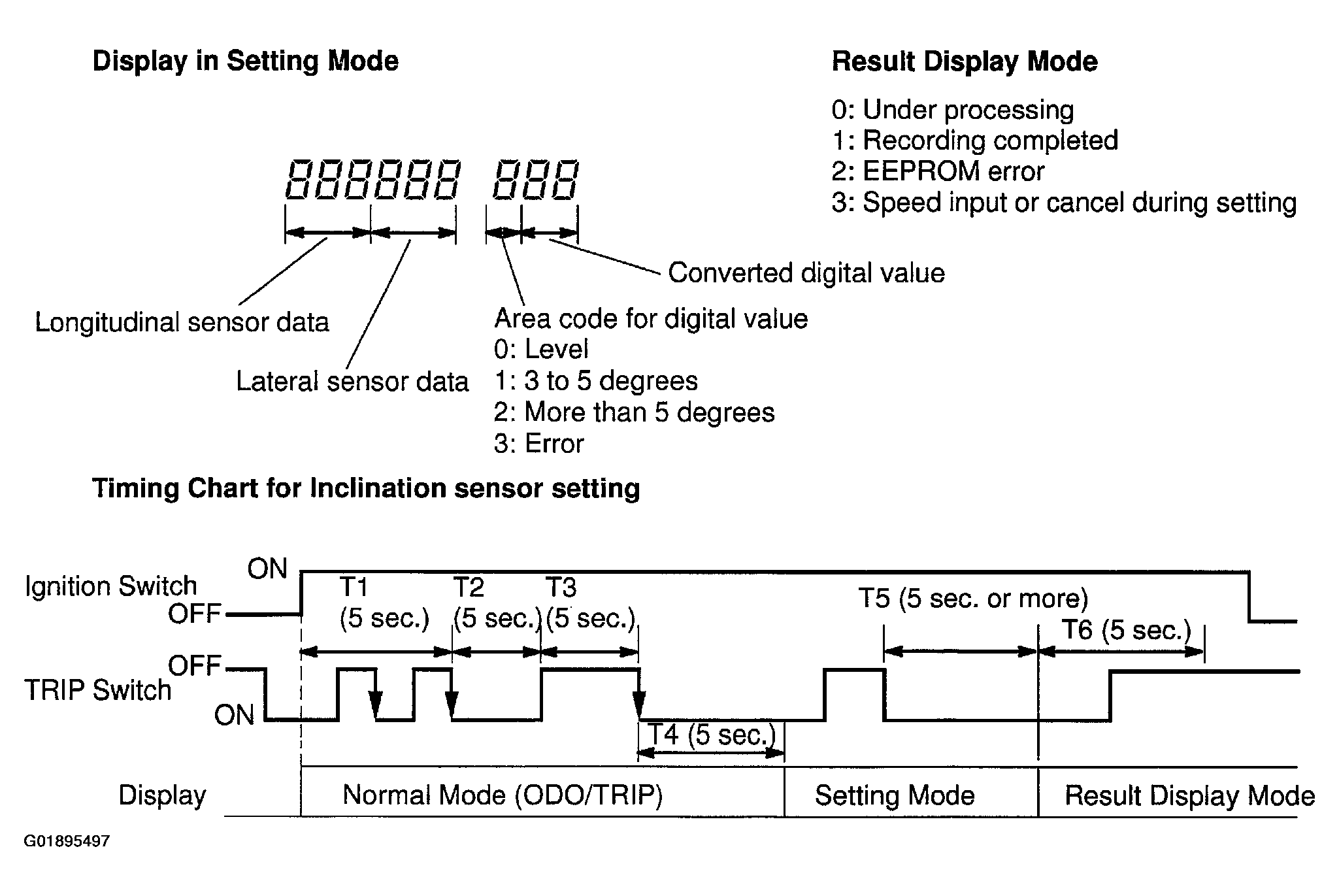

Fig 1: Legend For Combination Meter Display Modes & T1-T6
