Instrument Panel: Components

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

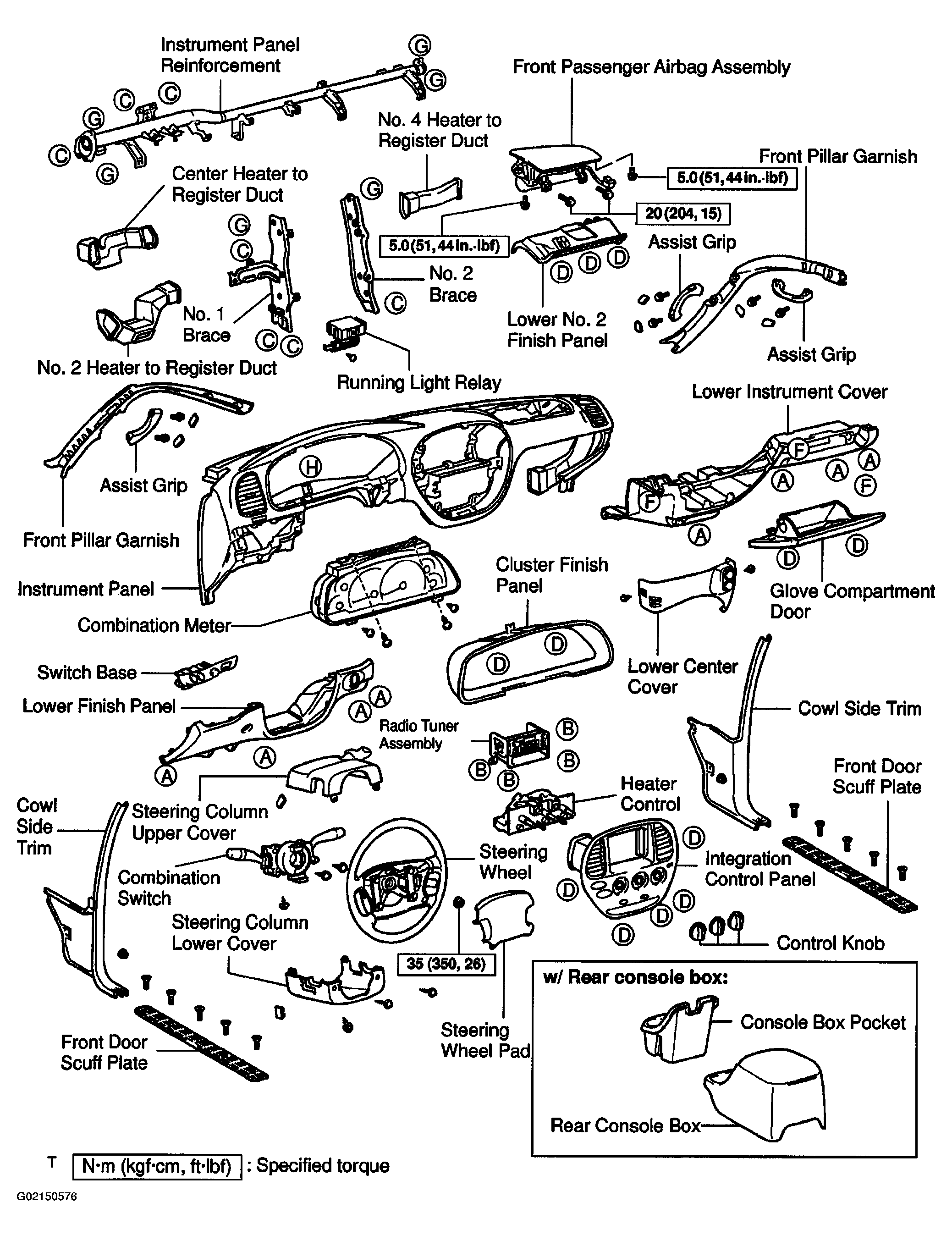

Fig 1: Identifying Instrument Panel Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

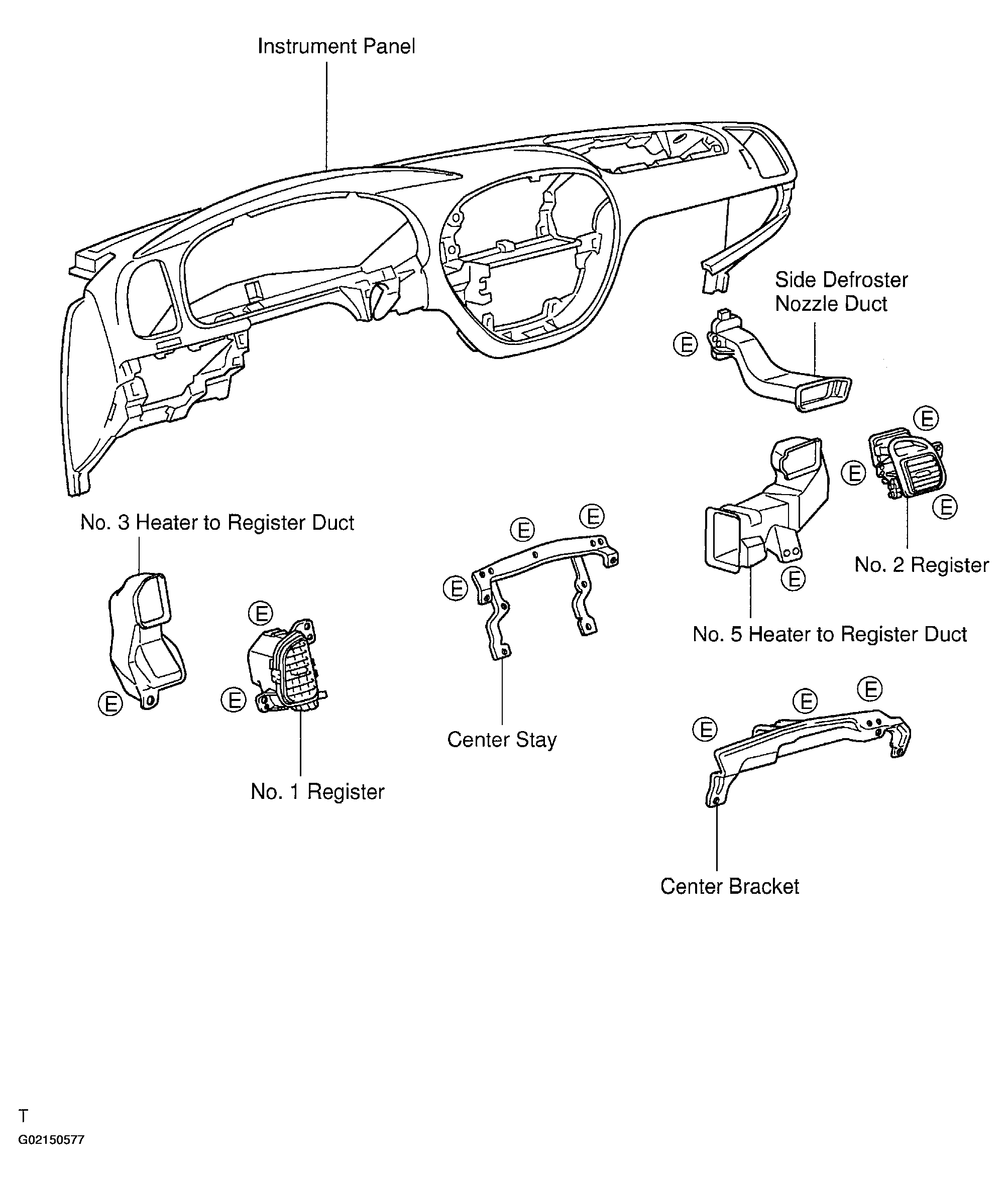

Fig 2: Identifying Instrument Panel Components (2 Of 2)

NOTE: Screw shapes and sizes are indicated in Fig 3. The codes ("A"- "H") correspond to those indicated in Fig 1 and Fig 2.

Fig 3: Displaying Screw Variations
