Instrument Panel: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

Remove No. 3 heater to register duct.
1. Remove the screw and No. 3 heater to register duct.

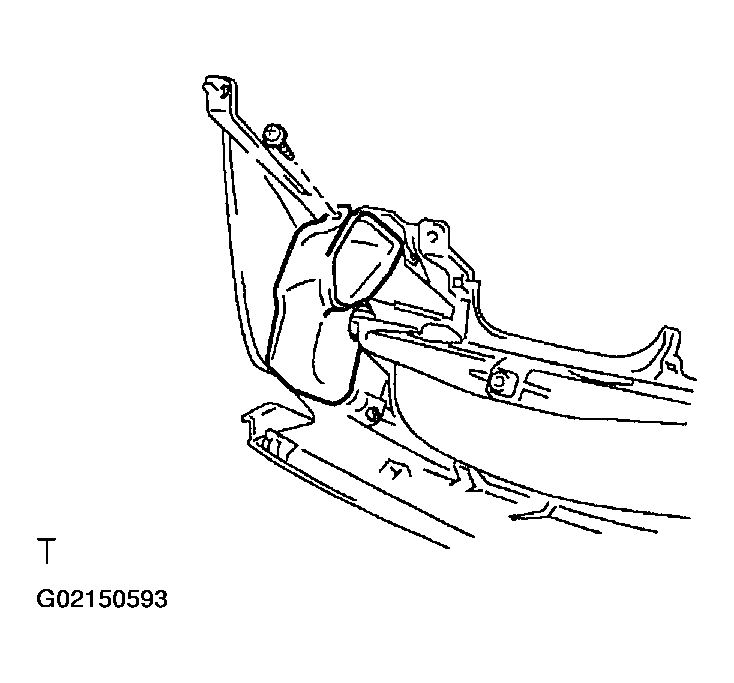

  Fig 1: Locating Screw For Removal Of Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove No. 1 register.
1. Remove the 2 screws and No. 1 register.
Remove center stay.
1. Remove the 3 screws and center stay.

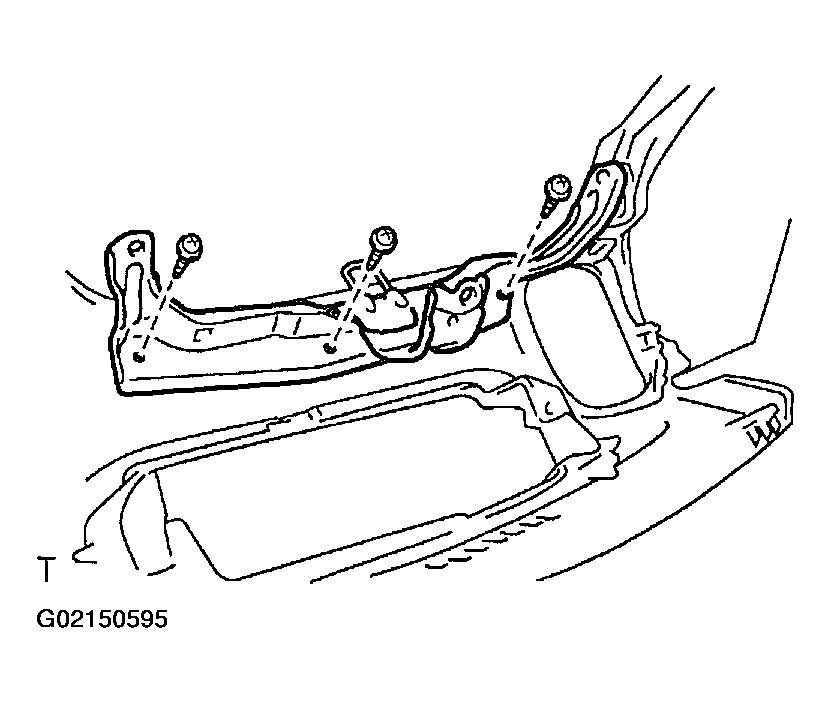

  Fig 2: Locating Screws For Removal Of Center Stay
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove center bracket.
1. Remove the 3 screws and center bracket.

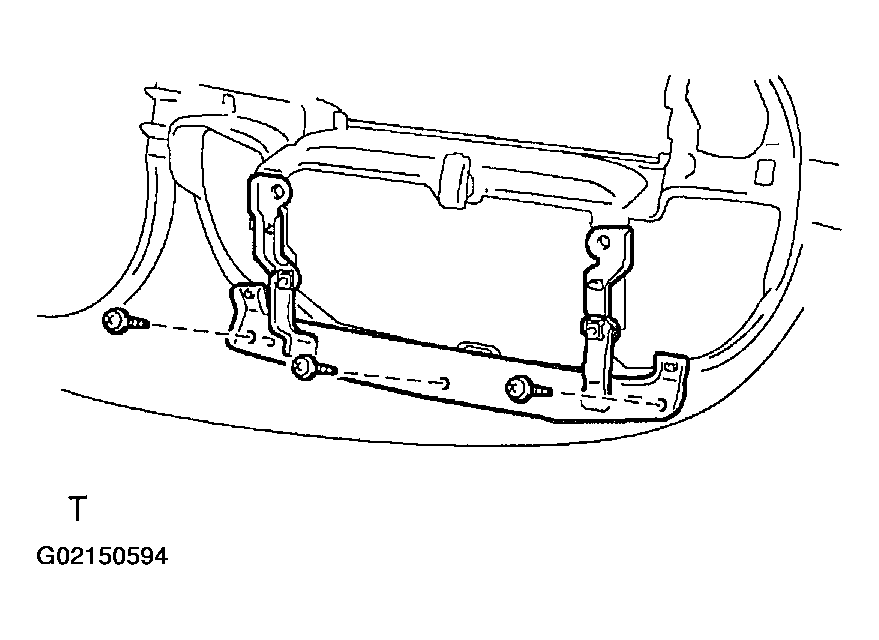

  Fig 3: Locating Screws For Removal Of Center Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove No. 5 heater to register duct.
1. Remove the screw and No. 5 heater to register duct.

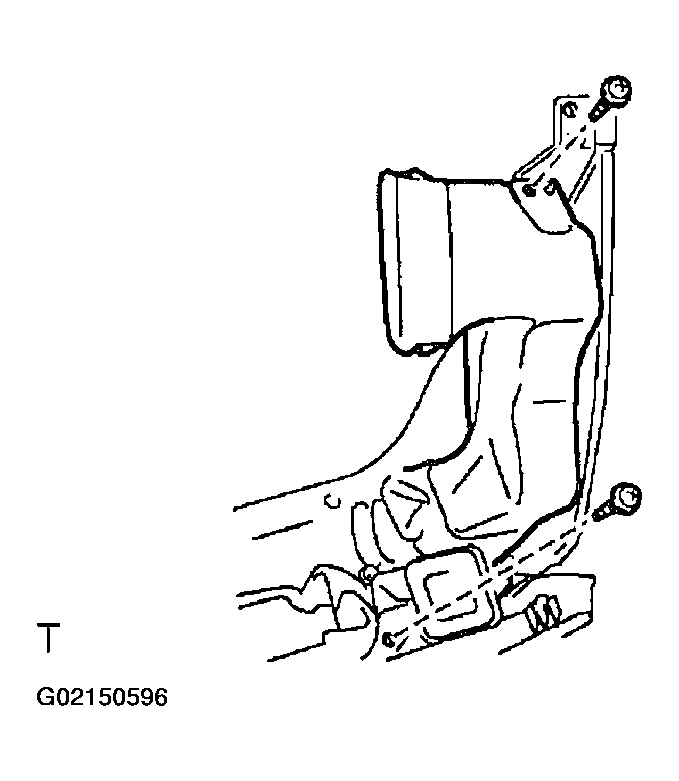

  Fig 4: Locating Screws For Removal Of No. 5 Heater To Register Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove side defroster nozzle duct.
1. Remove the screw and side defroster nozzle duct.

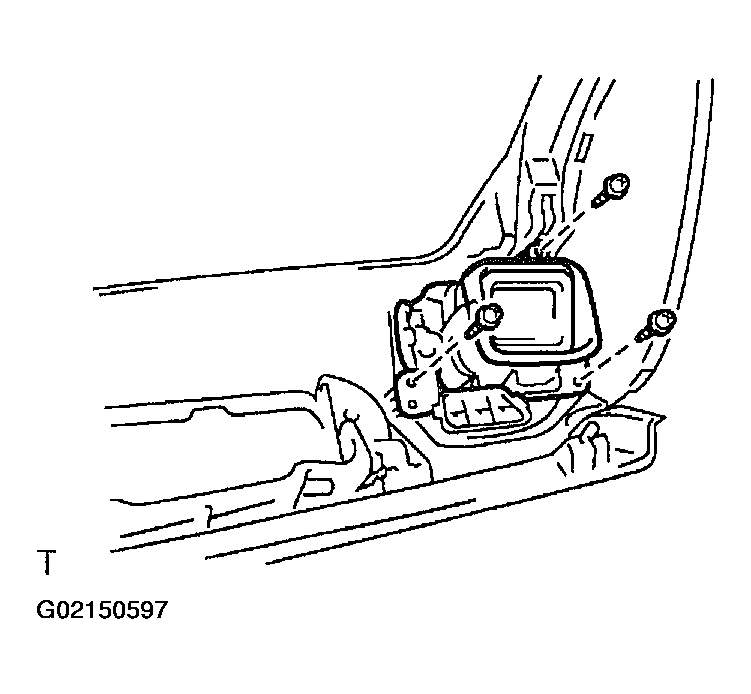

Remove No. 2 register.
1. Remove the 3 screws and No. 2 register.
