How To Proceed With Troubleshooting Multiplex Communication System
WARNING: This page is about a different car, the 2002 Toyota Prius. However, it is still accessible from the selected car via links, so may be relevant.

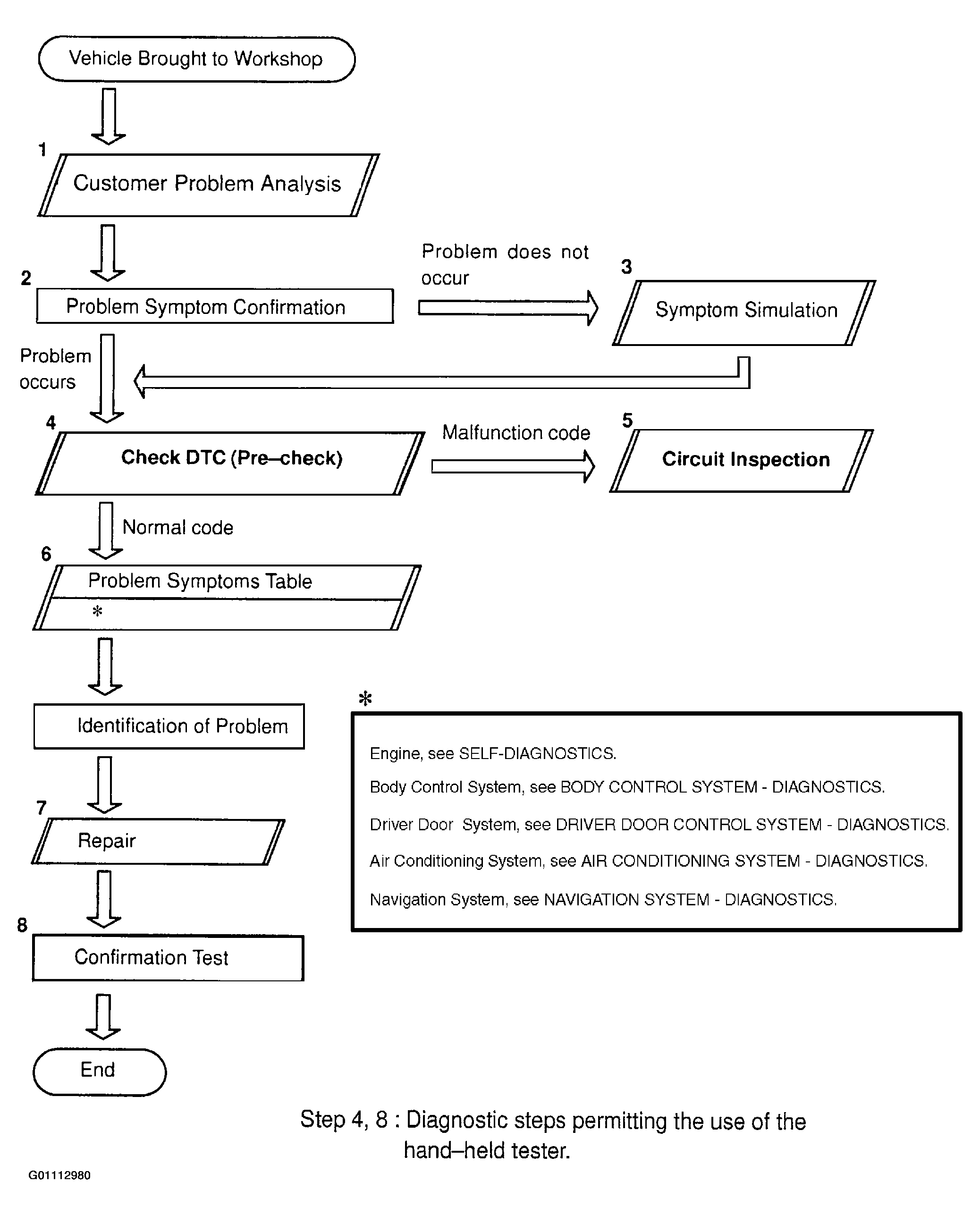

Perform troubleshooting in accordance with the procedure on Fig 1.
