Section 445 (Hood Support Assembly): Replacement

WARNING: This page is about a different car, the 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE HOOD SUPPORT ASSY
    1. Remove the 2 bolts and the hood support from the hood panel.
      NOTE:

      While supporting the hood by hand, remove the hood support.

    2. Remove the bolt and hood support from the vehicle body.

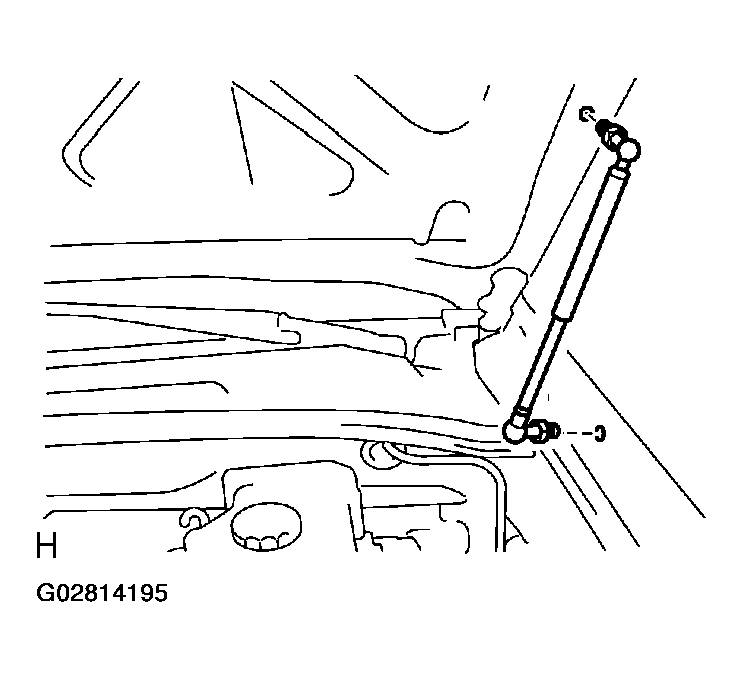

      Fig 1: Removing Hood Support Assembly
      G02814195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL HOOD SUPPORT ASSY
    1. Install the hood support with the 2 bolts.

      Torque: 17.5 N.m (180 kgf.cm, 13 ft.lbf)
