Diagnostic Trouble Code Chart

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

TERMS

Terms	Meaning
Physical address	Three-digit code (shown in hexadecimal) which is given to each component compring the AVC-LAN. Corresponding to the function, individual symbols are specified.
Logical address	Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN.

PIONEER MADE:
RADIO RECEIVER ASSY (Physical address: 190)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start. *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
1. Logical address: 01 (Communication control)

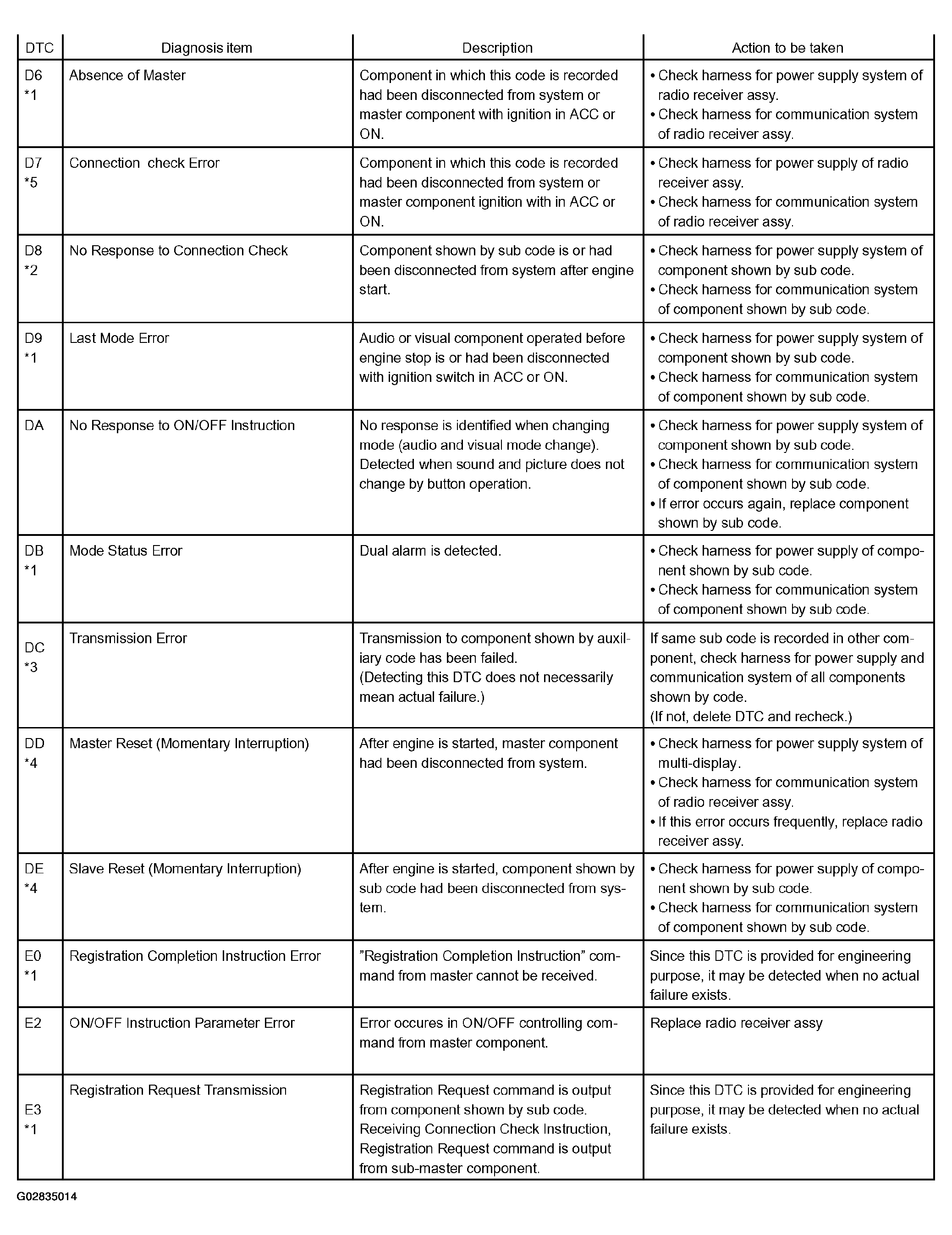

  Fig 1: Identifying DTC Description Chart Logical Address: 01 (Communication Control) (Radio Receiver Assy (Physical Address: 190))
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 61 (Cassette switch)

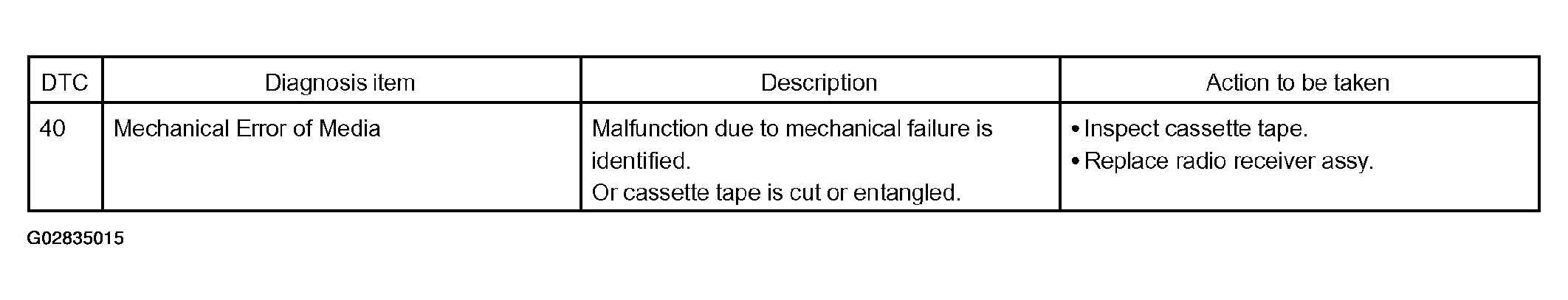

  Fig 2: Identifying DTC Description Chart Logical address: 61 (Cassette switch) (Radio Receiver Assy (Physical Address: 190))
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Logical address: 62 (CD player)

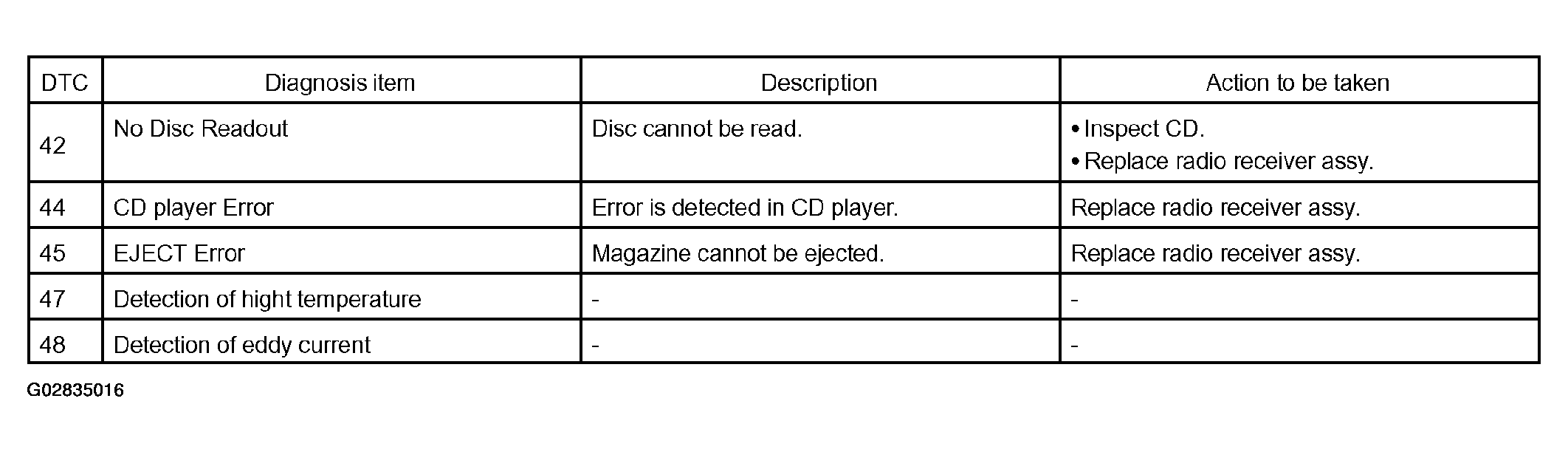

Fig 3: Identifying DTC Description Chart Logical Address: 62 (CD Player) (Radio Receiver Assy (Physical Address: 190))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

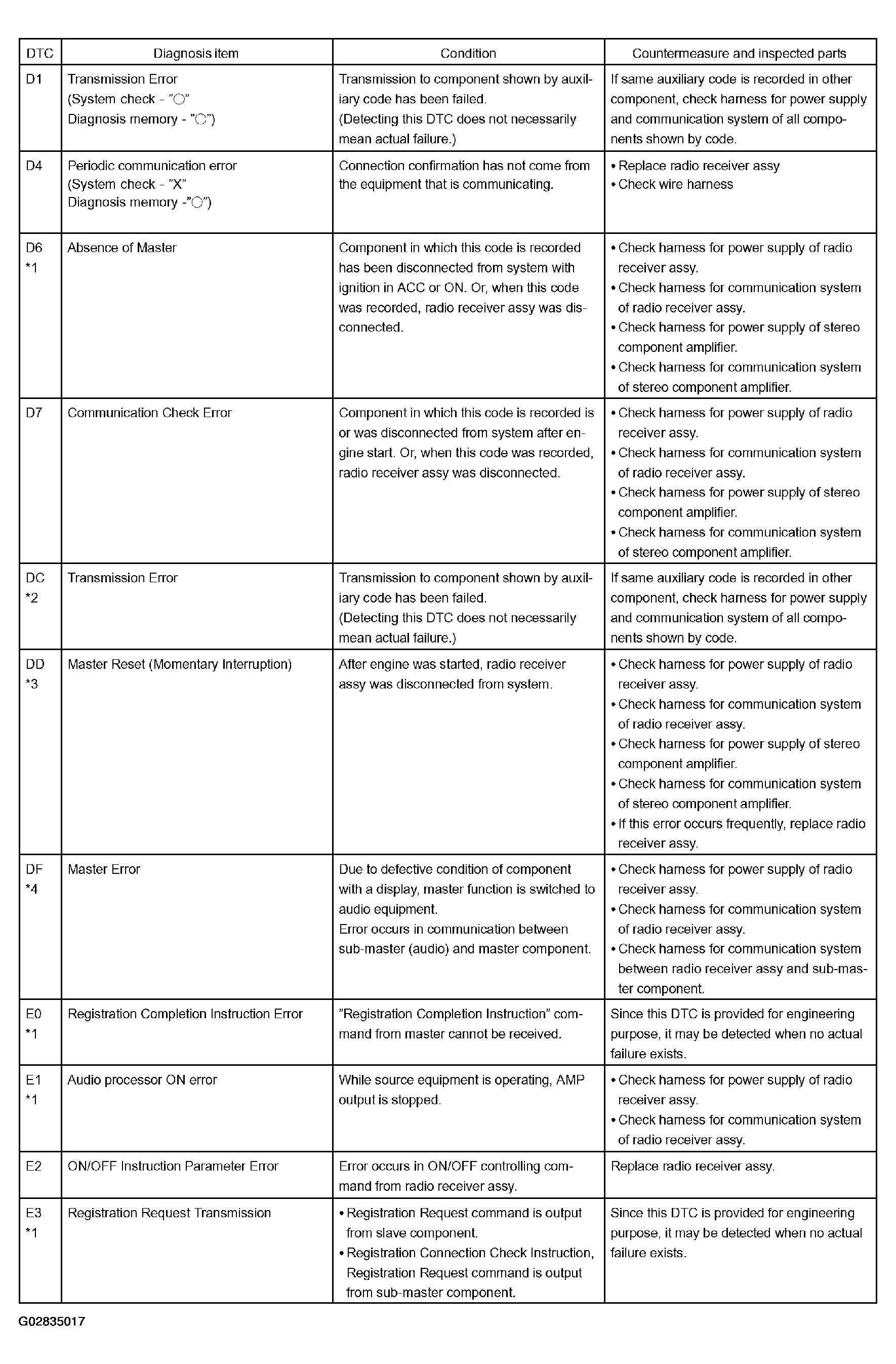

Fig 4: Identifying DTC Description Chart Logical Address: 01 (Communication Control) (Stereo Component Amplifier Assy (Physical Address: 440))
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY

HINT:

*1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
*2: This code be stored when the engine key is turned again 1 min. after engine start.
*3: This code may be stored when the engine key is turned again after engine start.
*4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

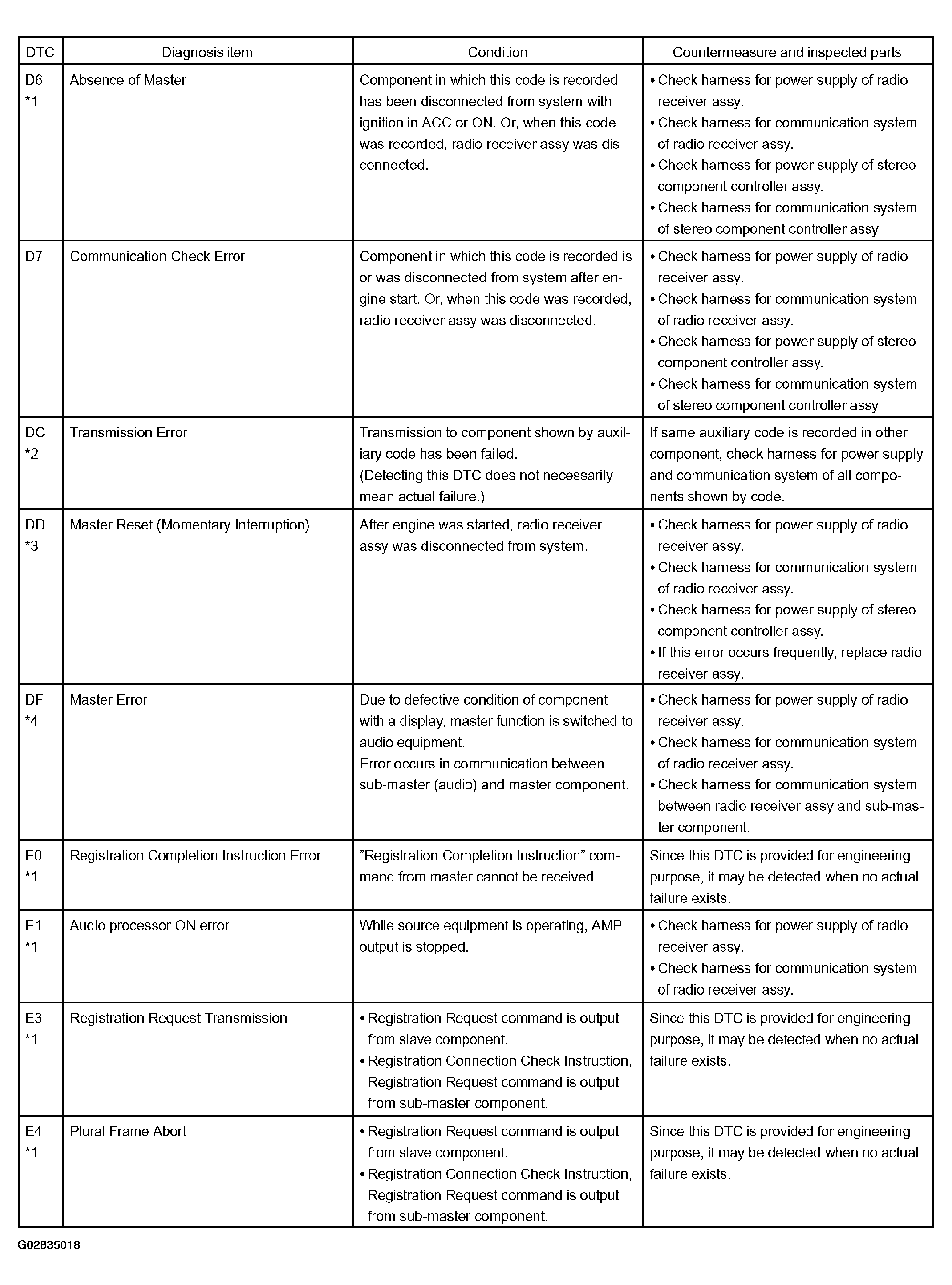

Fig 5: Identifying DTC Description Chart Logical Address: 01 (Communication Control) (Stereo Component Controller Assy)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
