Circuit Description
WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

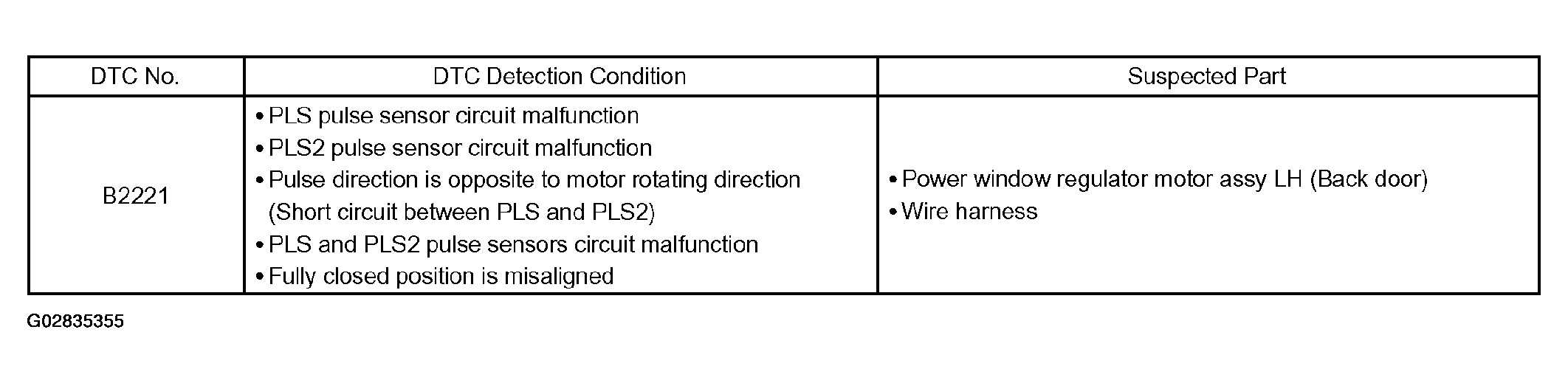

The back door ECU monitors the condition of the power window motor and detects the position of the door glass by using pulse signals output from the 2 pulse sensors in the power window motor.
