Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the chart below (Proceed to the page given for that circuit).

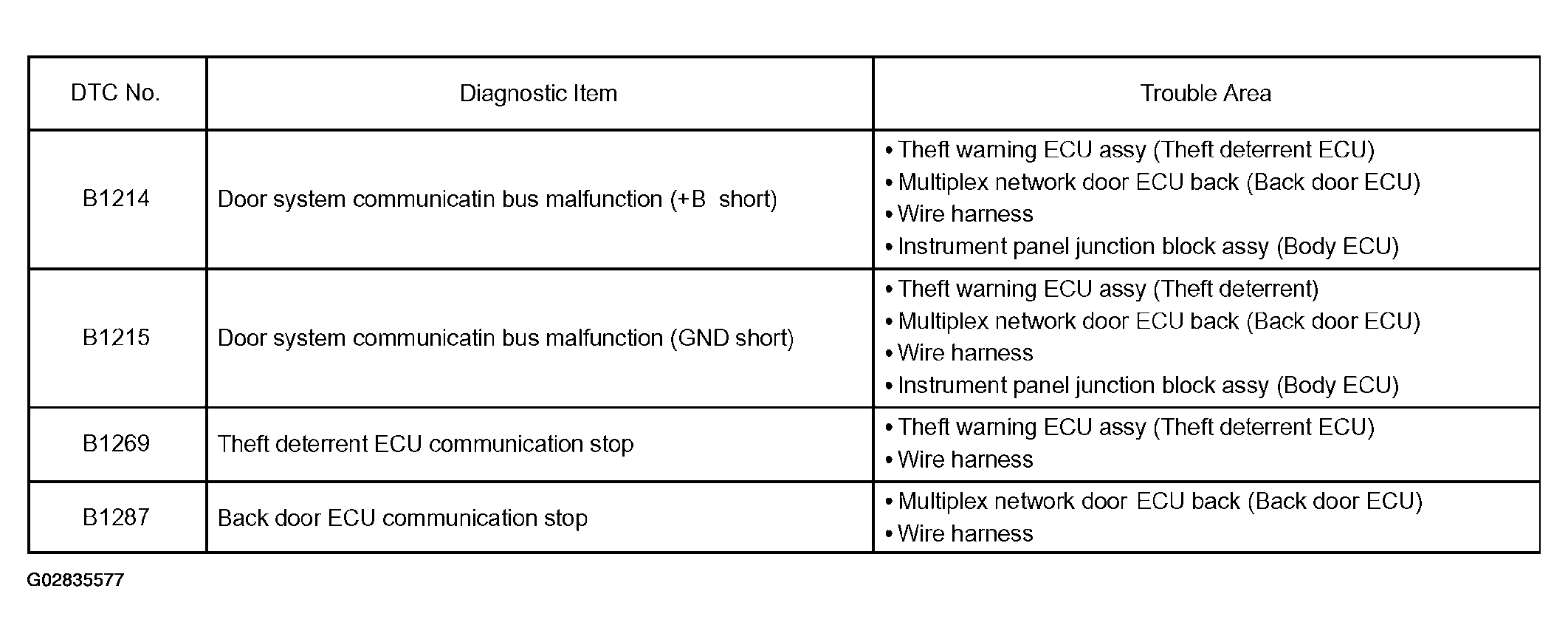

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC B1214, B1215 | DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT/GND SHORT) |
| DTC B1269 | THEFT DETERRENT ECU COMMUNICATION STOP |
| DTC B1287 | BACK DOOR ECU COMMUNICATION STOP |
