Terminals Of ECM

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

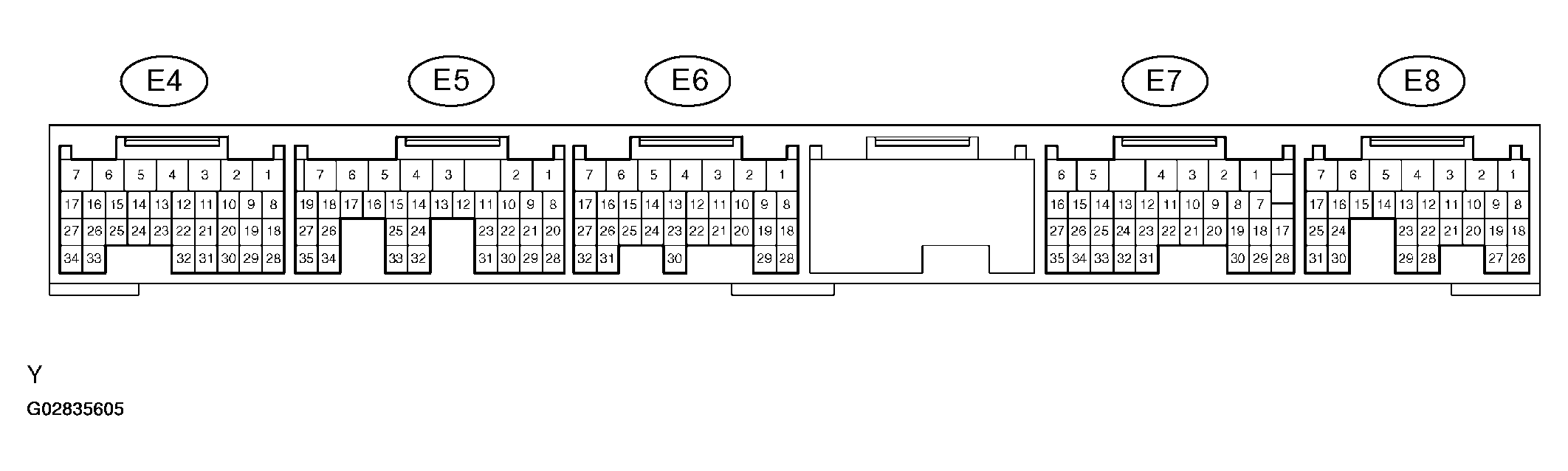

Fig 1: Terminals Of ECM Connector
G02835605Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

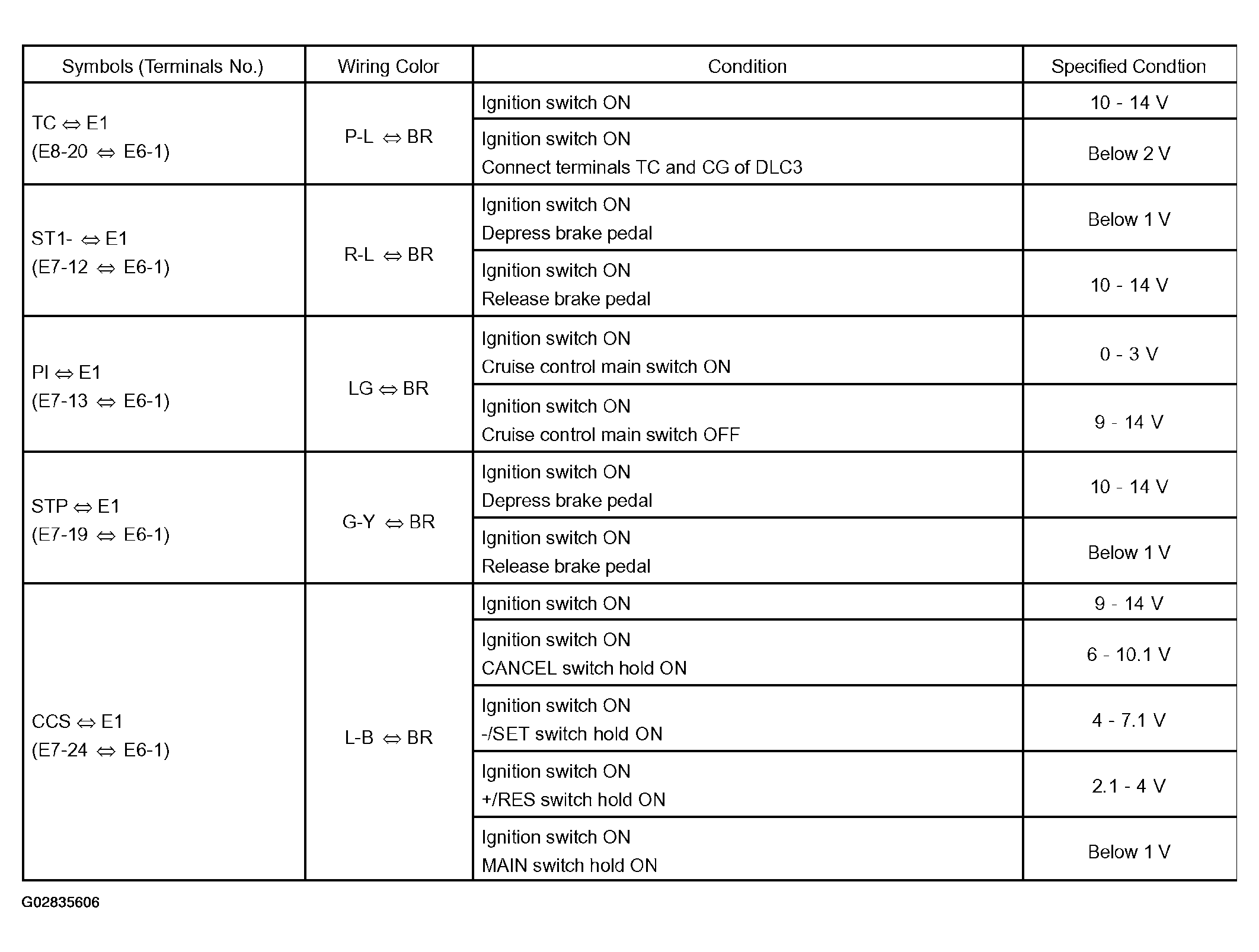

Fig 2: Terminal & Wiring Color Condition Chart
G02835606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
