Section 526 (Steering Column): Repair

WARNING: This page is about a different car, the 2004 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
  1. STEERING OFF CENTER REPAIR PROCEDURE
    1. Inspect steering wheel off center.
      1. Apply masking tape on the top center of the steering wheel and steering column upper cover.

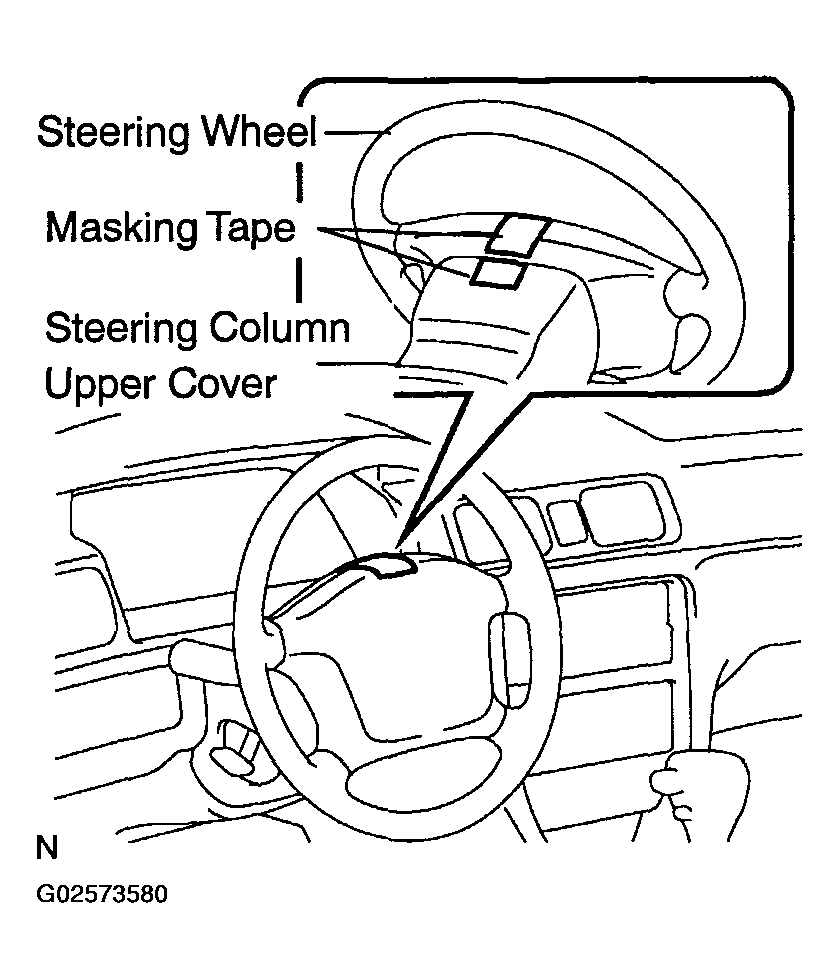

      2. Fig 1: Applying Masking Tape
        G02573580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Drive the vehicle in a straight line for 100 meters at a constant speed of 35 mph (56 km/h), and hold the steering wheel to maintain the course.
      4. Draw a line on the masking tape as shown in the illustration.

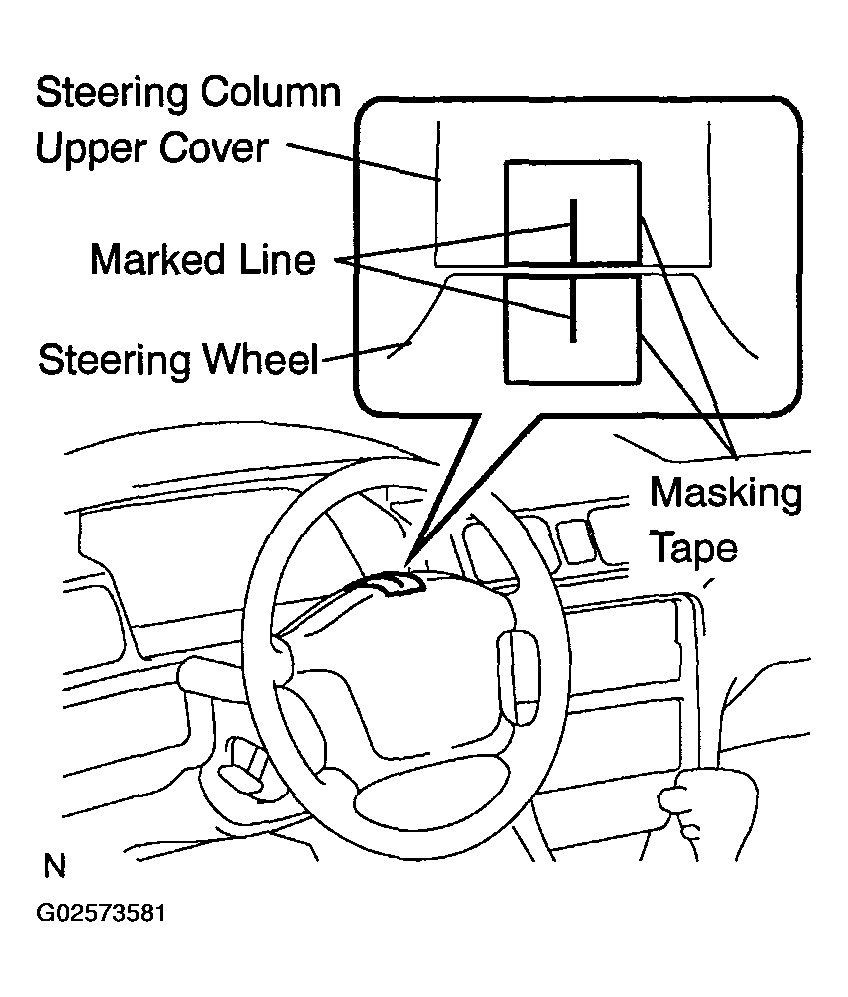

        Fig 2: Drawing Line On Masking Tape
        G02573581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. Turn the steering wheel to its straight position.

        HINT:

        Refer to the upper surface of the steering wheel, steering spoke and SRS airbag line for the straight position.

      6. Draw a new line on the masking tape or the steering wheel as shown in the illustration.

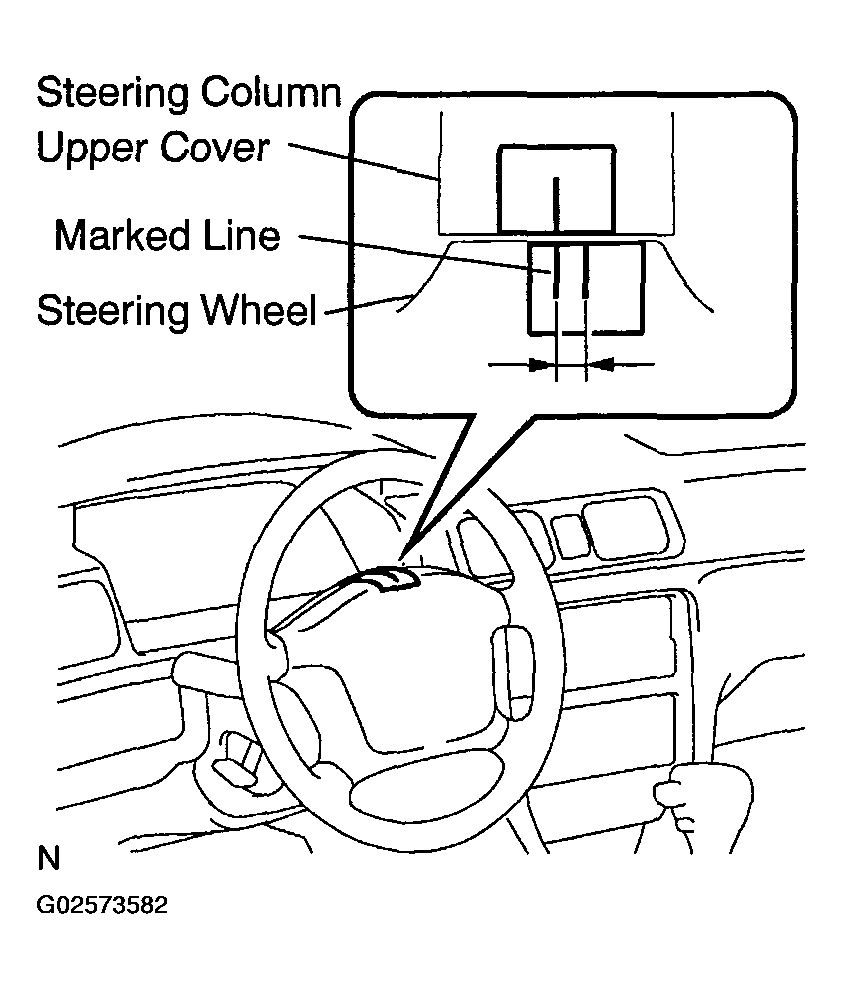

      7. Fig 3: Drawing New Line On Masking Tape
        G02573582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      8. Measure the distance between the 2 lines on the masking tape of the steering wheel.
      9. Convert the measured distance to steering angle.

      Measured distance 1 mm (0.04 in.) = Steering angle approximately 1 deg.

      HINT:

      Make a note of the steering angle.

    2. Adjust steering angle.
      1. Draw a line on the RH and LH tie rod and on the RH and LH rack end which it can easily be seen.

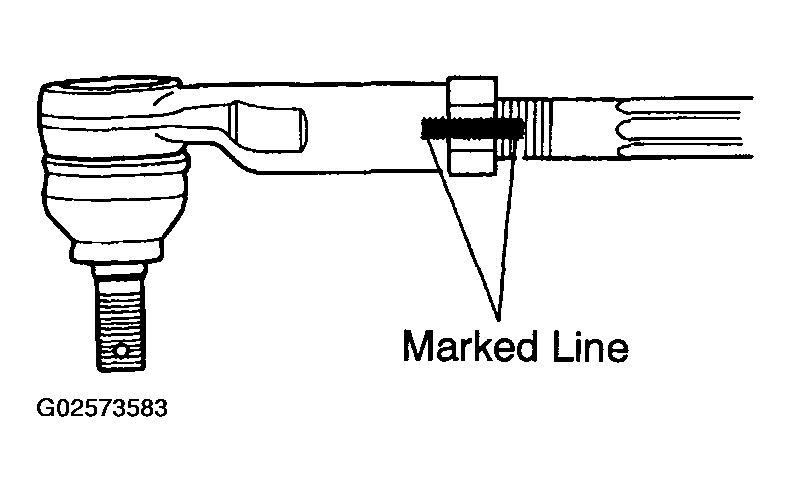

      2. Fig 4: Drawing Line On RH And LH Tie Rod & Rack End
        G02573583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Using a paper gauge, measure the distance from RH and LH tie rod ends to the rack end screws.

        HINT:

        • Measure the RH side and LH side.
        • Make a note of the measured values.
      4. Remove the RH and LH boot clips from the rack boots.

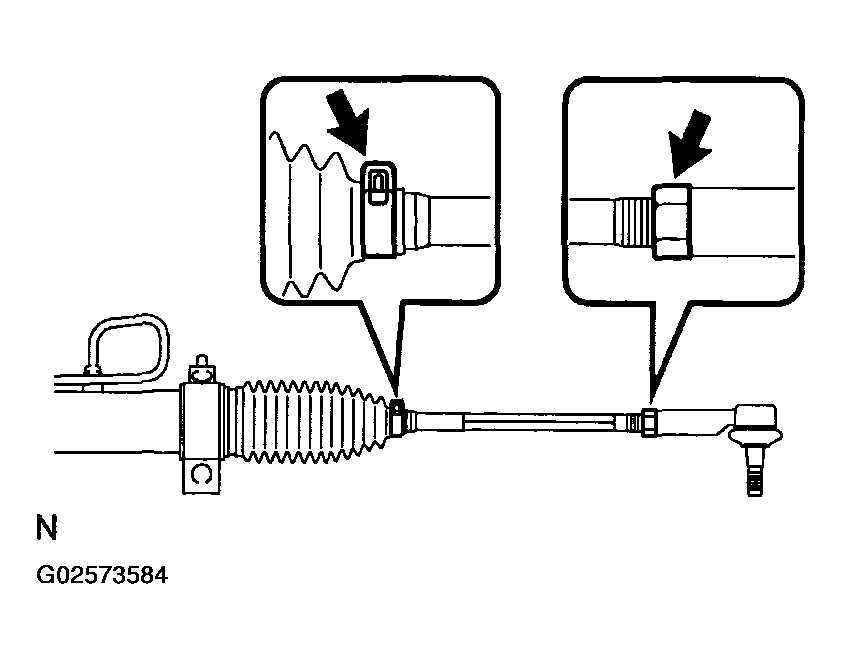

      5. Fig 5: Removing Boot Clips
        G02573584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      6. Loosen the RH and LH lock nuts.
      7. Turn the RH and LH rack ends by the same amount (but in different directions) according to the steering angle.

        1 turn 360 deg. of rack end (1.5 mm (0.059 in.) horizontal movement) - 12 deg. of steering angle.

      8. Tighten the RH and LH lock nuts.

        Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)

        NOTE: Make sure that the difference in length between RH and LH tie rod ends and rack end screws are within 1.5 mm (0.059 in.).
      9. Install the RH and LH boot clips.
