Circuit Protection Devices
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Engine Room J/B | On left side of engine compartment. |
| Engine Room R/B No. 2 | On left side of engine compartment. |
| Fusible Link Block | In engine room J/B. |

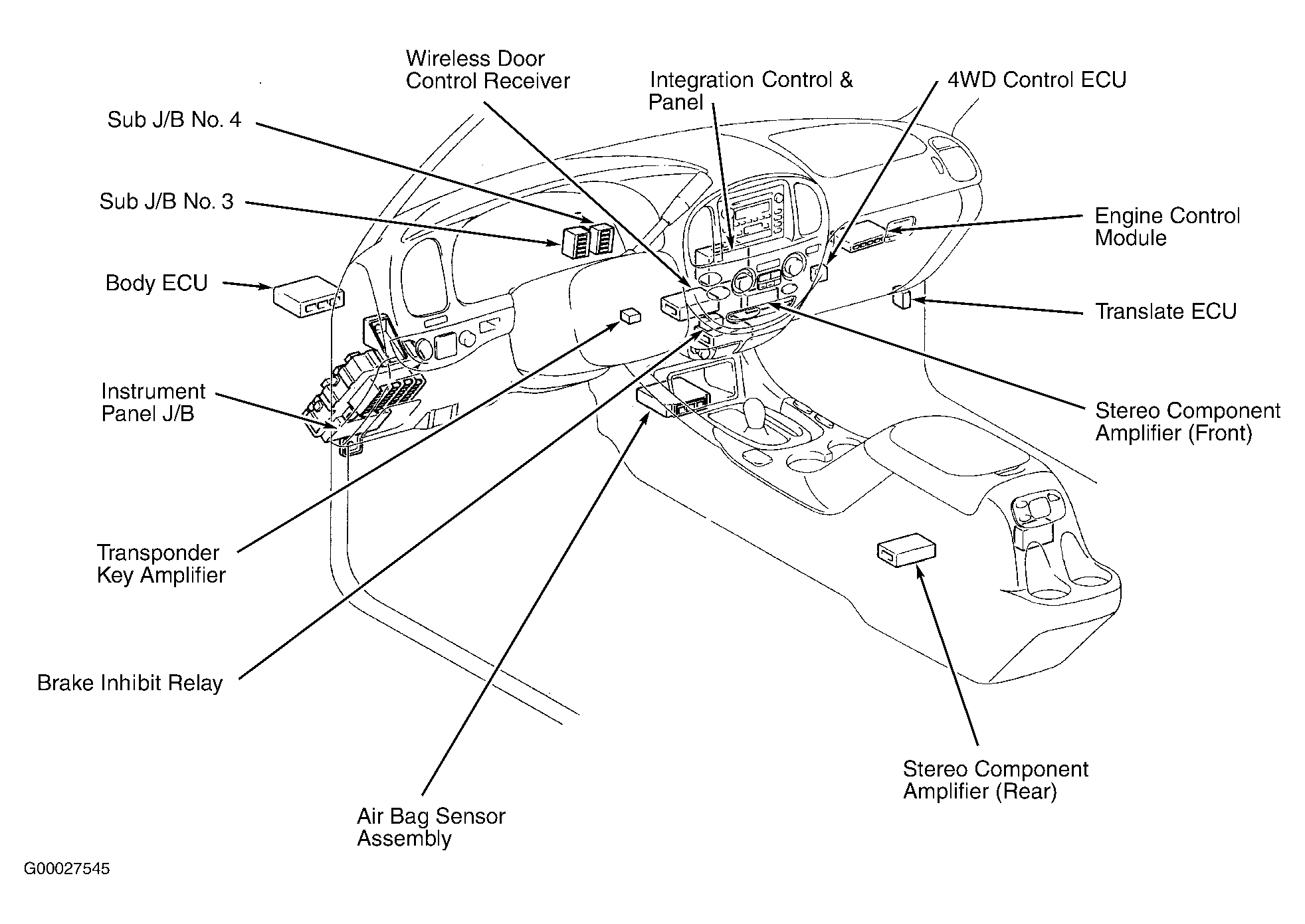

| Instrument Panel J/B | Behind left end of dash. See Figure. |
| Sub J/B No. 3 | Behind right side of instrument cluster. See Figure. |
| Sub J/B No. 4 | Behind right side of instrument cluster. See Figure. |
