Component Location Graphics

WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

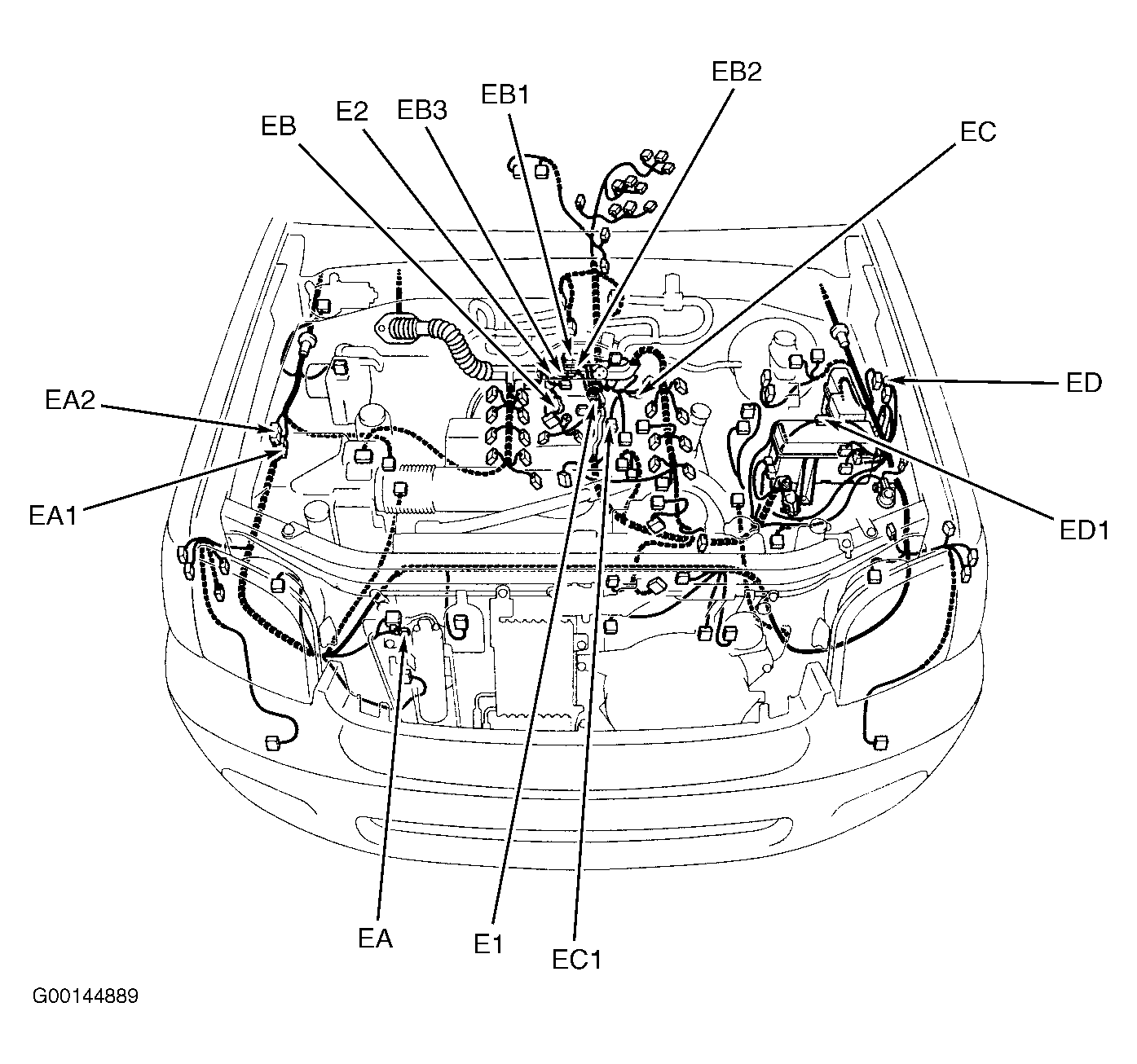

Fig 1: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

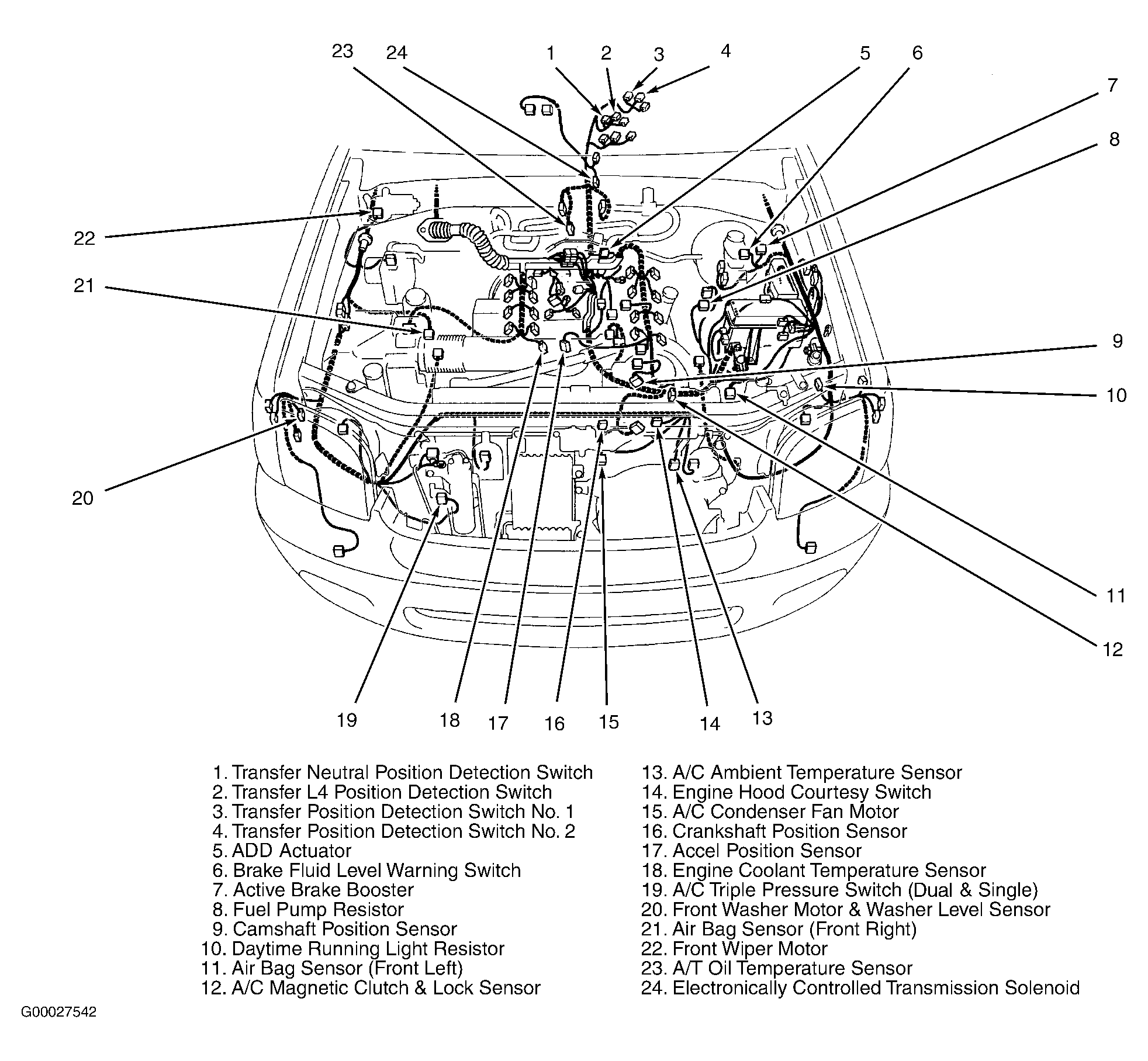

Fig 2: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

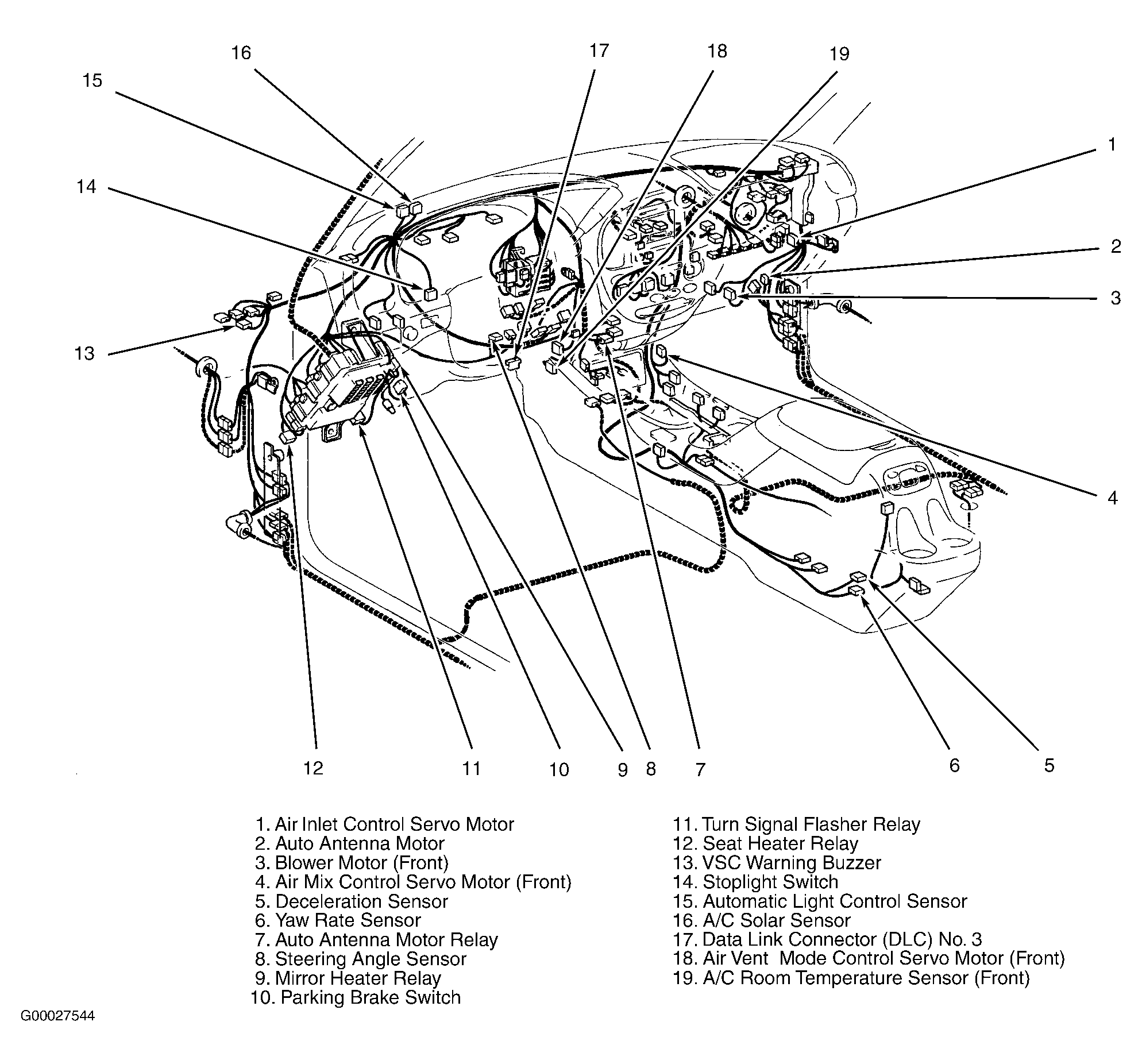

Fig 3: Dash Relays And Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DASH COMPONENTS RELAY IDENTIFICATION

RELAY NUMBER	RELAY DESCRIPTION
7.	Auto Antenna Motor Relay
9.	Mirror Heater Relay
11.	Turn Signal Flasher Relay
12.	Seat Heater Relay

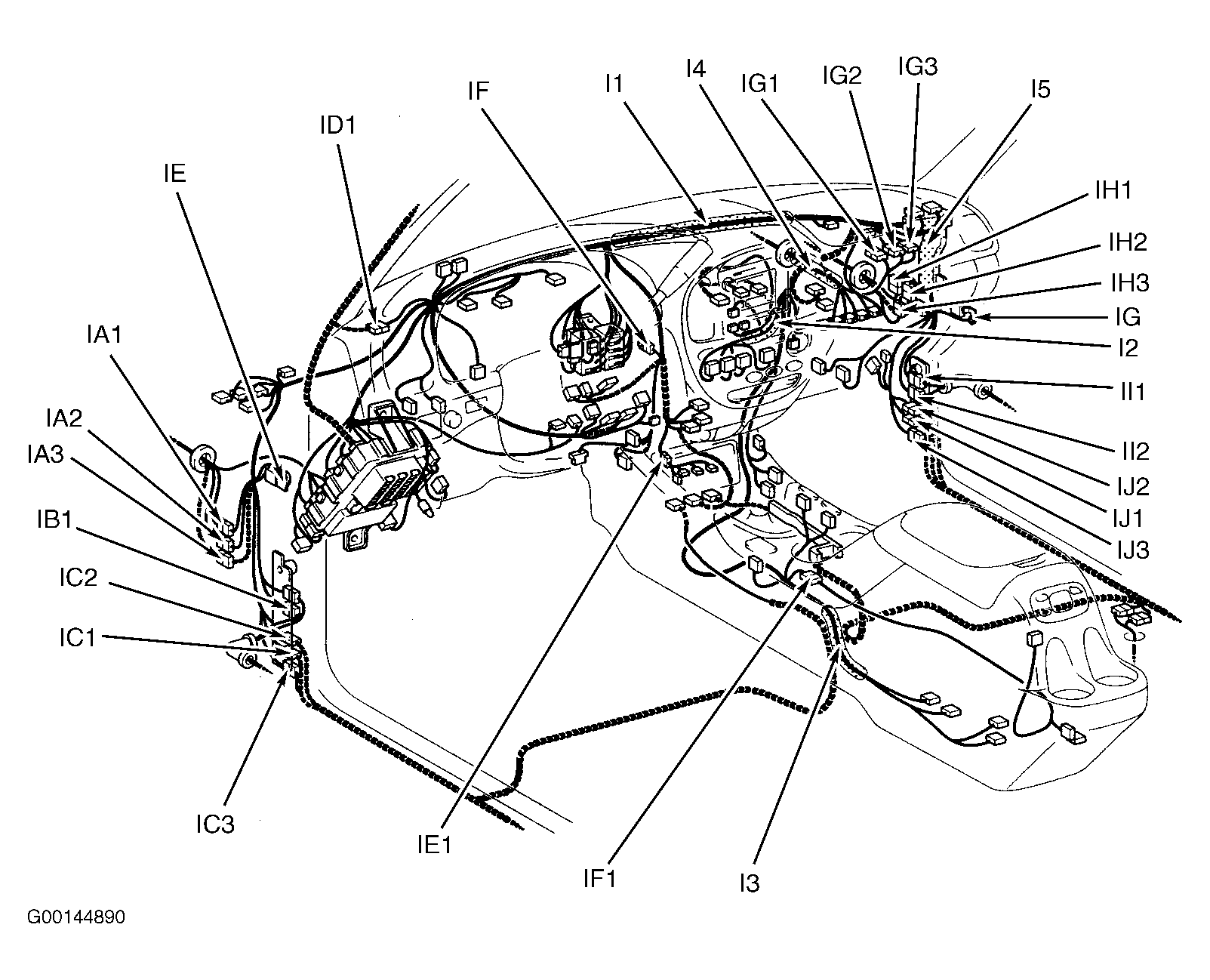

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

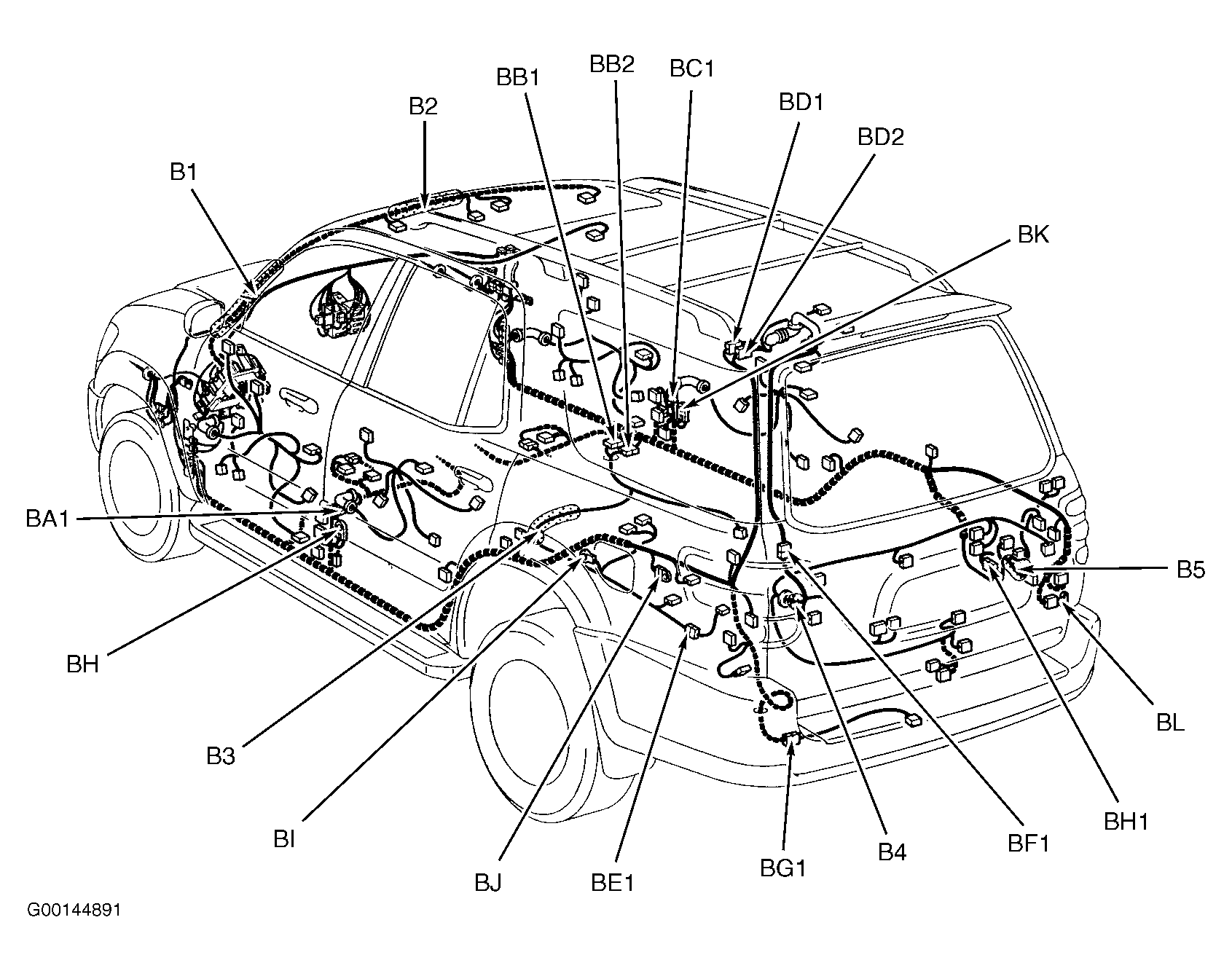

Fig 5: Vehicle Overview

Fig 6: Engine Compartment

Fig 7: Dash

Fig 8: Vehicle Overview
