Control Units
WARNING: This page is about a different car, the 2002 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Air Bag Sensor Assembly | Below front of center console. See Figure. |

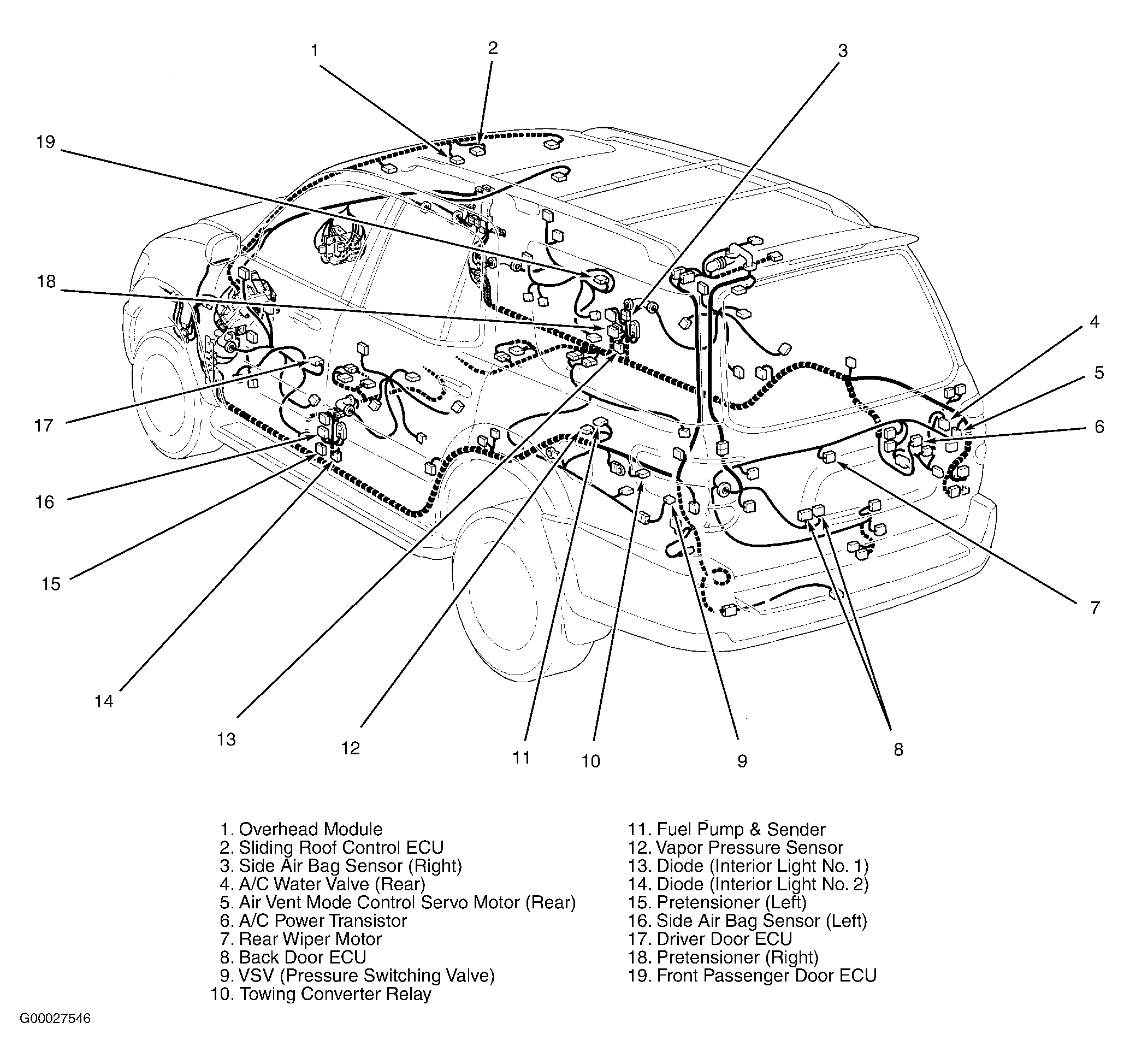

| Back Door ECU | On left side of liftgate. See Figure. |
| Body ECU | Behind left end of dash. See Figure. |
| Driver Door ECU | In left front door. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Front Passenger Door ECU | In right front door. See Figure. |
| Integration Control & Panel | Behind center of dash. See Figure. |
| Overhead Module | On center front of roof. See Figure. |

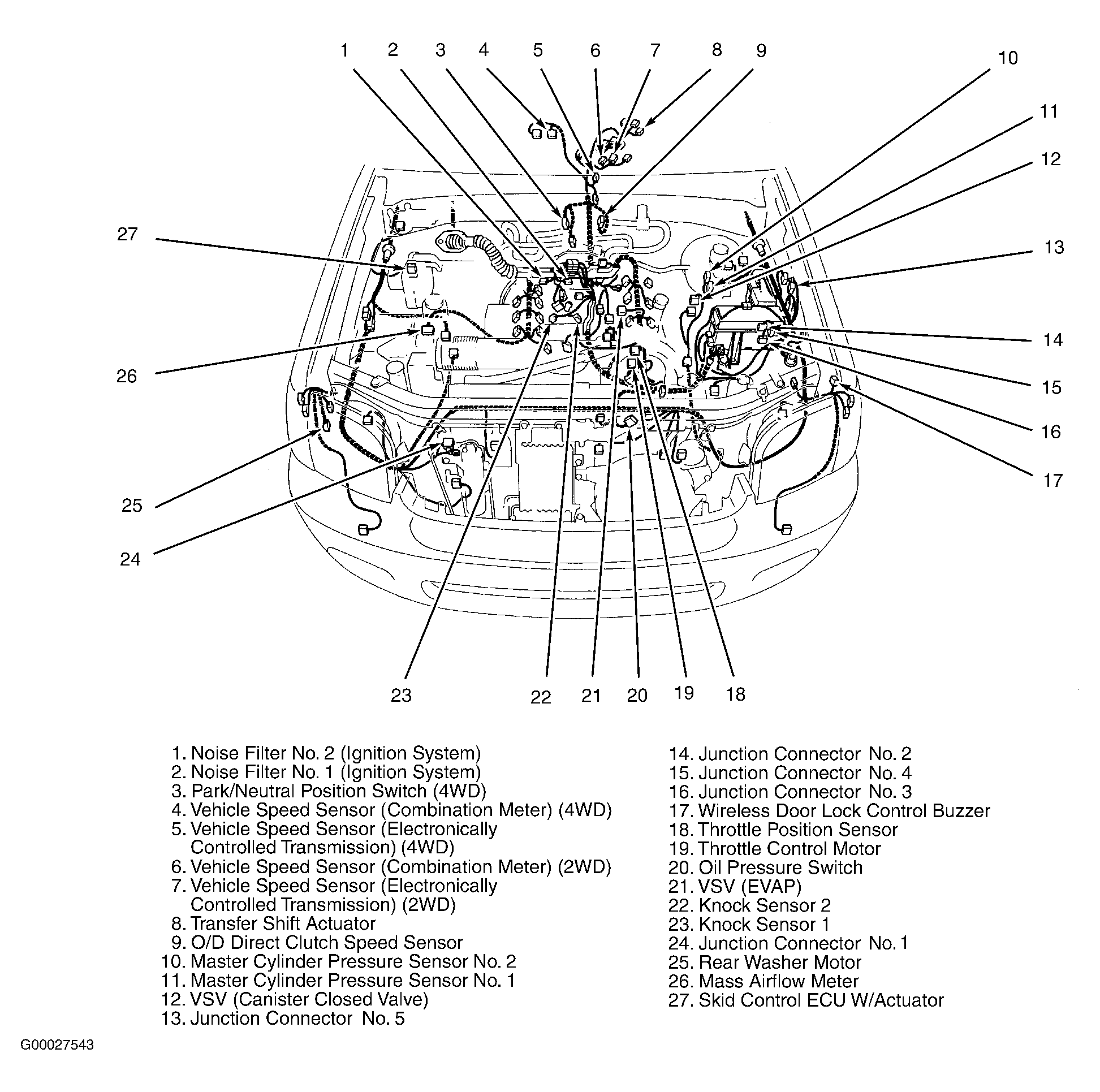

| Skid Control ECU W/ Actuator | On right rear of engine compartment. See Figure. |
| Sliding Roof Control ECU | On center front of roof. See Figure. |
| Stereo Component Amplifier (Front) | Center of dash, below radio. See Figure. |
| Stereo Component Amplifier (Rear) | Below rear of center console. See Figure. |
| Translate ECU | Above right kick panel. See Figure. |
| Transponder Key Amplifier | Inside of steering column. See Figure. |
| Wireless Door Control Receiver | Behind left center of dash. See Figure. |
| 4WD Control ECU | Behind right center of dash. See Figure. |
