System Diagram

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

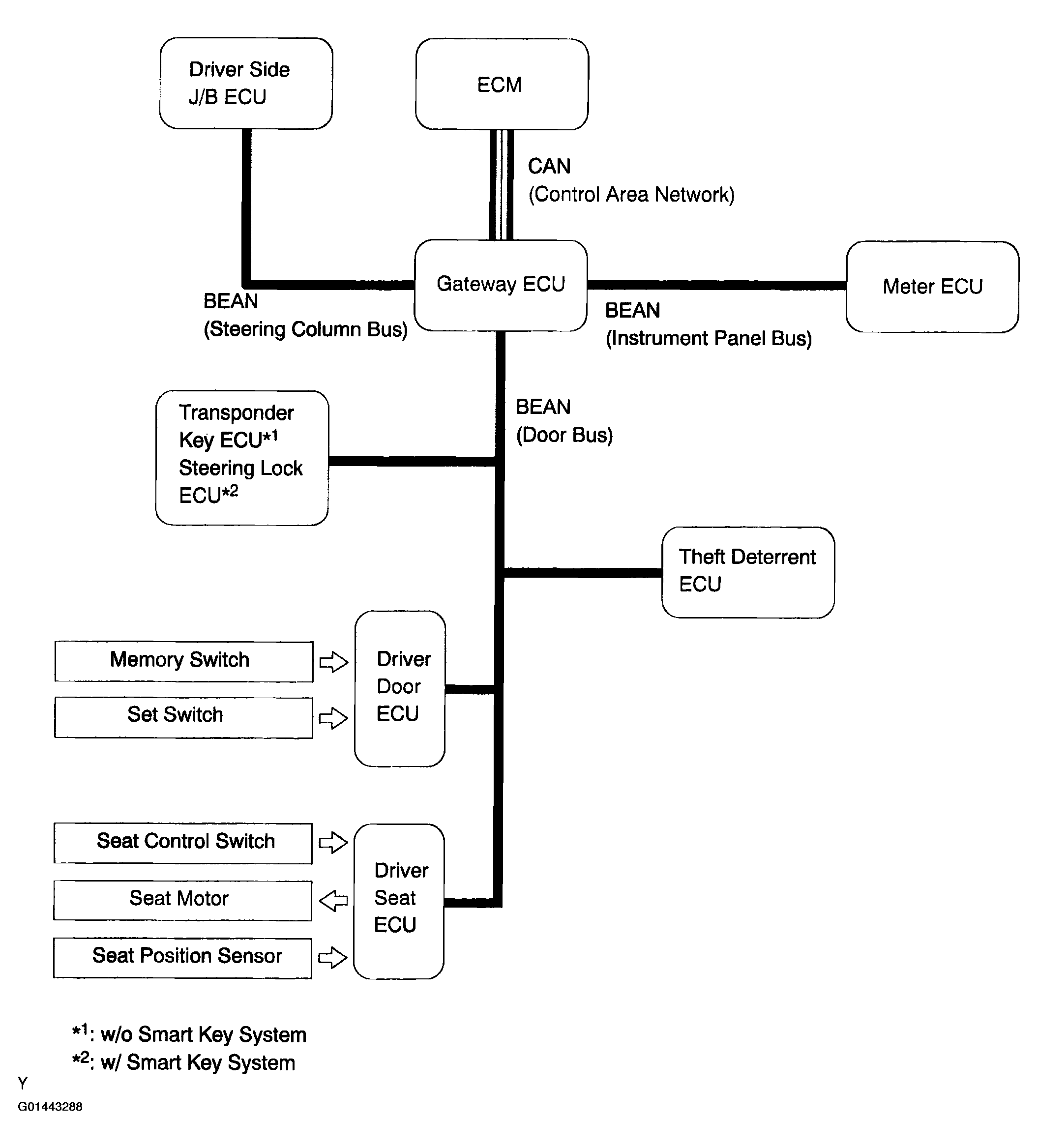

Fig 1: System Diagram
G01443288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table

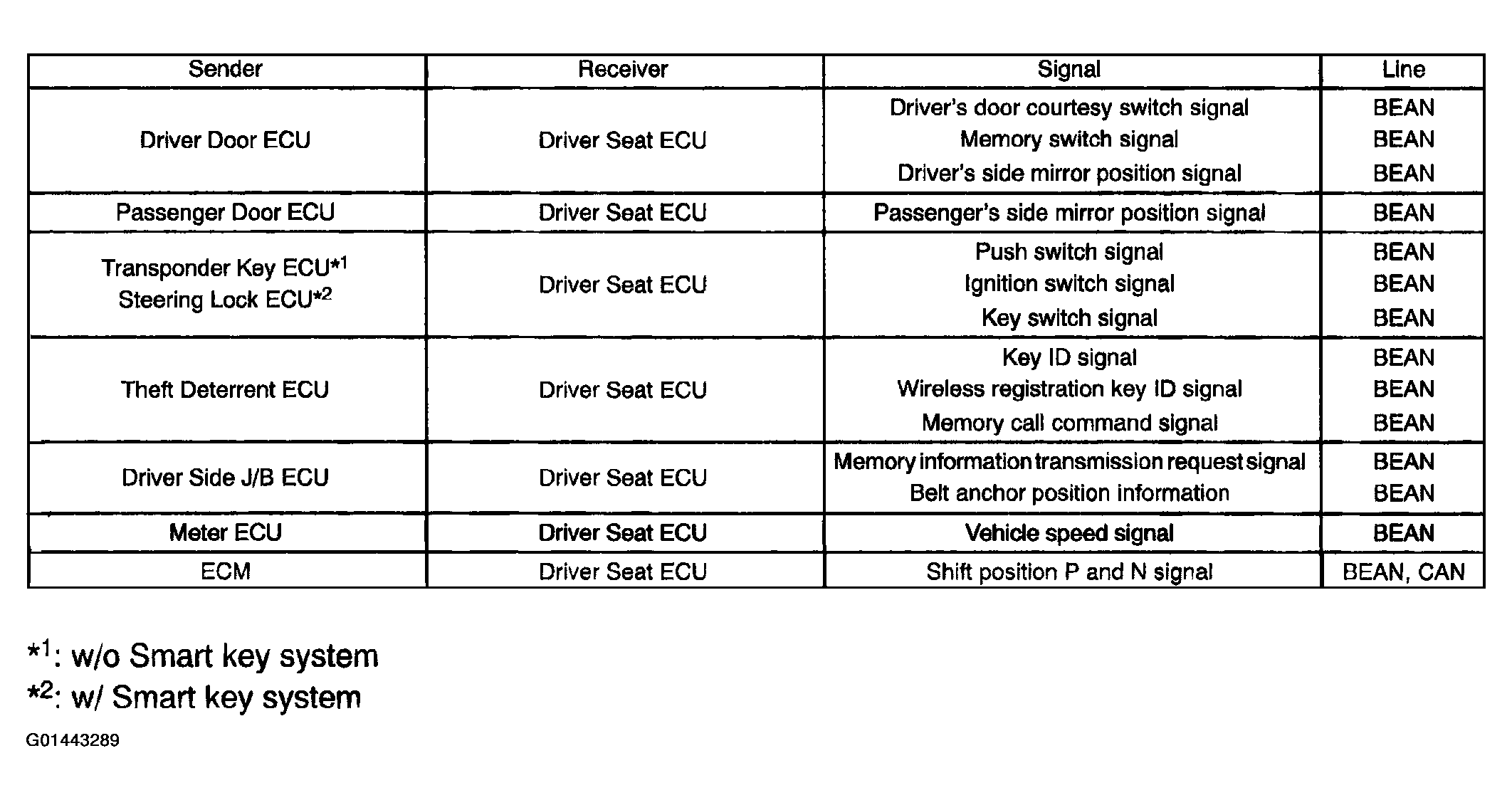

Fig 2: Communication Table
G01443289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*1: w/o Smart key system

*2: w/ Smart key system
