Basic Repair Hint: Fuses

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

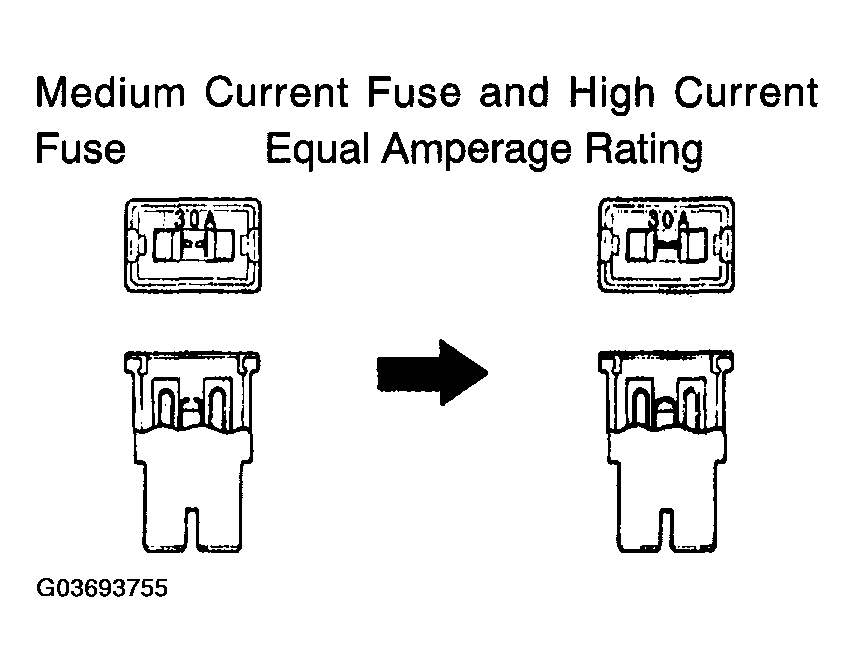

Fig 1: Identifying Fuses
G03693755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. When replacing fuses, be sure that the new fuse has the correct amperage rating. DO NOT exceed the rating or use one with a lower rating.

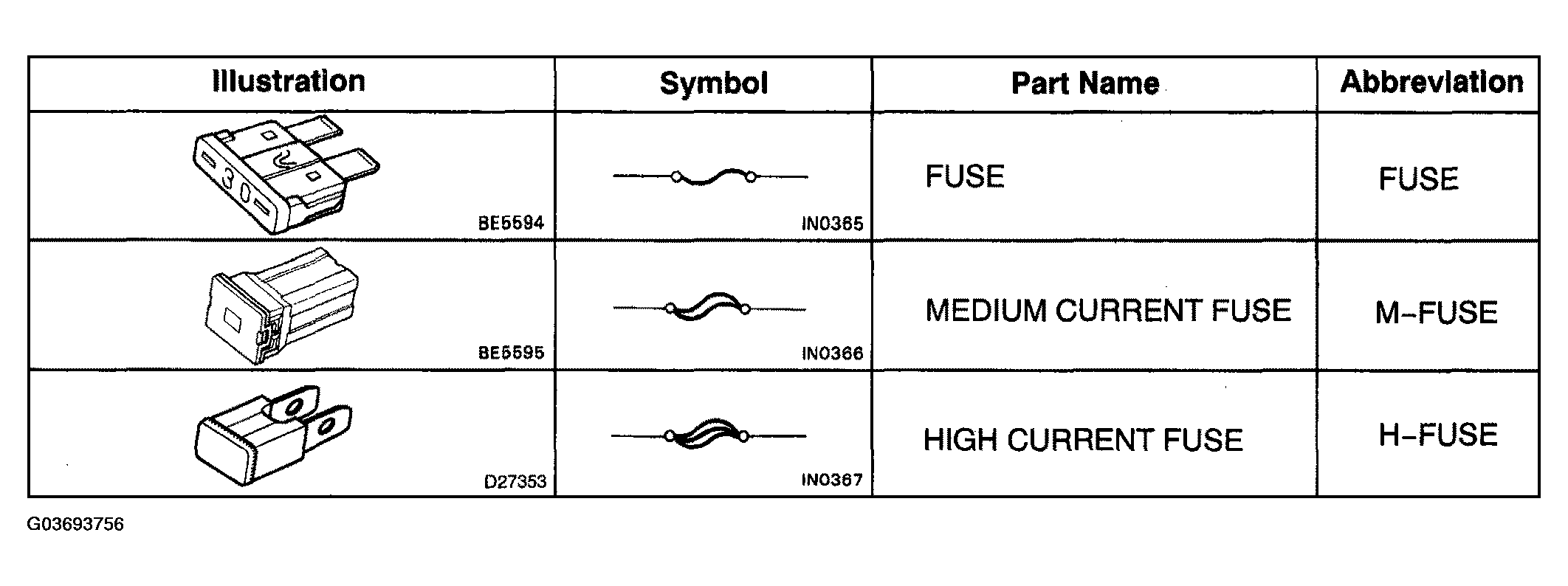

    Fig 2: Fuses Symbol And Abbreviation Chart
    G03693756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
