Circuit Description
WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

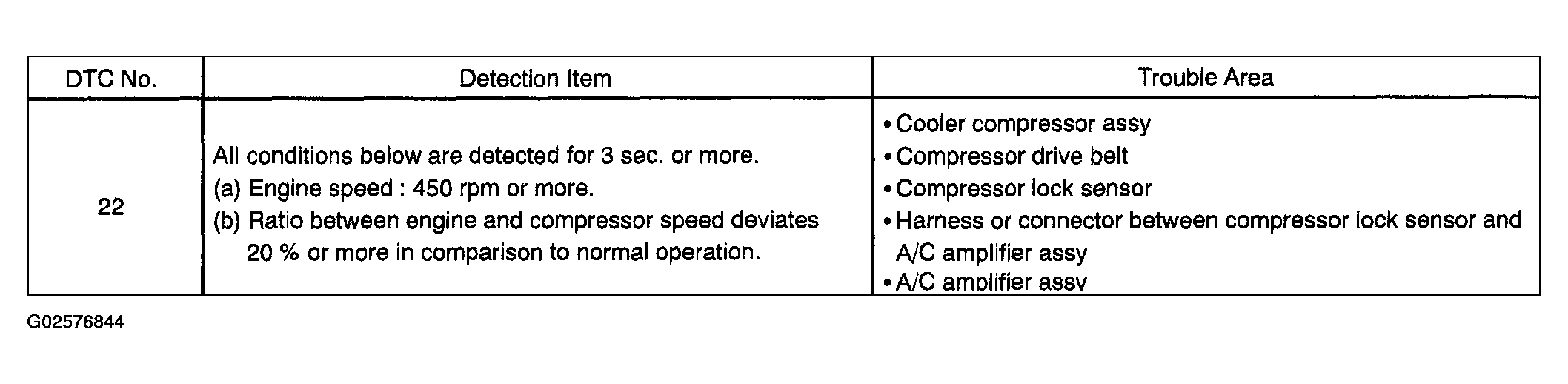

This sensor sends 4 pulses par engine revolution to the A/C amplifier. If the ratio of the compressor speed divided by the engine speed is smaller than a predetermined value, the A/C amplifier turns the compressor off, and the indicator flashes at about 1 sec. intervals.
