DTC 22: Compressor Lock Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

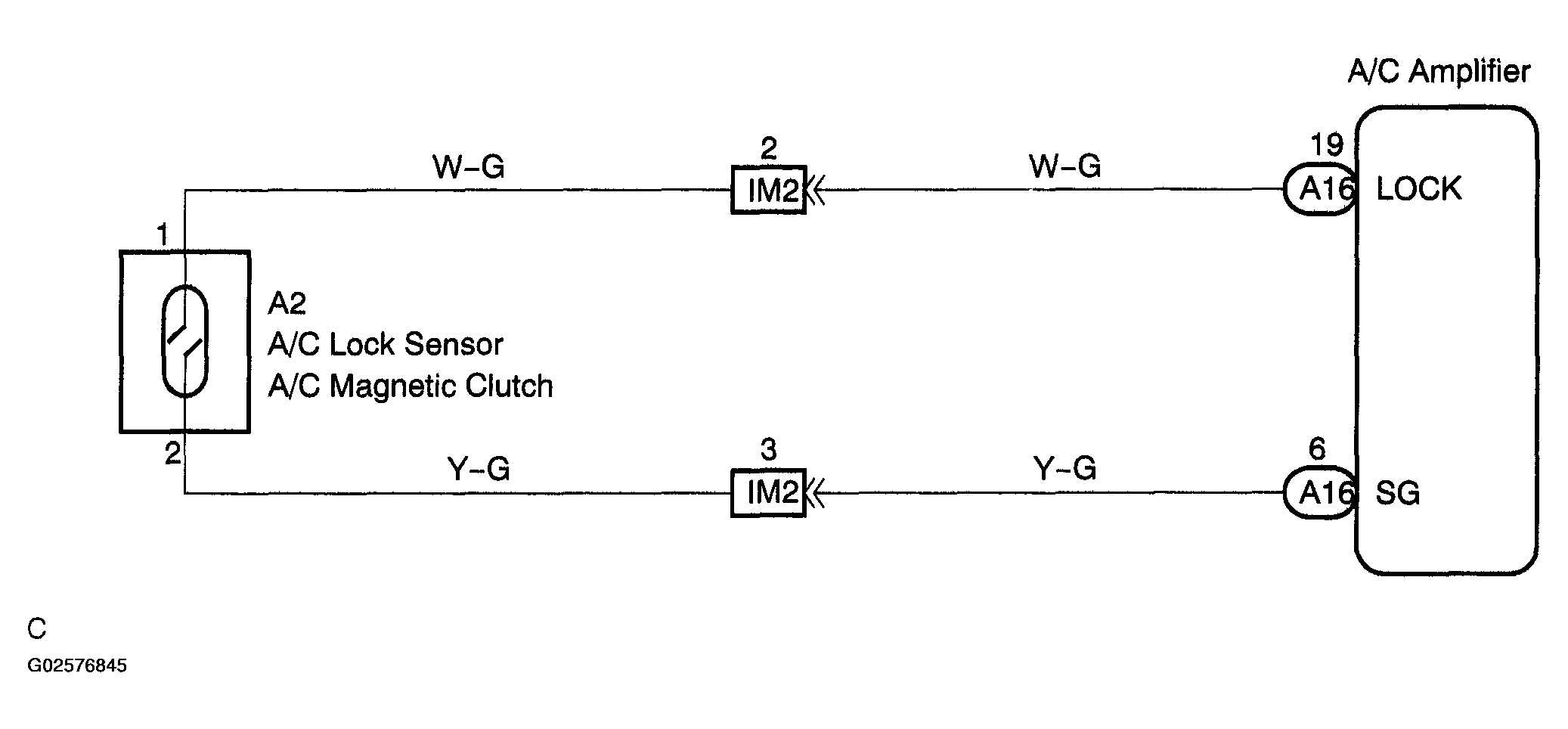

Fig 1: Wiring Diagram - Compressor Lock Sensor Circuit
G02576845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
