DIAGNOSTIC TROUBLE CODE CHART

Terms	Meaning
Physical address	Three-digit code (shown in hexadecimal) which is given to each component comprising the AVC-LAN. Corresponding to the function, individual symbols are specified.
Logical address	Two-digit code (shown in hexadecimal) which is given to each function comprising the inner system of the AVC-LAN.

PIONEER MADE:
RADIO RECEIVER ASSY (Physical address: 190)

HINT:
- *1: Even if no failure is detected, it may be stored depending on the battery condition or voltage for starting an engine.
- *2: It is stored when 180 sec. has passed after the power supply connector is pulled out after engine start.
- *3: It may be stored when the engine key is turned 1 min. after engine start.
- *4: It may be stored when the engine key is turned again after engine start.
- *5: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
1. Logical address: 01 (Communication control)

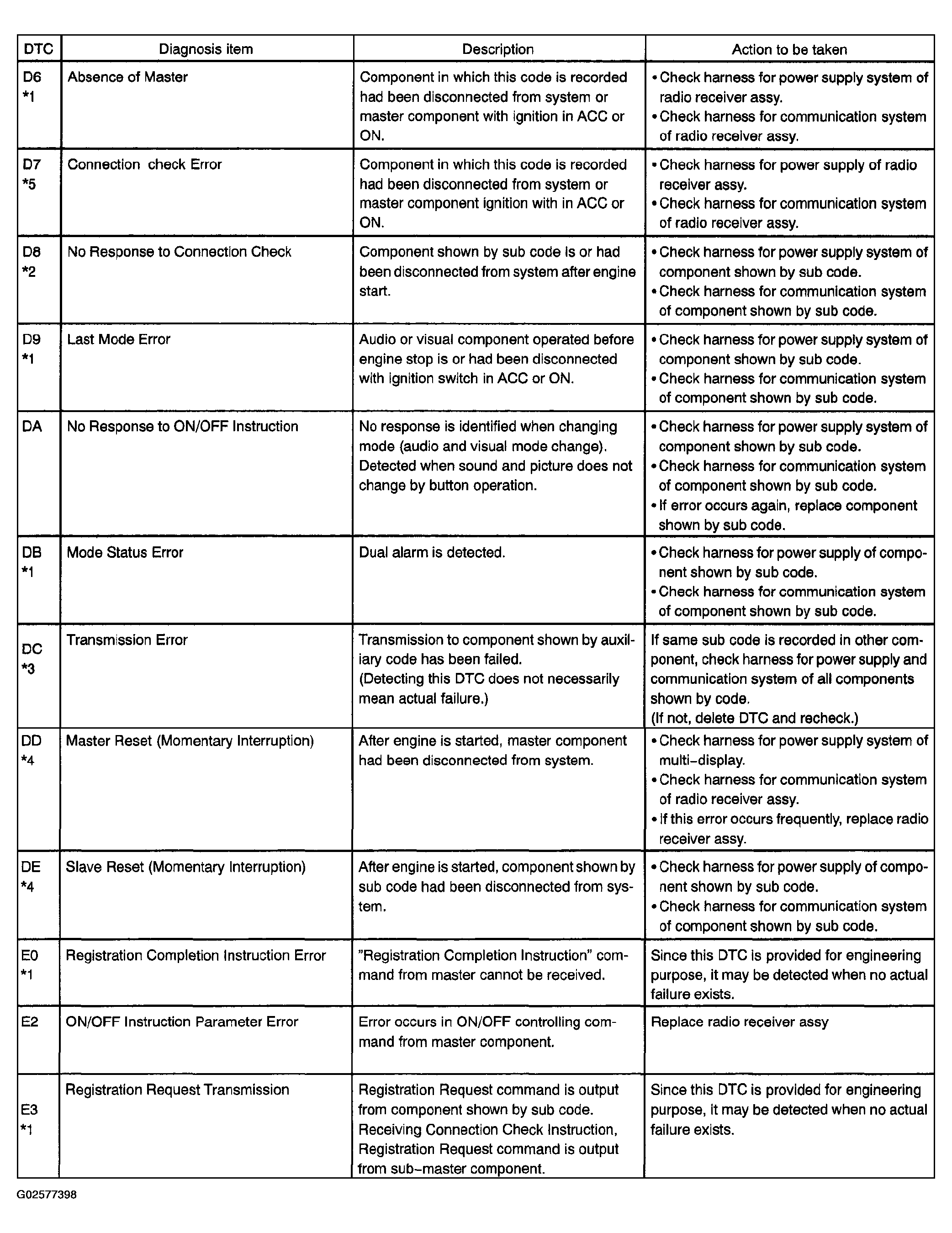

  Fig 1: Diagnostic Chart - Logical Address: 01 (Communication Control)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Logical address: 61 (Cassette switch)

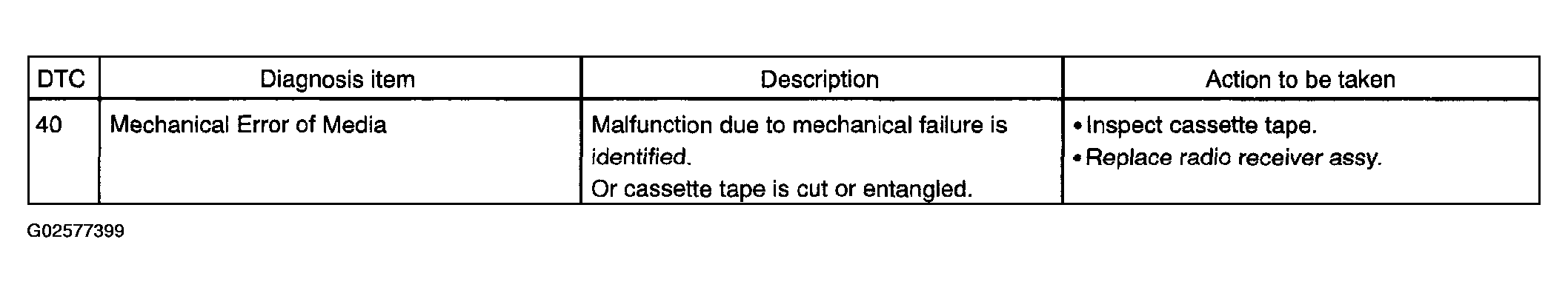

  Fig 2: Diagnostic Chart - Logical Address: 61 (Cassette Switch)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Logical address: 62 (CD player)

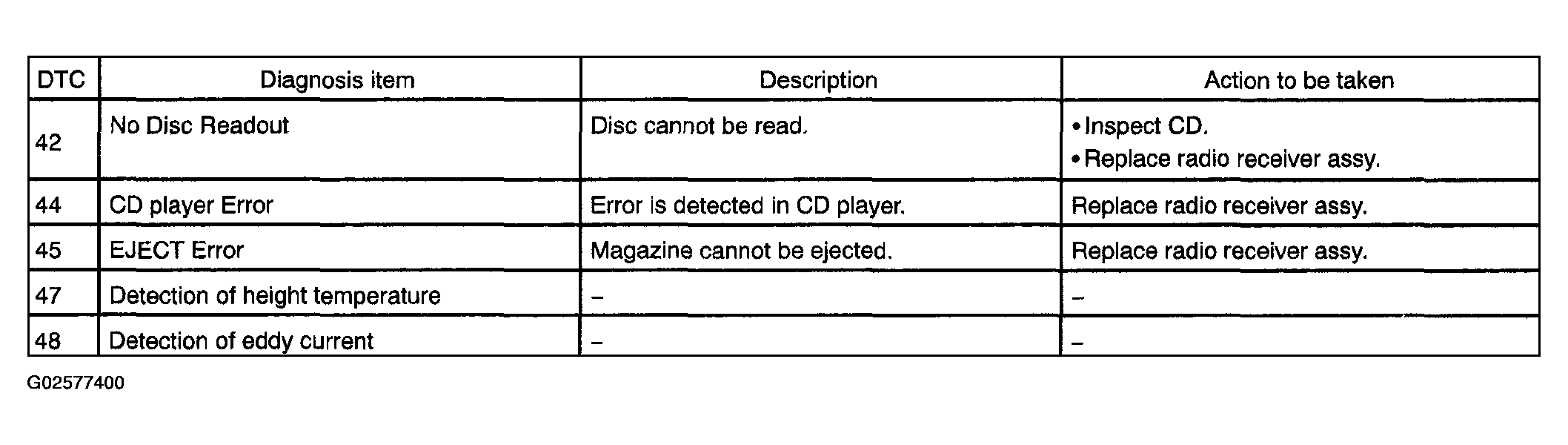

  Fig 3: Diagnostic Chart - Logical Address: 62 (CD Player)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT AMPLIFIER ASSY (Physical address: 440)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code may be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

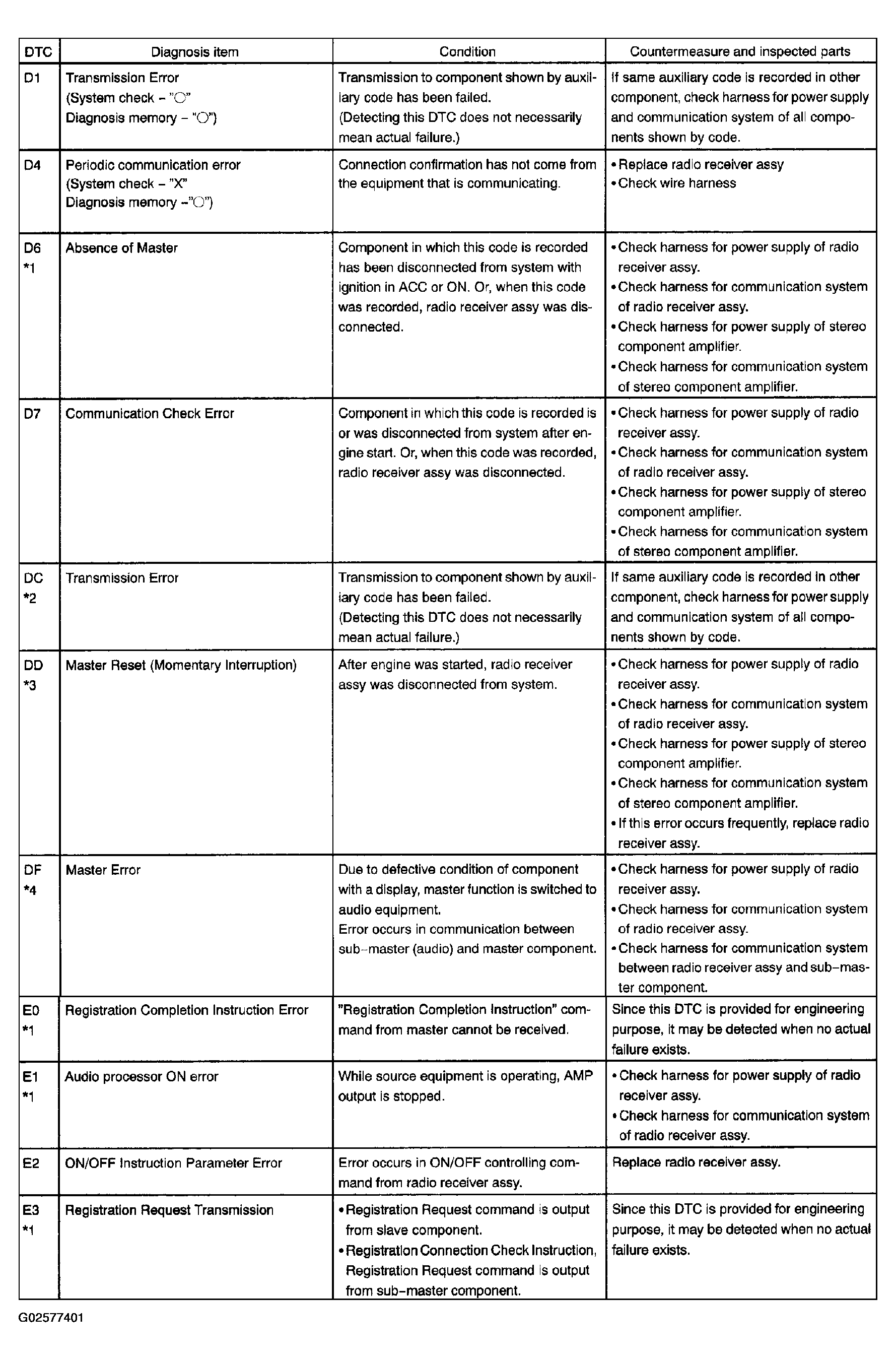

Fig 4: Diagnostic Chart - Logical Address: 01 (Communication Control)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STEREO COMPONENT CONTROLLER ASSY
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting an engine.
- *2: This code may be stored when the engine key is turned again 1 min. after engine start.
- *3: This code may be stored when the engine key is turned again after engine start.
- *4: When 210 sec. has passed after pulling out the power supply connector of the master component with the ignition switch in ACC or ON, this code is stored.
Logical address: 01 (Communication control)

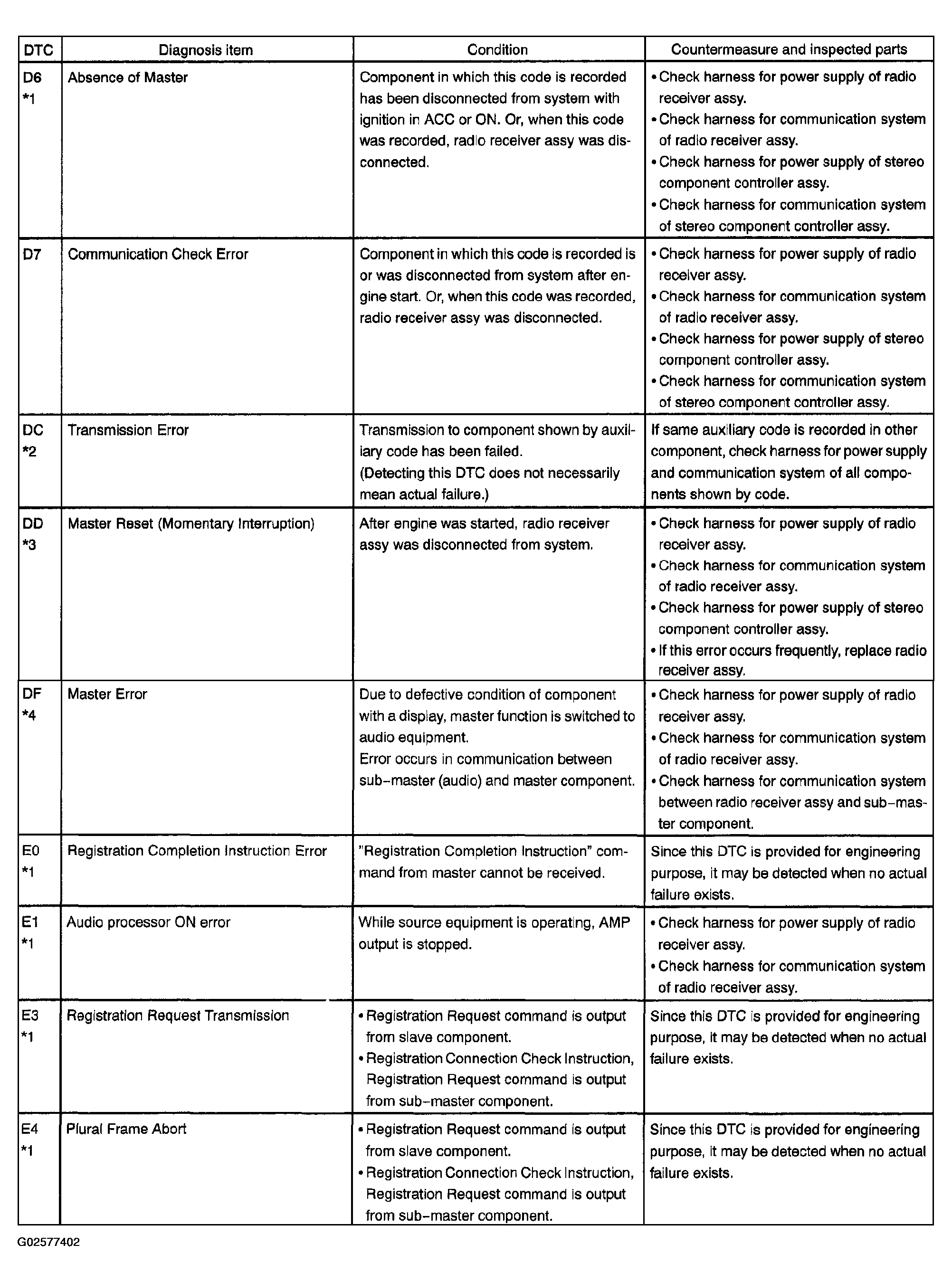

Fig 5: Diagnostic Chart - Logical Address: 01 (Communication Control)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
