Circuit Description

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

The CAN bus lines are considered to be shorted when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is below 54Ω

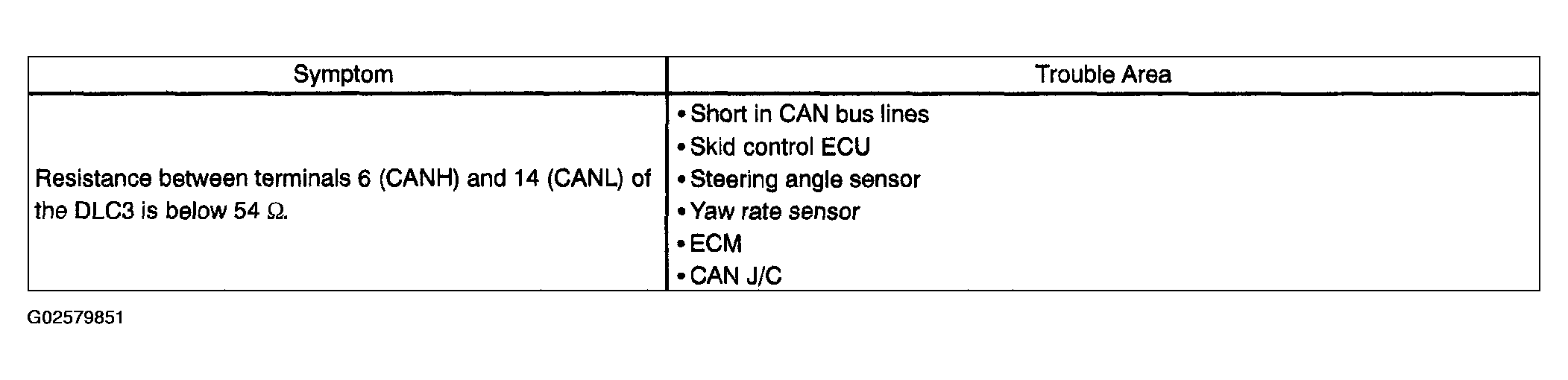

Fig 1: Trouble Symptoms Table
G02579851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
