Inspection Procedure

1. Measure the resistance according to the value (s) in the table below.

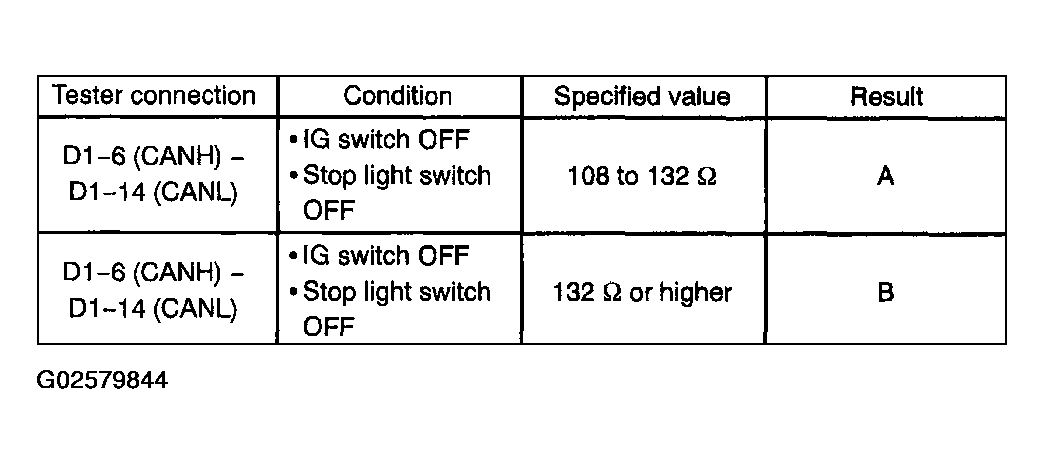

   Fig 1: DLC3 Connector Result Table

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Result:

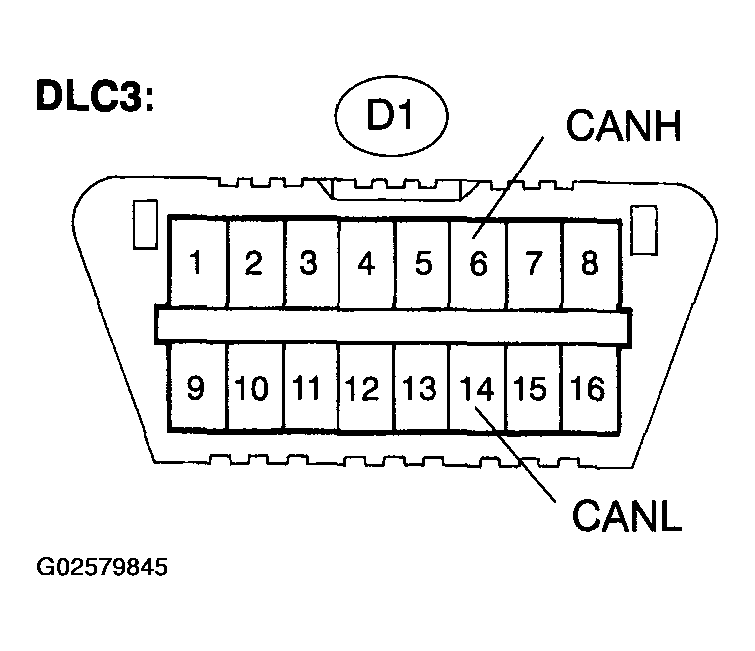

   Fig 2: Identifying DLC3 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: When the measured value is 132 Ω or more and a CAN communication system diagnostic code is output, there may be a fault other than a disconnection of the DLC3 sub bus line. For that reason, troubleshooting should be performed again from "How to Proceed with Troubleshooting" after repairing the trouble area.
   B: REPAIR OR REPLACE DLC3 SUB BUS LINE OR CONNECTOR (CAN-H, CAN-L)

   A: Go to next step.

1. Disconnect the connector (E7) from the ECM.
2. Measure the resistance according to the value (s) in the table below.

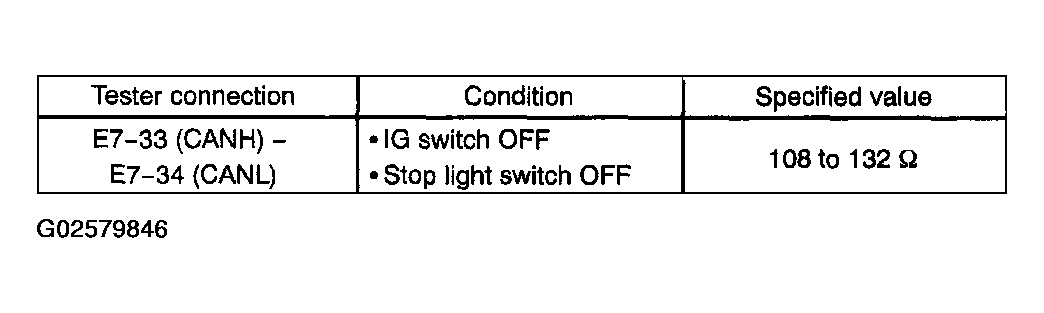

   Fig 3: E7 ECM Connector Terminals Resistance Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

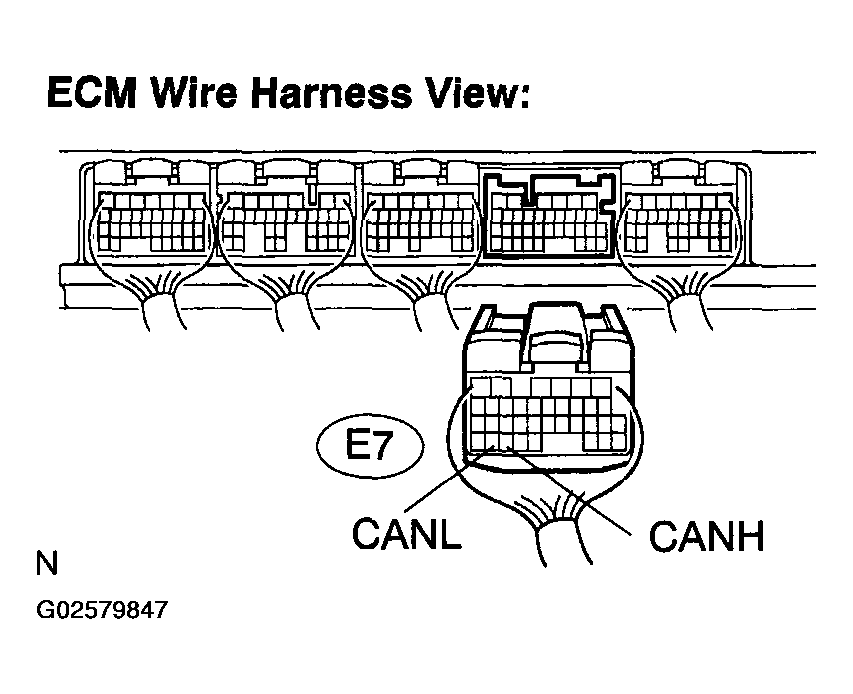

   Fig 4: Identifying E7 ECM Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: REPLACE ECM (  ECM (1GR-FE)  (1GR-FE) OR  ECM (2UZ-FE)  (2UZ-FE))

NG: Go to next step.

1. Disconnect the CAN main bus line connector (J51) from the CAN J/C.

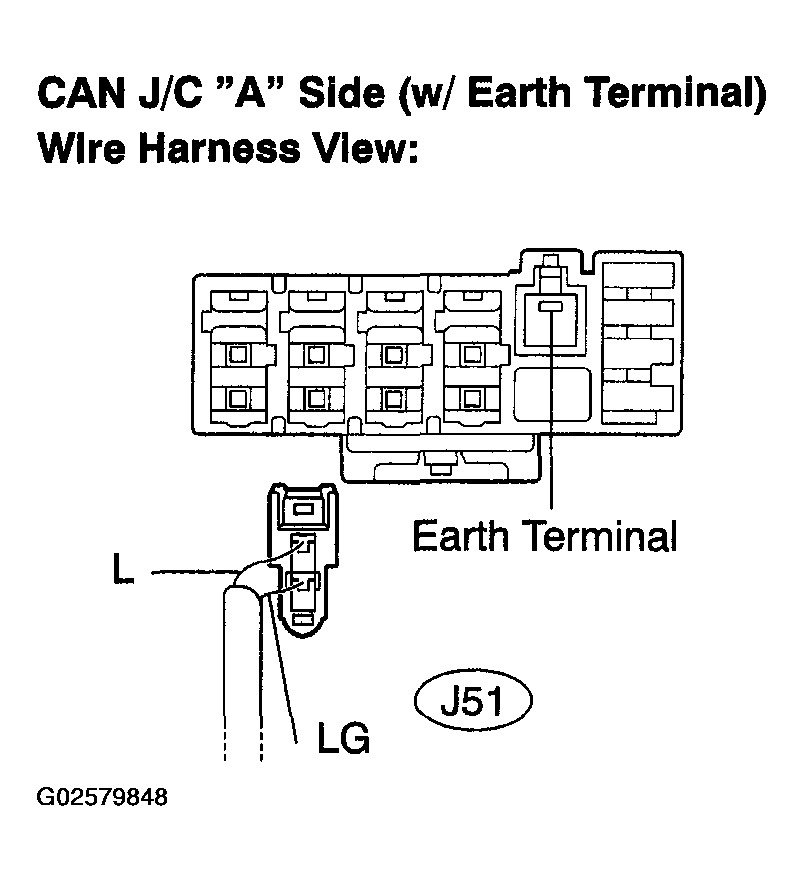

   Fig 5: Disconnecting CAN Main Bus Line Connector (J51) From CAN J/C

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • Before disconnecting the connector, make a note of where it is connected.
   • Reconnect the connector to its original position.
2. Measure the resistance according to the value in the table below.

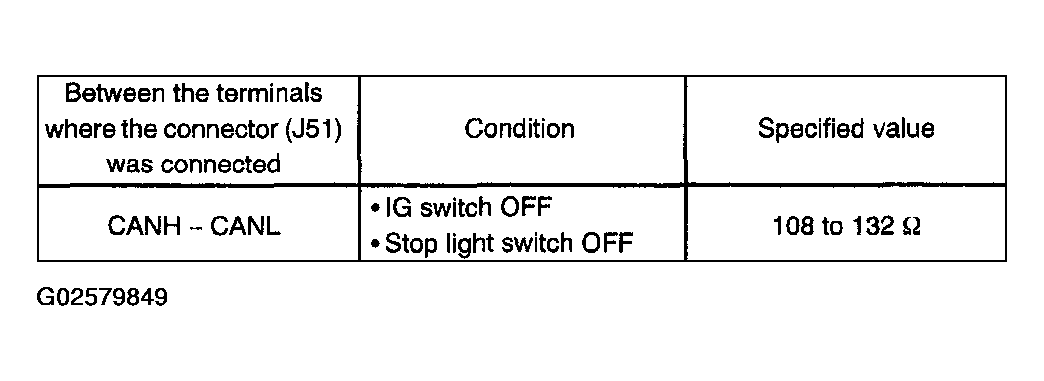

   Fig 6: CAN J/C Connector Terminals Resistance Specifications

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

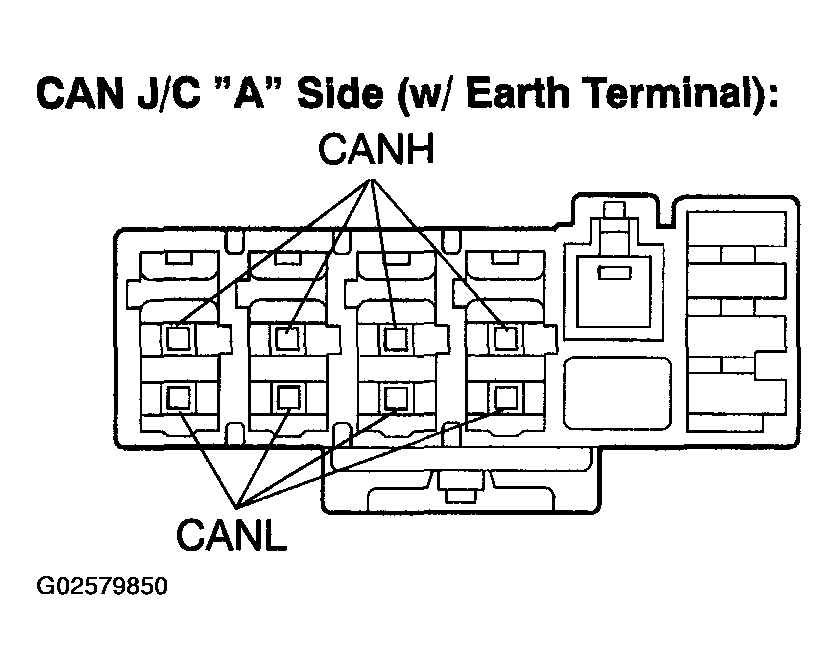

   Fig 7: Identifying CAN J/C Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE CAN J/C

   OK: Go to next step.

   REPAIR OR REPLACE CAN MAIN BUS LINE OR CONNECTOR (CAN J/C - ECM)
