Height Control Dryer ASSY Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: SEE COMPONENTS

REMOVE REAR DISC WHEEL
REMOVE QUARTER PANEL MUDGUARD SUB-ASSY REAR LH
REMOVE REAR BUMPER (See REPLACEMENT )
REMOVE FUEL TANK FILLER PIPE PROTECTOR (See HEIGHT CONTROL COMPRESSOR ASSY )
REMOVE SPARE DISC WHEEL
REMOVE HEIGHT CONTROL COMPRESSOR ASSY
REMOVE HEIGHT CONTROL FILTER (See HEIGHT CONTROL COMPRESSOR ASSY )
DISCONNECT HEIGHT CONTROL TUBE NO. 2 (See HEIGHT CONTROL COMPRESSOR ASSY )
REMOVE HEIGHT CONTROL DRYER ASSY
1. Disconnect the connector.
2. Remove the 3 bolts.

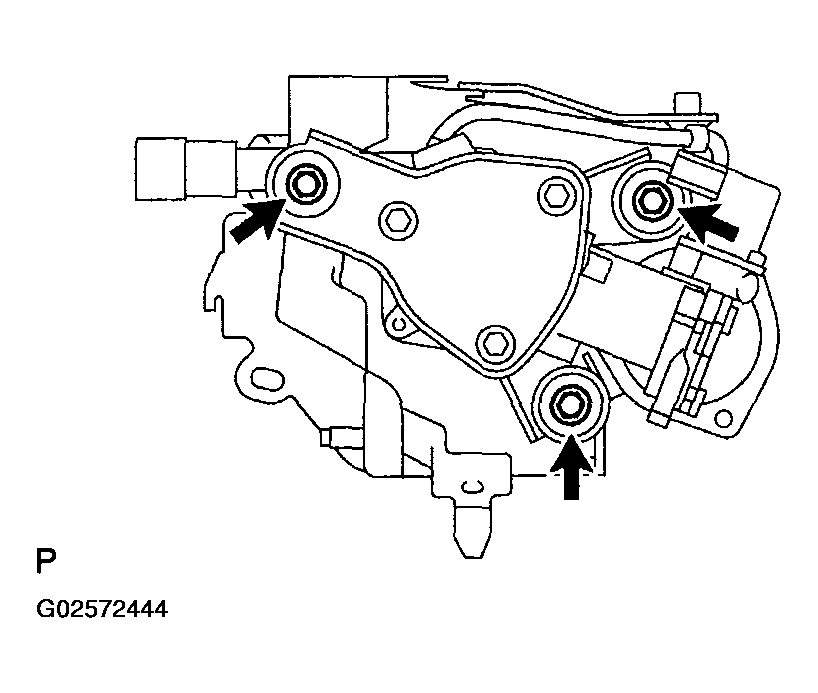

  Fig 1: Removing Height Control Dryer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 3 bolts, the height control compressor and the dryer with the bracket.

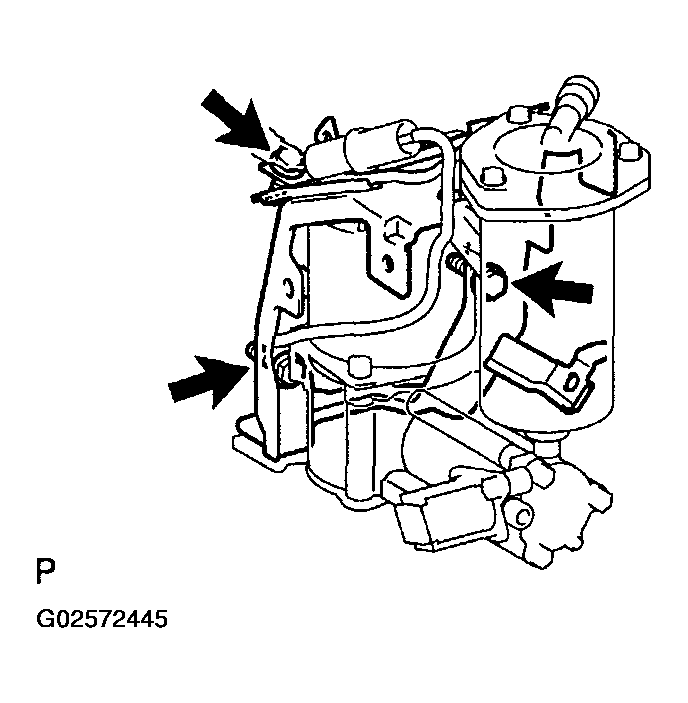

  Fig 2: Removing Bolts, Height Control Compressor And Dryer With Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the bolt and the dryer.
5. Remove the O-ring.
INSTALL HEIGHT CONTROL DRYER ASSY
1. Install the bolt, the dryer and a new O-ring.
  Torque: 6.4 N.m (65 kgf.cm, 57 in..lbf)
2. Assemble the height control compressor, the dryer and the bracket as a unit to the vehicle, and tighten the 3 bolts to fix the bracket to the frame.
  Torque: 29 N.m (300 kgf.cm, 21 ft.lbf)
3. Install the height control compressor assy to the bracket with the 3 bolts.
  Torque: 5.9 N.m (60 kgf.cm, 52 in..lbf)
4. Connect the connector.
CONNECT HEIGHT CONTROL TUBE NO. 2 (See HEIGHT CONTROL COMPRESSOR ASSY )
INSTALL HEIGHT CONTROL FILTER (See HEIGHT CONTROL COMPRESSOR ASSY )
INSTALL HEIGHT CONTROL COMPRESSOR COVER (See HEIGHT CONTROL COMPRESSOR ASSY )
INSPECT AIR LEAK (See ON-VEHICLE INSPECTION )
INSTALL SPARE DISC WHEEL
INSTALL FUEL TANK FILLER PIPE PROTECTOR (See HEIGHT CONTROL COMPRESSOR ASSY )
INSTALL REAR BUMPER (See REPLACEMENT )
INSTALL QUARTER PANEL MUDGUARD SUB-ASSY REAR LH
INSTALL REAR DISC WHEEL
Torque: 112 N.m (1,140 kgf.cm, 83 ft.lbf)
