Height Control Sensor Sub-ASSY Rear LH: Replacement

HINT:

COMPONENTS

1. REMOVE REAR DISC WHEEL
2. REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
   1. Disconnect the connector from the height control sensor.
   2. Place matchmarks on the link and bracket.
   3. Remove the nut and disconnect the sensor link.
   4. Remove the 2 bolts and height control sensor.

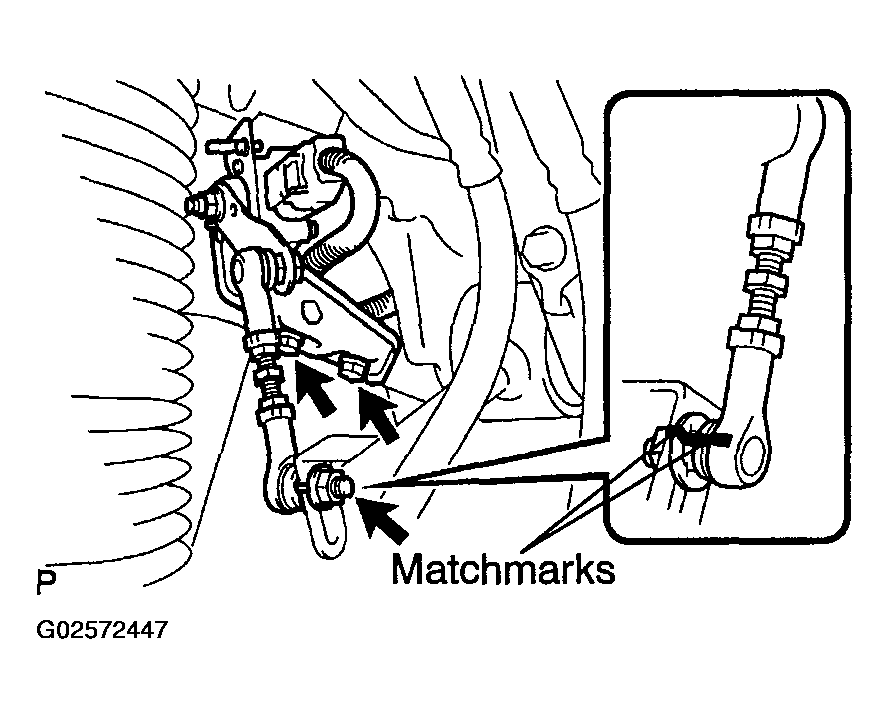

   Fig 1: Removing Height Control Sensor Sub-Assy Rear LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
   1. Install the height control sensor with the 2 bolts.

      Torque: 13 N.m (133 kgf.cm, 10 ft.lbf)

   2. Align the matchmarks on the link and the bracket.
   3. Connect the sensor link with the nut.
   4. Connect the connector to the height control sensor.

   Torque: 5.4 N.m (55 kgf.cm, 48 in..lbf)

4. INSTALL REAR DISC WHEEL

   Torque: 112 N.m (1,140 kgf.cm, 83 ft.lbf)

5. MEASURE VEHICLE HEIGHT (See  FRONT WHEEL ALIGNMENT  )
6. ADJUST VEHICLE HEIGHT (See  ON-VEHICLE INSPECTION   )
