Windshield Wiper Motor ASSY: Replacement

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WIPER ARM HEAD CAP
1. Using a small screwdriver, remove the 2 front wiper arm head cap.
NOTE: Tape the screwdriver tip before use.

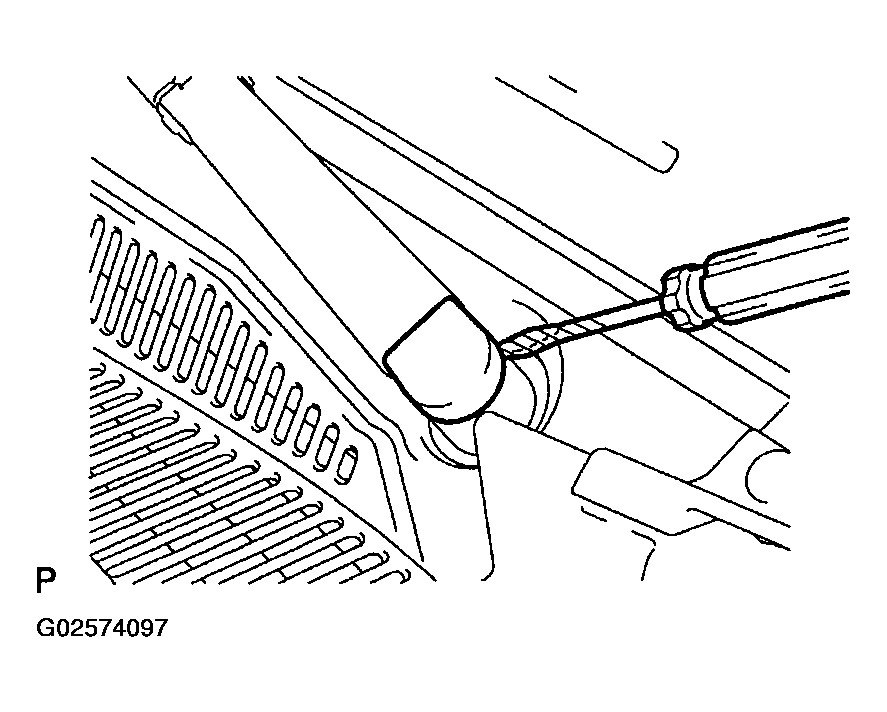

Fig 1: Removing Front Wiper Arm Head Cap
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FR WIPER ARM RH
1. Operate the wiper and stop the windshield wiper motor assy at the automatic stop position.
2. Remove a nut and Fr wiper arm RH.
REMOVE FR WIPER ARM LH
1. Remove a nut and FR wiper arm LH.
REMOVE FRONT FENDER TO COWL SIDE SEAL LH
1. Remove the clip.
2. Release the 2 claws, and remove the front fender to cowl side seal LH.

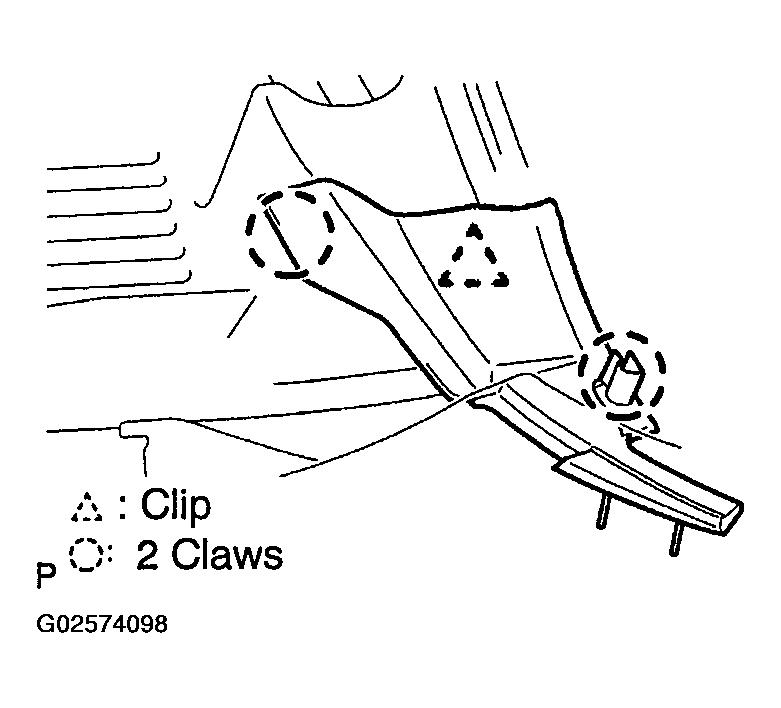

Fig 2: Removing Front Fender To Cowl Side Seal LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER TO COWL SIDE SEAL RH
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSY
1. Remove the 2 clips.
2. Using a clip remover, disengage the meshing of 6 clips.

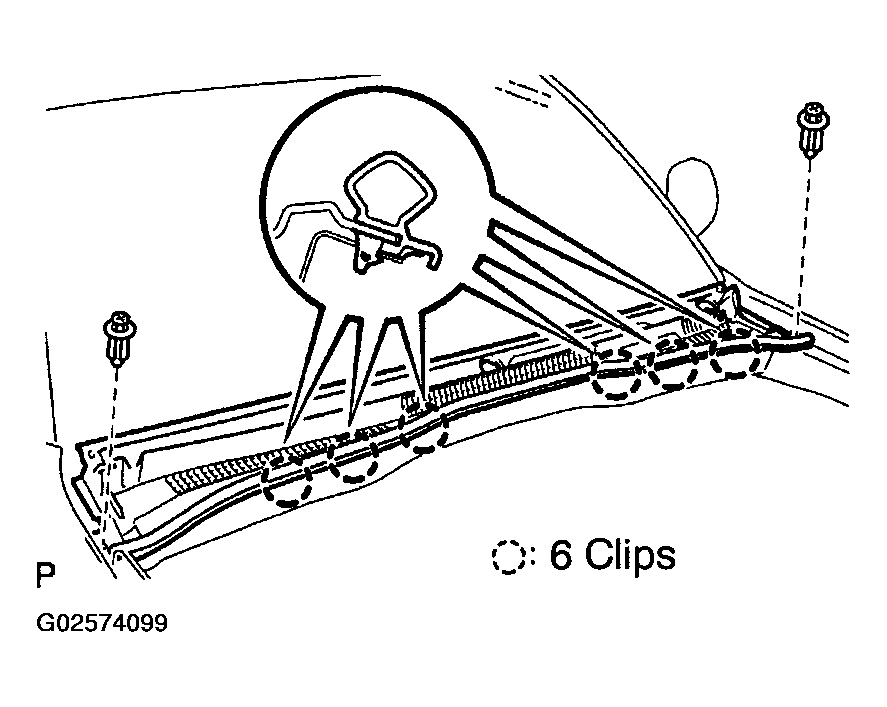

  Fig 3: Disengaging Meshing Of Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 9 claws and cowl top ventilator louver sub-assy.

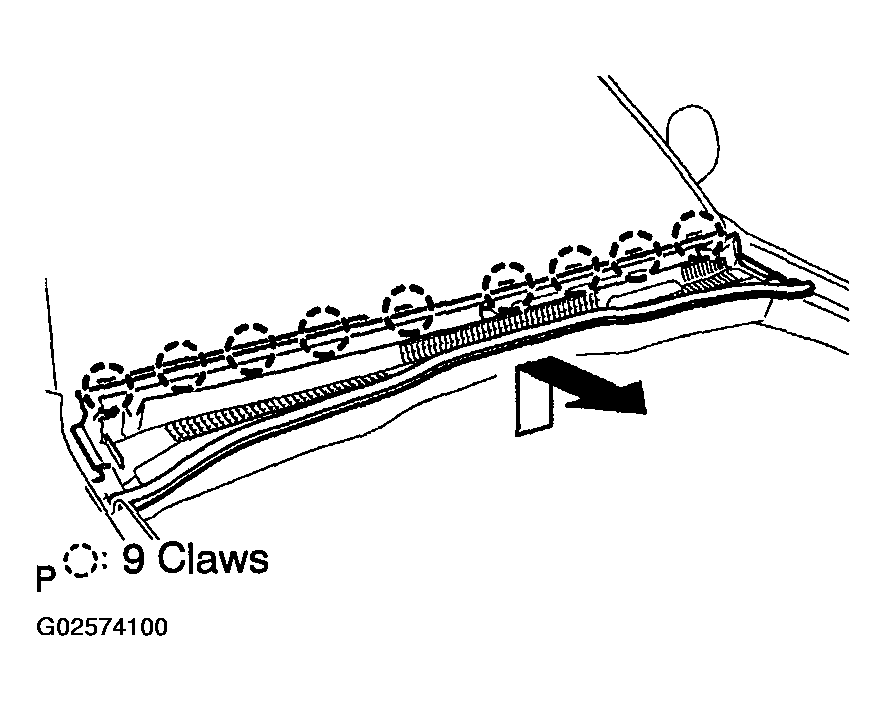

Fig 4: Removing Claws And Cowl Top Ventilator Louver Sub-Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER MOTOR & LINK ASSY
1. Disconnect the connector and remove the 2 bolts.
2. Slide the wiper link assy to vehicle's passenger's side. Disengage the meshing of the rubber pin and remove the wiper link assy.

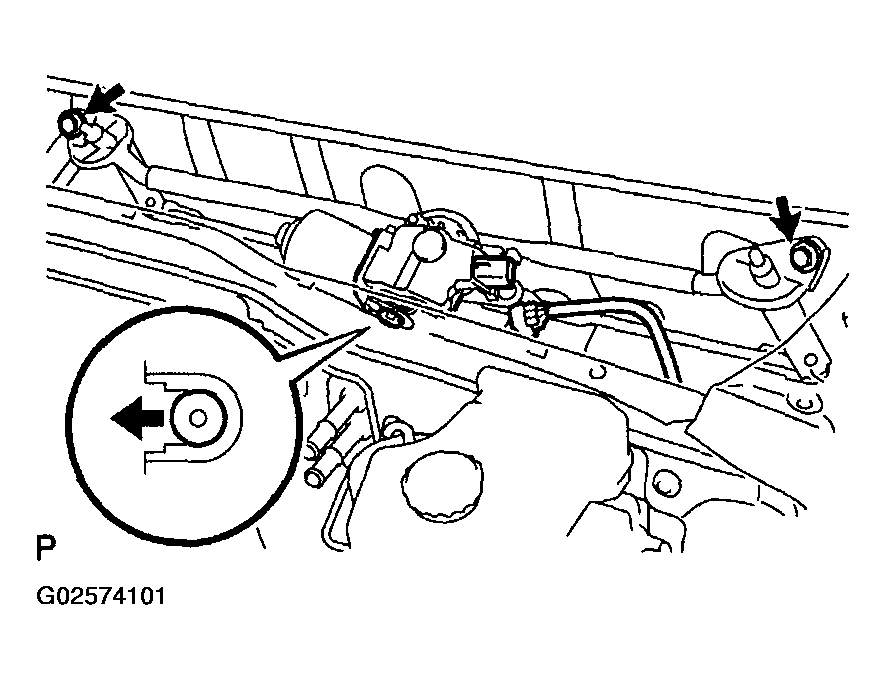

Fig 5: Disconnecting Connector And Remove Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER MOTOR ASSY
1. Using a screwdriver and disengage the meshing of 2 rods at the clank arm pivot of the windshield wiper motor assy.

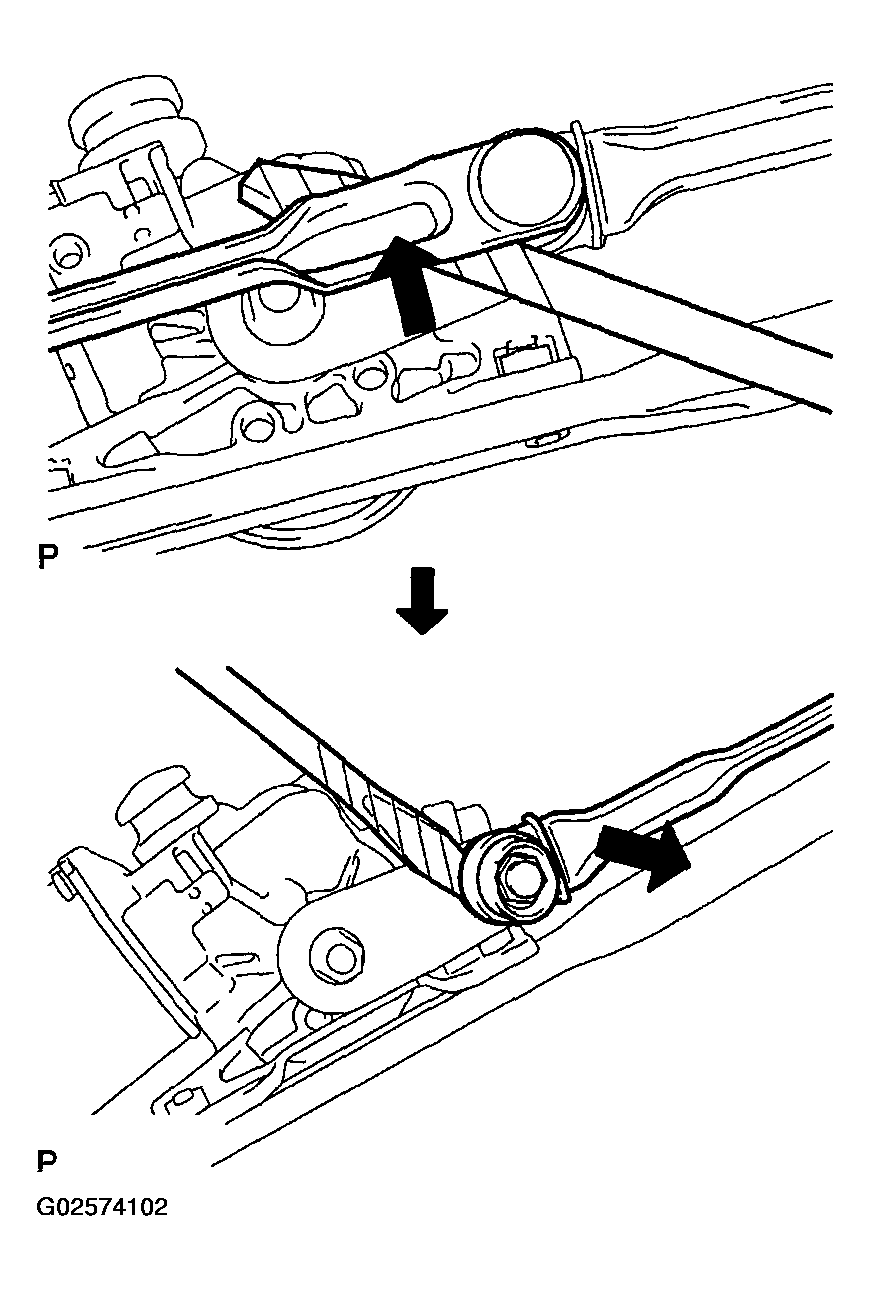

  Fig 6: Removing Windshield Wiper Motor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.
2. Remove the 2 bolts and windshield wiper motor assy.

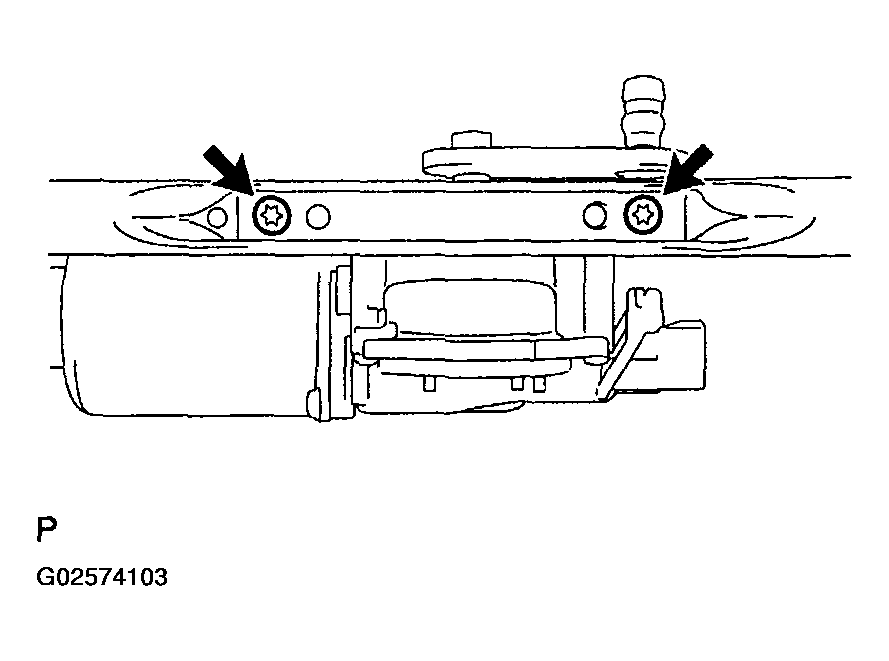

  Fig 7: Removing Bolts And Windshield Wiper Motor Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL WINDSHIELD WIPER MOTOR ASSY
1. Apply MP grease to the clank arm pivot of the windshield wiper motor assy.
2. Install the windshield wiper motor assy with 2 bolts.
  Torque: 7.5 N.m (76 kgf.cm, 66 in...lbf)
INSTALL WINDSHIELD WIPER MOTOR & LINK ASSY
1. Install the meshing of the rubber pin.
2. Install the windshield wiper link assy with the 2 bolts.
  Torque: 7 N.m (71 kgf.cm, 62 in...lbf)
3. Connect the connector.
INSTALL FR WIPER ARM LH
1. Operate the wiper, and stop the windshield wiper motor assy at the automatic stop position.
2. Scrape off the serration part of the wiper arm with a round file or equivalent.
3. Clean the wiper pivot serration with the wire brush.

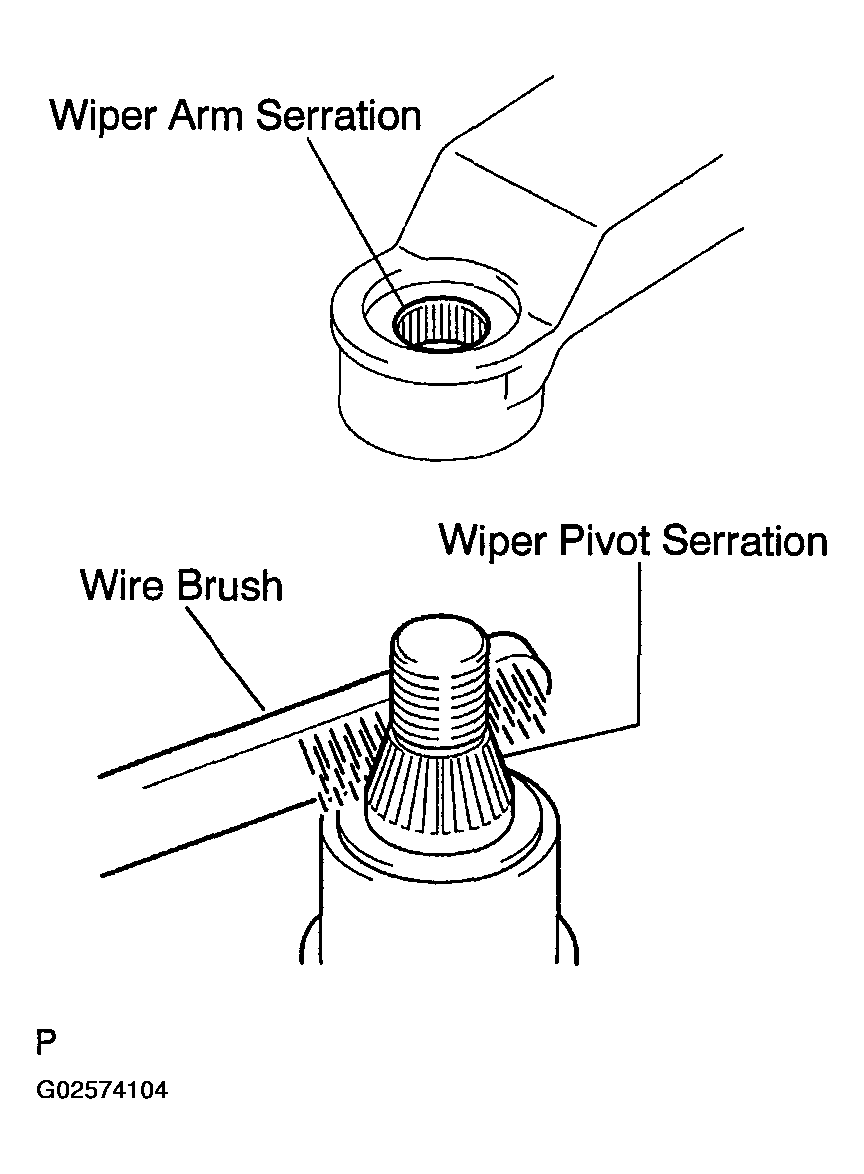

  Fig 8: Installing FR Wiper Arm LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the front wiper arm LH with a nut to the position shown in the illustration.
  Torque: 25 N.m (255 kgf.cm, 18.4 ft..lbf)

  HINT:

  Hold down the arm hinge with hand to fasten a nut.

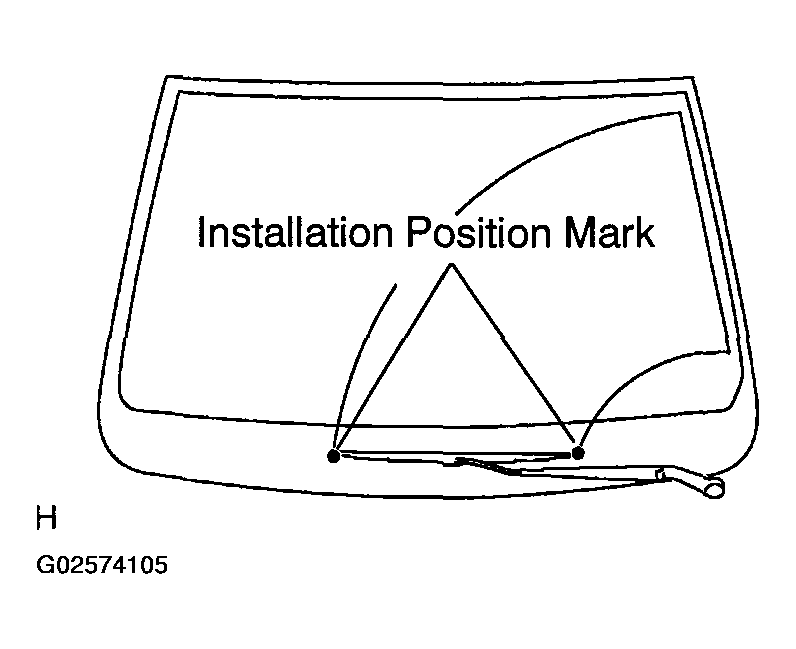

  Fig 9: Installing Front Wiper Arm LH With A Nut To Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FR WIPER ARM RH
1. Scrape off the serration part of the wiper arm with a round file or equivalent.
2. Clean the wiper pivot serration with the wire brush.
3. Install the front wiper arm RH with a nut at the position shown in the illustration.
  Torque: 25 N.m (255 kgf.cm, 18.4 ft..lbf)

  NOTE: Hold down the arm hinge with hand to fasten a nut.

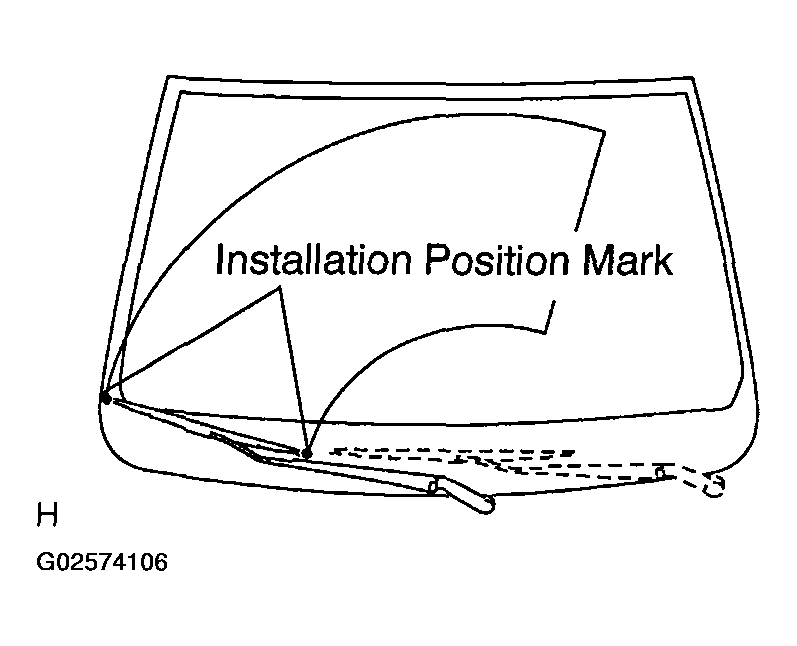

  Fig 10: Installing Front Wiper Arm RH With A Nut At Position
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Operate the wiper while running the water or the washer fluid over the window, and check the wiping condition and that the rear wiper does not hit against the vehicle body.
