Vehicle Speed Sensor: Service and Repair

ON-VEHICLE REPAIR

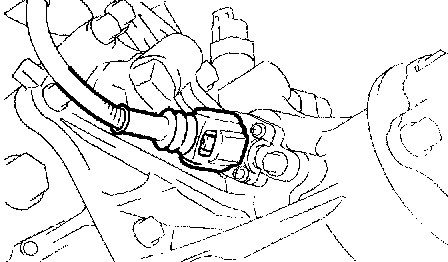

1. DISCONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR





2. REMOVE NO. 1 VEHICLE SPEED SENSOR
Remove the bolt and the No. 1 vehicle speed sensor.

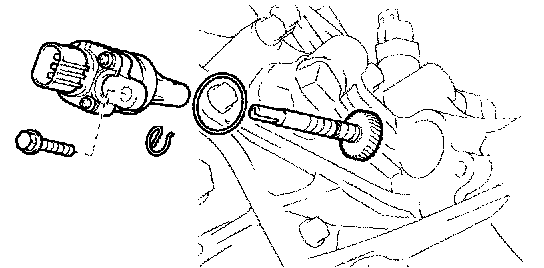

3. DISASSEMBLE NO. 1 VEHICLE SPEED SENSOR
a. Remove the O-ring from the speedometer driven gear assembly.
b. Remove the clip and the speedometer driven gear from the speedometer driven gear sleeve.
4. ASSEMBLE NO. 1 VEHICLE SPEED SENSOR
a. Install the speedometer driven gear and the clip to the speedometer driven gear sleeve.
b. Coat a new O-ring with ATF.
c. Install the O-ring to the speedometer driven gear assembly.
5. INSTALL NO. 1 VEHICLE SPEED SENSOR
Install the No. 1 vehicle speed sensor with the bolt.
Torque: 16 Nm (160 kgf-cm, 12 ft. lbs.)





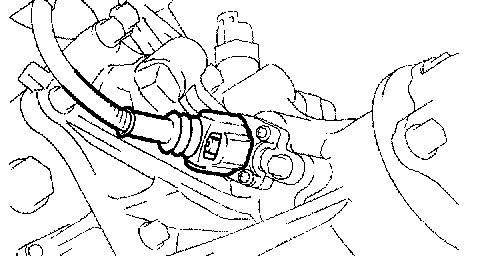

6. CONNECT NO. 1 VEHICLE SPEED SENSOR CONNECTOR





7. DISCONNECT SPEED SENSOR NT AND SP2 CONNECTORS

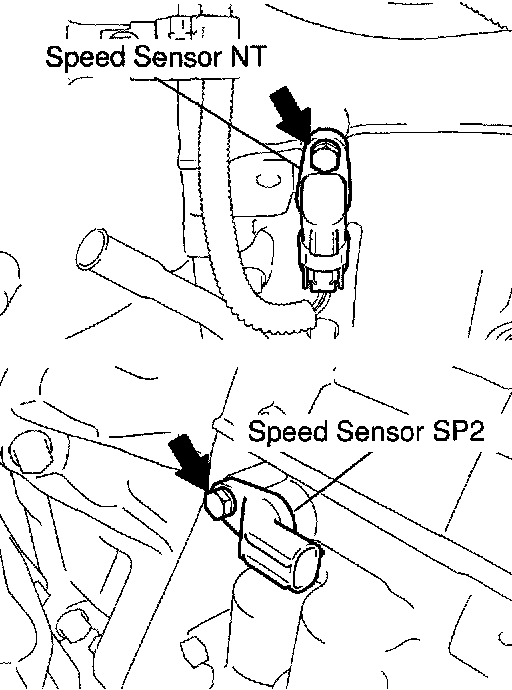

8. REMOVE SPEED SENSOR NT AND SP2
a. Remove the 2 bolts, speed sensor NT and SP2.

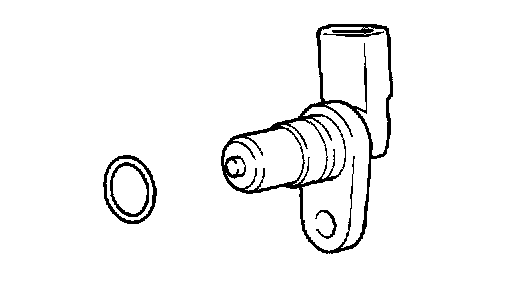

b. Remove 2 O-rings from the speed sensor NT and SP2.

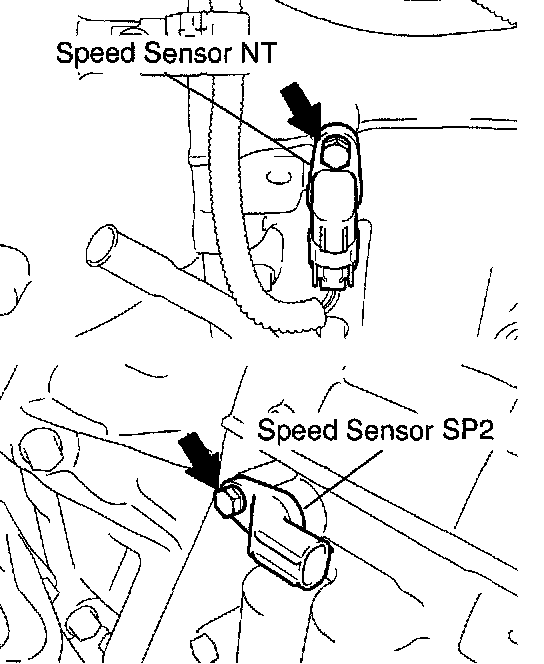

9. INSTALL SPEED SENSOR NT AND SP2





a. Coat 2 new O-rings with ATF and install them to the speed sensor NT and SP2.





b. Install the speed sensor NT and SP2 with 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
10. CONNECT SPEED SENSOR NT AND SP2 CONNECTORS
