Outside Rear View Mirror: Removal

  1. REMOVE LOWER FRAME BRACKET GARNISH

    Using a screwdriver, remove the lower frame bracket garnish.

    HINT:

    Tape up the screwdriver tip before use.

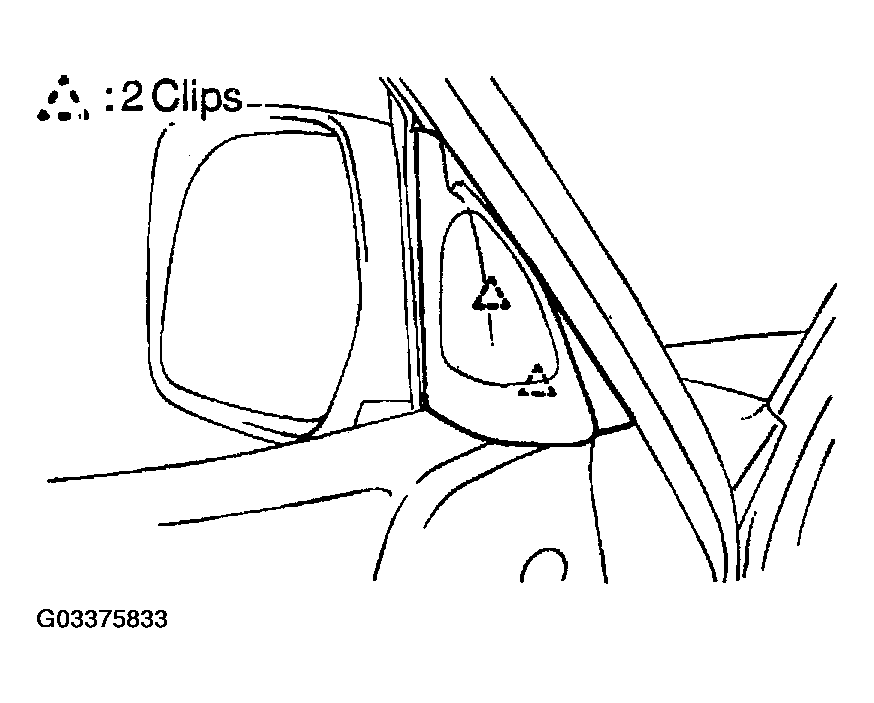

    Fig 1: Removing Lower Frame Bracket Garnish
    G03375833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE POWER WINDOW SWITCH
    1. Using a screwdriver, remove the power window switch as shown in the illustration.

      HINT:

      Tape up the screwdriver tip before use.

    2. Disconnect the connector.

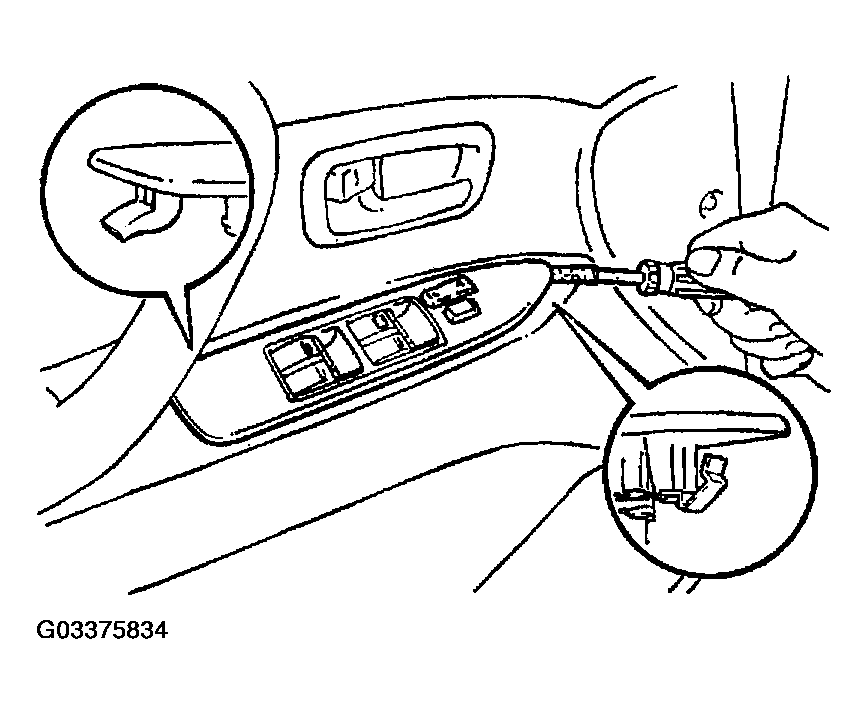

    Fig 2: Removing Power Window Switch Using Screwdriver
    G03375834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. w/ Mark Levinson:

    REMOVE CENTER SPEAKER

    1. Disconnect the connector.
    2. Using a screwdriver, remove the center speaker.

    HINT:

    Tape up the screwdriver tip before use.

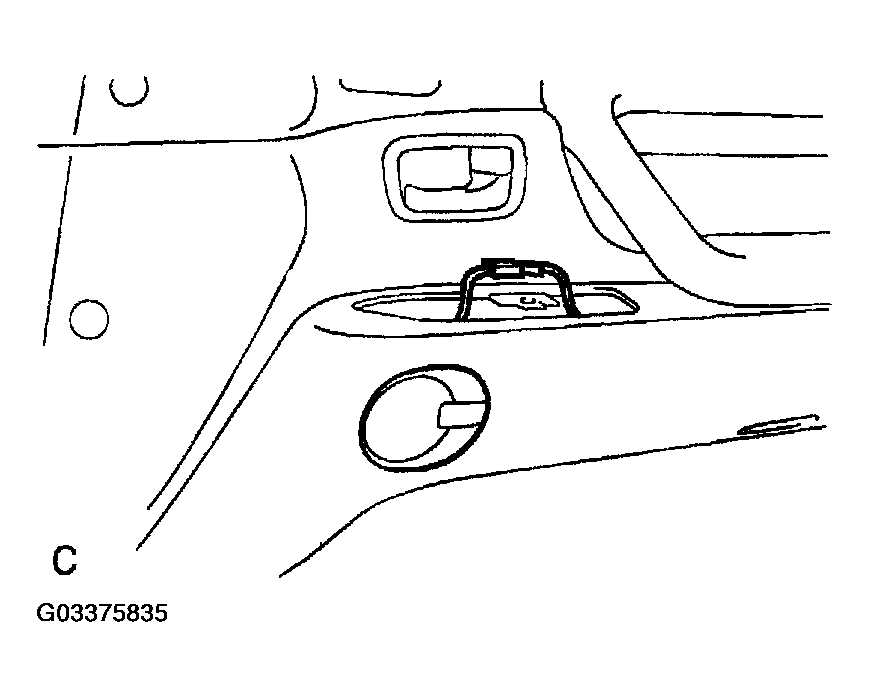

    Fig 3: Removing Center Speaker
    G03375835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE DOOR INSIDE HANDLE BEZEL No. 2

    Using a screwdriver, remove the door inside handle bezel No. 2 as shown in the illustration.

    HINT:

    Tape up the screwdriver tip before use.

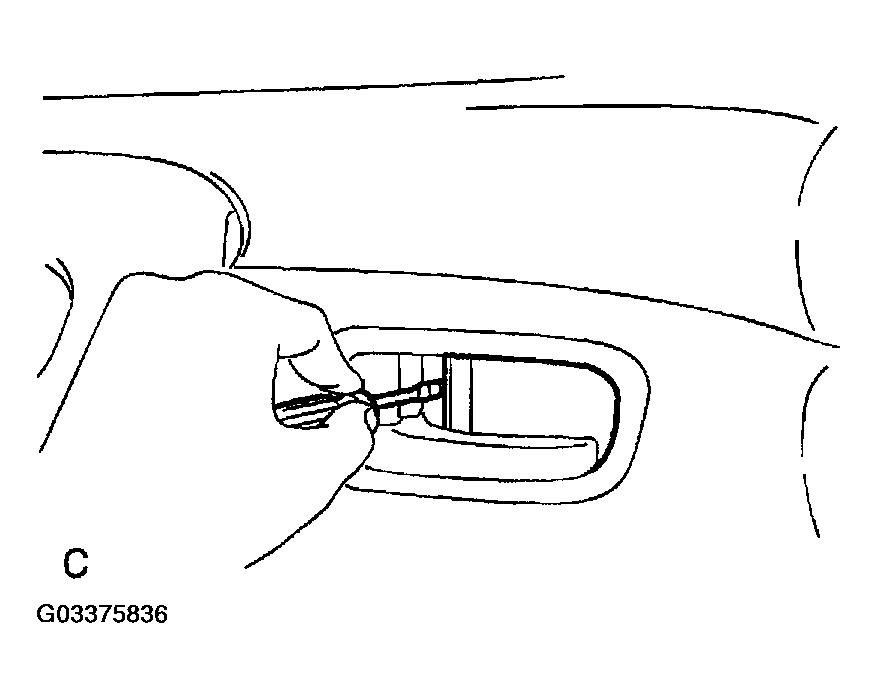

    Fig 4: Removing Door Inside Handle Bezel No. 2
    G03375836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE DOOR INSIDE HANDLE BEZEL No. 1
    1. Remove the screw.
    2. Using a screwdriver, remove the door inside handle bezel No. 1 as shown in the illustration.

    HINT:

    Tape up the screwdriver tip before use.

    Fig 5: Removing Door Inside Handle Bezel No. 1
    G03375837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE DOOR COURTESY LIGHT

    Using a screwdriver, remove the door courtesy light then disconnect the connector.

    HINT:

    Tape up the screwdriver tip before use.

  7. REMOVE SEAT MEMORY SWITCH
    1. Using a screwdriver, remove the seat memory switch.

      HINT:

      Tape up the screwdriver tip before use.

    2. Disconnect the connector.

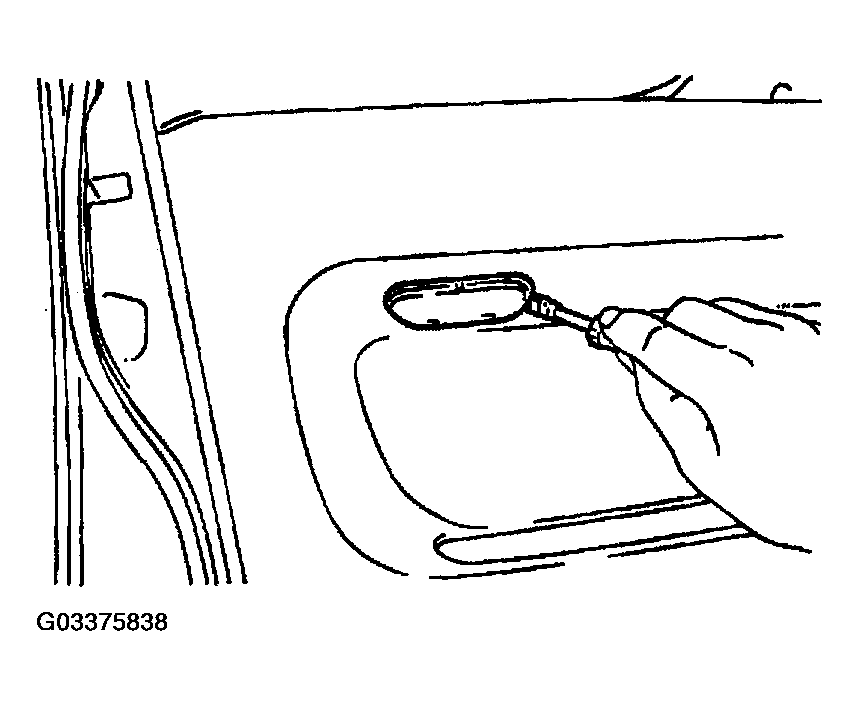

    Fig 6: Removing Door Courtesy Light
    G03375838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE DOOR TRIM
    1. Remove the 2 caps and the 7 screws.
    2. Remove the 3 clips.
    3. Insert a screwdriver between the door and the door trim to pry the trim.
      NOTE: Be careful not to damage the door and door trim.

      HINT:

      Tape up the screwdriver tip before use.

    4. Pull the trim upward to remove it.

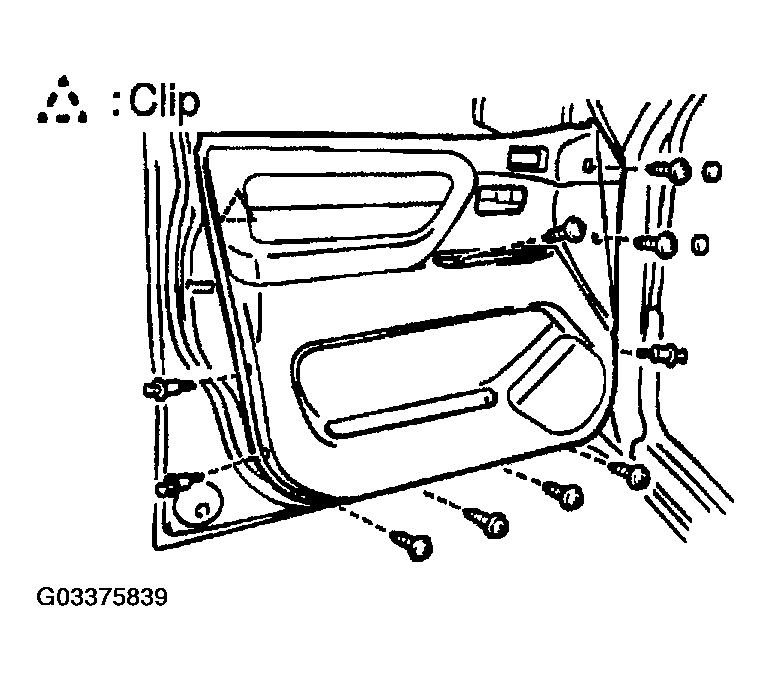

    Fig 7: Removing Door Trim
    G03375839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE TWEETER SPEAKER

    Disconnect the connector, then remove the screw and the tweeter speaker.

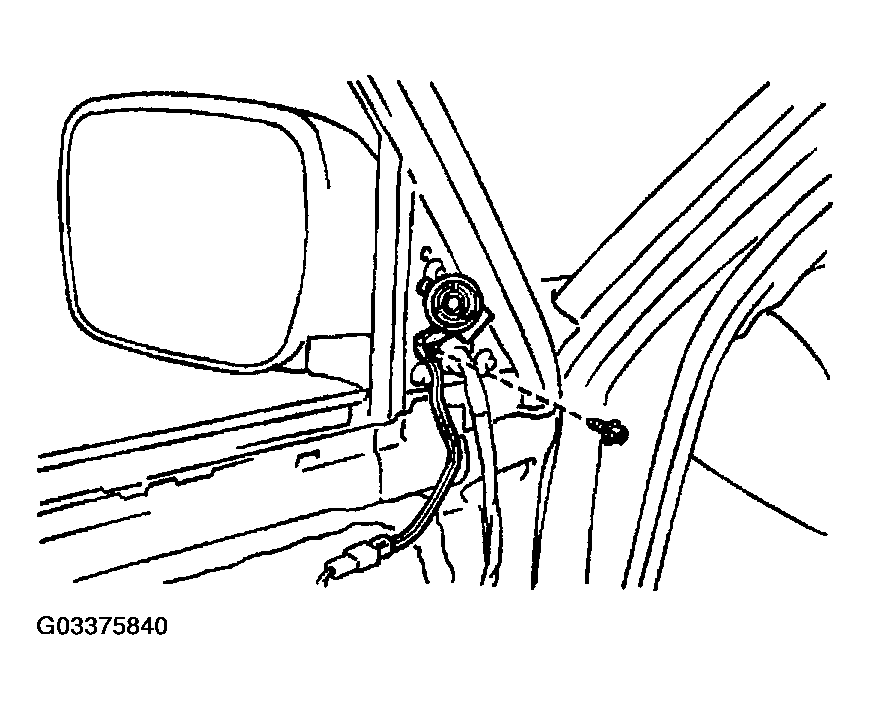

    Fig 8: Removing Tweeter Speaker
    G03375840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE OUTSIDE REAR VIEW MIRROR
  1. Disconnect the connector.
  2. Remove the 3 bolts.
  3. Remove the outside rear view mirror.

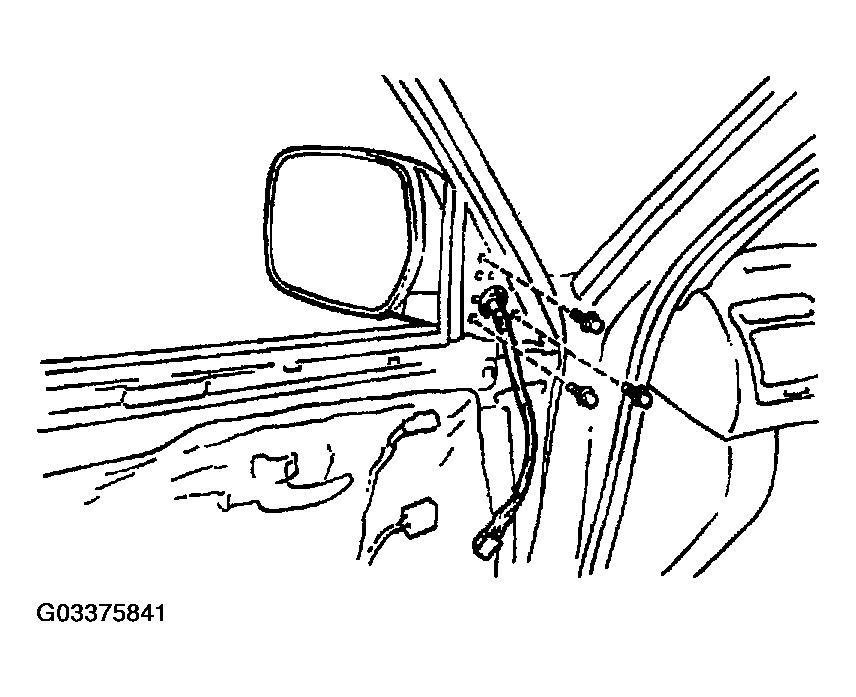

Fig 9: Removing Outside Rear View Mirror
G03375841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
