Outside Rear View Mirror: Replacement

  1. IF NECESSARY, DISCONNECT MIRROR
    1. Insert a shop rag between the mirror and the mirror body.
    2. Pull up the lower side of the shop rag to disconnect the mirror joint.

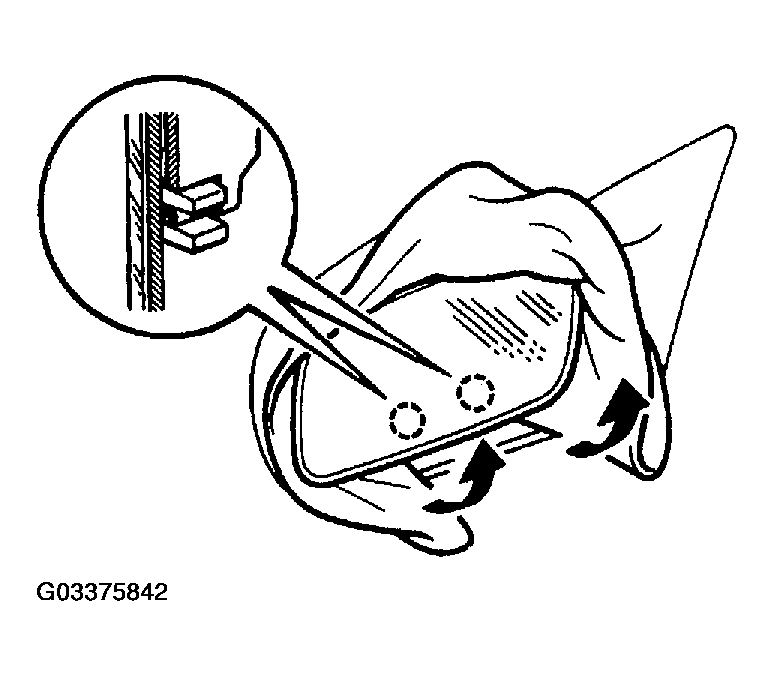

      Fig 1: Inserting Shop Rag Between Mirror & Mirror Body
      G03375842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Pull up the mirror and disconnect it.

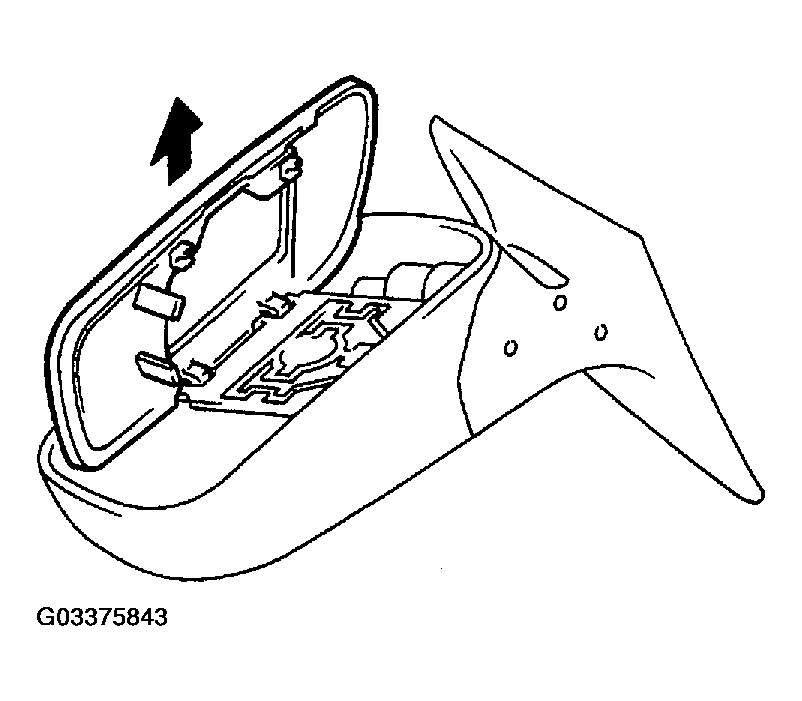

      Fig 2: Pulling Up Mirror & Disconnecting
      G03375843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connectors.

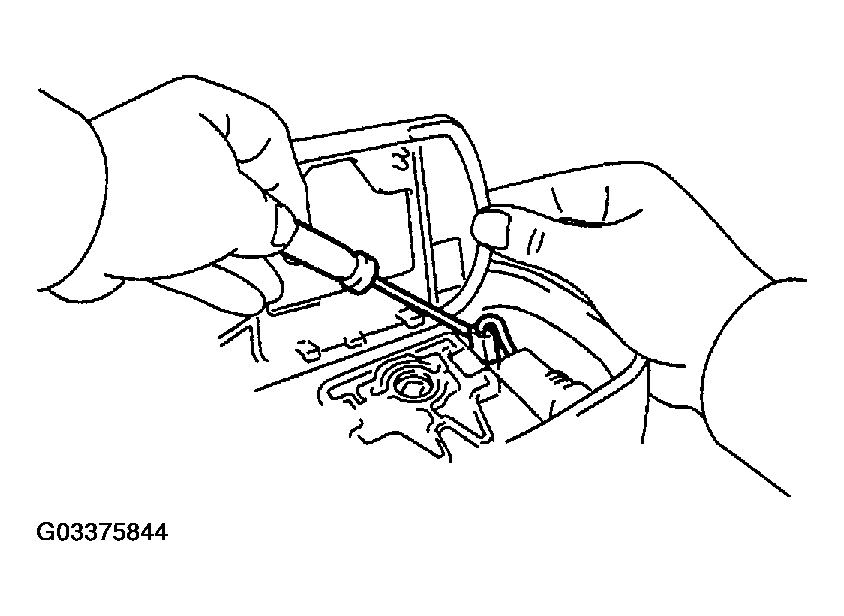

    Fig 3: Disconnecting Connectors
    G03375844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT MIRROR
    1. Connect the connectors.
    2. Connect the claws (A), and set the mirror to the mirror body.
    3. Push the mirror to connect the claws (B) and set it.

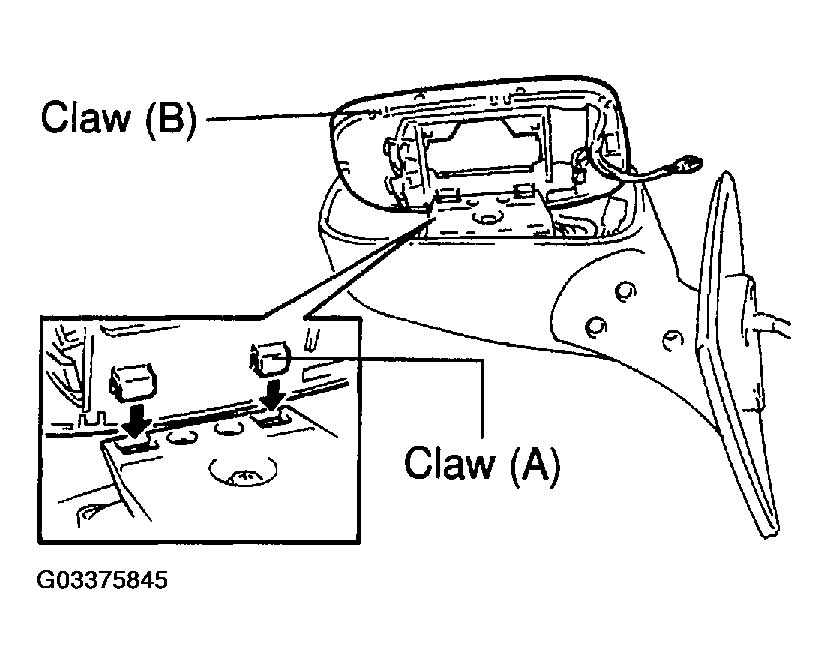

    Fig 4: Connecting Claws (A) & Set Mirror To Mirror Body
    G03375845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
