Front Seat: Disassembly

REMOVE HEADREST

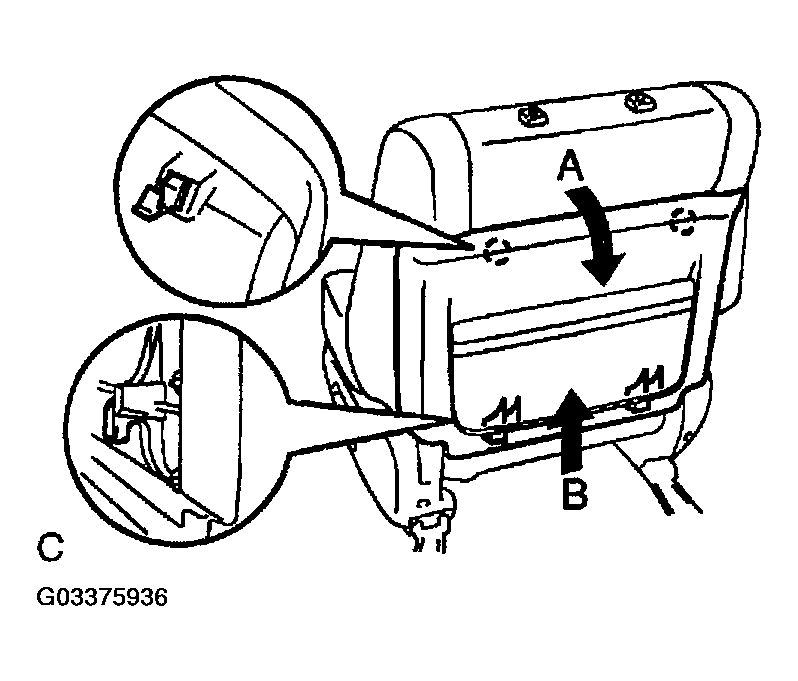

REMOVE SEATBACK BOARD
Remove the seatback board as shown in the illustration.

HINT:

Remove the seatback board in the order of "A" and "B" as shown in the illustration.
REMOVE SEAT CUSHION OUTER SHIELD
1. Using a screwdriver, remove the power seat switch knobs.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 1: Removing Seatback Board In Order Of "A" & "B"
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

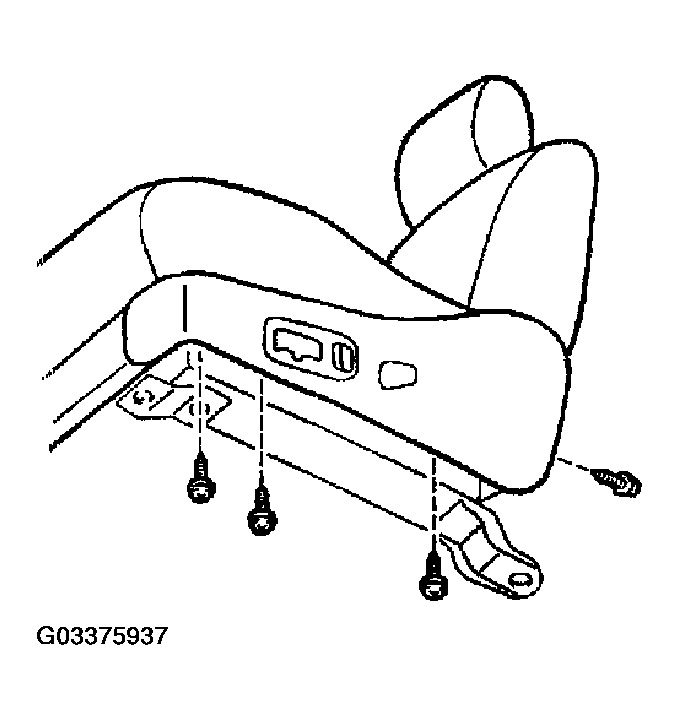

2. Remove the 4 screws.

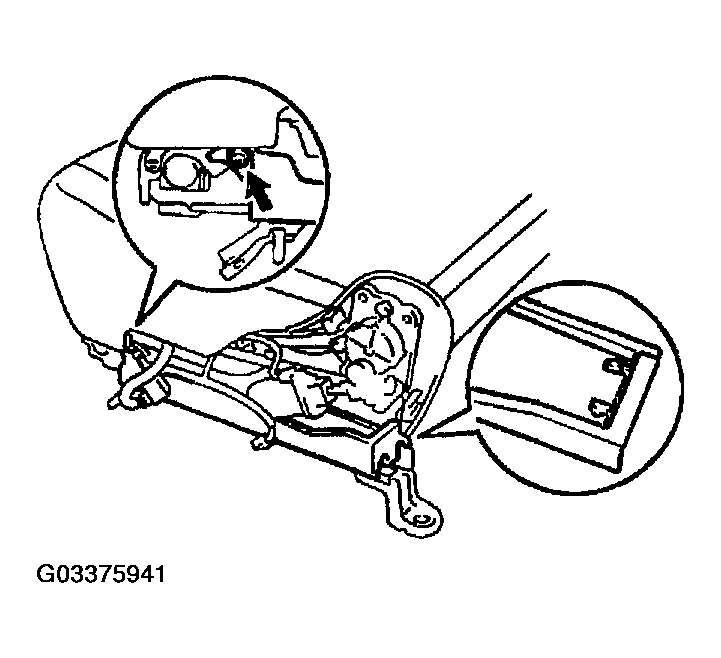

3. Disconnect the connectors as shown in the illustration.
4. Remove the seat cushion outer shield.

  Fig 2: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

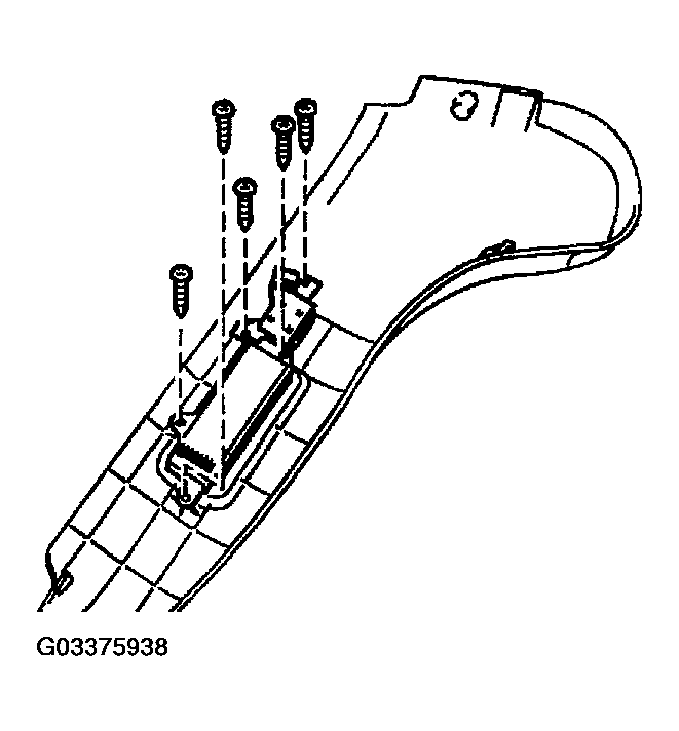

5. Remove the 3 screws and the power seat switch from the seat cushion outer shield.
6. Remove the 2 screws and the lumber support switch from the seat cushion outer shield.
Fig 3: Removing 2 Screws & Lumber Support Switch From Seat Cushion Outer Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SEAT INNER BELT
1. Remove the clamp, then disconnect the connector.
2. Remove the bolt and the inner belt.
Fig 4: Removing Front Seat Inner Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

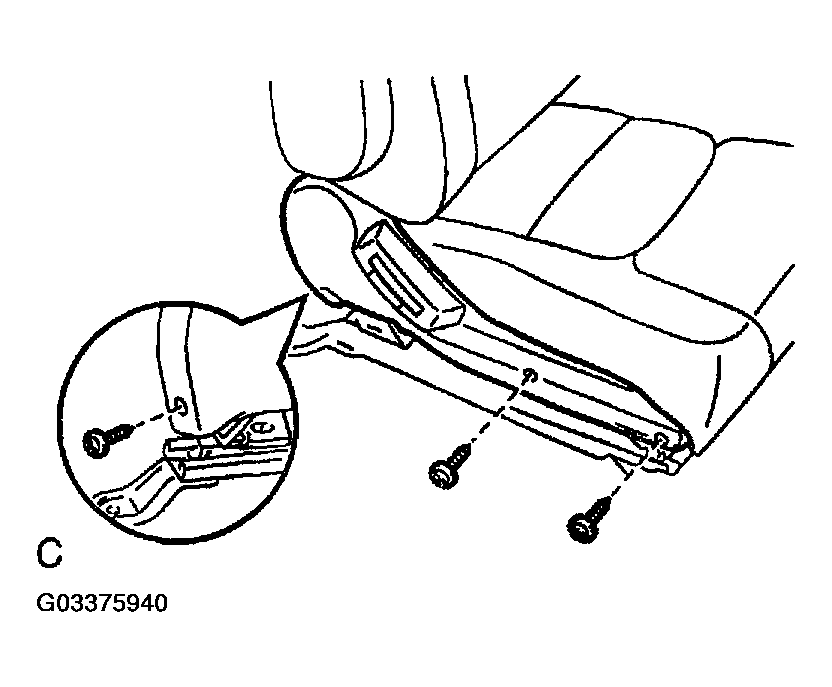

REMOVE SEAT CUSHION INNER SHIELD
Remove the 3 screws and the seat cushion inner shield.

Fig 5: Removing Seat Cushion Inner Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

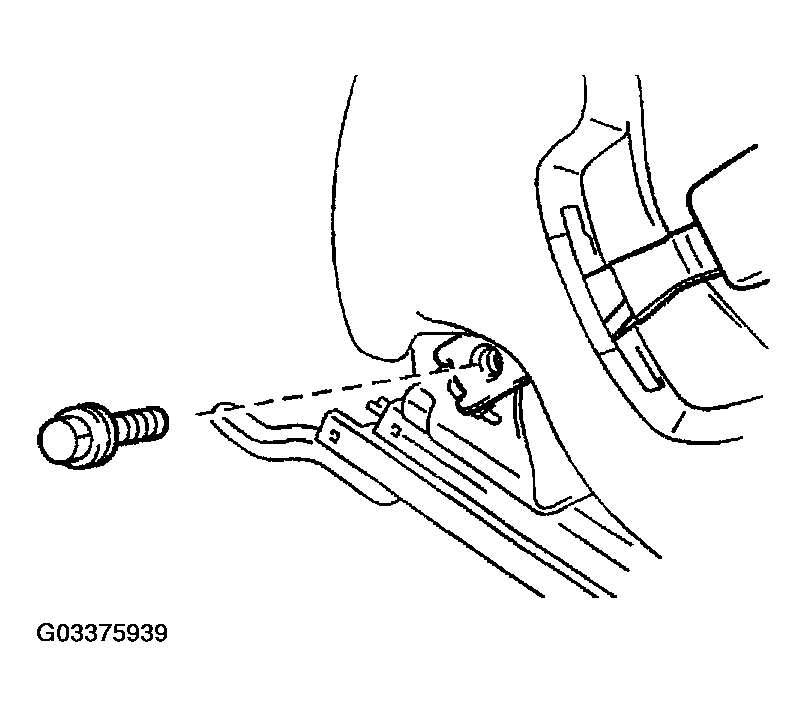

REMOVE LOWER SEAT CUSHION SHIELD
Remove the screw and the lower seat cushion shield as shown in the illustration.

Fig 6: Removing Lower Seat Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

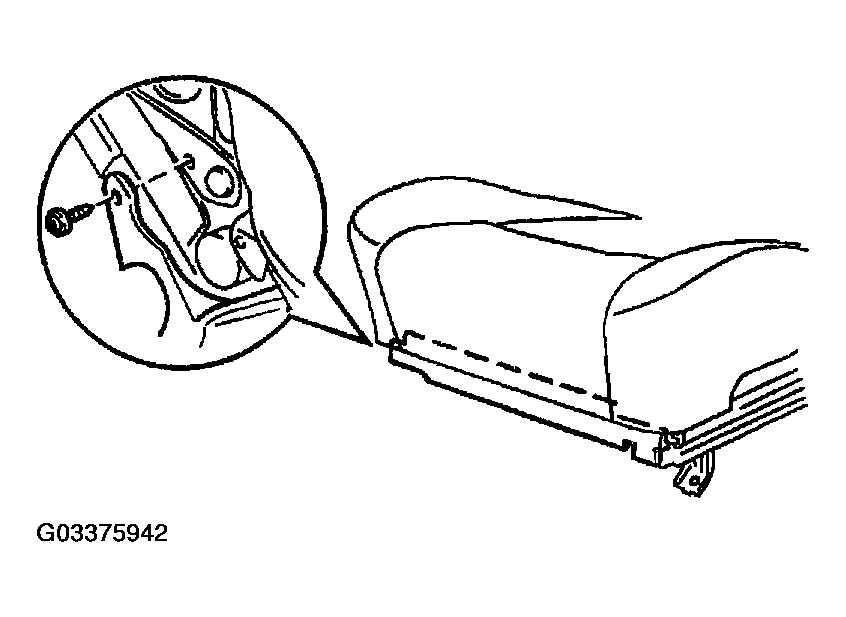

REMOVE FRONT SEAT CUSHION SHIELD
Remove the screw and the front seat cushion shield.

Fig 7: Removing Front Seat Cushion Shield
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

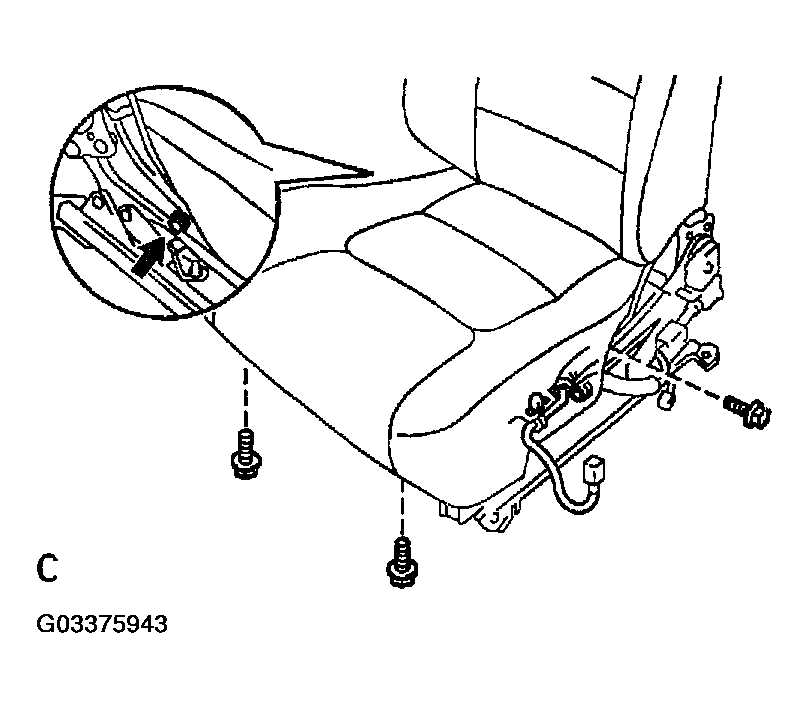

REMOVE SEAT CUSHION ASSEMBLY
1. Remove the 4 bolts.
2. Remove the clamps from the seat cushion assembly.

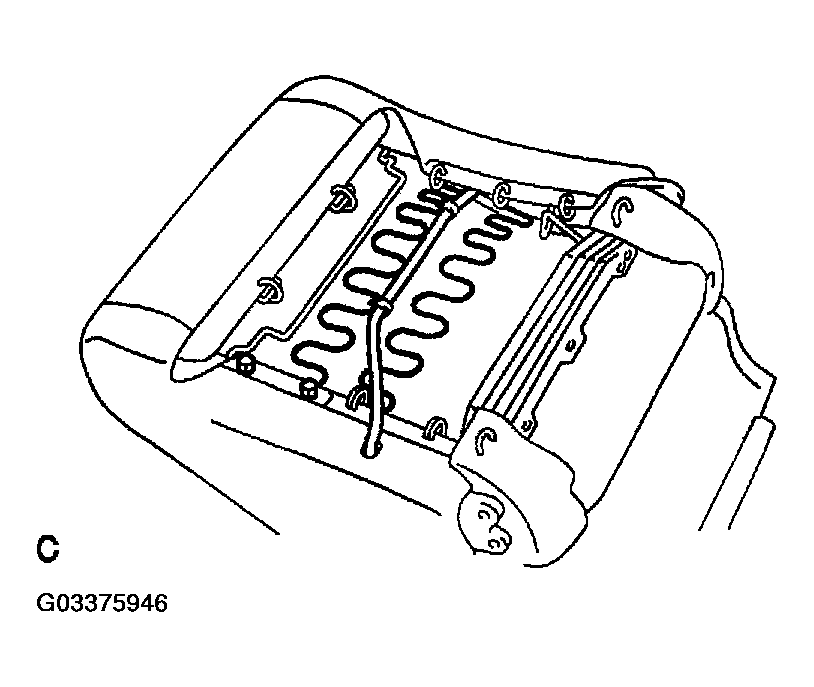

REMOVE SEAT CUSHION FRAME.
1. Disengage the hook.
2. Remove the hog rings and the seat cushion frame from the seat cushion cover with pad.

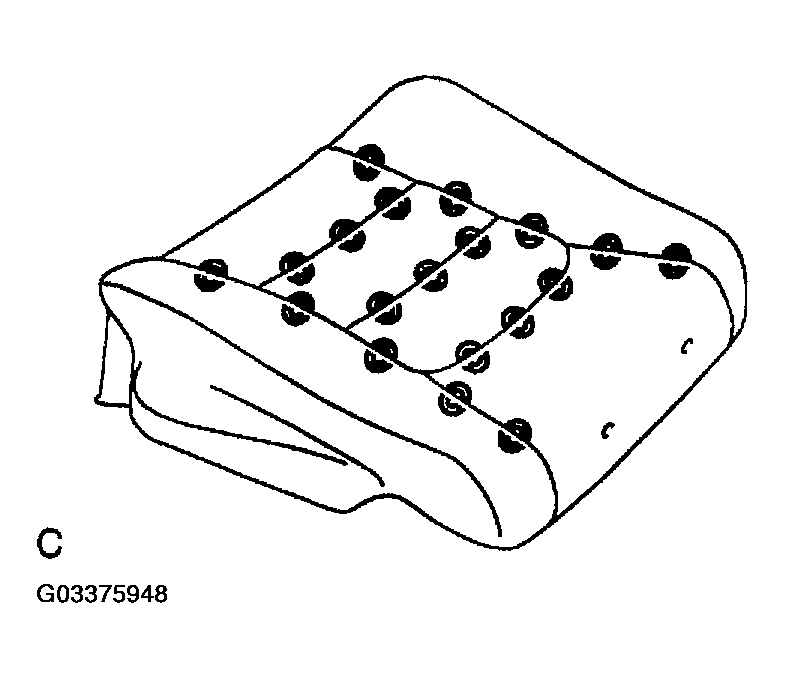

REMOVE SEAT CUSHION COVER (See REPLACEMENT )
IF NECESSARY, REPLACE SEAT CUSHION HEATER (See REPLACEMENT )

Fig 8: Removing Seat Cushion Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

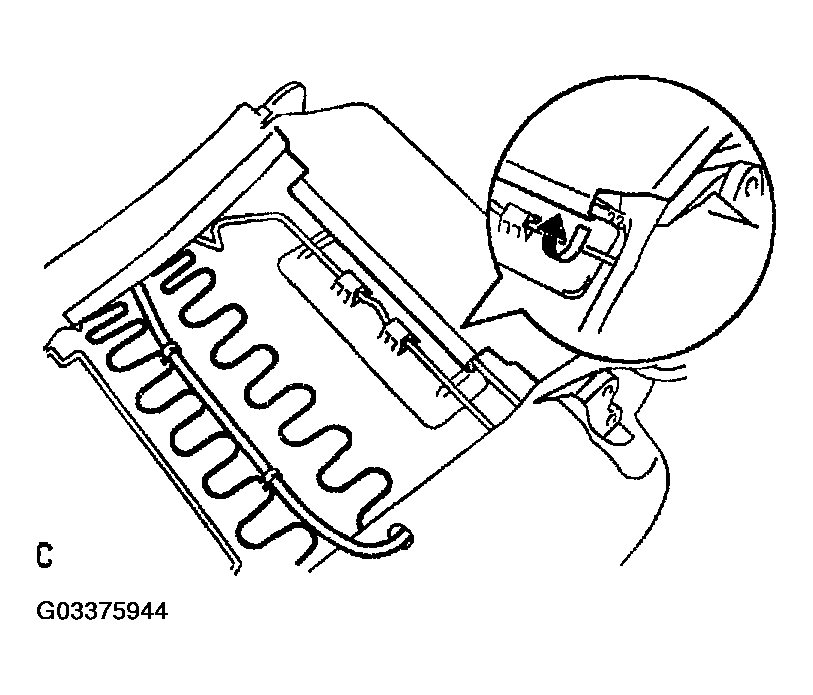

REMOVE SEATBACK ASSEMBLY
1. Remove the hog rings.
2. Disengage the hook as shown in the illustration.
3. Disconnect the connectors.

  Fig 9: Disengaging Hook
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

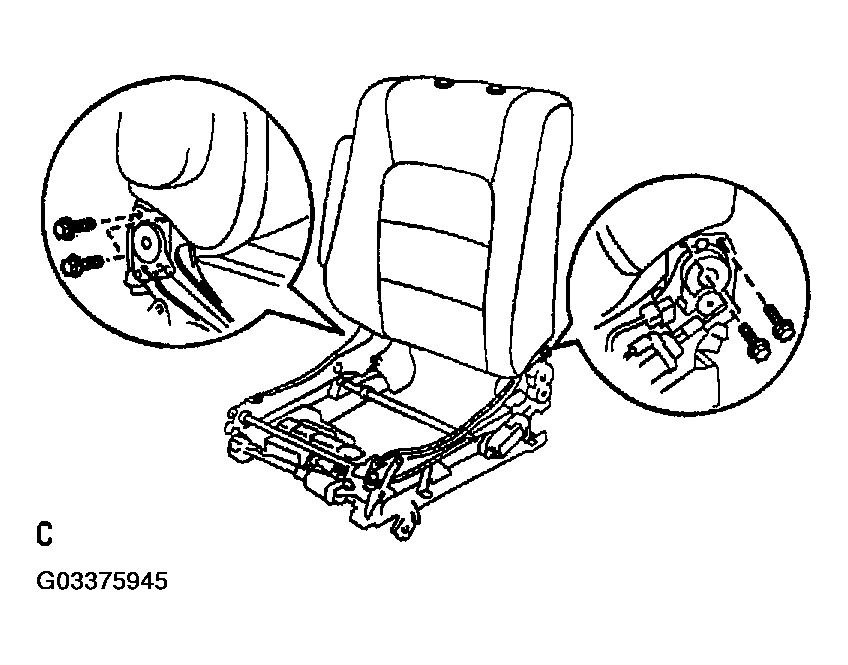

4. Remove the 4 bolts and the seatback assembly.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
5. Remove the screw and the RH reclining adjuster inside shield.
6. Disconnect the side airbag connector.
  NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
7. Remove the screw and the LH reclining adjuster inside shield.
Fig 10: Removing 4 Bolts & Seatback Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ARMREST

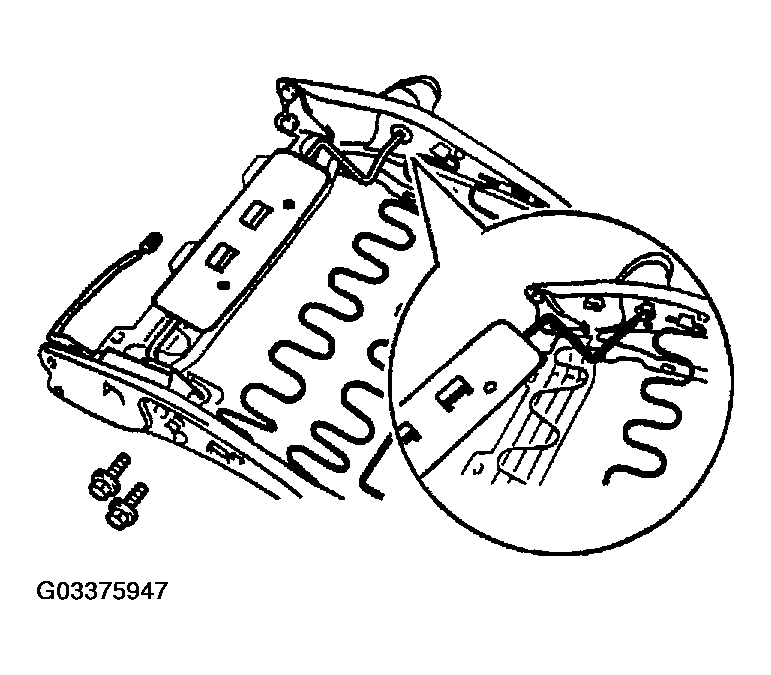

REMOVE SEATBACK FRAME
1. Remove the hog rings, the clamps and the 2 bolts.
2. Remove the 2 headrest supports.
3. Remove the seatback frame from the seatback cover with the pad.
Fig 11: Removing Seatback Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE LUMBER SUPPORT
Remove the 2 bolts, the lumber support and the spacer.
REMOVE POWER SEAT MOTOR ASSEMBLY
Remove the 4 screws and the power seat motor assembly.

Fig 12: Removing Power Seat Motor Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEATBACK COVER
Remove the hog rings and the seatback cover from the seat-back pad.
IF NECESSARY, REPLACE SEATBACK HEATER (See REPLACEMENT )
REMOVE SEAT POSITION CONTROL RELAY
1. Disconnect the connectors.
2. Remove the 2 bolts and the seat position control relay.
Fig 13: Removing Seatback Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Driver's Side:

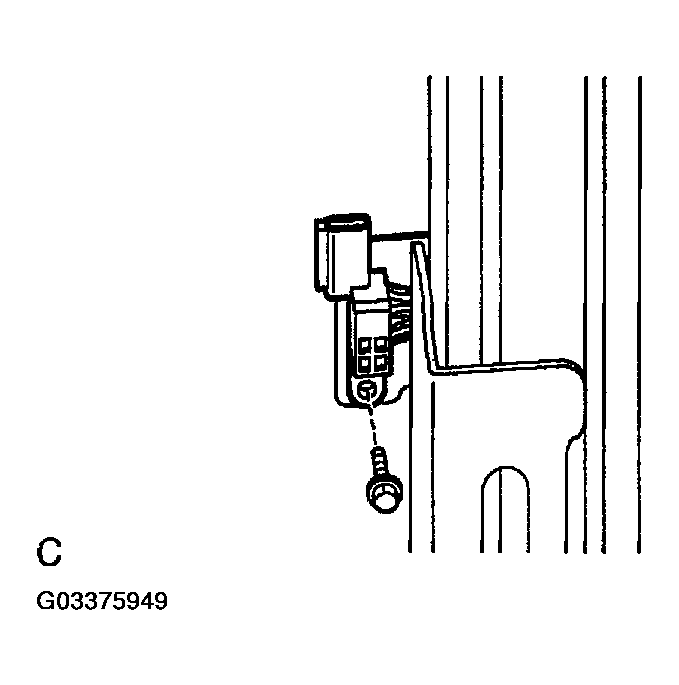

REMOVE SEAT POSITION SENSOR

Remove the bolt and the seat position sensor, then disconnect the connector.

Fig 14: Removing Seat Position Sensor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
