Front Seat: Reassembly

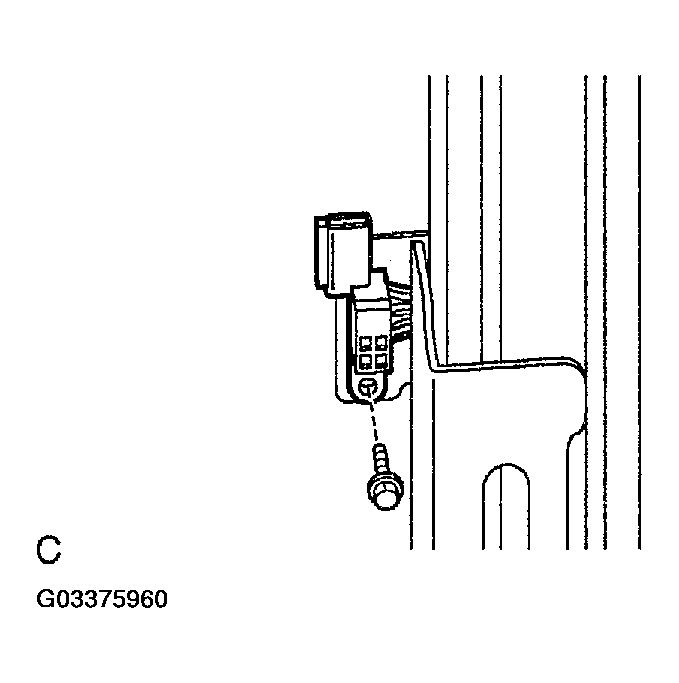

INSTALL SEAT POSITION SENSOR

Install the seat position sensor with a new bolt, then connect the connector.

Part No.:

Bolt: 90119-06871

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

Install the 2 bolts and the seat position control relay, then connect the connectors.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

Fig 1: Installing Seat Position Sensor With New Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

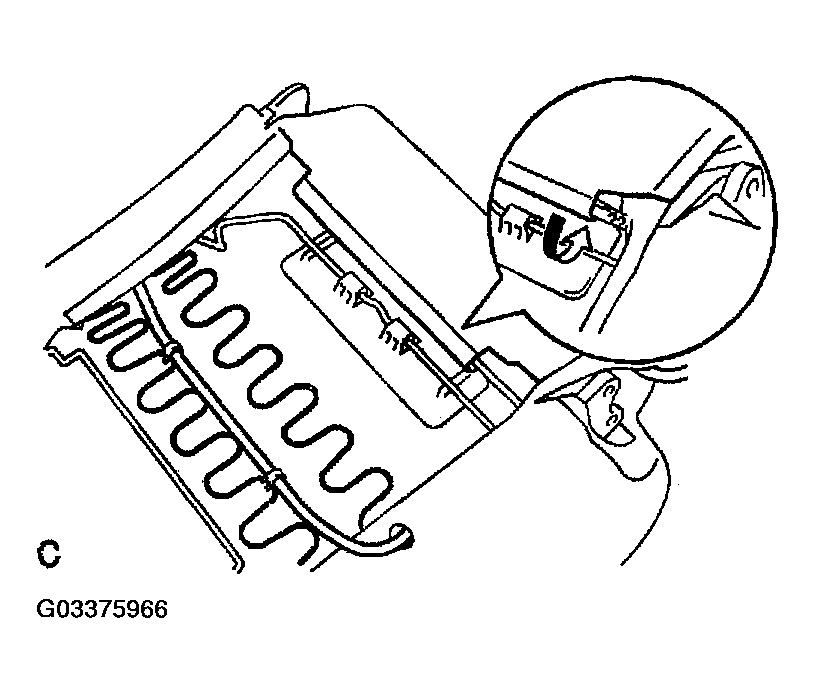

Install the seatback cover to the seatback pad with new hog rings.

Install the power seat motor assembly with the 4 screws.

Fig 2: Installing Seatback Cover To Seatback Pad

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

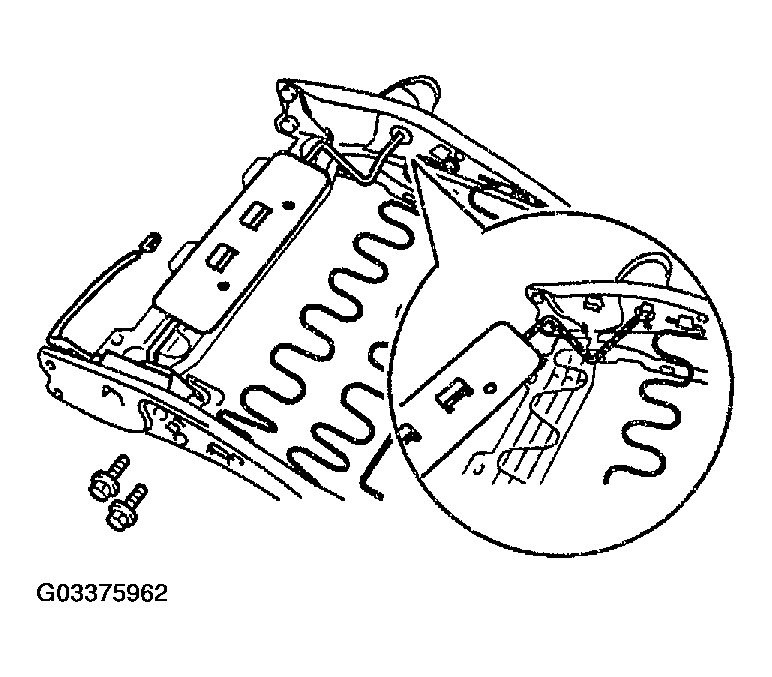

Install the lumber support and the spacer with the 2 bolts.

Fig 3: Installing Lumber Support & Spacer With 2 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seatback cover to the seatback frame.
2. Install new hog rings the clamps, and the 2 bolts.

   Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)

3. Install the 2 headrest supports.

Fig 4: Installing Seatback Frame

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

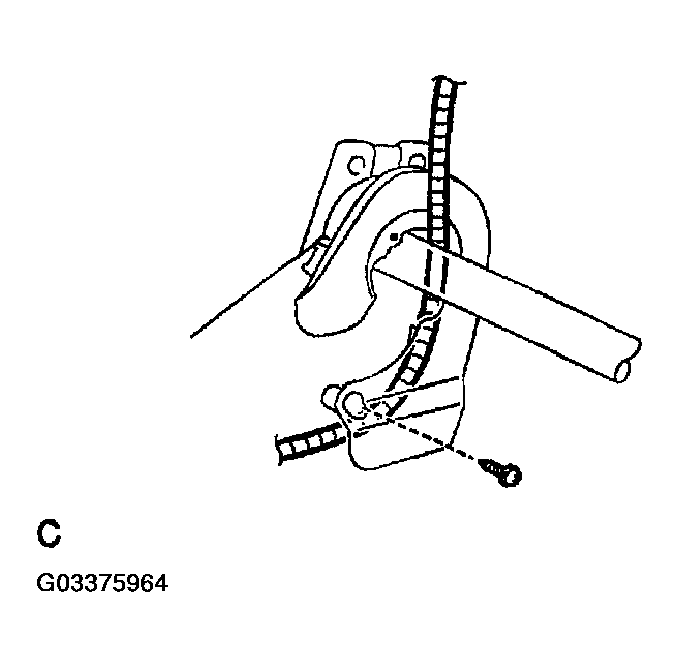

1. Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with the screw so that the connector is placed in between.
   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
   Fig 5: Installing LH Reclining Adjuster Inside Shield With Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the LH reclining adjuster inside shield with the screw.

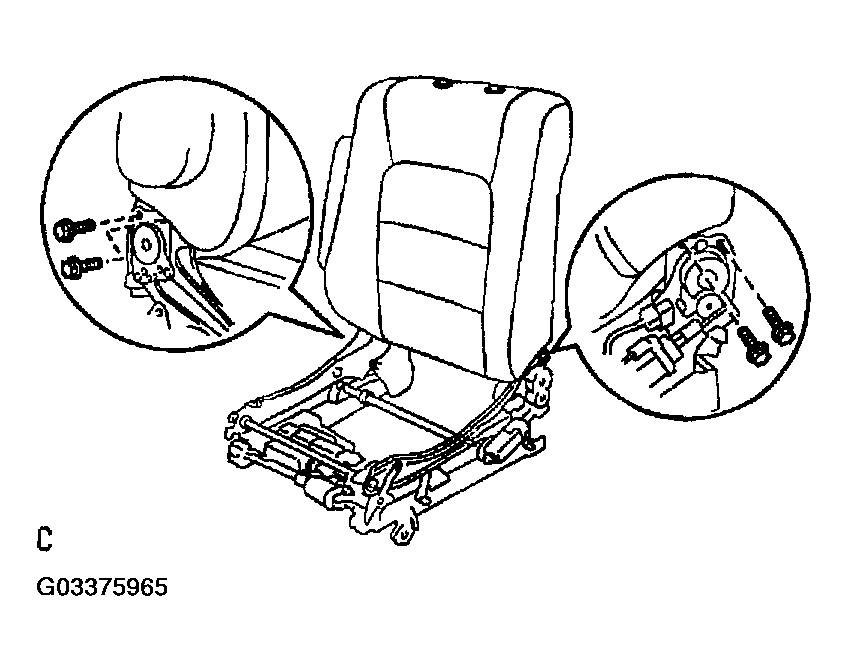

3. Install the seatback assembly with the 4 bolts.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

4. Install new hog rings.
   Fig 6: Installing Seatback Assembly With 4 Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Hang the hook.
6. Connect the connectors.

Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

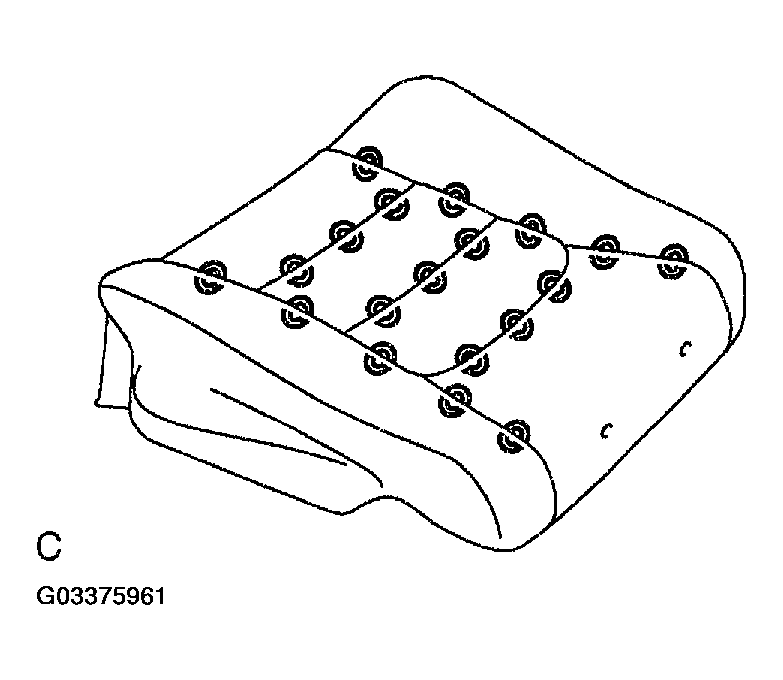

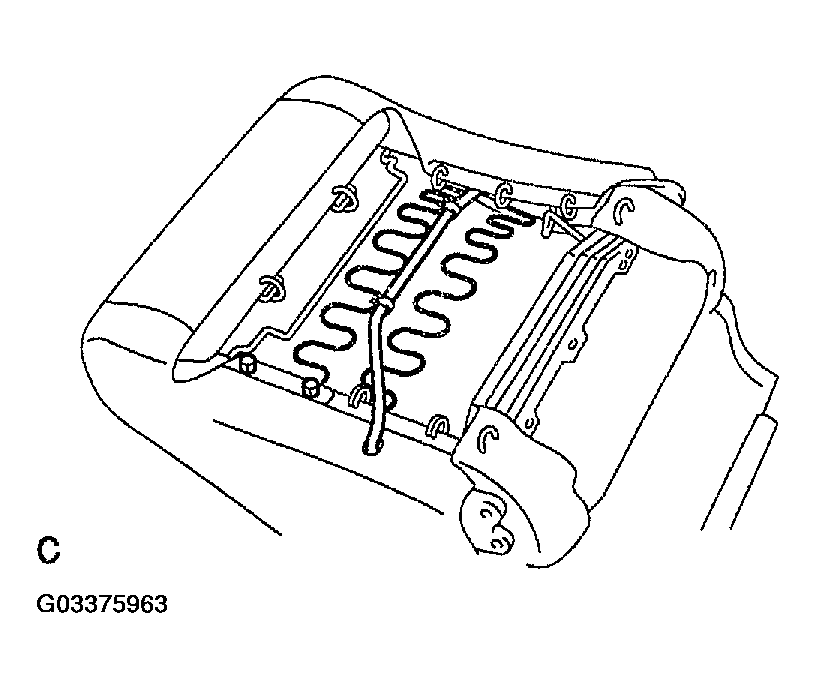

1. Install the seat cushion frame with new hog rings to the seat cushion cover with pad.
2. Hang the hook.

Fig 7: Installing Seat Cushion Frame With New Hog Rings To Seat Cushion Cover

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

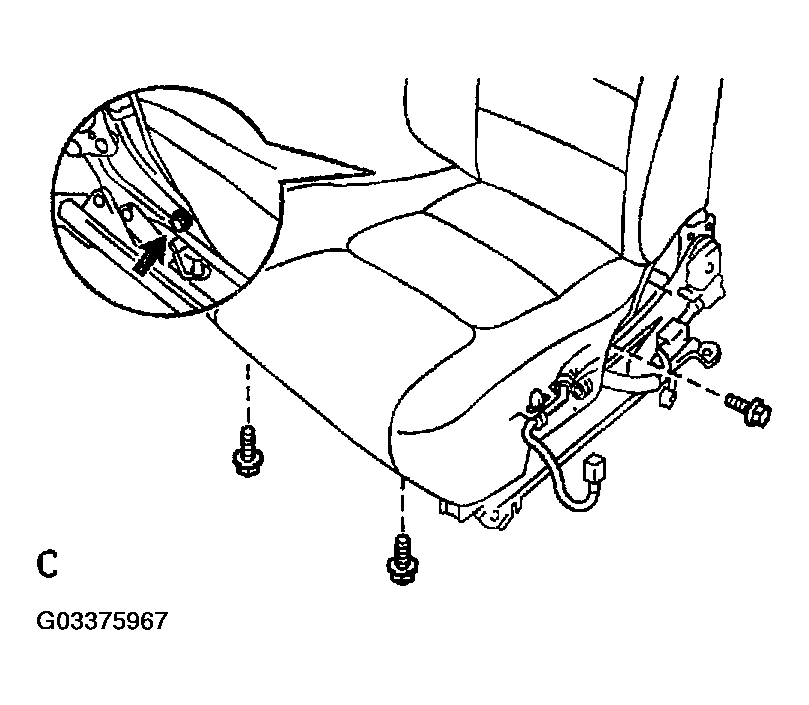

1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

2. Engage the wire harness clamp.

Fig 8: Installing Seat Cushion Assembly With 4 Bolts To Seat Adjuster

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

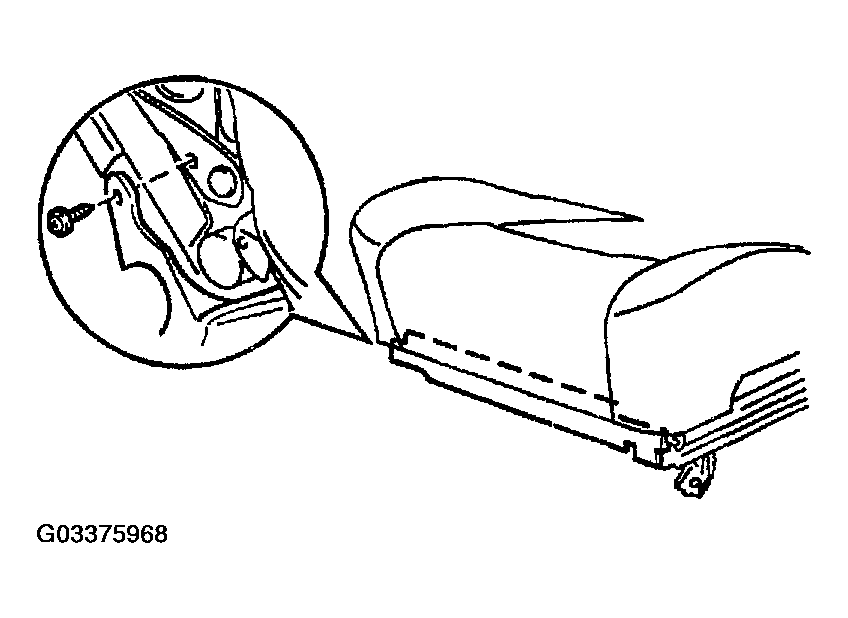

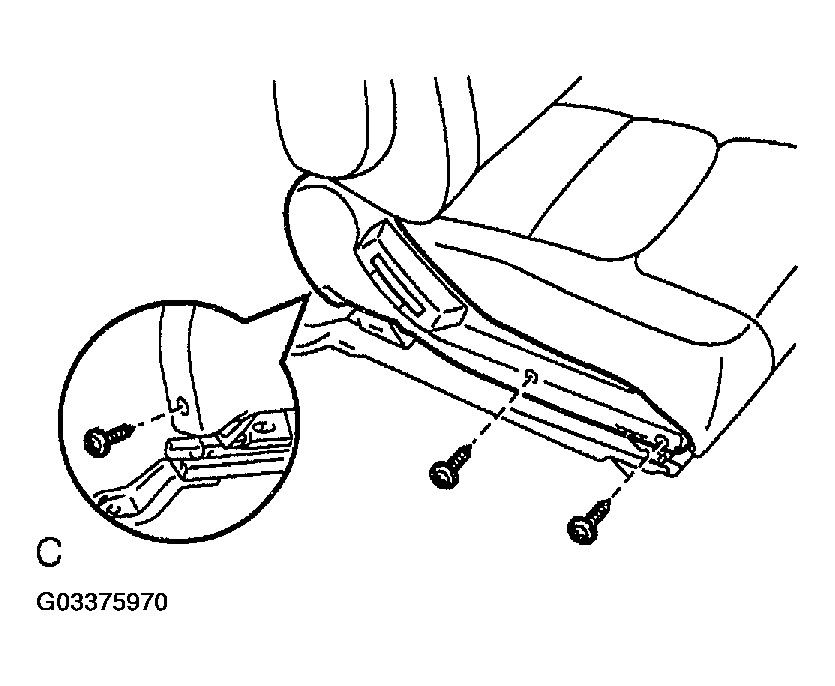

Install the seat cushion shield with the screw.

Fig 9: Installing Front Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 10: Installing Lower Seat Cushion Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

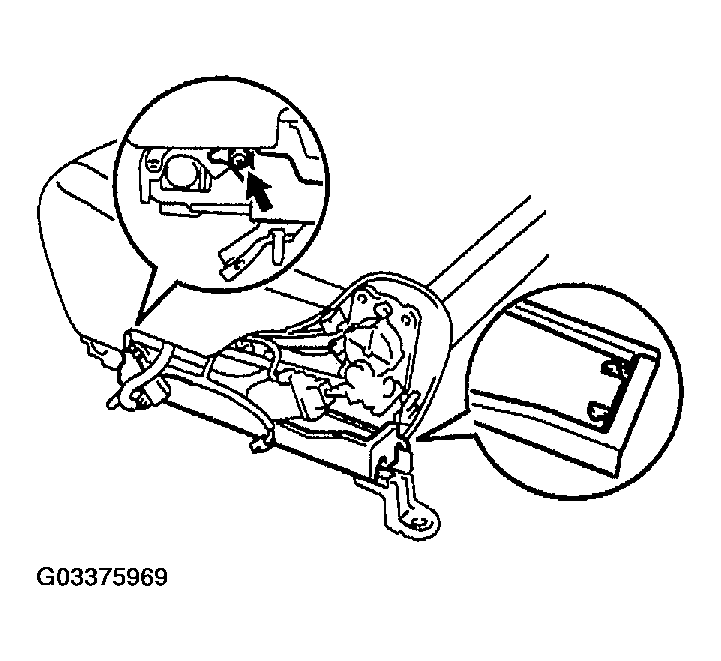

Install the seat cushion inner shield with the 3 screws.

Fig 11: Installing Seat Cushion Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

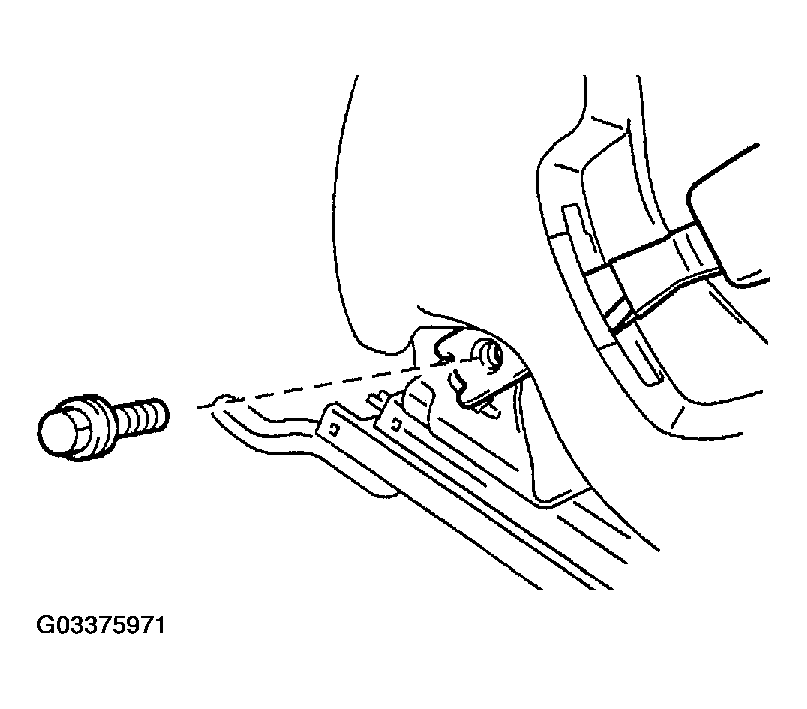

1. Engage the clamp, then connect the connector.
2. Install the inner belt with the bolt.

   Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

1. Install the power seat switch with the 3 screws.
2. Install the lumber support switch with the 2 screws.
3. Connect the connectors as shown in the illustration.
   Fig 12: Installing Inner Belt With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

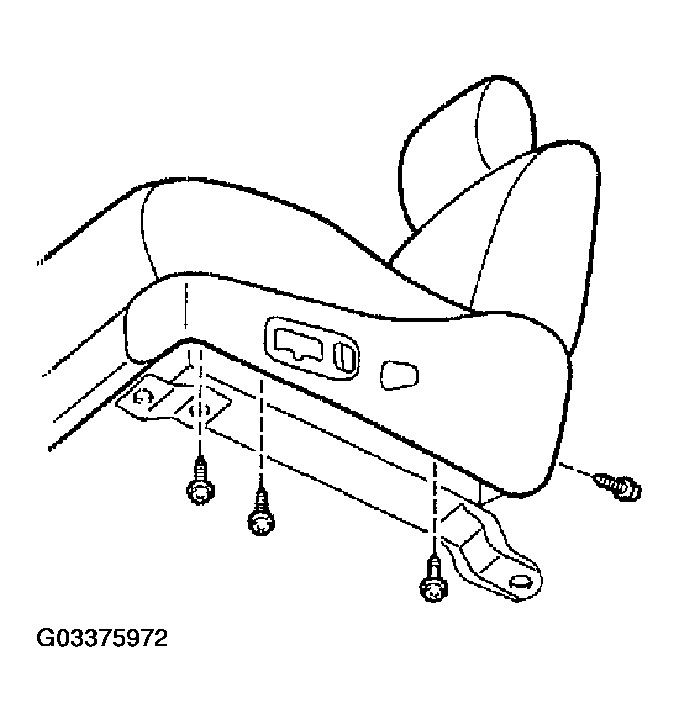

4. Install the seat cushion outer shield with the 4 screws.
5. Install the power seat switch knobs.
