Circuit Description

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Refer to DTC P0120, P0122 - P0123, P0220, P0222 - P0223, P2135 .

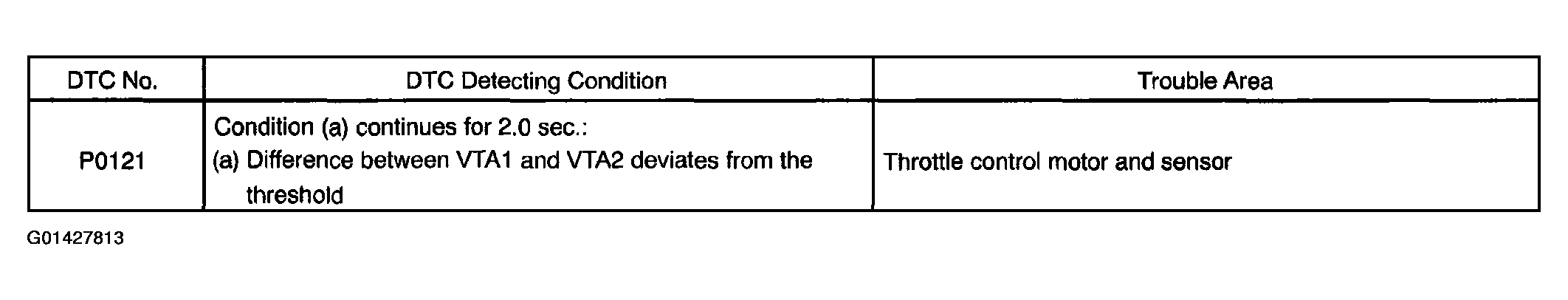

Fig 1: Circuit Description Chart
G01427813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
