Center Differential: Components

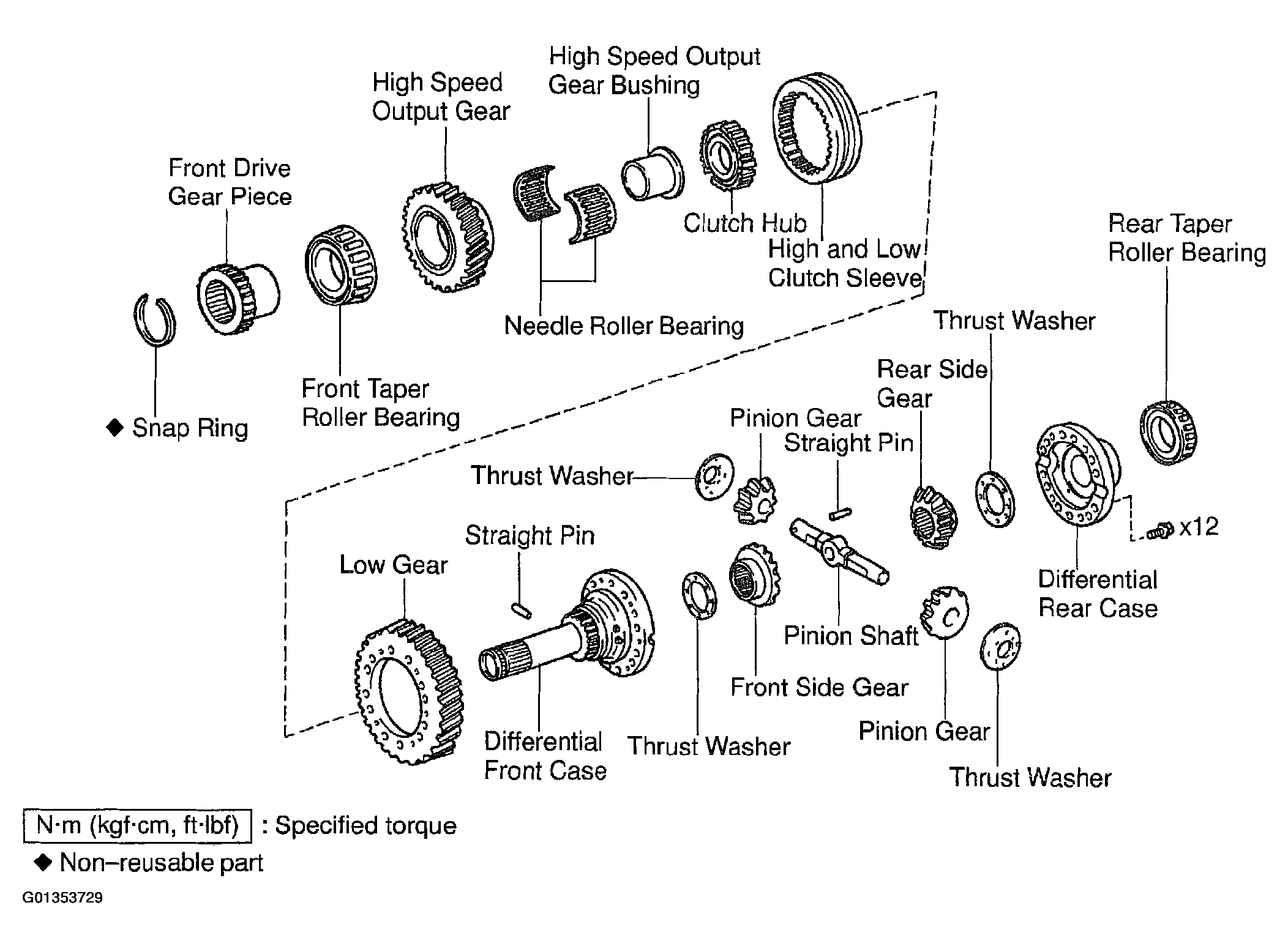

Fig 1: Identifying Center Differential Components
G01353729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
