Transfer Shift Lever Assembly: Components

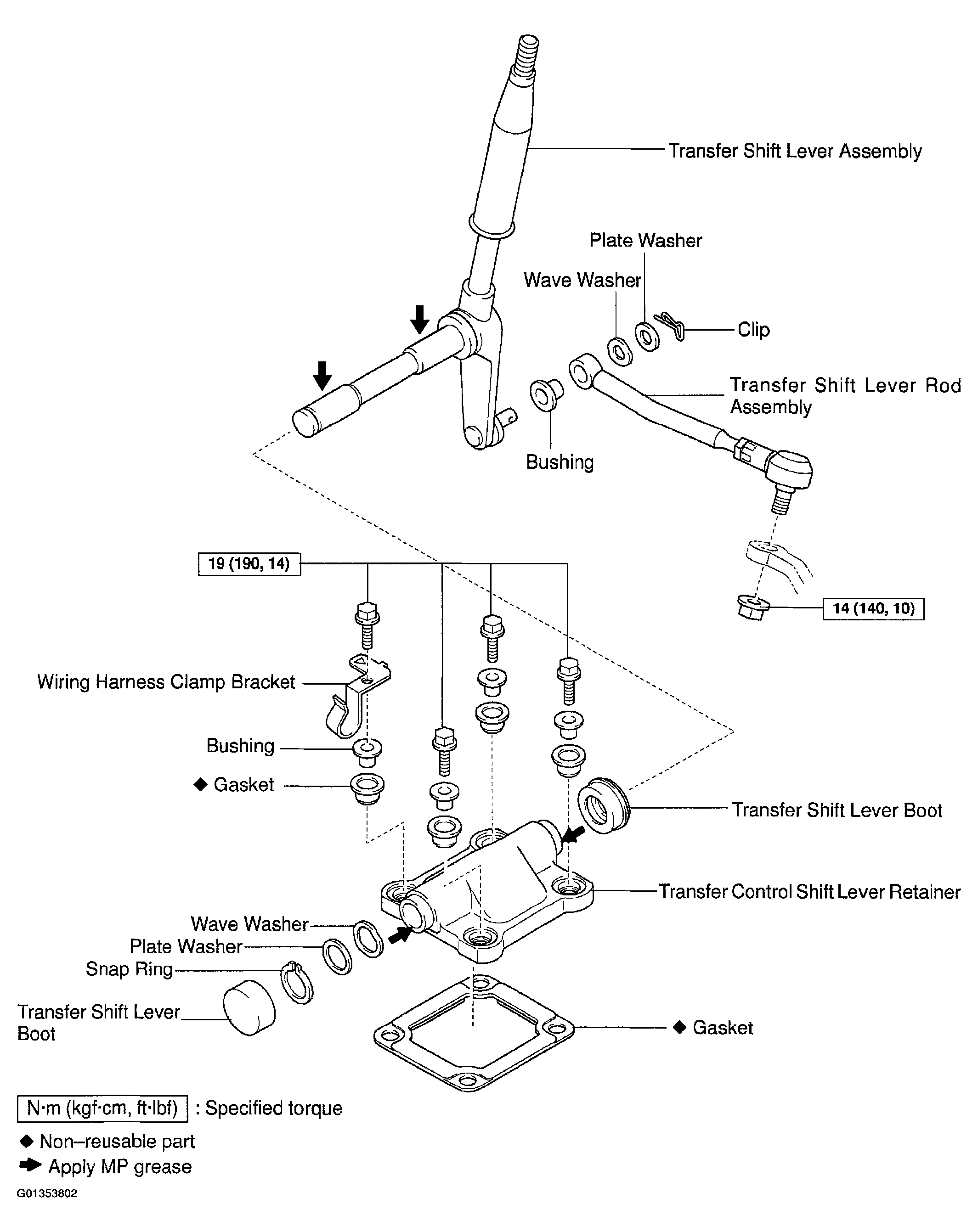

Fig 1: Identifying Transfer Shift Lever Assembly Components
G01353802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
