Home >> Lexus >> 2003 >> RX 300 AWD V6-3.0L (1MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brake Pad >> Front

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

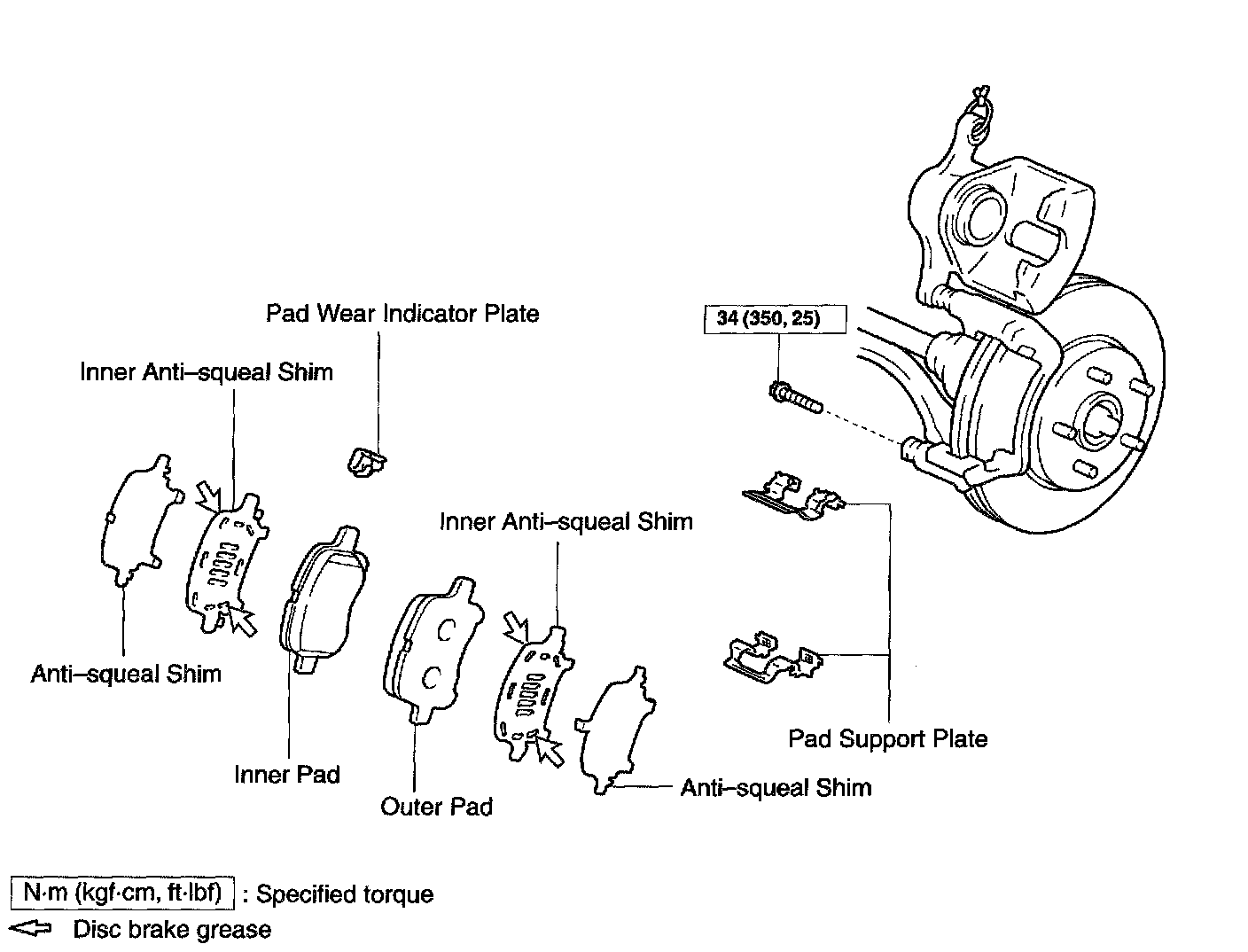

Front
