Power Distribution Relay: Locations

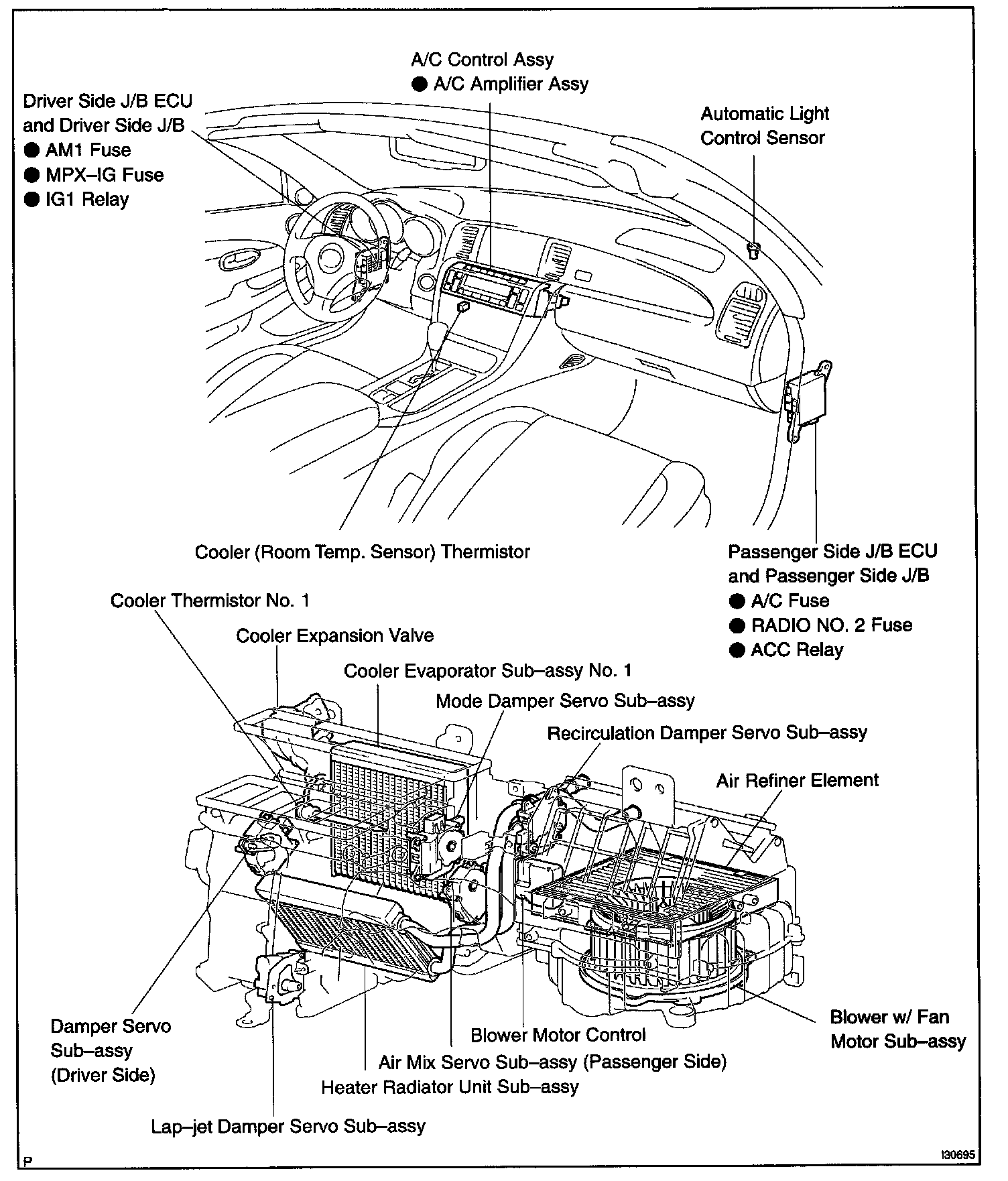

Air Conditioning System:

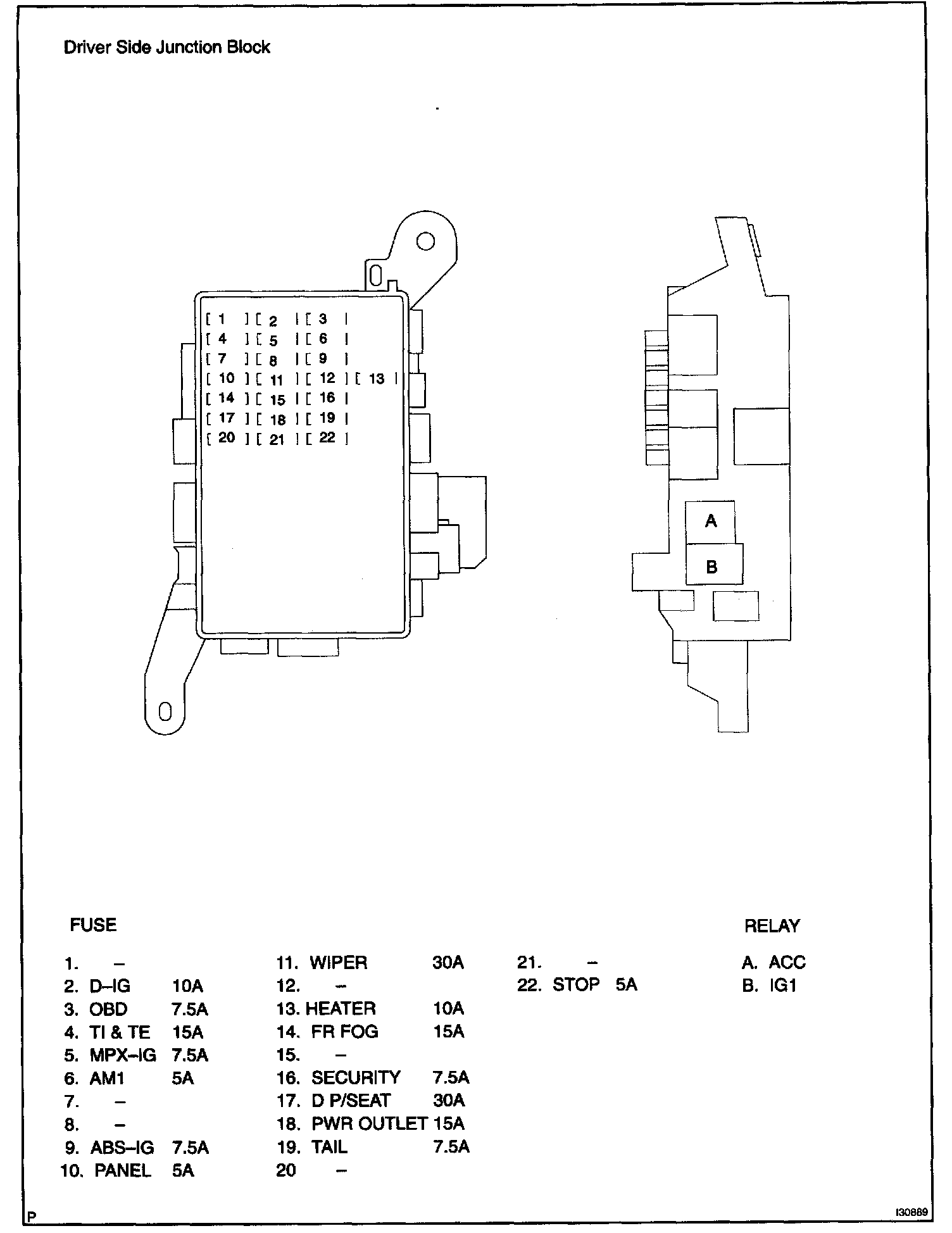

Driver Side Junction Block:

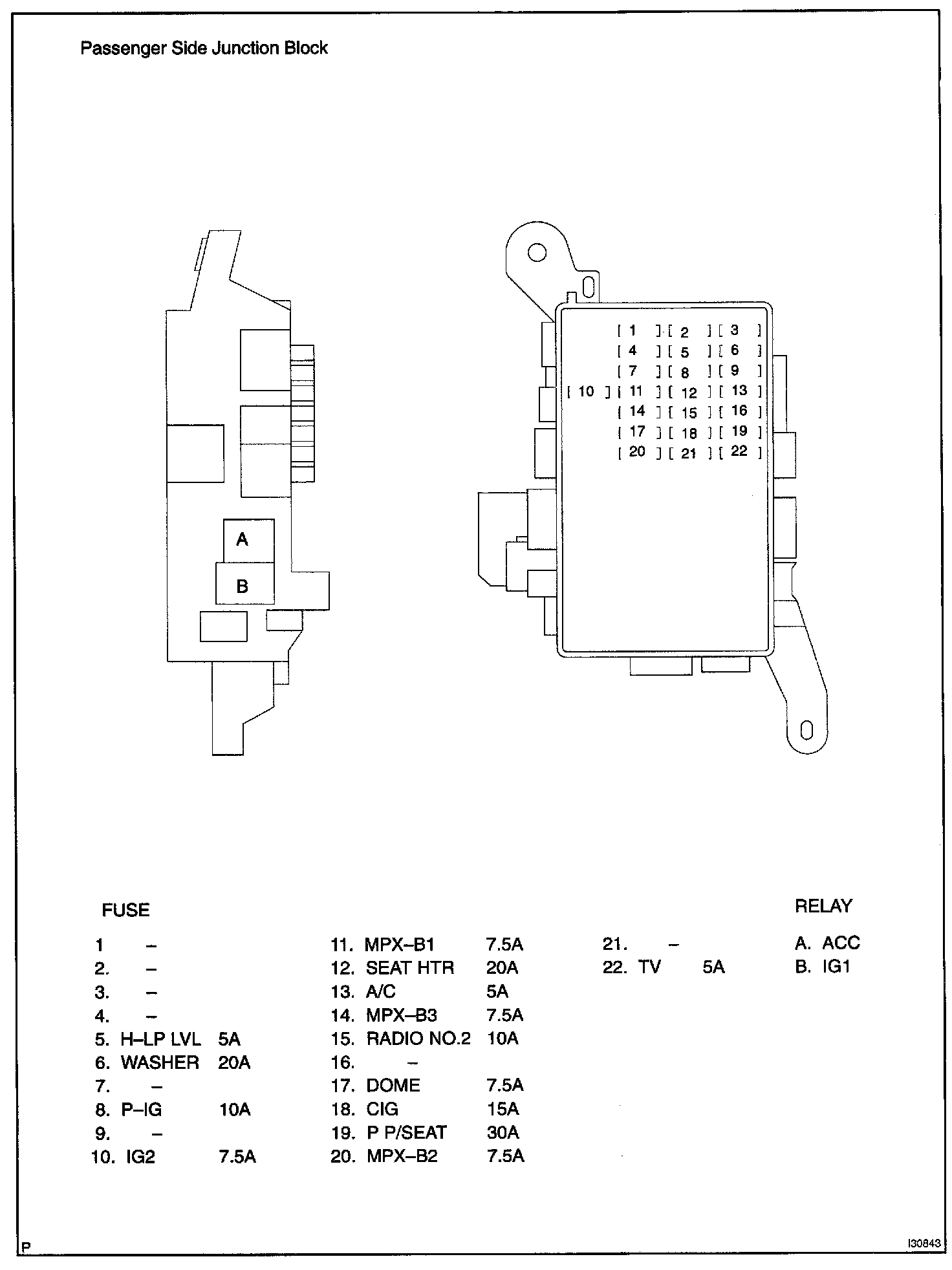

Passenger Side Junction Block:
