Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor:

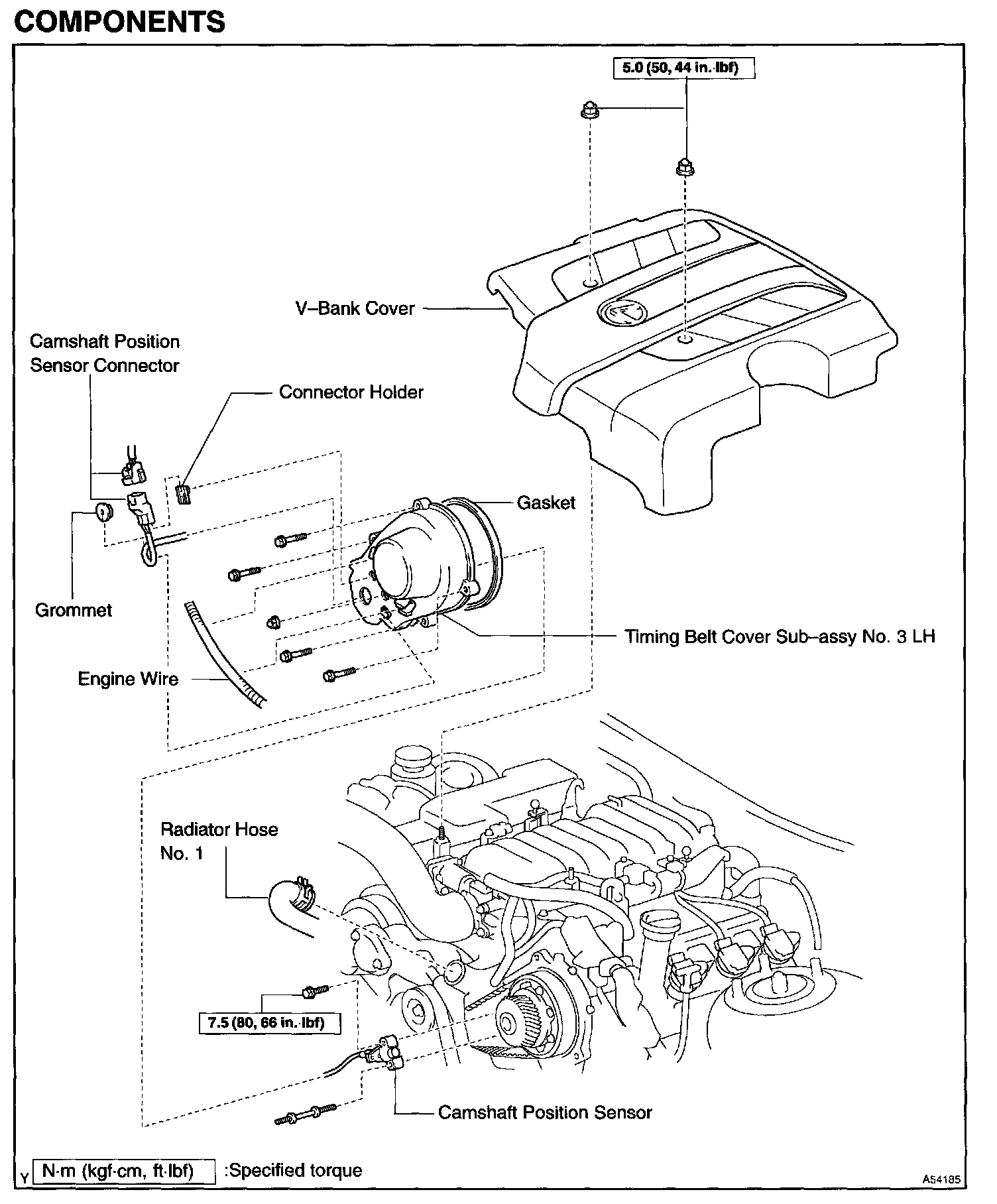

REPLACEMENT

1. Drain engine coolant
2. Remove v-bank cover
3. Separate radiator hose No.1
4. Remove timing belt cover sub-assy no.3 LH
5. Remove camshaft position sensor
6. Install camshaft position sensor

Torque: 7.5 Nm (80 kgf.cm, 66 in.lbf)

7. Install timing belt cover sub-assy No.3 LH
8. Install radiator hose No.1
9. Install v-bank cover

Torque: 5.0 Nm (50 kgf.cm, 44 in.lbf)

10. Refill engine coolant
11. Check for engine coolant leaks
