Malfunction Indicator Lamp: Testing and Inspection

MIL CIRCUIT

CIRCUIT DESCRIPTION
If the ECM detects a trouble, the MIL lights up. At this time, the ECM records a DTC in the memory.

Wiring Diagram:

Step 1:

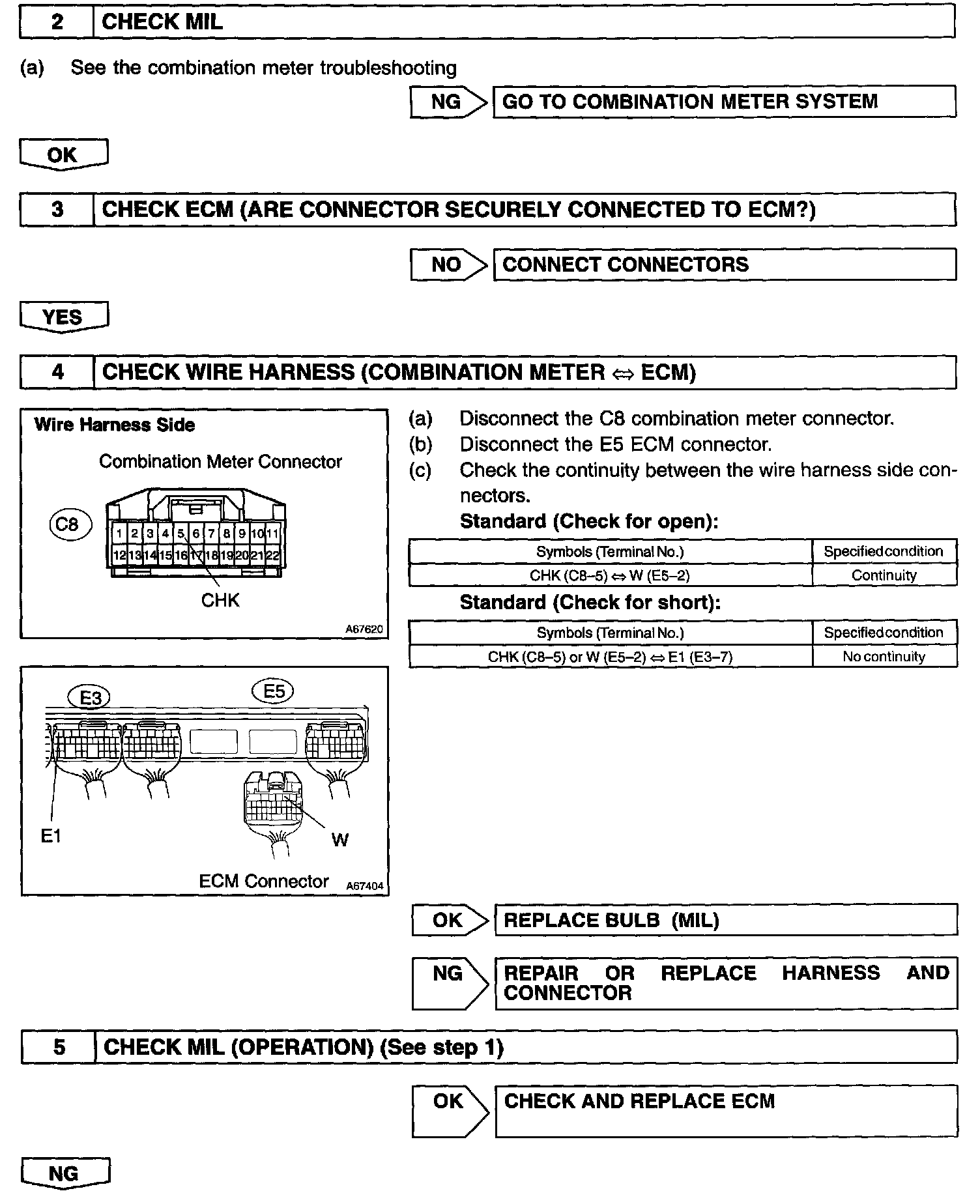

Step 2 - 5:

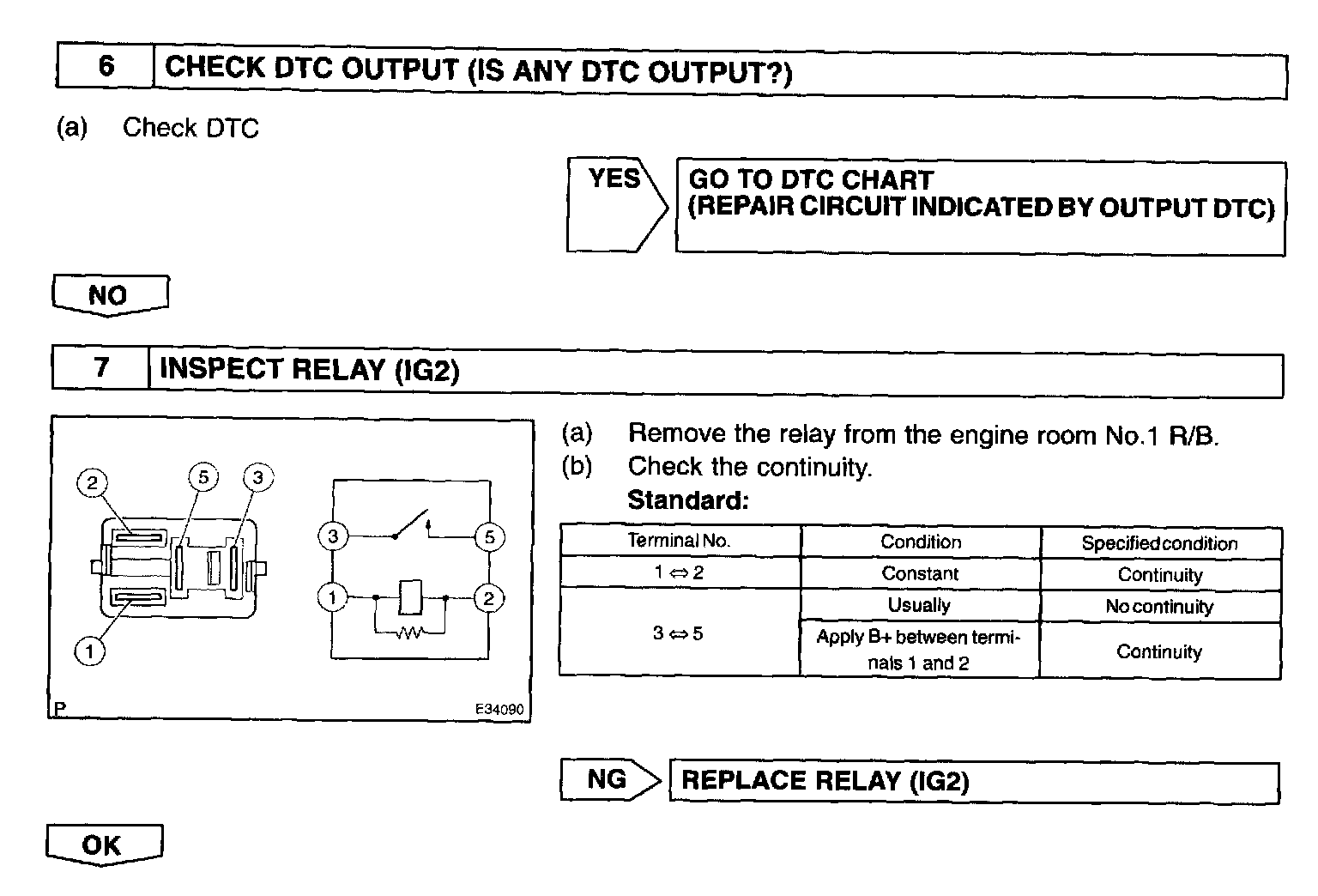

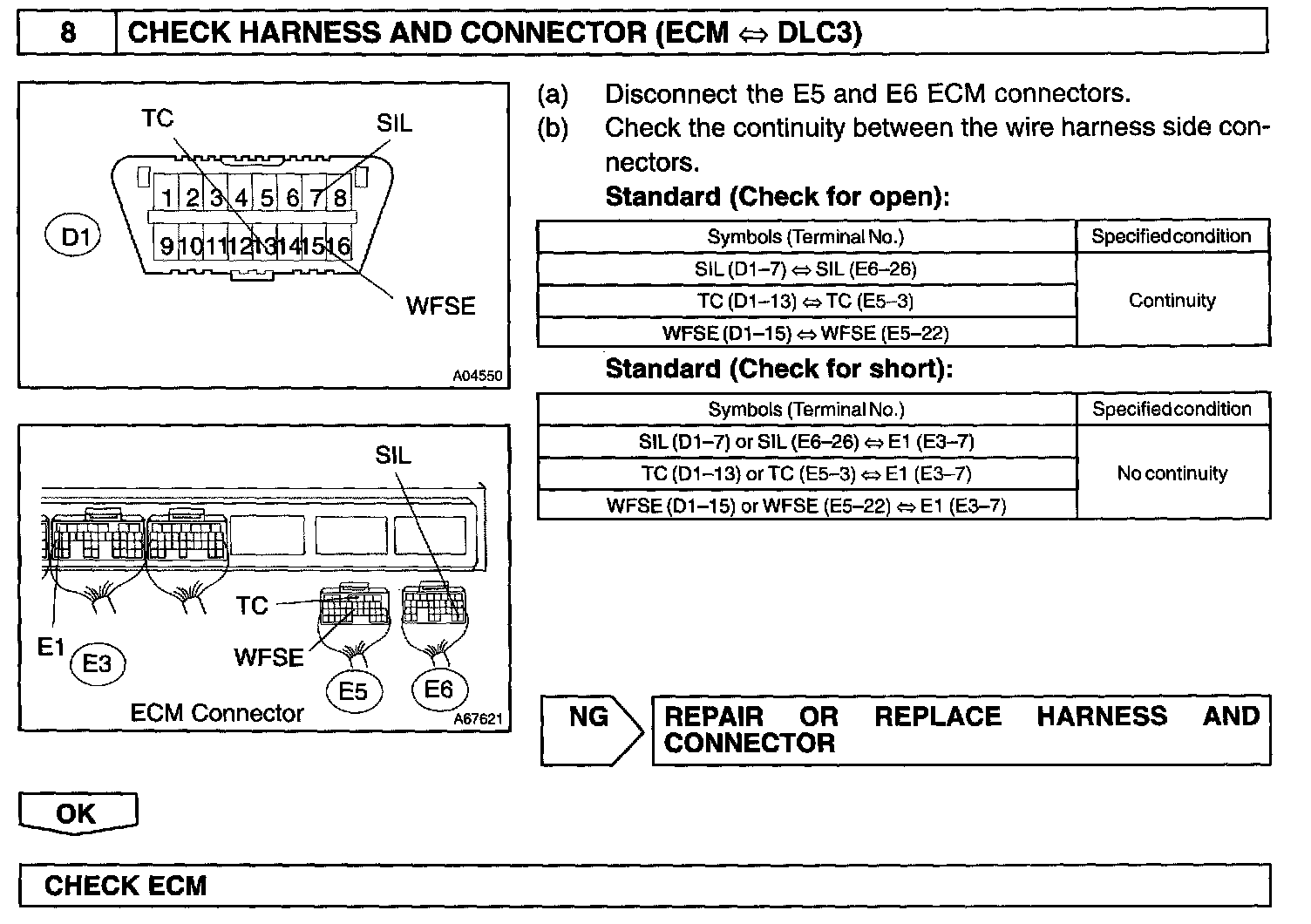

Step 6 - 7:

Step 8:

INSPECTION PROCEDURE
