Ignition Switch: Testing and Inspection

IGNITION SWITCH

INSPECTION

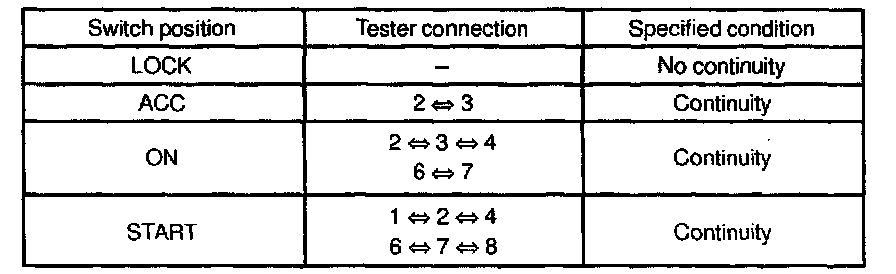

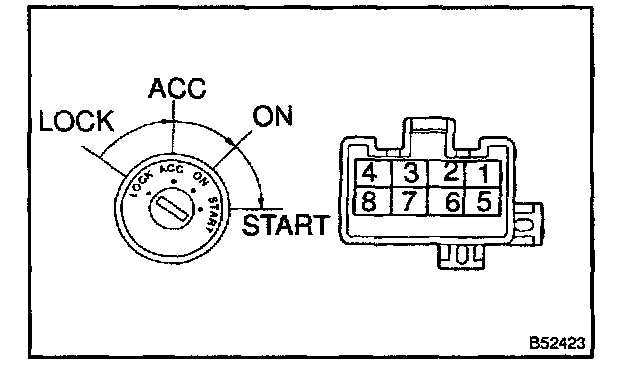

1. INSPECT IGNITION OR STARTER SWITCH ASSY
If the continuity is not as specified, replace the switch.
