Inspection Procedure

1. Connect the hand-held tester to the DLC3.
2. Check the cruise control switch using DATA LIST.

CRUISE CONTROL (ECM):

HINT

If the flag of the main CPU does not match with that of the sub CPU, the cruise control is not allowed.

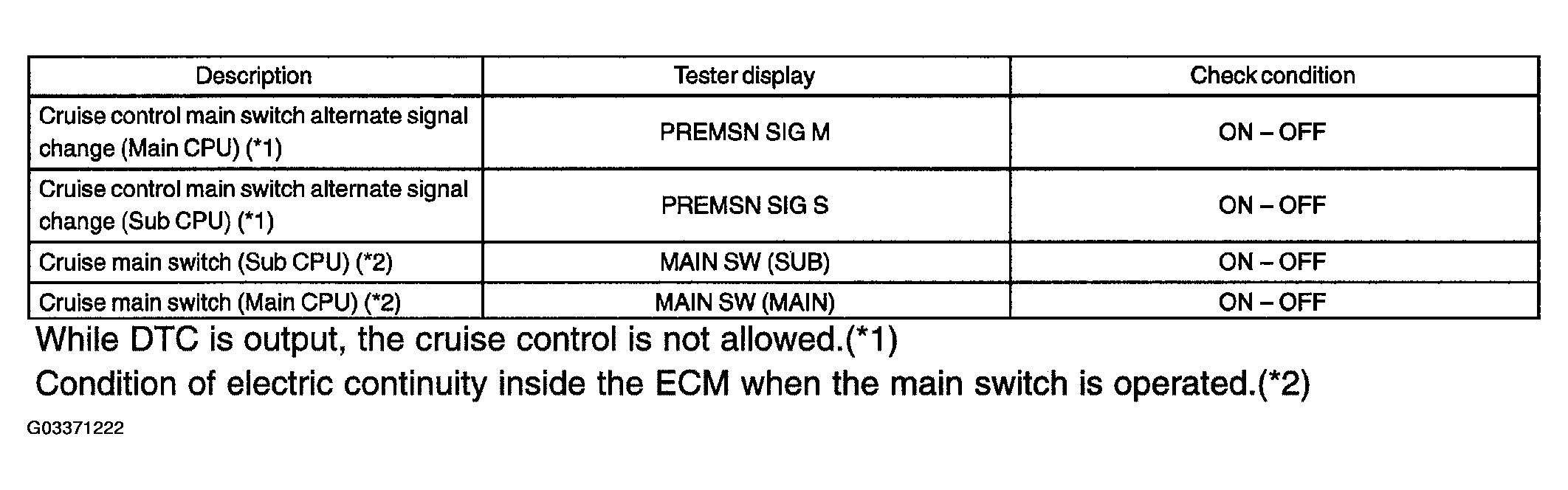

Fig 1: Tester Display Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

While DTC is output, the cruise control is not allowed.(*1)

Condition of electric continuity inside the ECM when the main switch is operated.(*2)

1. OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See page  PROBLEM SYMPTOMS TABLE  )
2. NG: CHECK AND REPLACE ECM (See page  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
