Compass Does Not Function: Wiring Diagram

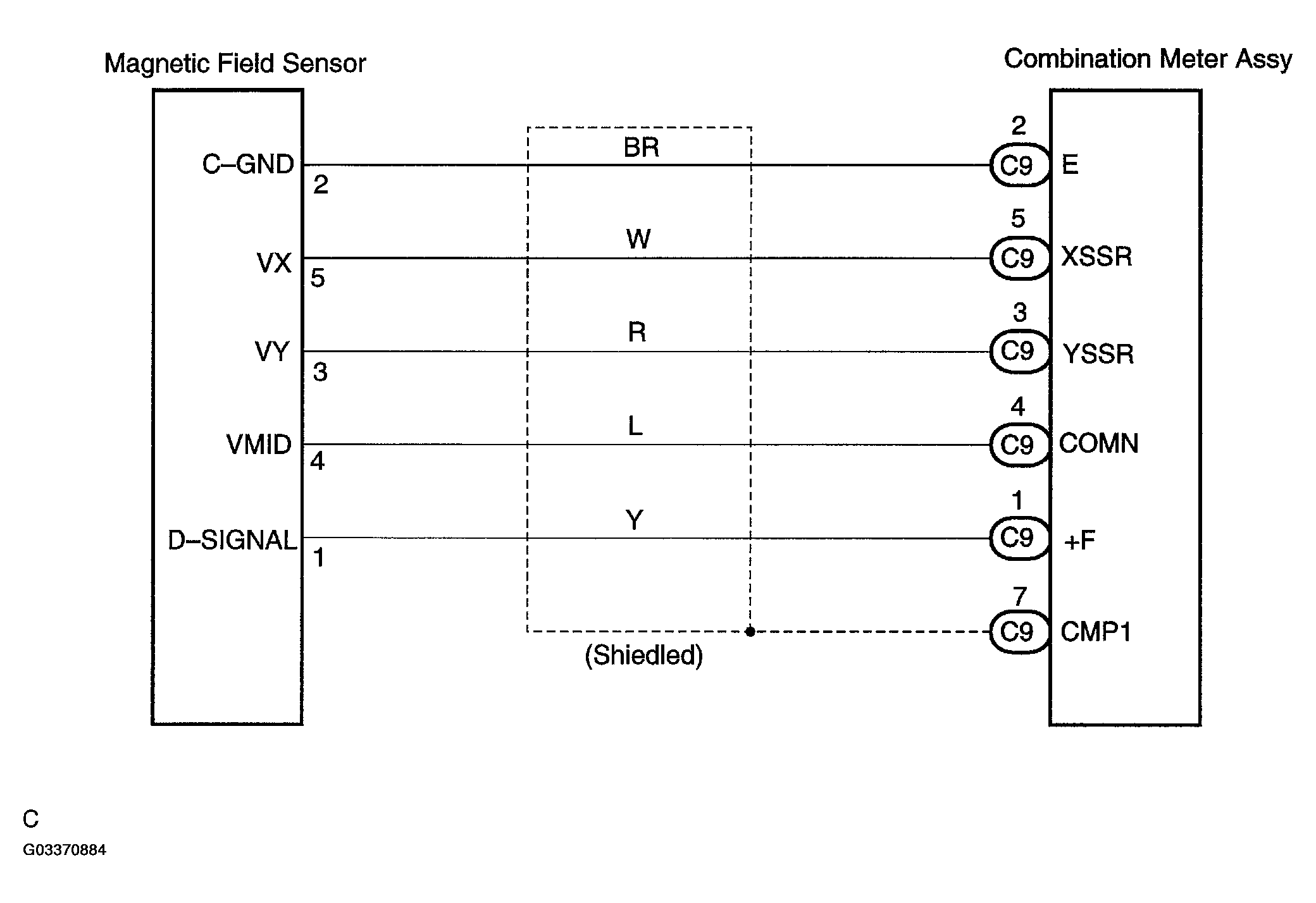

Fig 1: Compass Wiring Diagram
G03370884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
