Blower Unit: Disassembly

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE AIR REFINER FILTER
1. Release the 2 claws and remove the cover.
2. Pull out the air refiner filter.
3. Remove the filter from filter case.
REMOVE BLOWER MOTOR
Remove the 3 screws and motor.

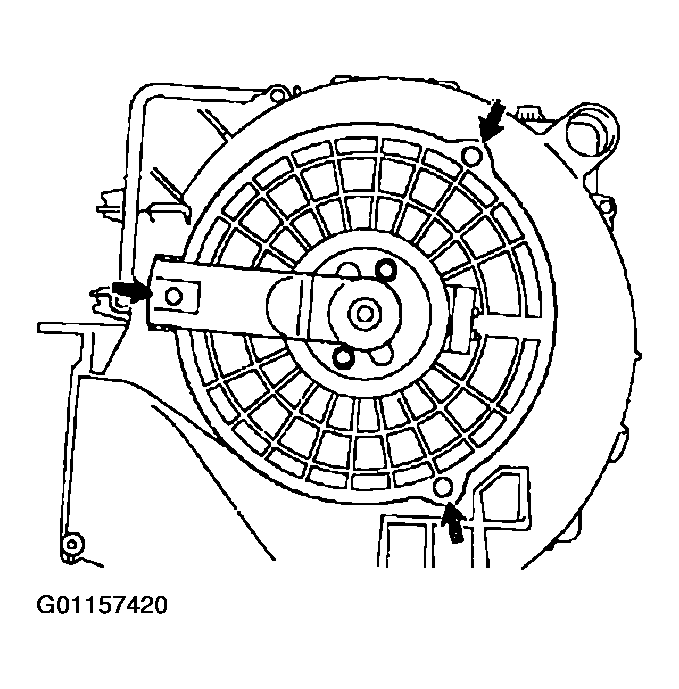

Fig 1: Removing Blower Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE AIR INLET SERVOMOTOR
Remove the 3 screws and servomotor.

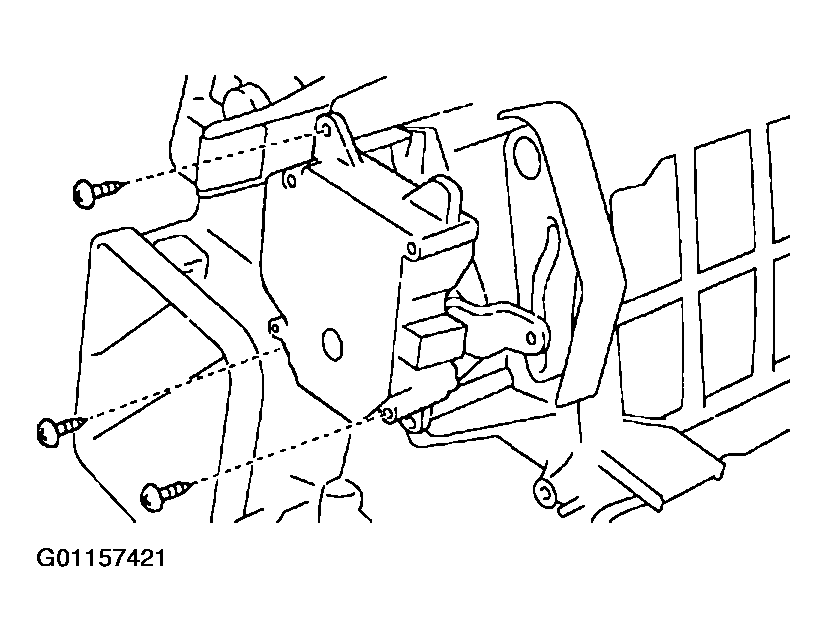

Fig 2: Removing Air Inlet Servomotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
