Room Temperature Sensor: Inspection

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THESE PARTS:
    1. Front door scuff plate LH
    2. Cowl side trim LH
  2. REMOVE ROOM TEMPERATURE SENSOR
    1. Remove the 2 lower finish panel set bolts.
    2. Pull out the lower finish panel.
    3. Disconnect the connector and aspirator hose.
    4. Release the 2 claws and pull out the sensor.

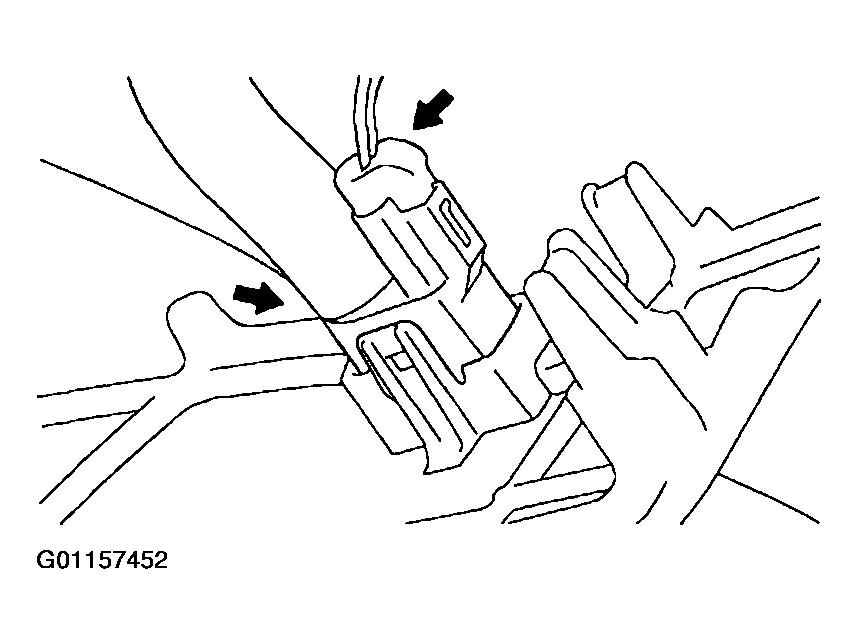

    Fig 1: Removing Room Temperature Sensor
    G01157452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT ROOM TEMPERATURE SENSOR CIRCUIT (See )
  4. INSTALL ROOM TEMPERATURE SENSOR
  5. INSTALL LOWER FINISH PANEL
  6. INSTALL THESE PARTS:
    1. Cowl side trim LH
    2. Front door scuff plate LH
