Diagnostic Trouble Code Chart
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

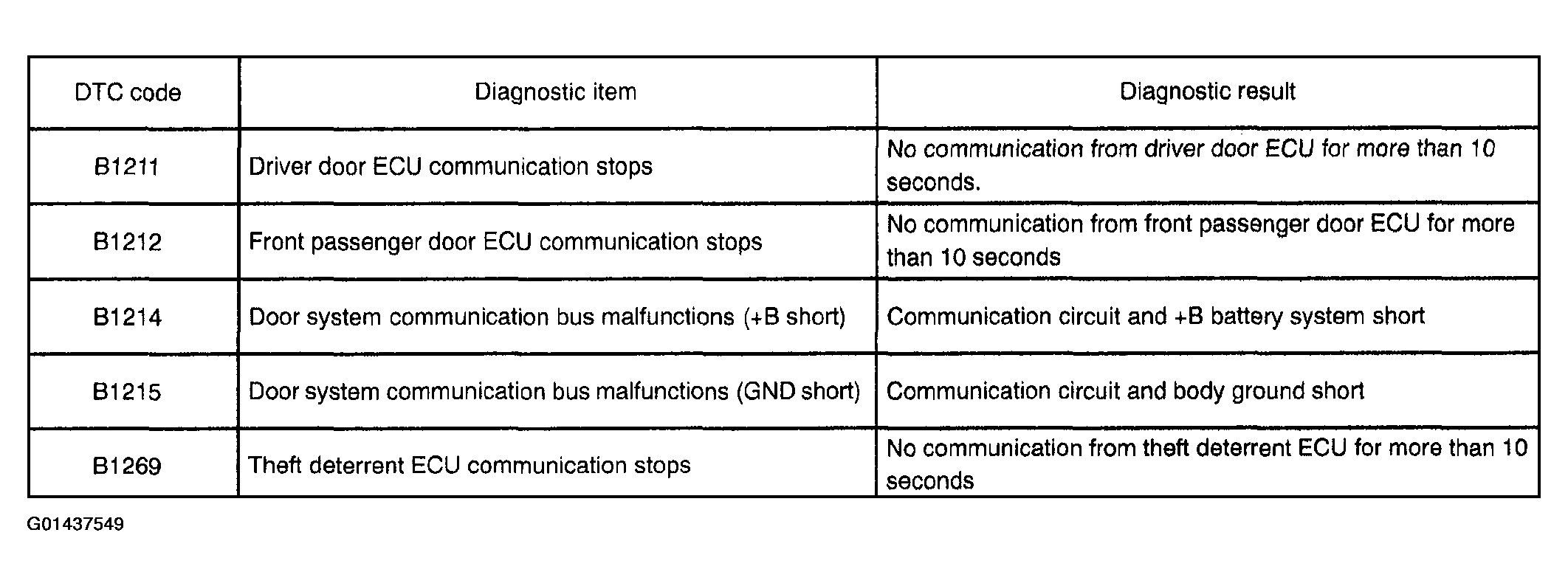

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC B1211 | DRIVER DOOR ECU COMMUNICATION STOP |
| DTC B1212 | FRONT PASSENGER DOOR ECU COMMUNICATION STOP |
| DTC B1214, B1215 | DOOR SYSTEM COMMUNICATION BUS MALFUNCTION (+B SHORT)/(GND SHORT) |
| DTC B1269 | THEFT DETERRENT ECU COMMUNICATION STOP |
