Partial Engine ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

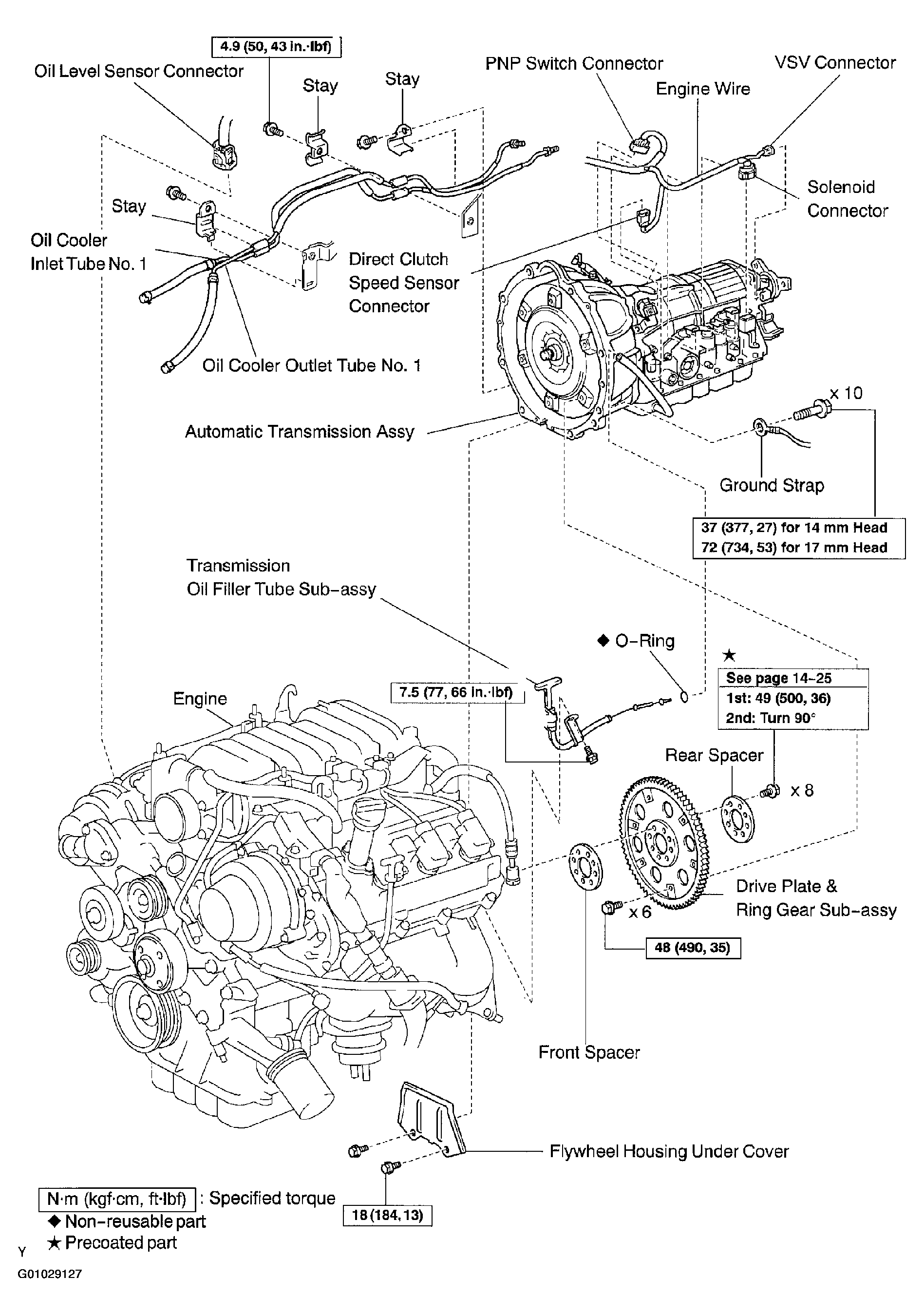

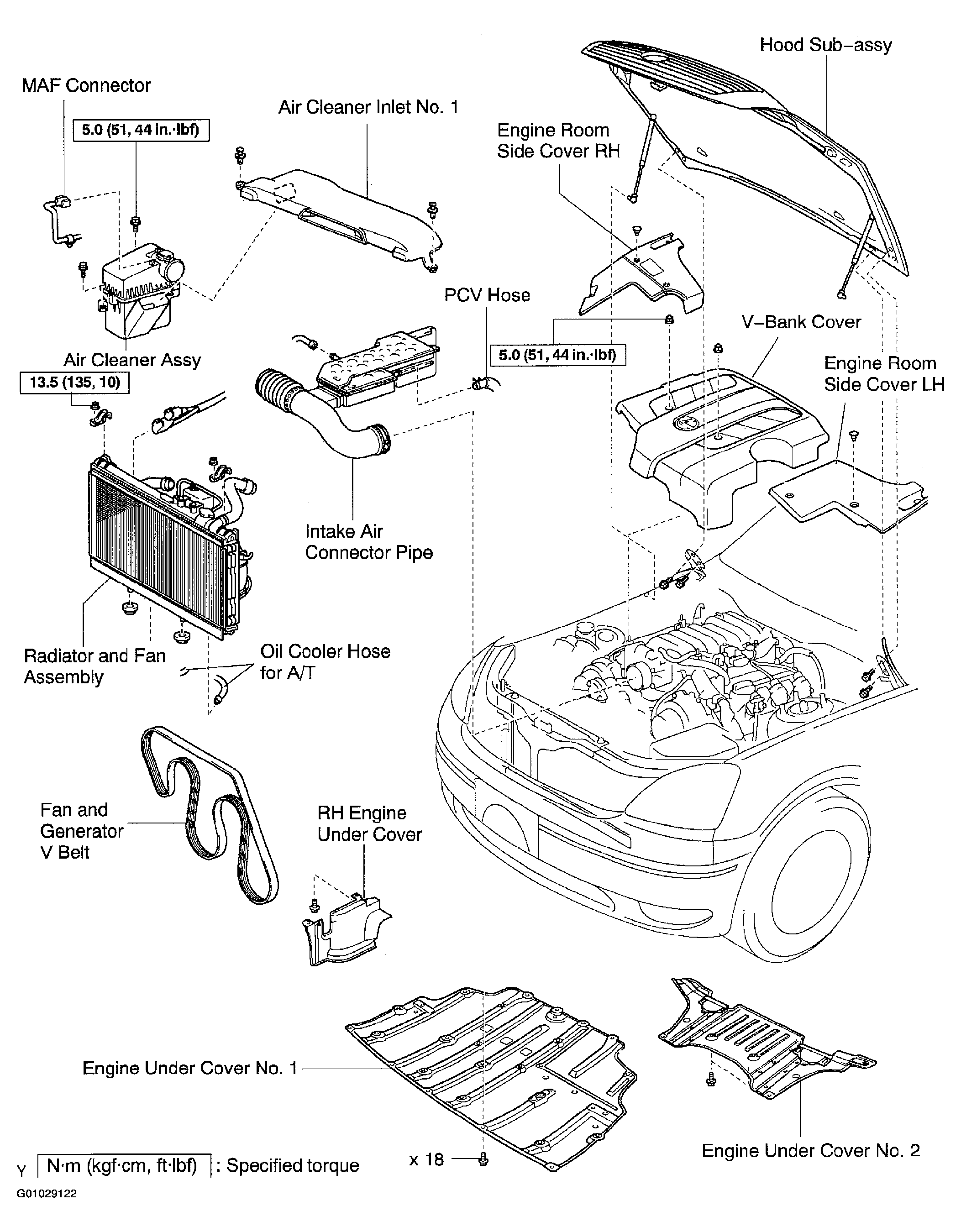

Fig 1: Identifying Partial Engine Assy Components (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

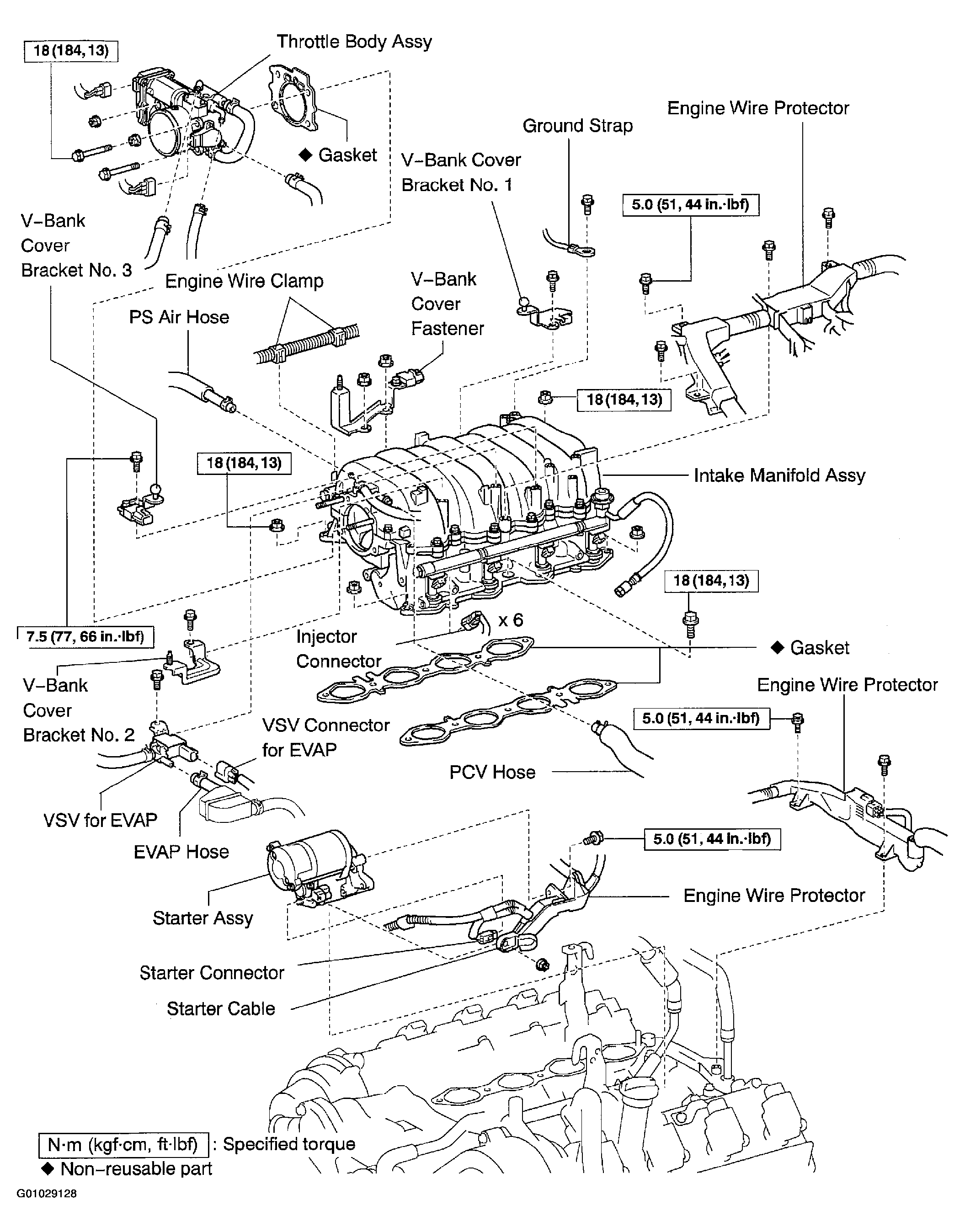

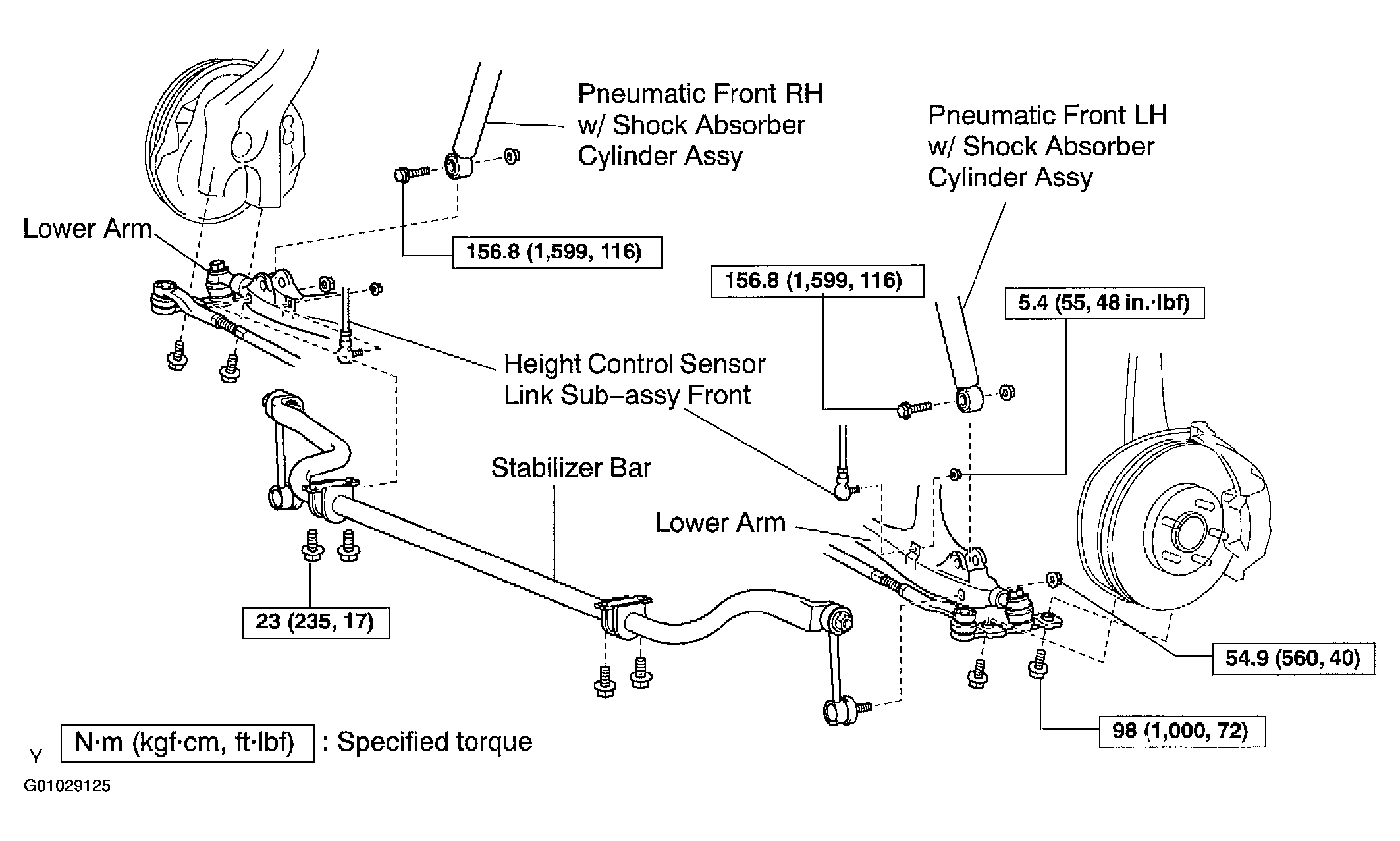

Fig 2: Identifying Partial Engine Assy Components (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

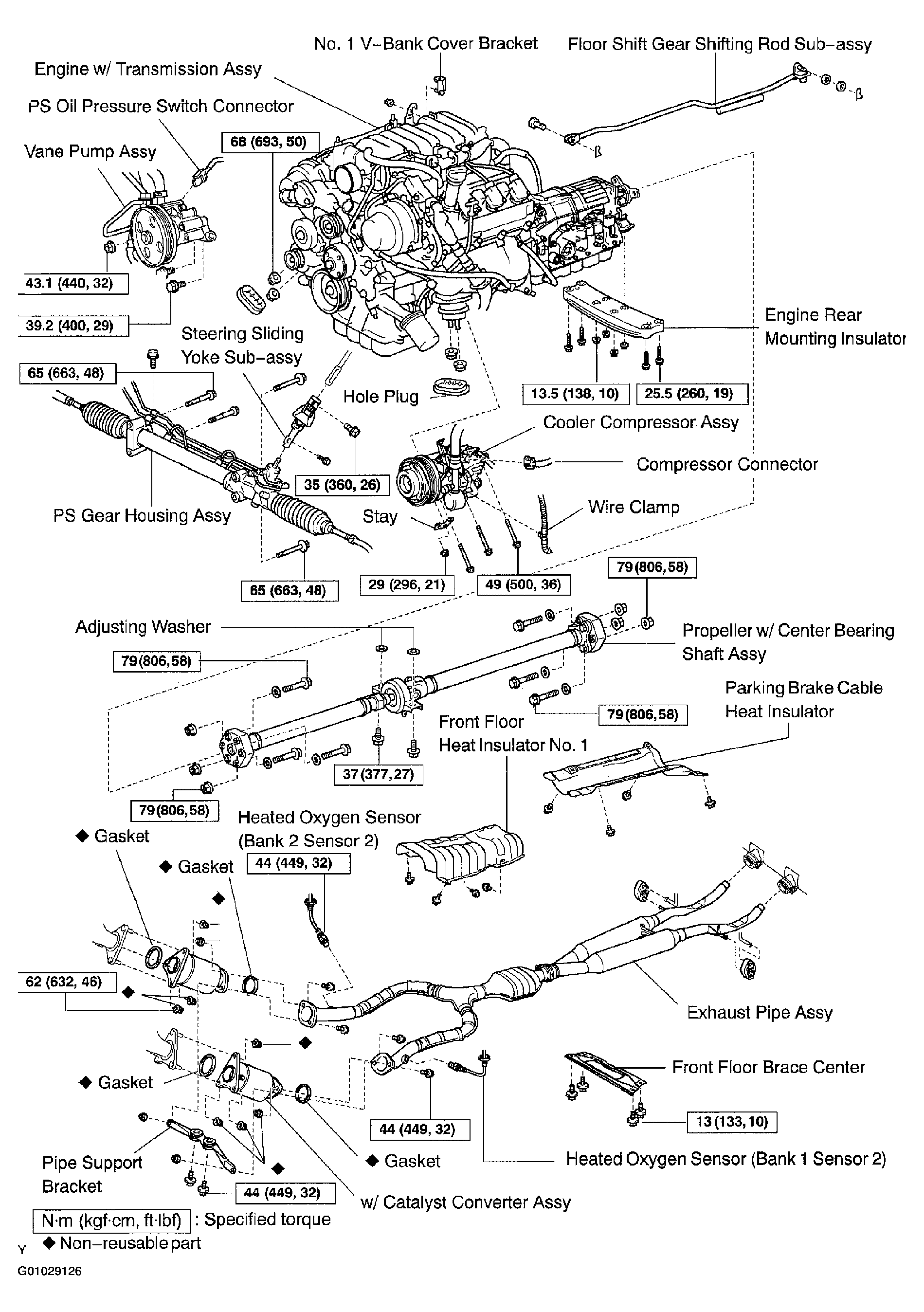

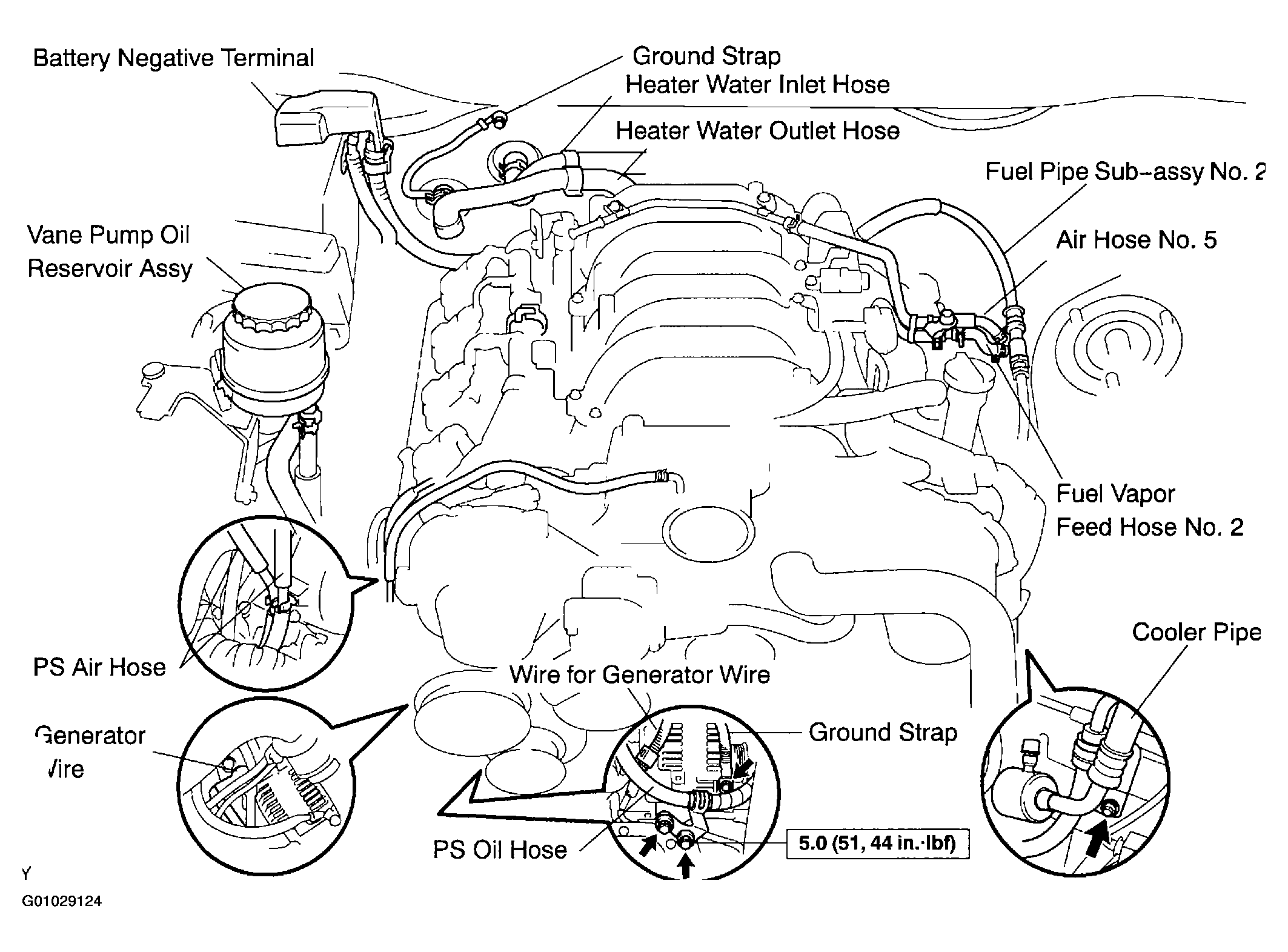

Fig 3: Identifying Partial Engine Assy Components (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

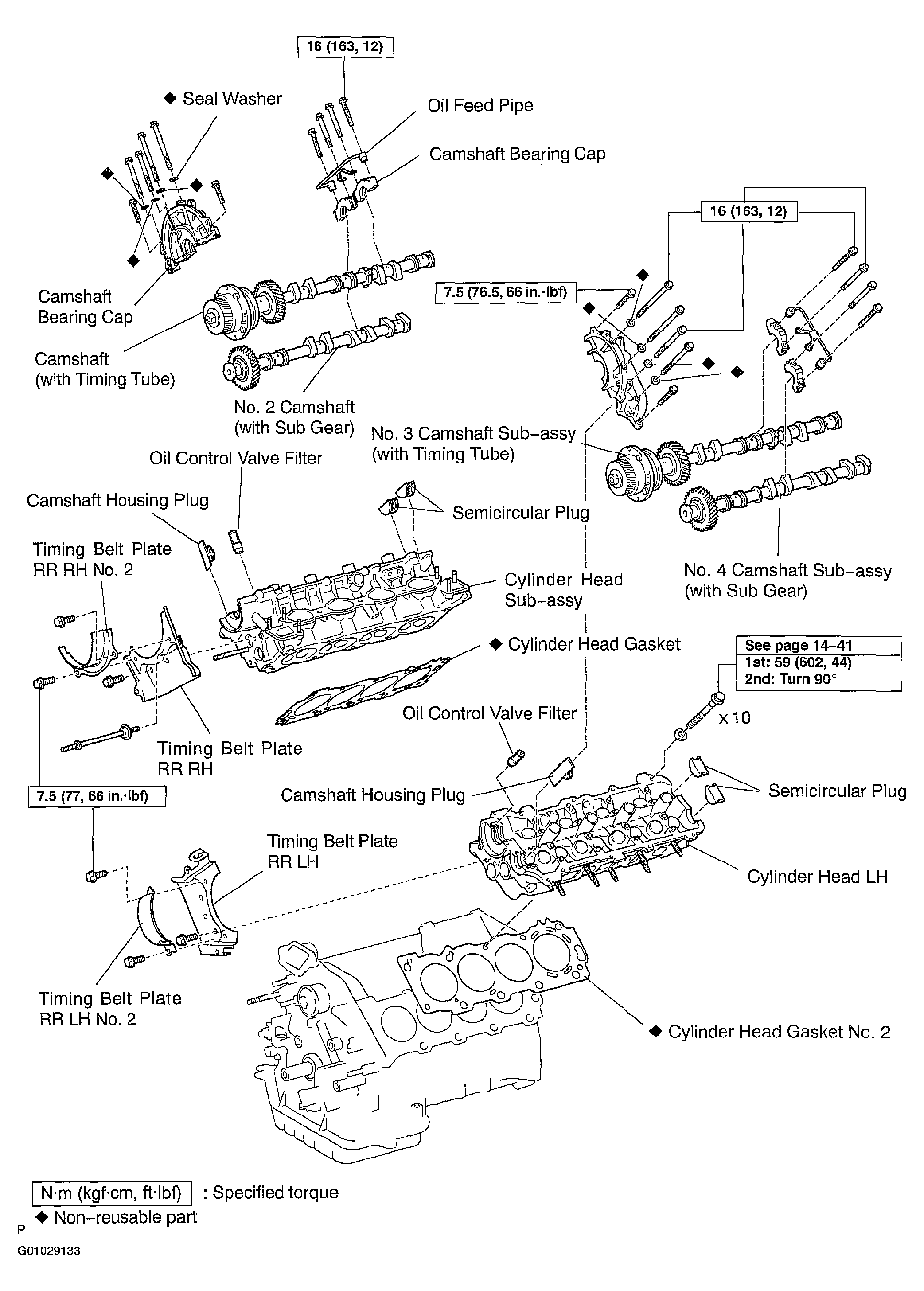

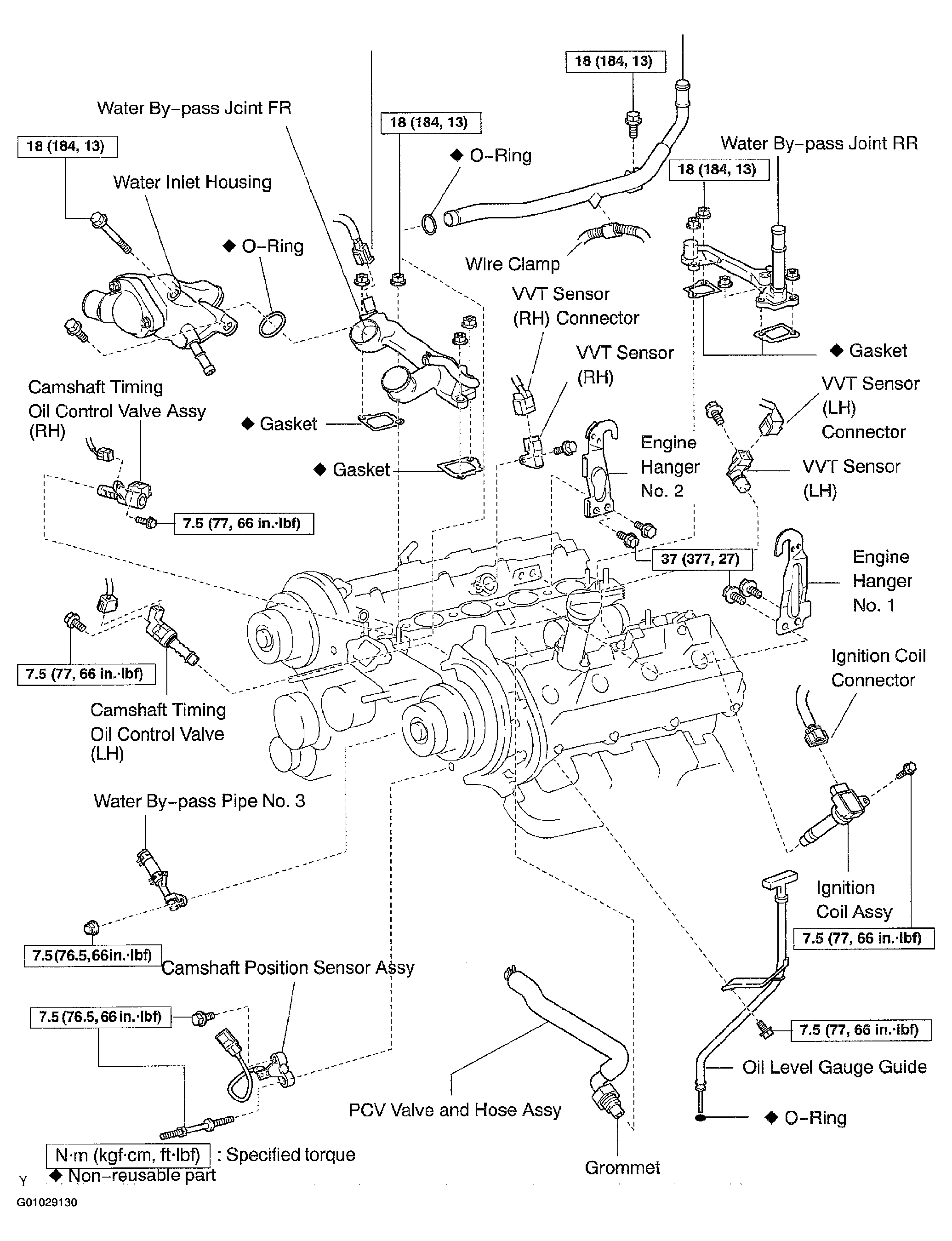

Fig 4: Identifying Partial Engine Assy Components (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

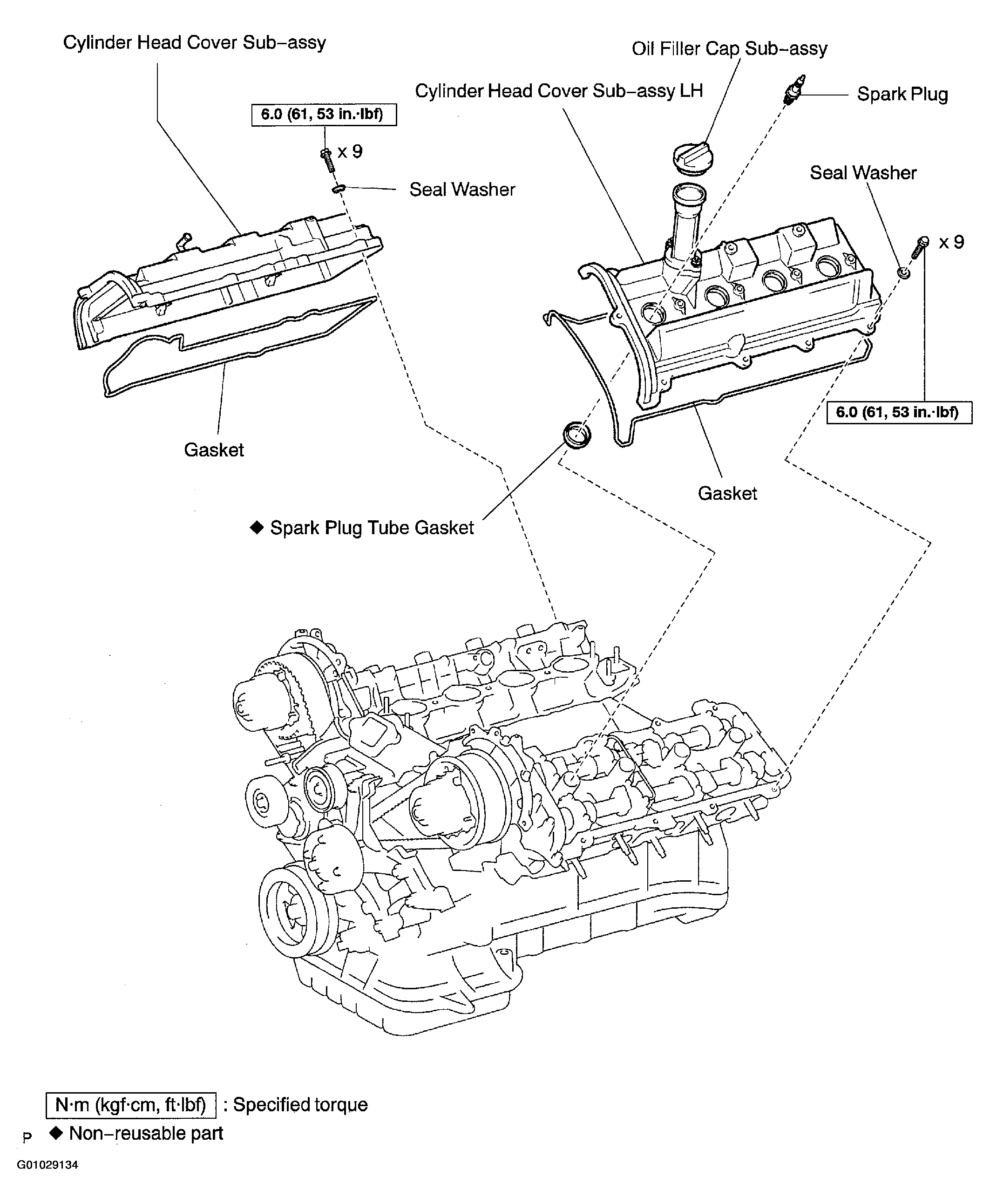

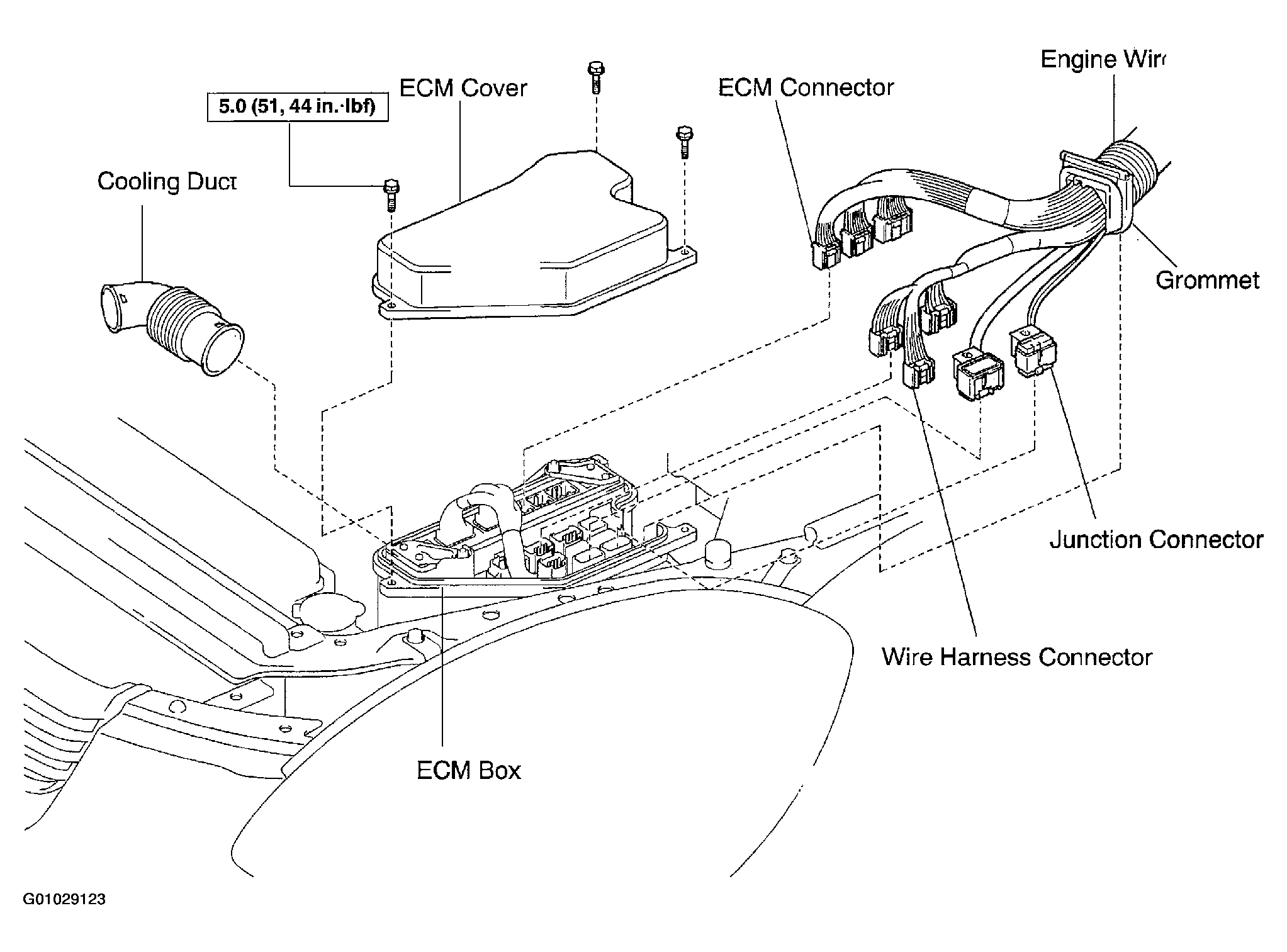

Fig 5: Identifying Partial Engine Assy Components (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

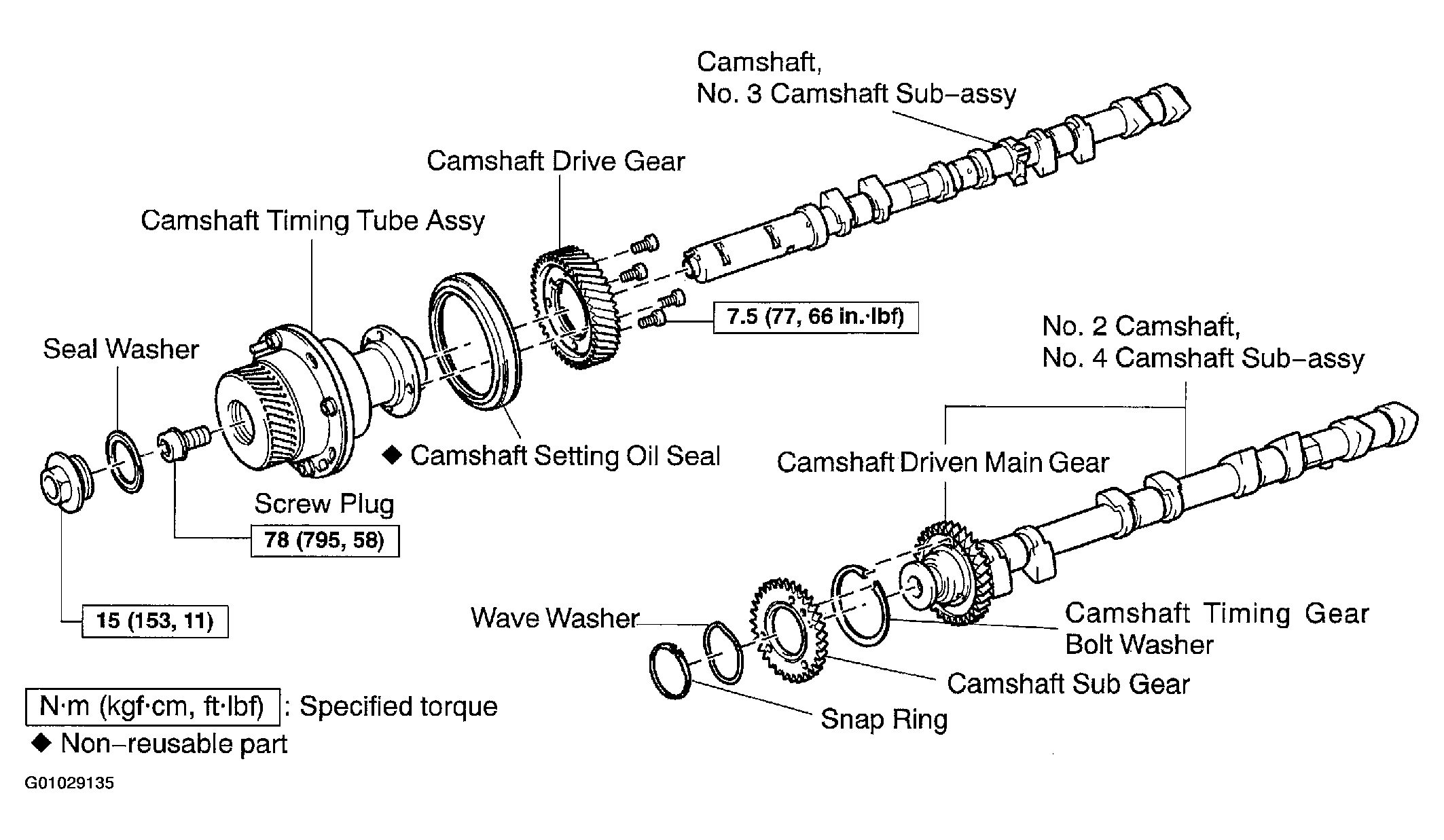

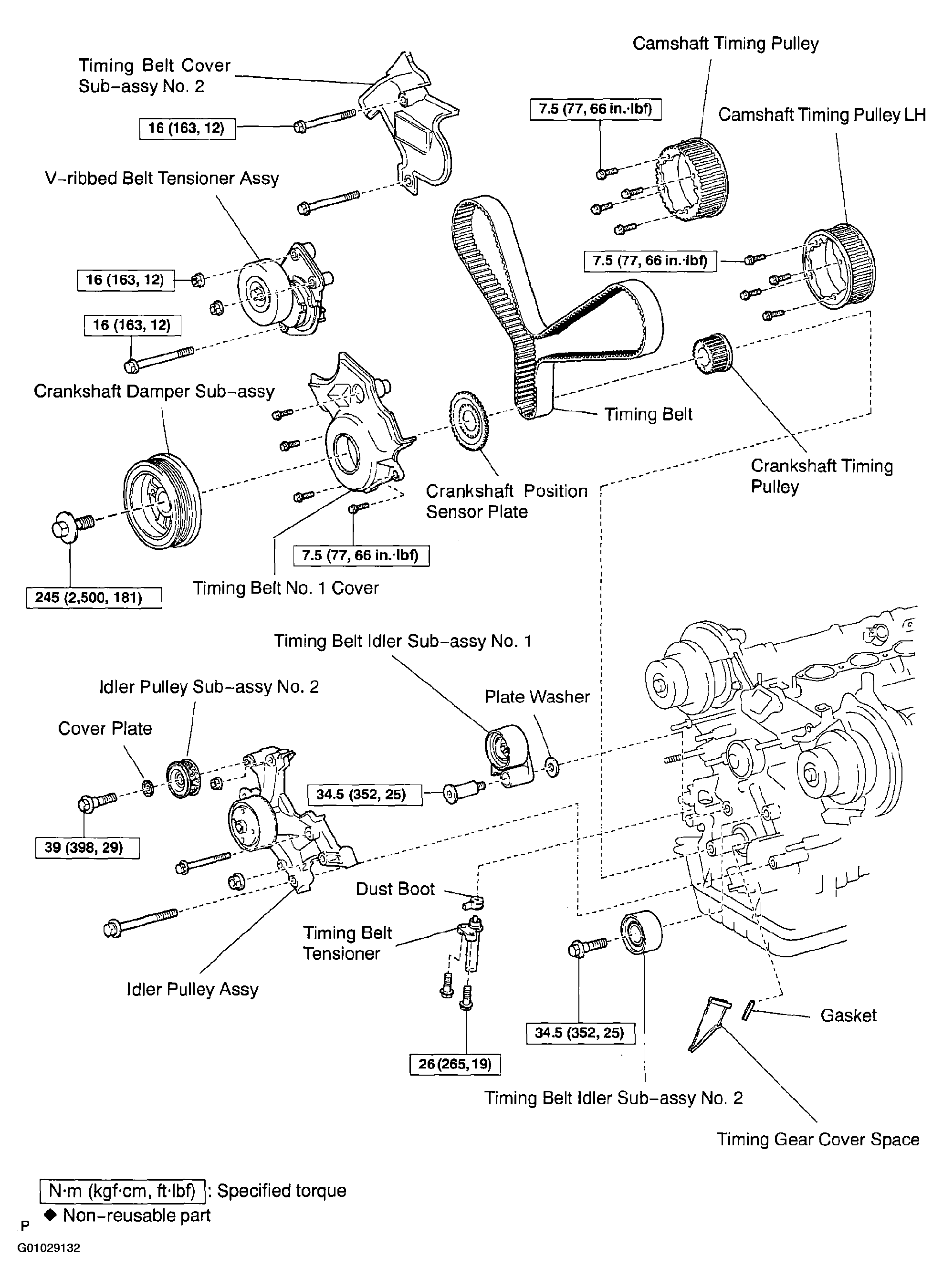

Fig 6: Identifying Partial Engine Assy Components (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

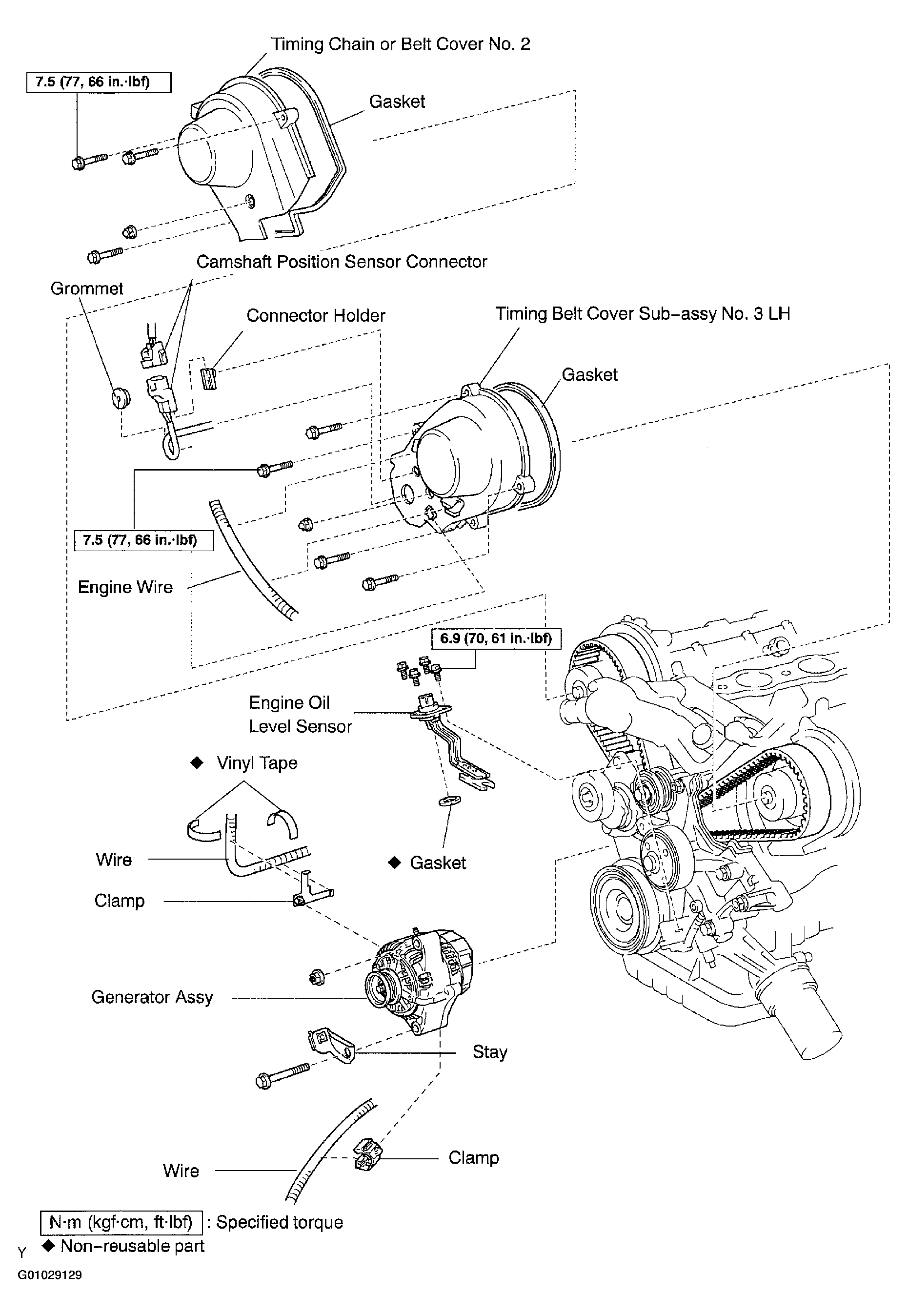

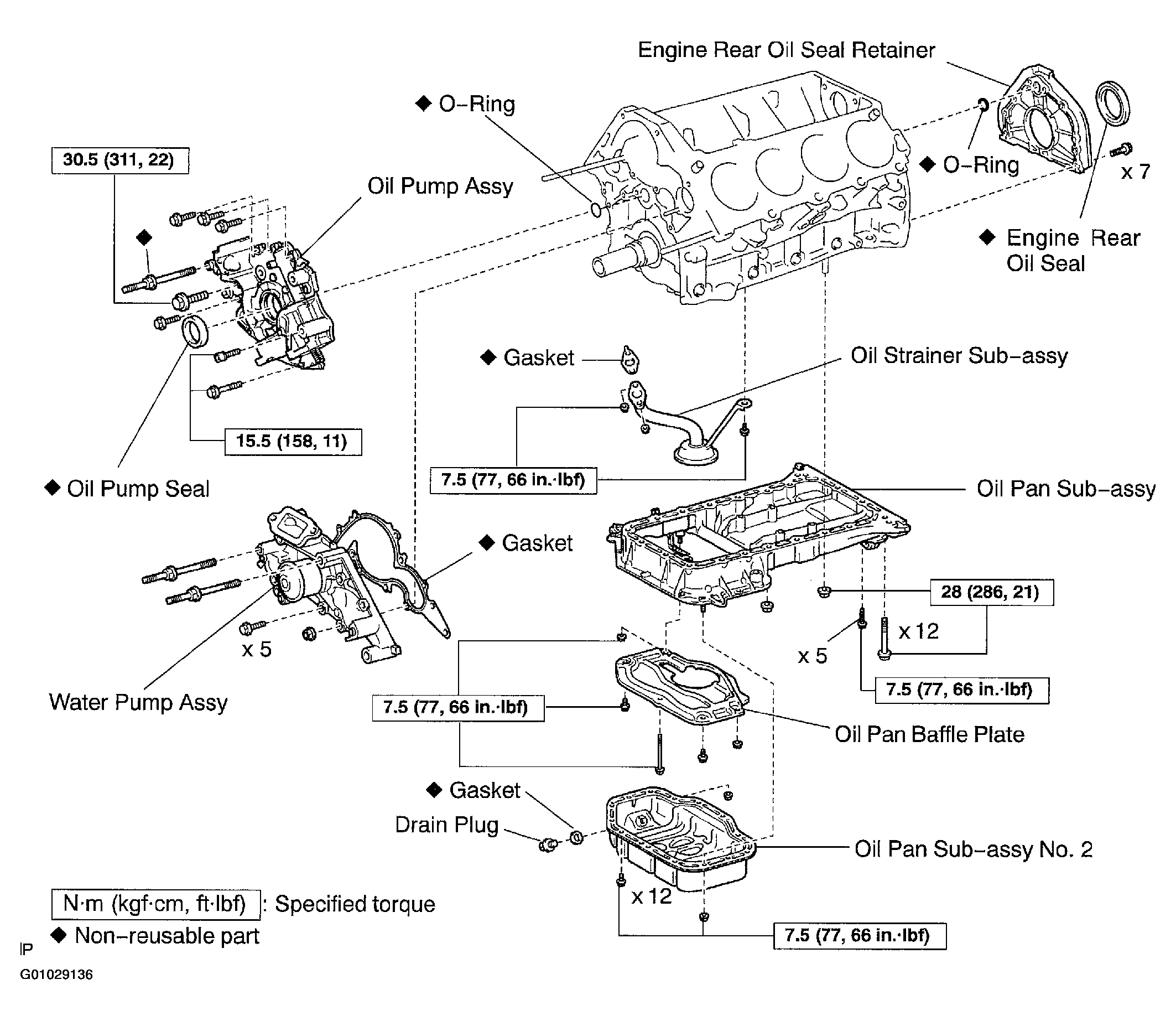

Fig 7: Identifying Partial Engine Assy Components (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

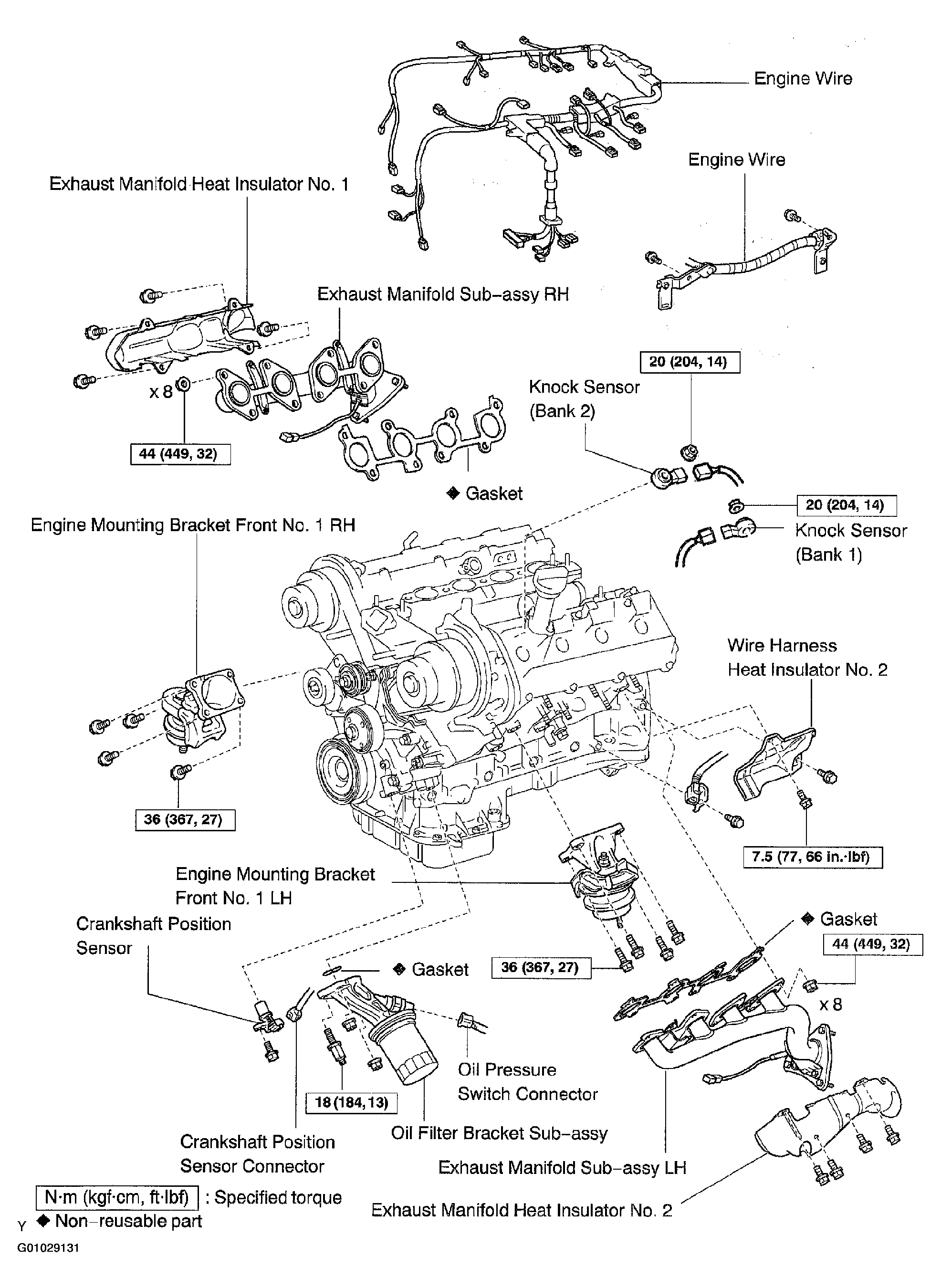

Fig 8: Identifying Partial Engine Assy Components (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Partial Engine Assy Components (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Partial Engine Assy Components (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Partial Engine Assy Components (11 Of 15)

Fig 12: Identifying Partial Engine Assy Components (12 Of 15)

Fig 13: Identifying Partial Engine Assy Components (13 Of 15)

Fig 14: Identifying Partial Engine Assy Components (14 Of 15)

Fig 15: Identifying Partial Engine Assy Components (15 Of 15)
