DTC 2: "Code 2 Button Module Failure": Wiring Diagram

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

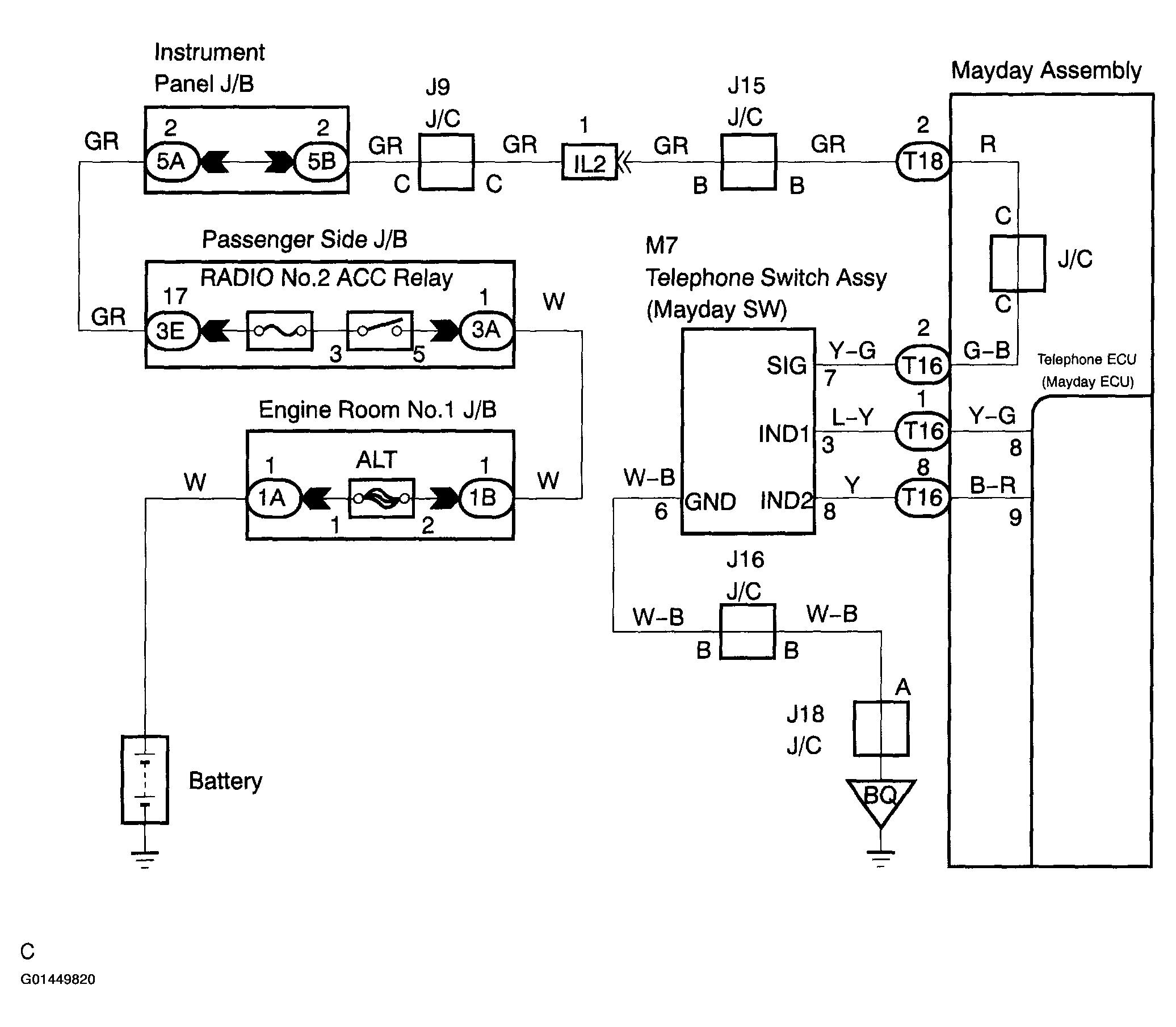

Fig 1: DTC 2 "Code 2 Button Module Failure" Wiring Schematic
G01449820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
