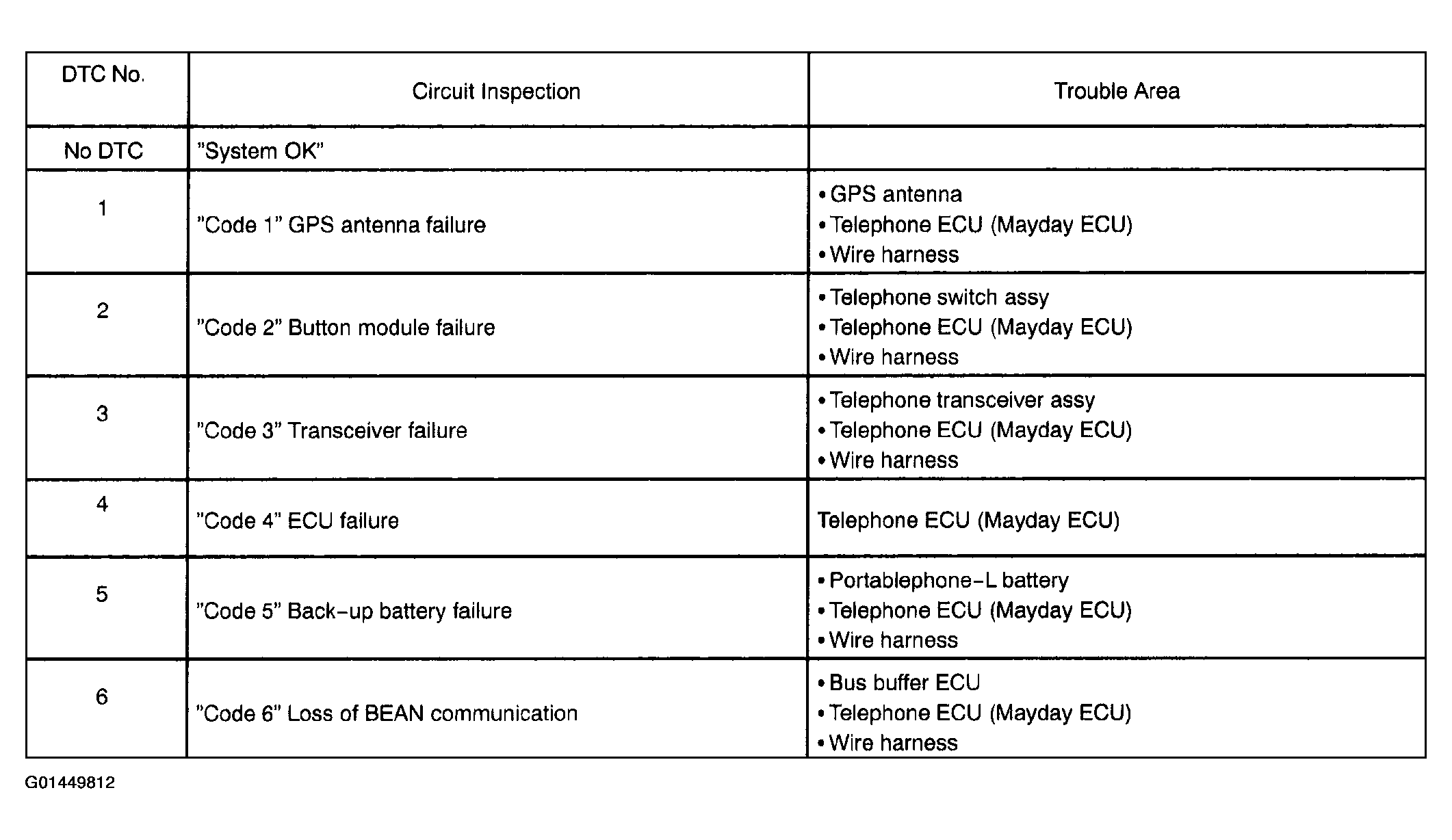

DIAGNOSTIC TROUBLE CODE TABLE
| DTC | Description |
|---|---|
| DTC 1 (ONE) | "CODE 1. GPS ANTENNA FAILURE" |
| DTC 2 (TWO) | "CODE 2. BUTTON MODULE FAILURE" |
| DTC 3 (THREE) | "CODE 3. TRANCEIVER FAILURE" |
| DTC 4 (FOUR) | "CODE 4. ECU FAILURE" |
| DTC 5 (FIVE) | "CODE 5. BACK-UP BATTERY FAILURE" |
| DTC 6 (SIX) | "CODE 6. LOSS OF BEAN COMMUNICATION" |
HINT:
After all of the instruction messages have been provided, the voice of "Diagnostic complete" follows.
